RX-70-4K v2 4K UHD HDBaseT Receiver with 5Play and 2-way PoH
User Guide
Note: The following information applies to version 2 of this product as identified by v2 after the model number on the product label.
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process.
In the Box
1x RX-70-4K Receiver
1x Wide-band IR Emitter
1x Wide-band IR Receiver (30-50KHz)
2x Mounting Brackets
1x 3-pin Phoenix Connector
1x 2-pin Phoenix Connector
1x Quickstart Guide (this document)

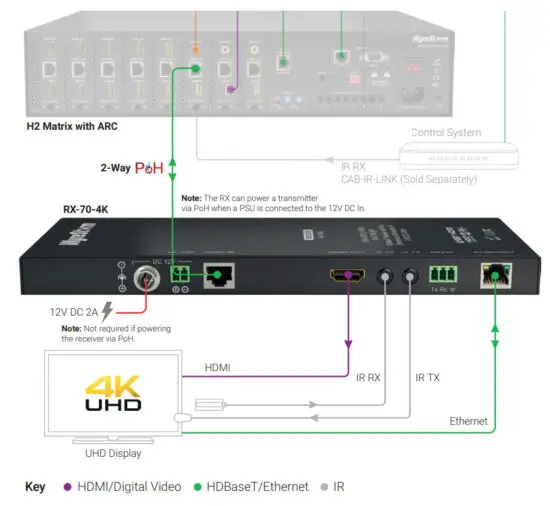

Basic Wiring Diagram
IMPORTANT!
Disconnecting and connecting (hot plugging) HDMI or HDBaseT while devices are powered on may cause damage. WyreStorm recommends powering off devices before disconnecting these connections.
Recommended Products
To take full advantage of the features of this receiver, WyreStorm recommends the following products be used within the system.
- CAB-IR-LINK – Use this cable when using an IR control system for matrix control of HDBaseT pass-through.
Additional Information
This Quickstart Guide provides the basic steps for the common uses of this product. Refer to the Installation Guide and other documentation on the product page for additional information.
Before Beginning
WyreStorm recommends visiting the product page before installing this product for updates to this Quickstart Guide as well as other information about the product.
- Verify that all items are included per the In The Box list.
Pre Wire
- Run a Cat5e/6/6a cable from the transmitter location to the receiver location no longer than 70m/230ft (4K UHD) and 100m/328ft (1080p).
Terminate the cable per the HDMI/HDBaseT Wiring section. - (Optional) If using 3rd party IR emitters or connecting blocks at either the transmitter or receiver, run the wire and terminate per the IR TX (Emitter) Wiring section.
- (Optional) If using RS-232 pass-through, run the wire and terminate per the RS-232 Wiring section.
- (Optional) If using 3rd party IR receivers at either the transmitter or receiver, run the wire and terminate per the IR RX (Receiver) Wiring section.
Receiver Installation
- Connect the HDMI Out on the receiver to an input on the display using an HDMI cable from a high-quality brand such as WyreStorm Express.
- Using the cable created in Pre Wire step 1, connect the 8-pin RJ-45 female plug to the HDBT In jack.
- (Optional) Place an IR emitter onto the display device near the device’s IR sensor and connect it to the IR TX port.
- (Optional) If using RS-232 pass-through, connect the 3-pin connector to the RS-232 port on the receiver and the opposite end to a port on the device being controlled.

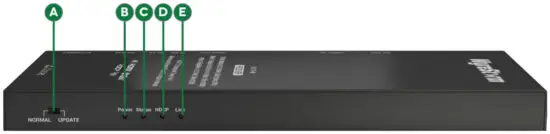

Front Panel
| A RS-232 | Switches the mode for the RS-232 port. Normal: RS-232 HDBaseT pass-through. Update: RS-232 firmware update. |
| B Power LED | Solid: The receiver is powered On Off: The receiver is powered Of |
| C Status LED | Flashing: The receiver is operating normally. Off: The receiver is not operating normally. |
| D HDCP LED | Solid: HDCP content is present. Flashing: HDCP content is not present. Off: No signal. |
| E LINK LED | Solid: The link to the receiver has been established. Flashing: The link to the receiver has not been established. |

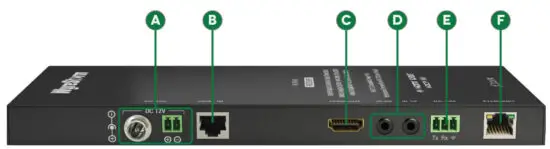

Rear Panel
| A Power In | 5.5mm Male Barrel Jack/2-pin Phoenix Connector Connection to this jack is not required when using PoH. See Power Supply Wiring for details. |
| B HDBT In | 8-pin RJ-45 female Connect to the HDBT Out of a max or HDBaseT transmitter. See HDMI/HDBaseT Wiring for important wiring guidelines. |
| C HDMI Out | 19-pin type A HDMI female: Supports HDMI and DVI/D (requires adapter-not included). |
| D IR TX/FIX | IR TX – 3.5mm (1/8in) Mono Jack Connect to the supplied IR emitter to control a local device from the remote display location via HDBaseT. IR RX – 3.5mm (1/8in) Stereo Jack: Connect to the supplied IR receiver to send IR to the remote display via I-IDBaseT See IR Wiring. |
| E RS-232 | 3-pin Phoenix Connector Used to send and receive RS-232 signals to/from the source location via HDBaseT and firmware updates. See RS-232 Wiring. |
| F Ethernet | 8-pin RJ-45 female 110/100 Mbps auto-negotiating Connect to the Ethernet port on a network-enabled display. |
HDMI/HDBaseT Wiring
IMPORTANT! Wiring Guidelines
- The use of patch panels, wall plates, cable extenders, kinks in cables, and electrical or environmental interference can have an adverse effect on HDMI or HDBaseTtransmission limiting performance. Steps should be taken to minimize these factors (or remove them completely) during installation for best results.
- While similar in nature, the HDBaseT protocol is different than Ethernet, and voltages provided for PoH can be higher than those provided by PoE. For this reason, never connect an HDBaseT link to an Ethernet router or switch to avoid damaging the connected devices.

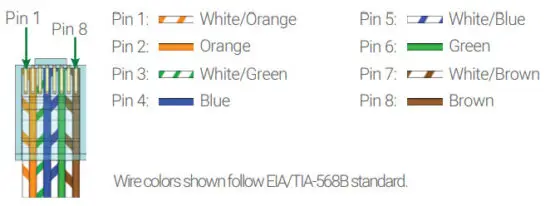

Wiring for HDBaseT follows the EIA T568B standard.

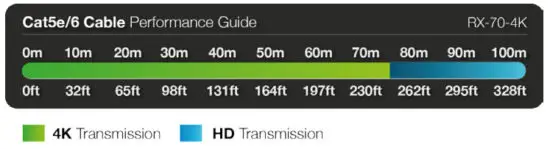

Resolution Distances
The type of category cable used and the distance between the matrix and the receiver can restrict the available video resolution.
Refer to Video Resolutions in the Specifications table for the max distance based on resolution.
IR Wiring
IR TX (Emitter) Wiring
The connection for IR TX (transmit) uses a 3.5mm (1/8in) mono plug.
IR RX (Receiver) Wiring
Connection for IR RX (receive) uses a 3.5mm (1/8in) stereo jack that outputs +5V DC to power the included IR receiver.
IMPORTANT!
- 3rd party IR receivers may require a different voltage, refer to the documentation provided with the IR receiver before making any connections to avoid damaging the device.
- When connecting to an IR control system use the WyreStorm CAB-IR-LINK cable to remove the sleeve +5V DC.
RS-232 Wiring
RS-232 Connection Guidelines

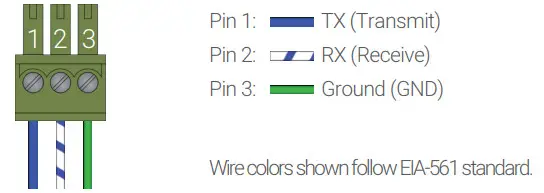

The following wiring diagram shows the pinouts for the extender set. While not shown, connect the TX (transmit) to RX (receive) pins at the control system or PC side of the cable.
Most control systems and computers are DTE where pin 2 is RX, this can vary from device to device. Refer to the documentation for the connected device for pin functionally to ensure that the correct connections can be made.
Power Supply Wiring
The RX-70-4K v2 can receive power via PoH from a compatible HDBaseT matrix or send power to a transmitter. Should the distance or other factors prevent PoH from being used, connect a 12V DC 2A power supply (sold separately) to the receiver.
Specifications
| Audio and Video | |
| Inputs | lx HDBaseT 8-pin RJ-45 female |
| Outputs | lx HDMI 19-pin type A |
| Audio Formats | 2ch Digital I Up to DTS-X and Dolby Atmos |
| Video Resolutions (Max) | HDMI 1920x1080p @60Hz 36bit (15m/50ft) I 48bit (7m/23ft) 3840x2160p @30Hz 4:4:4 24bit (7m/23ft) I @24Hz 4:2:0 HDR 10bit per channel (3m/9.8ft) 4096x2160p @60Hz 24bit 4:2:0/4:4:4 (7m/23ft) |
| Using Cat6 1920×1080 @60Hz 36bit (100m/328ft)I48bit (70m/230ft) 3840x2160p @30Hz 4:4:4 24bit (70m/230ft) I @24Hz 4:2:0 HDR 10bit per channel (70m/230ft) 4096x2160p @60Hz 4:2:0 24bit (70m/230ft) | |
| Using Cat6a/7 1920×1080 @60Hz 36bit (100m/328ft)148bit (100m/3281t) 3840x2160p @30Hz 4:4:4 24bit (100m/328ft)I@24Hz 4:2:0 HDR 10bit per channel (100m/328ft) 4096x2160p @60Hz 4:2:0 24bit (100m/32810 | |
| Color Depth (Max) | 1080p: 48bitI4K UHD: 24bit 1 HDR @24p: 10bit per channel BT.2020 |
| Maximum Pixel Clock | 297 MHz |
| Communication and Control | |
| HDMI | HDCP 2.2 I DVI/D supported with adapter (not included) |
| HDBaseT | HDCP 2.2I2-way PoH I Bi-directional IR, RS-232 and Ethernet |
| Ethernet | lx 8-pin RJ-45 female 110/100 Mbps auto-negotiating |
| IR | lx IR TX 3.5mm (1/8in) Mono I lx IR RX 3.5mm (1/8in) Stereo I Bidirectional over HDBaseT |
| RS-232 | lx 3-pin Phoenix Connector I Bidirectional over HDBaseT |
| Power | |
| Power Supply | Input: 100-240V AC 50/60Hz Output: 12V DC 2A |
| Max Power Consumption | 7.2W |
| PoH (2-way) | 48V 15.4W (each HDBT out) |
| Environmental | |
| Operating Temperature | 32°F — 113°F (0°C – 45°C) 10% — 90%, non-condensing |
| Storage Temperature | -4°F – 158°F (-20°C – +70°C) 1096 — 90%, non-condensing |
| Maximum Bill | 24.6 BT1J/hr |
| Dimensions and Weight | |
| Height | 18mm/0.71in |
| Width | 232mm/9.14in |
| Depth | 93mm/3.67in |
| Weight | 0.50kg/1.1 ibs |
| Regulatory | |
| Safety and Emission | CE I FCC I Rol-IS |
| Maximum BTU | 24.6 BTU/hr |
Troubleshooting
No or Poor Quality Picture (snow or noisy image)
- Verify that power is being supplied to the transmitter and receiving device and that both devices are powered on.
Note:
When using PoH, to power the transmitter, verify that the HDBaseT cable is properly terminated per the HDMI/HDBaseT Wiring section.
- Verify that the matrix, receiver, and display support the output resolution of the source. Refer to Video Resolutions in the Specifications table.
- If transmitting 3D or 4K UHD, verify that the HDMI cables used are 3D or 4K UHD rated.
- Verify that the HDBaseT cable is properly terminated per the HDBaseT Wiring section.
- Verify that all source and HDBaseT connections are not loose and are functioning properly.
No or Intermittent 3 rd party Device Control
- Verify that the IR cable(s) is properly terminated. See IR Wiring.
- Verify that the IR emitter is located near the IR receiver on the device.
Troubleshooting Tips:
- WyreStorm recommends using a cable tester or connecting the cable to other devices to verify functionality.
- Use a flashlight to locate the IR receiver behind any tinted panels on the device being controlled. It will likely appear as a small round disc.
Warranty Information
This product is covered by 3-year limited parts and labor warranty. During this period there will be no charge for unit repair, component replacement, or complete product replacement in the event of a malfunction. The decision to repair or replace will be made by the manufacturer. This limited warranty only covers defects in materials or workmanship and excludes normal wear and tear or cosmetic damage. Visit the product page located at wyrestorm.com for additional information on this product including important technical information not provided in this document and warranty terms & conditions.
Copyright © 2016 WyreStorm Technologies | wyrestorm.com
RX-70-4K v2 Quickstart Guide | 160818
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
[email protected]
