CF Energy CFE-2400 Residential ESS Lithium-Ion Battery User Manual

Advantage

Safety :
LFP(Lithium ion Phosphate) the highest safety
Up to 8 Series or Parallel :
Flexible to increase voltage capacity without any other equipment’s or settings
Cycle Life :
80% of initial capacity after 6000
WiFi & APP :
ntegrated WiFi Modem OTA online upgrade convenient after-sales service
Installation :
Simple buckle fixing minimize the installation time and cost
High-precision SOC :
Accurate sampling of voltage and current SOC mathematic more accurate and never jump

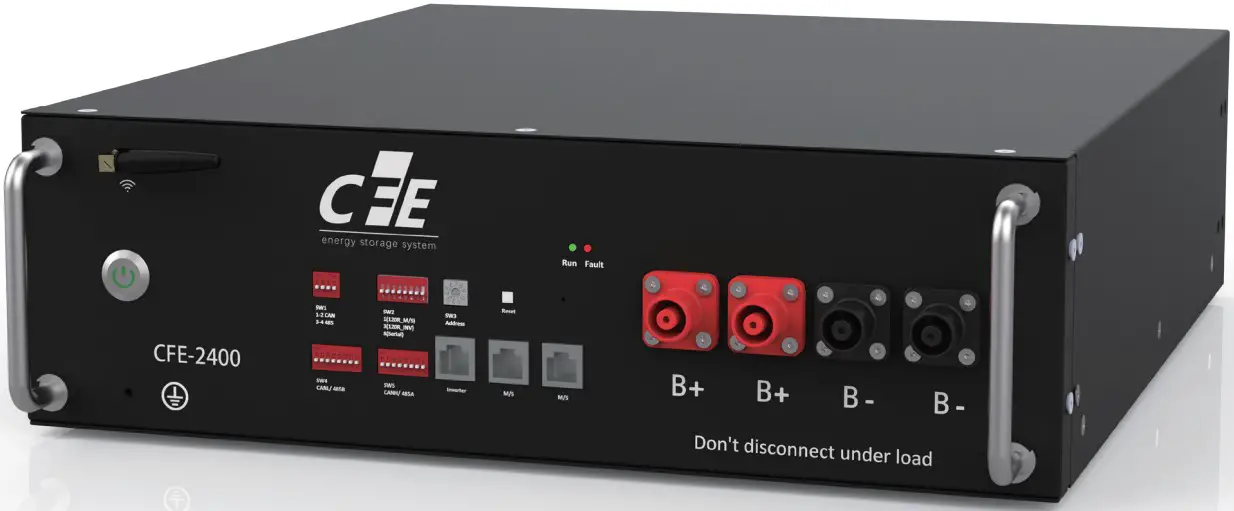

CFE-2400

Nominal Voltage:   51.2 V     Voltage Range: 48 ~ 56 V
Nominal Capacity:   2457 Wh    Usable Capacity: 2211 Wh
Charge/Dischage Current:  30(Recommend) A

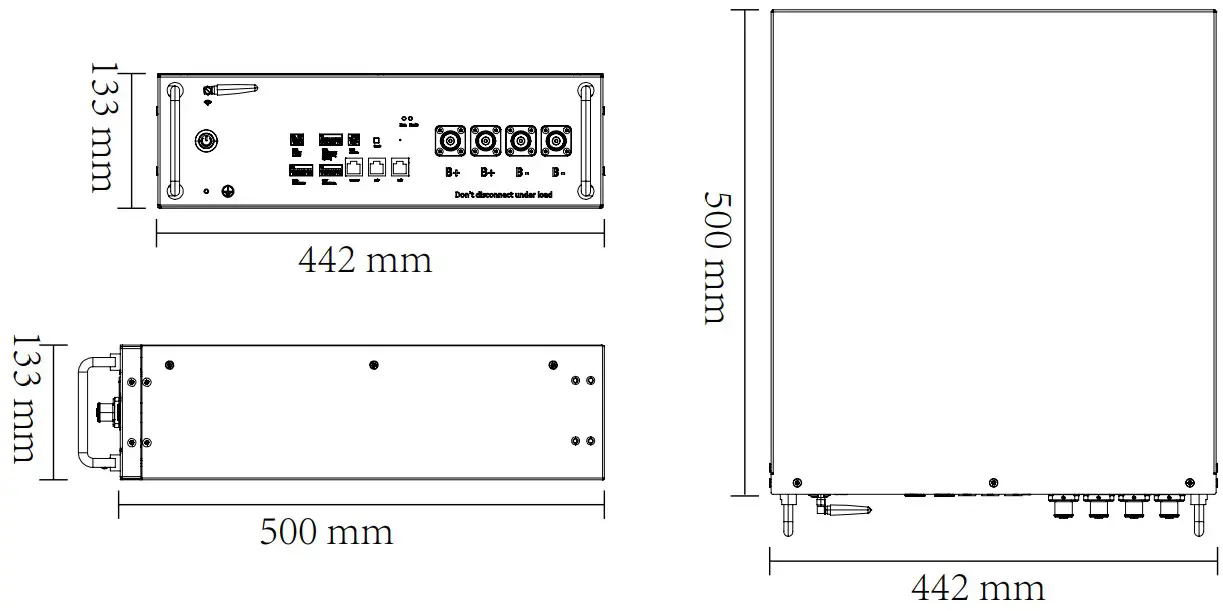

Dimension: 442*500*133 mm  Weight: 27 Kg
CommucationPort:  CAN / RS485  Single string quantity: 8 pcs
Charge Working Temperature:  0～50℃   DisCharge Working Temperature: -10～50℃
Storage Temperature:   -20～60℃  Humidity: 0～95% (No Condensed Water)
Altitude:  ＜2000 m  Cooling Type: Ambient Cooling
Installation:  Cabinet or Wall Mounting
IP Rating: IP20  Warranty:   10 years
Authentication Level:   CE & TUV(IEC 62619,  IEC 62040) UN3480
[1] Test conditions: 0.2C Charging/Discharging, @25°C, 80% Dod）

CF Energy Co., Ltd

Company Address: Intelligent Manufacturing Base , Xianyang , Shaanxi , PRC
Tel: (+86) 029-38367888
Web: www.cfenergygroup.com
E-mail: [email protected]
