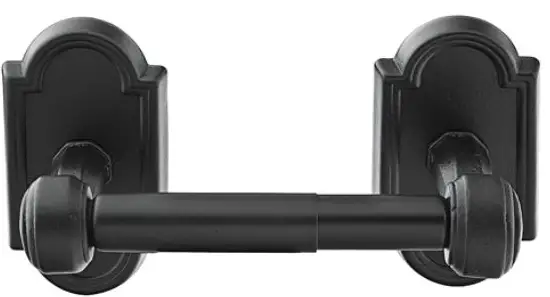

EMTEK 2704 Toilet Paper Holder with Spring Rod
Installation Guide
- Mark the center of the mounting plates

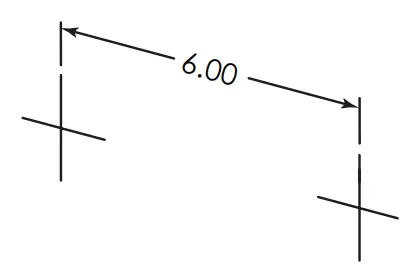

Make two marks on wall to locate the center of the mounting plates. Center-to-center spacing for mounting plates is 6 inches. - Mark hole locations

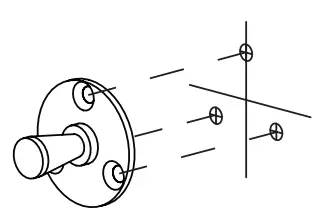

Using the mounting plate, mark three hole locations per mounting plate. - Install screw anchors

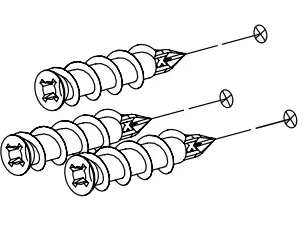

Use a screwdriver to install six screw anchors into the wall (3 per plate) - Install Mounting Plate

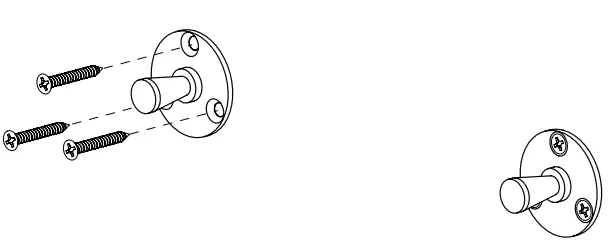

Install mounting plates on top of the Screw Anchors. Secure using screws provided. - Install trim plate and post

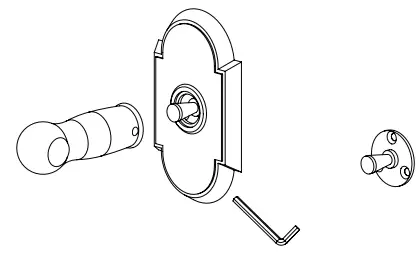

Slip trim plate and post over mounting plate stud. Tighten set screw at the base of post with Allen Wrench provided. - Install trim plate and post cont.

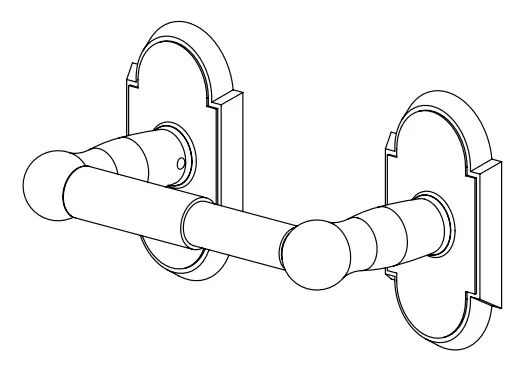

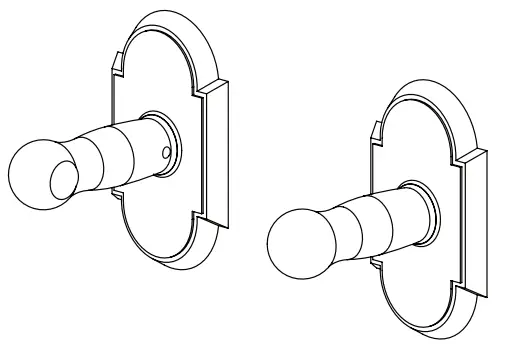

Repeat step 5 for the other trim plate and post. - Install Paper Holder Spring Rod
