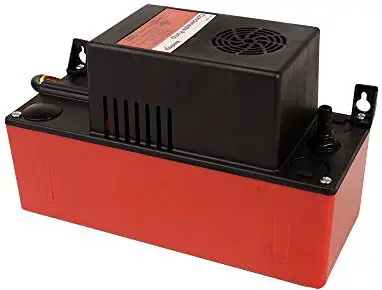

DIVERSITECH CP-22LPT Condensate Pump
LED Indicator Status
| LED STATUS/INDICATION/ | |
| Green LED | Indicates pump has power and is ready
|
| Amber LED | Indicates pump is running and removing condensate from tank
|
| Red LED
| Indicates pump is in alarm mode and that the system is shutoff/ disabled (if connected)
|
Specifications
| CP-22 CP-22-230 CP22LP-230 CP-22LP CP-22T-230 CP-22T CP-22LPT-230 CP-22LPT | ||
| Rated Voltage | 120 Volts/60Hz | 220 Volts/60 Hz |
| Rated Current Draw | 1.9 Amps | 1.0 Amps |
| Head Height | 22 ft. maximum | 22 ft. maximum |
| Flow Rate at Zero Head | 1.6 GPM | 1.0 GPM |
| Product Weight | 5 lbs. (4.7 lbs. low profile) | 5 lbs. (4.7 lbs. low profile) |
| Inlet Height from Base | 4.4″ (1.75″ low profile) | 4.4″ (1.75″ low profile) |
General Information
- This pump is designed to automatically remove the condensate water that collects from appliances such as air conditioners, high-efficiency furnaces and de-humidifiers. The pump has a built-in tank that collects water from the appliance.
- When water collected reaches sufficient level inside pump tank, pump switches on and pumps water to a remote location for disposal.
- When tank is sufficiently empty, pump automatically switches off. Pump is capable of lifting water up to 22 ft. and is equipped with a check valve that prevents water from flowing back into tank when pump shuts off.

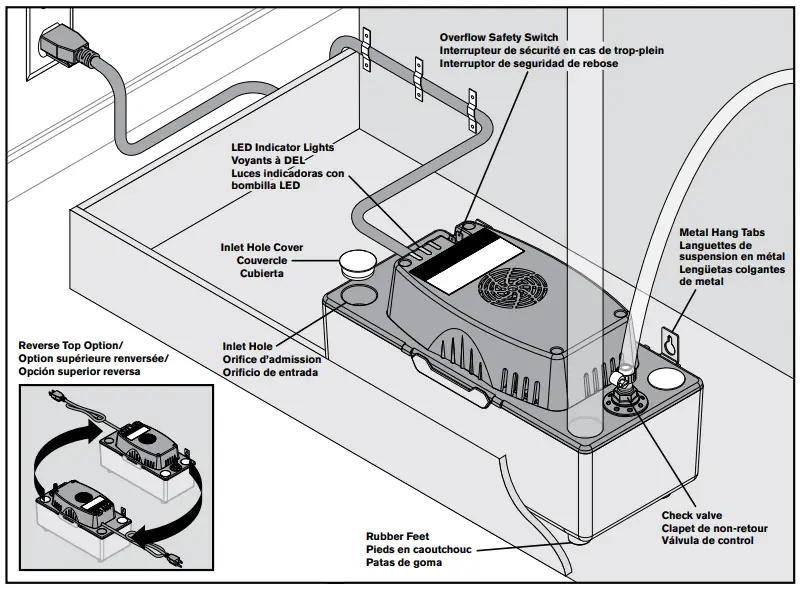

- The pump is outfitted with lights that show the status of power available, motor running, and high water (alarm) conditions. Pump is also equipped with a switch that activates when water in tank reaches an overflow condition.
- The overflow safety switch may be connected to turn off the appliance if high water condition occurs
Features
