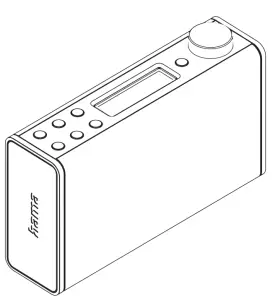

Hama Digital Radio Dr7usb Instruction Manual

Digital Radio Digitalradio
QUICK GUIDE KURZANLEITUNG

Operating Instructions

Technical Data Technische Daten

Audio Connectors  Audio Anschlüsse

Sources Quellen

Presets Favoriten

Further information and features are available on / WeitereInformationen und Features finden Sie hier www.hama.com -> 00054242

Operating Instructions

Controls and displays
Controls and displays

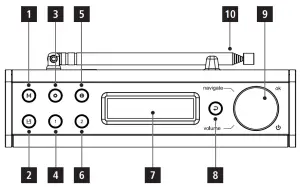

A: Radio top view
1		[MODE] button
2		[PRESET] button
3		[SETTINGS] button
4		[PRESET 1] button
5		[INFO] button
6		[PRESET 2] button
7		Display
8		[BACK] button
9		Navigation/OK/Volume
10		Antenna

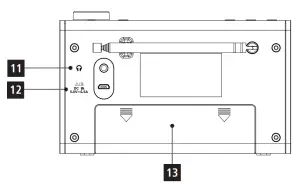

B: Rear
11		Headset connection (3.5 mm)
12		Micro-USB mains connection
13		Battery compartment

Note
** Turning the controller allows you to change the volume or navigate through the menu structure. Pressing this rotary controller puts the device in standby mode (volume control) or confirms a selection (navigation control).

Important information -Quick-reference guide:

• This quick-reference guide contains the most important basic information, such as safety instructions and the steps necessary to operate the product.
• To help protect the environment and conserve valuable raw materials, Hama does not issue a printed manual and instead makes this available exclusively as aPDF download.
• The full text of the manual is available at the following internet address:  www.hama.com -> 00054242 -> Downloads
• Save the manual on your computer for reference and print it out if possible.

 Explanation of warning symbols and notes

Risk of electric shock This symbol indicates a risk of electric shock from touching product parts carrying hazardous voltage.

Warning
This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.

Note This symbol is used to indicate additional information or important notes.

Package contents

• DR7USB, Digital Radio
• 4x AA (Mignon) batteries
• These operating instructions

Safety instructions

• The product is intended for private, non-commercial use only.
• Do not use the product in areas in which electronic products are not permitted.
• Protect the product from dirt, moisture, and overheating and use it in dry rooms only.
•  As with all electrical products, this device should be kept out of the reach of children.
•  Do not drop the product and do not expose it to any major shocks.
•  Do not operate the product outside the power limits specified in the technical data.
•  Keep the packaging material out of the reach of children due to the risk of suffocation.
• Dispose of packaging material immediately in accordance with the locally applicable regulations.
• Do not modify the device in any way. Doing so voids the warranty.
•  Use the product only for the intended purpose.
• Do not use the product in the immediate vicinity of heaters, other heat sources, or in direct sunlight.
•  Do not use the product in a damp environment and avoid splashing water.
• Only use the article under moderate climatic conditions.

 Risk of electric shock

• Do not open the device or continue to operate it if it becomes damaged.
• Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts.

Warning –Batteries

• When inserting batteries, note the correct polarity (+ and -markings) and insert the batteries accordingly. Failuretodosocould results in the batteries leaking or exploding.
• Only use batteries (or rechargeable batteries) that match the specified type.
• Before you insert the batteries, clean the battery contacts and the polarity contacts.
• Do not allow children to change batteries without supervision.
•  Do not mix old and new batteries, or batteries of different types, or from different manufacturers.
•  Remove the batteries from products that are not being used for an extended period (unless this are being kept ready for an emergency).
• Do not short-circuit batteries.
•  Do not charge batteries.
• Do not burn batteries.
• Keep batteries out of the reach of children.
• Never open, damage, or swallow batteries or allow them to enter the environment. They can contain toxic, environmentally harmful heavy metals.
• Remove spent batteries from the product and dispose of them without delay.
• Avoid storing, charging, and using in extreme temperatures and at extremely low atmospheric pressures (such as at high altitudes).

Getting started

Note -optimizing reception
Please note:

• Always pull the antenna out completely.
• We recommend you adjust the antenna vertically to ensure optimal reception.
  Note –Power supply
  With batteries inserted, the radio is always supplied with power from the batteries. Therefore, to operate the radio off a USB power supply, you should remove the batteries from the battery compartment first.

Battery operation

• Open the battery compartment cover, which is located on the rear of the radio.
• To do this, slide the battery compartment cover in the direction shown.
• Insert the batteries paying attention to match the polarities correctly. The correct polarity is indicated by the plus and minus symbols in the battery compartment.
• Then close the battery compartment cover.
  Switching on

Warning -mains operation

• Disconnect the product from the power supply using the On/Off switch –if this is not available, unplug the power cord from the socket.
• If you will not be using the product for a prolonged period, disconnect it from mains power.
• Connect a suitable USB power pack to the rear of the radio using a MicroUSB cable (12).
• Connect the power pack to a properly installed and easily accessible mains socket.
•  Wait until the radio has initialized fully.
• Press [NAVIGATION/OK/VOLUME](9) to switch on the radio.
  General notes on the use
   Switch On /Off /Standby
•  Press [NAVIGATION/OK/VOLUME](9) to switch on the radio.
• Press and hold [NAVIGATION/OK/VOLUME](9) for approx. 3seconds to switch the radio off (standby).
•  To completely switch off the device, disconnect it from the power supply.

Navigation and control
• After pressing a shortcut button, navigate through the menu items using.
• Select individual menu items by turning [NAVIGATION/ OK/VOLUME](9).
• Confirm the selection by pressing [NAVIGATION/OK/ VOLUME](9).
Volume adjustment
• Youcan turn the volume up (right) or down (left) by turning [NAVIGATION/OK/VOLUME](9) accordingly.

Language
The first time it is used, the radio’s default language is English. To change the radio’s menu language, proceed as follows:

• Press [ ](3) to access the Settings menu.
• Use [POWER/VOLUME/ENTER/NAVIGATE](5) to navigate to the “Language” menu item. Confirm the selection by pressing [POWER/VOLUME/ENTER/ NAVIGATE](5).
• Use [POWER/VOLUME/ENTER/NAVIGATE](5) to select your preferred system language.
  Note
• The following languages are available: Czech, English, Danish, Dutch, German, Finnish, French, Italian, Norwegian, Polish, Portuguese, Slovak, Spanish, Swedish and Turkish

Care and maintenance

• Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.
• If you do not plan to use the product for a prolonged period, turn off the device and disconnect it from the power supply. Storeitinaclean, a dry place away from direct sunlight.

Warranty disclaimer
Hama GmbH &CoKGassumes no liability and provides no warranty for damage resulting from improper installation/ mounting, improper use of the product or from failure to  observe the operating instructions and/or safety notes.

ecycling information
Note on environmental protection:
After the implementation of the European Directives 2012/19/EU and 2006/66/EU in the national legal system, the following applies: Electrical and electronic devices, as well as batteries, must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries to the designated public collection points or to the point of sale at the end of their service lives. Detailed information on this topic is defined in the national laws of the respective country. The presence of the above symbol on the product, operating instructions, or package indicates that the product is subject to these regulations. By recycling, reusing the materials, or other forms of utilizing old devices/batteries, you are making an important contribution to protecting our environment.

Declaration of Conformity

Hama GmbH &CoKGhereby declares that the radio equipment type [00054242] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: www.hama.com -> 00054242 -> Downloads.
To limit exposure to electromagnetic fields This device is intended for use at a distance of at least  20 cm from the body of the user or persons nearby. This device must not be worn or carried on the body.

Hama GmbH &CoKG
86652 Monheim/Germany
www.hama.com

Service &Support
www.hama.com
+49 9091 502-0

The Spotify software is subject to third party licenses found here: https://www.spotify.com/connect/third-party-licenses

The Bluetooth® wordmark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Hama GmbH &CoKGisunder license. Other trademarks and trade names are those of their respective owners.
All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes. Our general terms of delivery and payment are applied.
