Ensemble™

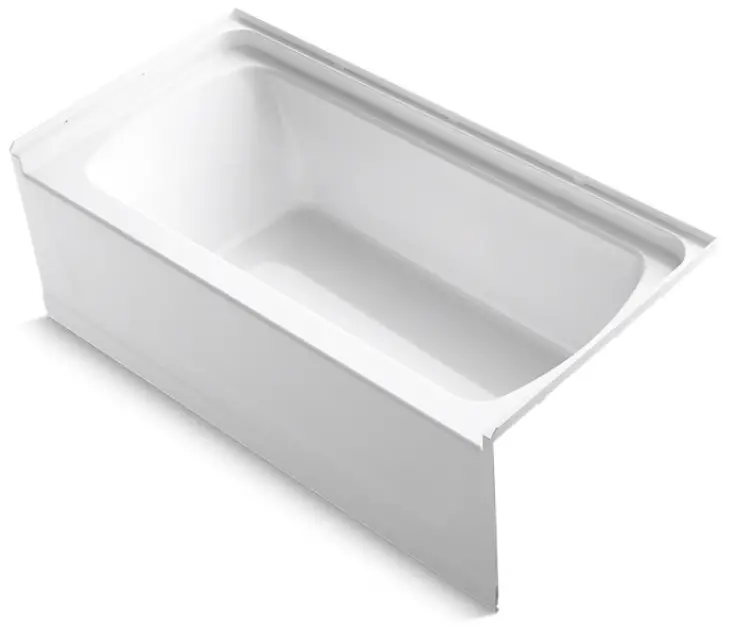

60″ x 30″ AFD bath w/ integral apron
71171122
ADA Codes/Standards
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
ADA
ICC/ANSI A117.1
HUD, UM Bulletin 73
STERLING® Vikrell® or Acrylic Baths and Shower Bases Ten-Year Limited Warranty
See the website for detailed warranty information.
Available Colors/Finishes
Color tiles are intended for reference only.
| Color | Code | Description |
 | 0 | White |
 | 96 | KOHLER Biscuit |
Features
- 18-3/4″ (476 mm) apron.
- 3″ (76 mm) drain-to-floor clearance for above-floor drain
Installation.
- Suitable for tile-down applications.
- Integral apron for quick installation.
Material
- Made from solid Vikrell® material for strength, durability, and lasting beauty.
Installation
- Alcove.
- Right drain.
- Above-floor drain (AFD) rough-in.
Recommended Products/Accessories
K-23726 Drain treatment
K-23733 Vikrell® cleaner

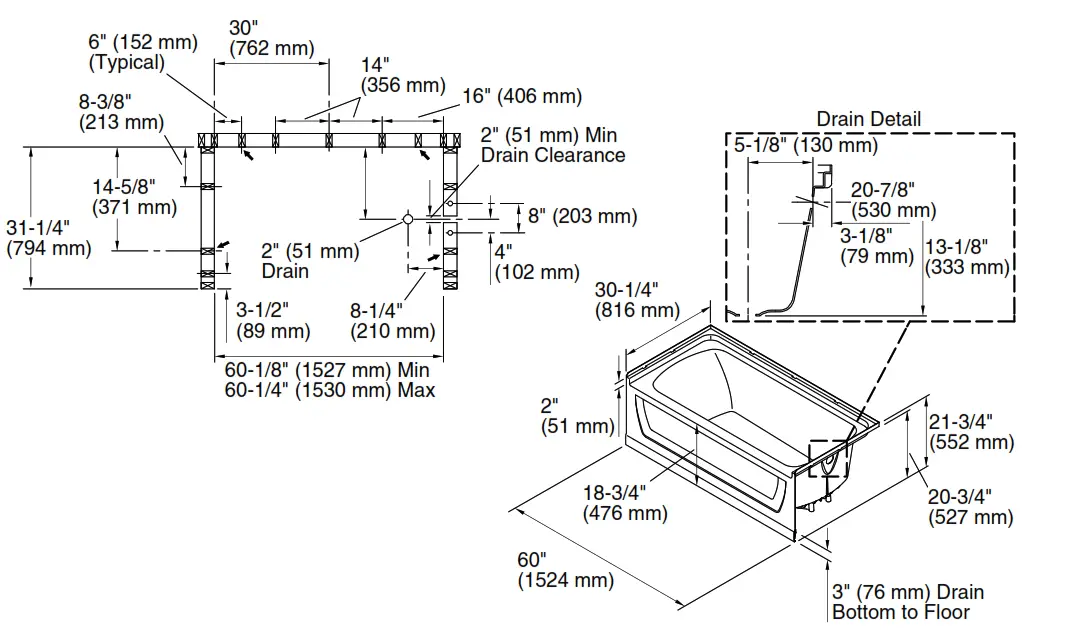

Technical Information
All product dimensions are nominal.
| Installation: | Three-wall alcove |
| Drain location: | Right |
| Basin area, bottom: | 45″ x 20″ (1143 mm x 508 mm) |
| Basin area, top: | 53″ x 23″ (1346 mm x 584 mm) |
| Water depth: | 11-1/4″ (286 mm) |
| Water capacity: | 44 gal (166.6 L) |
| Minimum flat for the door: | 2-3/4″ (70 mm) |
| Maximum door width: | 57-11/16″ (1465 mm) |
Notes
Install this product according to the installation instructions.
Studs should be positioned roughly as shown.
Double studying is recommended for pivot shower door installations.
A Felt pad is not required for installation.
ADA-compliant when installed to the specific requirements of these regulations.
1-800-STERLING (1-800-783-7546)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.sterlingplumbing.com.
