Wireless Headphones
User Manual
Model: WH201A

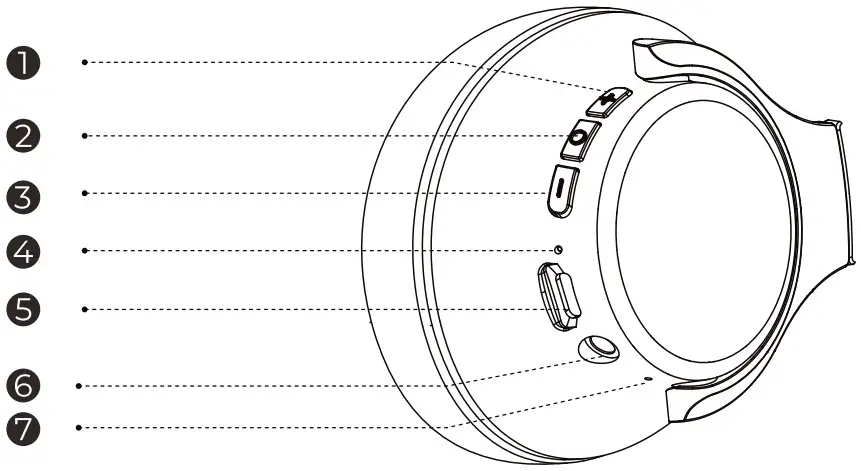

Diagram
- Volume Up/Next Track
- Multi-Function Button
- Volume Down/Previous Track
- LED Indicator
- Type-C Charging Interface
- 3.5mm Audio Interface
- Microphone

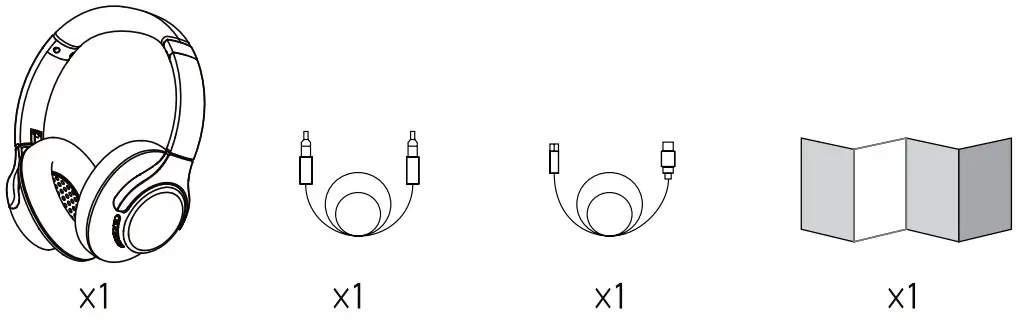

Package List
Wireless Headphones x 1
3.5mm Audio Cable x 1
User Manual x1
Charging Cable x1
Specification
| Model No | WH2O1A |
| Bluetooth Version | Bluetooth 5.3 |
| Bluetooth Profile | HFP. AMP. AVRCP |
| Operation Range | 33ft (10m) |
| Battery Capacity | 3.7V/500mAh |
| Charging Voltage | 5V 1A |
| Charging Time | 2.5 Hours |
| Talk Time /Music | 65 Hours |
How to Pair

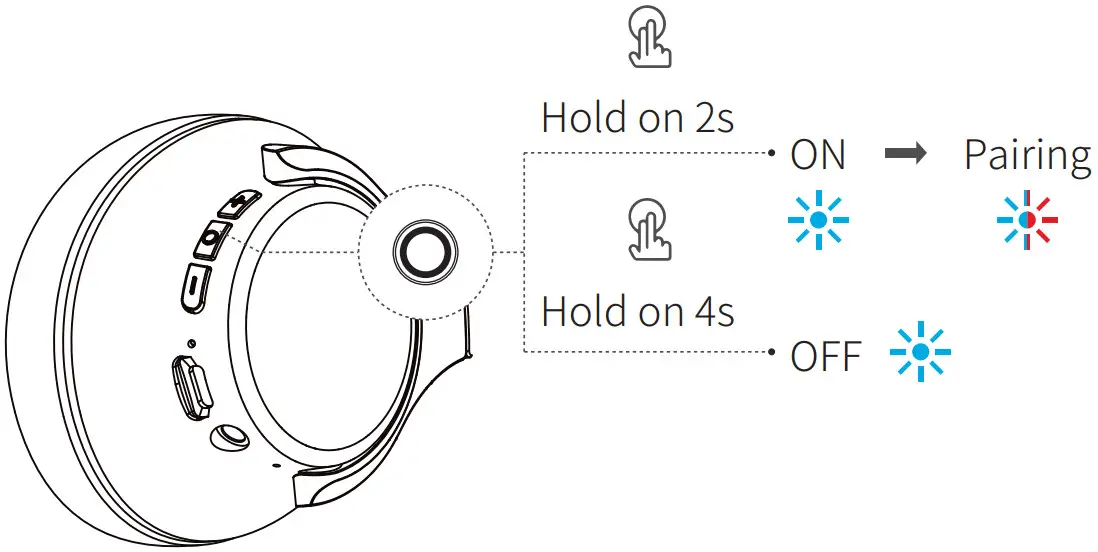

Step1:

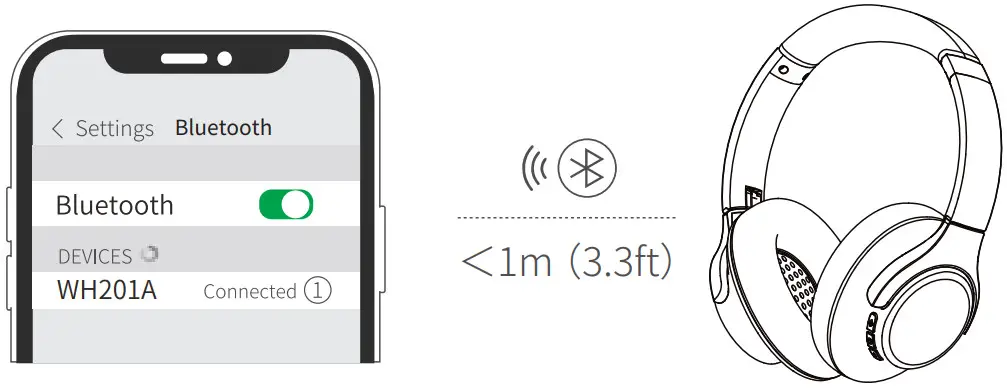

Step2:
When the headset is power off, press and hold the Multi-function Button until the indicator flashes blue and red alternately to enter the pairing mode. Turn on the Bluetooth of the mobile phone and find “WH2O1A” to connect.

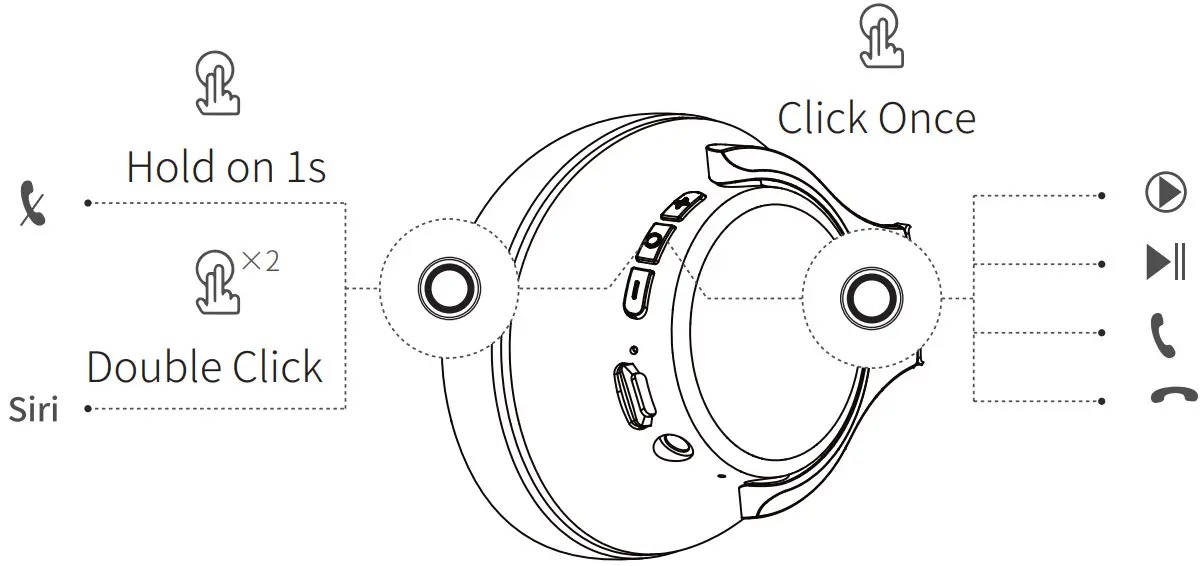

Play/Pause/Answer/Hang up/Reject/Redial

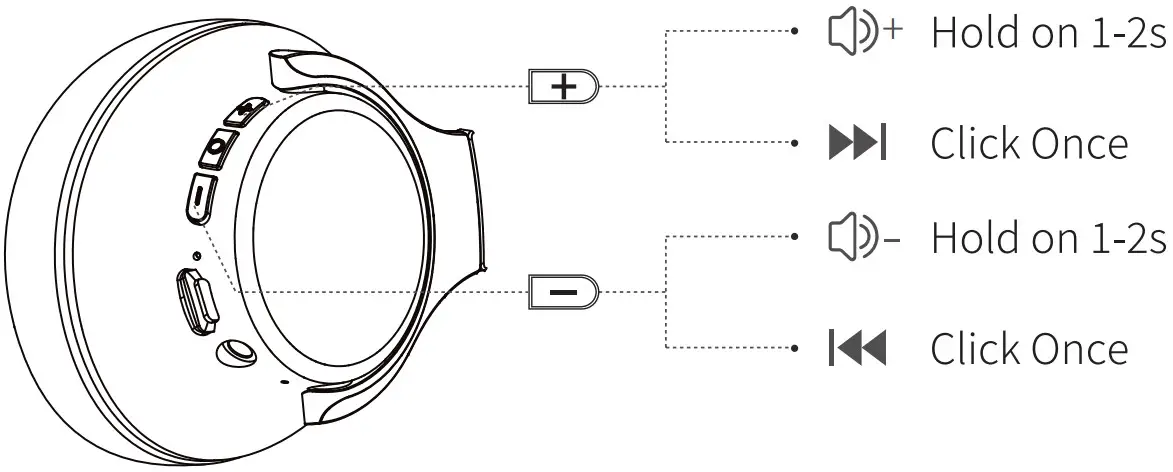

Volume Control/Music Control

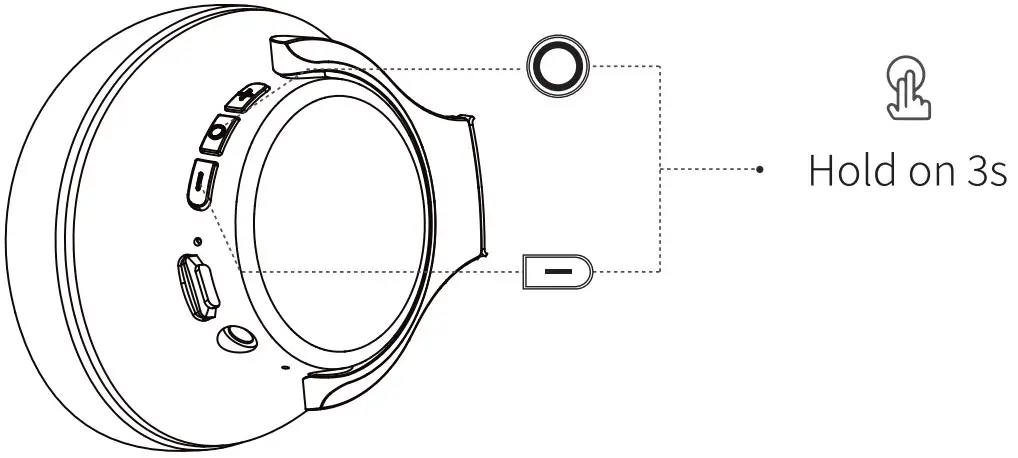

Clear Paired Device

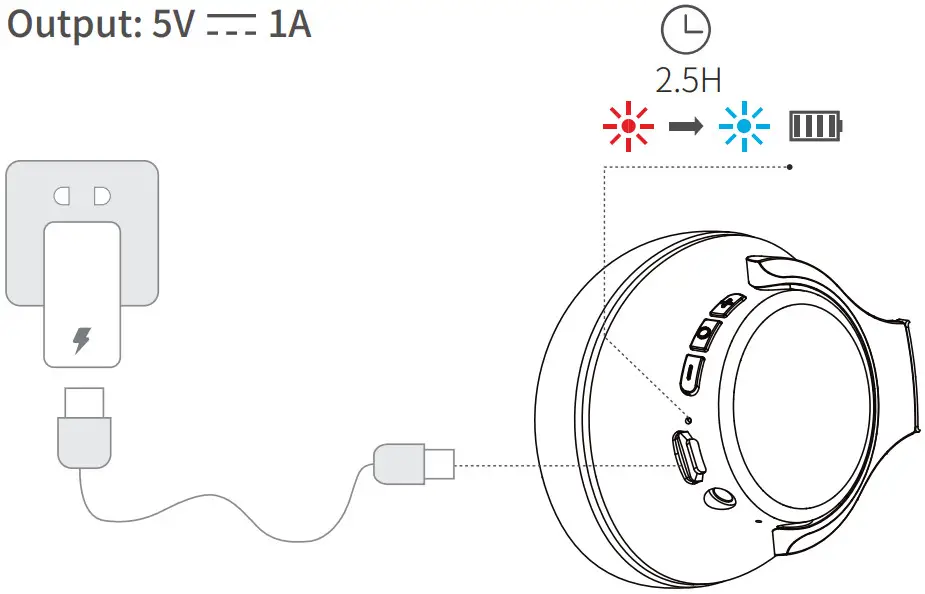

Charge the Headphones
Q: Couldn’t connect?
A: Please hold the “-” and “circle button” at the same time for 5 seconds, then search bluetooth devices to connect the headphones.
Q: How to connect to 2 devices simultaneously?
A: 1. Pair with your first device
2.Turn off the bluetooth of the first device, pair with the second device
3.Turn on the bluetooth of the first device to connect again
4. Now your headset is connected to the 2 devices at the same time.
Q: What type of device is compatible?
A: This headsets are compatible with all devices that support Bluetooth or 3.5 mm plug cables. A wireless Transmitter (NOT Included) needs to be prepared when connected with a non-Wireless enabled TV/PC.
Warranty Information
30 days free return and 18 months warranty is our guarantee, please feel free to contact us at [email protected] for further inquires.
FCC STATEMENT:
Any Changes or modifications not expressly approved by the party responsible for compliance Guild void the users authority to operate the equipment.This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
- This device may not cause harmful interference.
- This device must accept any interference received,including interference that may cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
NOTICE: Note: This equipment has been tested and found to comply with these limits for a Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
ISEDC RSS Warning:
This device complies with Innovation, Science and Economic Development Canada Compliance licence-exempt RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,including interference that may cause undesired operation of the device.
ISEDC Radiation Exposure Statement:
This equipment complies with ISEDC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This product complies with the radio interference requirements of the European Community.
This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Follow local rules and never dispose of the product and rechargeable batteries with normal household waste. Correct disposal of old products and rechargeable batteries helps prevent negative consequences for the environment and human health.
