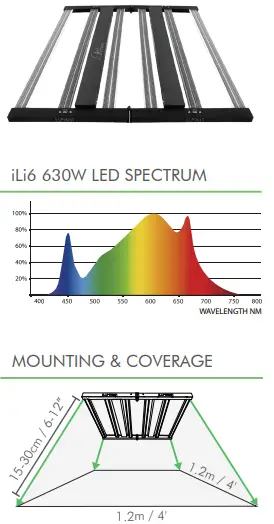

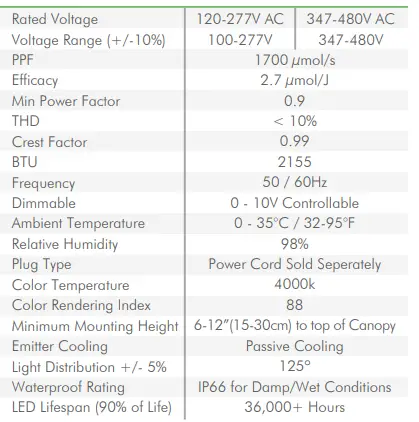

6 TECHNICAL SPECIFICATIONS

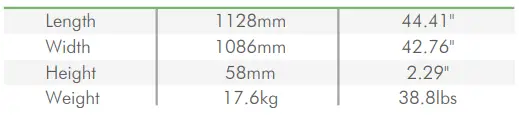

7 PHYSICAL SPECIFICATIONS

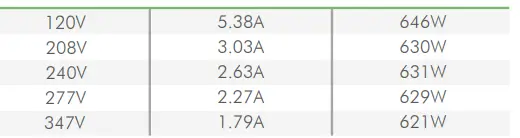

8 VOLTAGE AND AMPERAGE

9 Documents / Resources

9.1 References

10 Related Posts

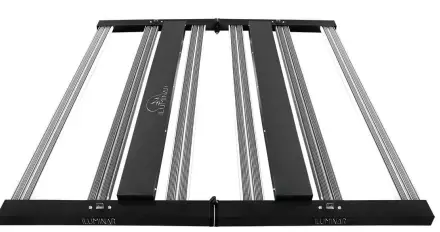

ILUMINAR iLi6 LED Lighting Solutions

Please read this manual thoroughly prior to installing or operating the ILUMINAR iLi6.

Observe all safety precautions (see page 10), seek the services of a qualified/certified/licensed/insured electrician, or call ILUMINAR Lighting technicians for assistance.
DO NOT handle or touch the fixture while in use.
DO NOT touch diodes or apply direct force to the diodes as this can/will cause permanent damage.
Connect the fixture only to the power sources of the appropriate voltage using the correct AC plug type. Protect power cables from being pinched, walked on, or otherwise damaged. Be especially careful where the power cable enters the power outlet to the unit. Only connect the fixture to an electrical outlet or extension cord of comparable standard and level rating. Connect the fixture ONLY to the power sources of the correct voltage using the plug received.
The fixture should only be cleaned as directed. Always seek service for your system by qualified service personnel if any of the following occur:
- The fixture shows a noticeable change in performance.
- The power-supply cord or plug is damaged.
- The fixture has been dropped, or the exterior is damaged.

HARDWARE AND ACCESSORIES

The iLi6 can be hung from rope ratchets or can be mounted to a rack. Before you begin installation, check that you have all the necessary parts to begin.

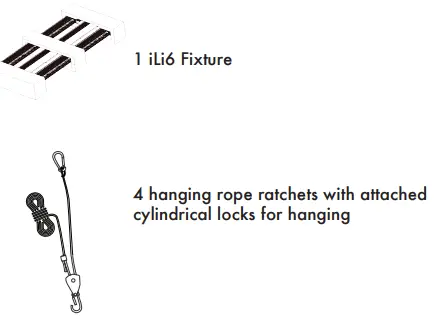

IN THE BOX

ASSEMBLY INSTRUCTIONS

Open the package and take out the LED grow light and place it on the table.

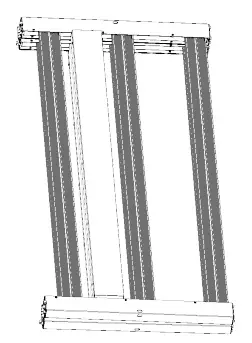

Unfold the LED grow light fixture and ensure the light output surface faces the table.
CAUTION when handling your ILUMINAR iL Fixture. The LED array should NOT come in contact with sharp objects. DO NOT touch diodes or apply direct force to the diodes as this can/will cause permanent damage.

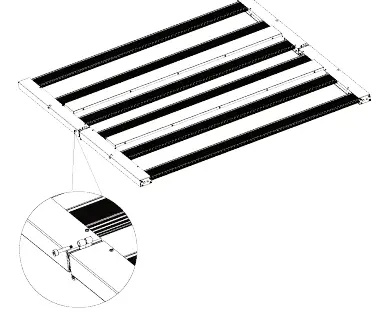

Take out the lock-shaft and lock the attachable end cap.
HANGING INSTALLATION
SURFACE MOUNTING INSTRUCTIONS

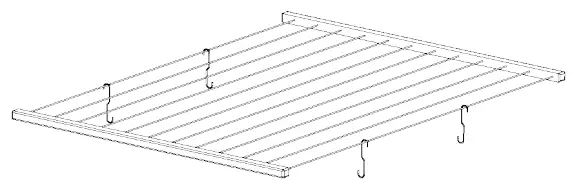

There are two ways to mount your LED grow light fixture: Suspending Mounting (default) and Surface Mounting. Surface Mount using long S-hooks (not provided) to hang the fixture from shelving.
Lift the LED fixture and hang it on the long S-hooks.
SUSPENDED MOUNTING INSTRUCTIONS

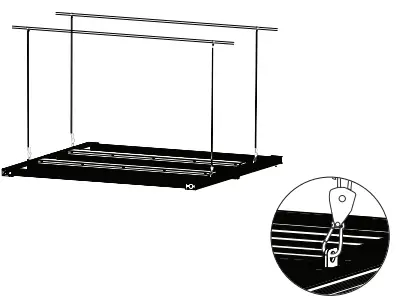

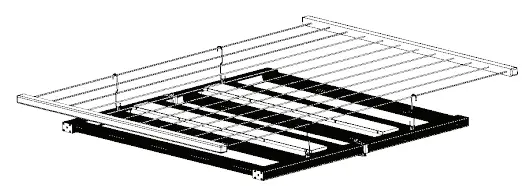

To Suspend Mount (default), use the 4 hanging rope ratchets that come packaged with this fixture them from the ceiling.
Then lift the LED fixture and hang it from the rope ratchets.

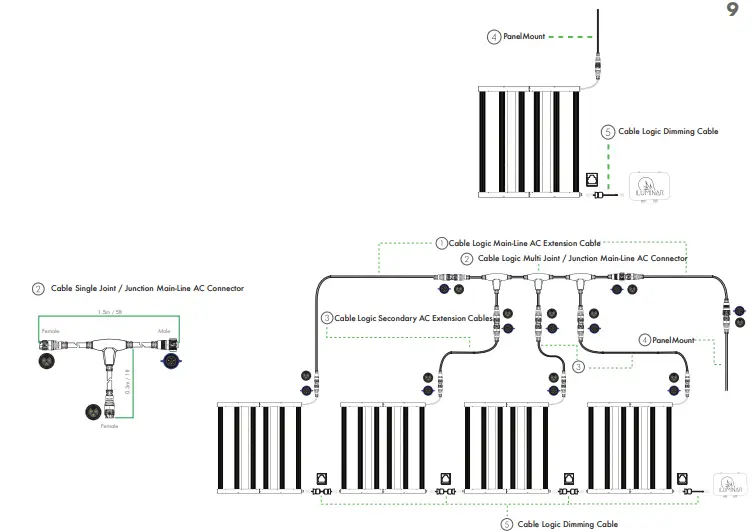

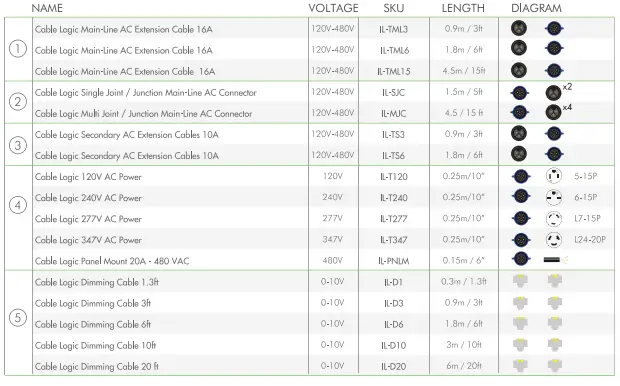

WIRING DIAGRAM

CAUTION

Please read the following list carefully prior to beginning installation.

Leave at least one inch of space between the fixture and the mounting area for maximum performance and lifespan.
ALWAYS wear protective eye wear when looking directly at the diodes to prevent eye damage.
The LED array should NEVER come in contact with sharp objects.
Do not touch or apply force to the diodes – this will cause permanent damage.
Only handle, clean or move fixture when it’s unplugged and completely cool.
Keep the fixture free of dust, debris, deposits to ensure the maximum potential of the fixture.
NEVER use cloth to clean the diodes. This will scratch the diodes and could potentially break or dislodge them.
DO NOT use chemicals to clean the fixture. Use ONLY low pressure air or low pressure water to remove dust and debris.
DO NOT exceed 70% max load for breakers due to Inrush current in LED fixtures.

GUARANTEE
At ILUMINAR, we stand behind our products and our technology as well as our customers. All ILUMINAR LED fixtures are backed by our 5-Year Guarantee. Please visit our website iluminarlighting.com/warranty for more information.
