AEG LogoIKE42640KB Hob cooking
User Manual
AEG IKE42640KB Hob cooking

FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler with features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
Visit our website to:
AEG IKE42640KB Hob cooking - Icon Get usage advice, brochures, trouble shooter, service, and repair information: www.aeg.com/support
AEG IKE42640KB Hob cooking - Icon 1 Register your product for better service: www.registeraeg.com
AEG IKE42640KB Hob cooking - Icon 2 Buy Accessories, Consumables, and Original spare parts for your appliance: www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning icon Warning / Caution-Safety information
instructions General information and tips
AEG IKE42640KB Hob cooking - Icon 3 Environmental information

Warning icon SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people’s safety
  • This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
  • Children should be supervised to ensure that they do not play with the appliance.
  • Keep all packaging away from children and dispose of it appropriately.
  • WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.
  • If the appliance has a child safety device, it should be activated.
  • Children shall not carry out cleaning and user maintenance of the appliance without supervision.
General Safety
  • This appliance is for cooking purposes only.
  • This appliance is designed for single-household domestic use in an indoor environment.
  • This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses, and other similar accommodations where such use does not exceed (average) domestic usage levels.
  • WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
  • WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
  • Never use water to extinguish the cooking fire. Switch off the appliance and cover flames with e.g. a fire blanket or lid.
  • WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
  • CAUTION: The cooking process has to be supervised. A short-term cooking process has to be supervised continuously.
  • WARNING: Danger of fire: Do not store items on the cooking surfaces.
  • Metallic objects such as knives, forks, spoons, and lids should not be placed on the hob surface since they can get hot.
  • Do not use the appliance before installing it in the built-in structure.
  • Do not use a steam cleaner to clean the appliance.
  • After use, switch off the hob element by its control and do not rely on the pan detector.
  • If the glass-ceramic surface/glass surface is cracked, switch off the appliance and unplug it from the mains. In case the appliance is connected to the mains directly using a junction box, remove the fuse to disconnect the appliance from the power supply. In either case, contact the Authorised Service Centre.
  • If the supply cord is damaged, it must be replaced by the manufacturer, an authorized Service, or similarly qualified persons in order to avoid a hazard.
  • WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

SAFETY INSTRUCTIONS

Installation

Warning iconWARNING!
Only a qualified person must install this appliance.
Warning iconWARNING!
Risk of injury or damage to the appliance.

  • Remove all the packaging.
  • Do not install or use a damaged appliance.
  • Follow the installation instructions supplied with the appliance.
  • Keep the minimum distance from other appliances and units.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
  • Seal the cut surfaces with a sealant to prevent moisture from causing swelling.
  • Protect the bottom of the appliance from steam and moisture.
  • Do not install the appliance next to a door or under a window. This prevents hot cookware from falling from the appliance when the door or the window is opened.
  • Each appliance has cooling fans on the bottom.
  • If the appliance is installed above a drawer:
    – Do not store any small pieces or sheets of paper that could be pulled in, as they can damage the cooling fans or impair the cooling system.
    – Keep a distance of a minimum of 2 cm between the bottom of the appliance and parts stored in the drawer.
  • Remove any separator panels installed in the cabinet below the appliance.
Electrical Connection

Warning iconWARNING!
Risk of fire and electric shock.

  • All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
  • Before carrying out any operation make sure that the appliance is disconnected from the power supply.
  • Make sure that the parameters on the rating plate are compatible with the electrical ratings of the main power supply.
  • Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if applicable) can make the terminal become too hot.
  • Use the correct electricity mains cable.
  • Do not let the electricity mains cable tangle.
  • Make sure that shock protection is installed.
  • Use the strain relief clamp on the cable.
  • Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware when you connect the appliance to a socket.
  • Do not use multi-plug adapters and extension cables.
  • Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.
  • The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
  • Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
  • If the main socket is loose, do not connect the main plug.
  • Do not pull the main cable to disconnect the appliance. Always pull the mains plug.
  • Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips, and contractors.
  • The electrical installation must have an isolation device that lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of a minimum of 3 mm.
Use

Warning icon WARNING!
Risk of injury, burns, and electric shock.

  • Do not change the specification of this appliance.
  • Remove all the packaging, labeling, and protective film (if applicable) before first use.
  • Make sure that the ventilation openings are not blocked.
  • Do not let the appliance stay unattended during operation.
  • Set the cooking zone to “off” after each use.
  • Do not put cutlery or saucepan lids on the cooking zones. They can become hot.
  • Do not operate the appliance with wet hands or when it has contact with water.
  • Do not use the appliance as a work surface or as a storage surface.
  • If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This is to prevent an electrical shock.
  • Users with a pacemaker must keep a distance of a minimum of 30 cm from the induction cooking zones when the appliance is in operation.
  • When you place food into hot oil, it may splash.
    Warning icon WARNING!
    Risk of fire and explosion
  • Fats and oil when heated can release flammable vapors. Keep flames or heated objects away from fats and oils when you cook with them.
  • The vapors that very hot oil releases can cause spontaneous combustion.
  • Used oil, which can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
  • Do not put flammable products or items that are wet with flammable products in, near, or on the appliance.
    Warning icon WARNING!
    Risk of damage to the appliance.
  • Do not keep hot cookware on the control panel.
  • Do not put a hot pan cover on the glass surface of the hob.
  • Do not let cookware boil dry.
  • Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.
  • Do not activate the cooking zones with empty cookware or without cookware.
  • Do not put aluminum foil on the appliance.
  • Cookware made of cast iron or with a damaged bottom can cause scratches on the glass/glass ceramic. Always lift these objects up when you have to move them on the cooking surface.
Care and cleaning
  • Clean the appliance regularly to prevent the deterioration of the surface material.
  • Switch off the appliance and let it cool down before cleaning.
  • Do not use water spray and steam to clean the appliance.
  • Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents, or metal objects.
Service
  • To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
  • Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.
Disposal

Warning icon WARNING!
Risk of injury or suffocation.

  • Contact your municipal authority for information on how to dispose of the appliance.
  • Disconnect the appliance from the main supply.

INSTALLATION

Warning icon WARNING!
Refer to Safety chapters.

Before the installation

Before you install the hob, write down the information below from the rating plate. The rating plate is on the bottom of the hob.
Serial number ………………………

Built-in hobs

Only use the built-in hobs after you assemble the hob into correct built-in units and work surfaces that align to the standards.

Connection cable
  • The hob is supplied with a connection cable.
  • To replace the damaged main cable, use the cable: H05BB-F or H03V2V2-F which withstands a temperature of 90 °C or higher. Contact an Authorised Service Centre. The connection cable may only be replaced by a qualified electrician.
Attaching the seal – On-top installation
  1. Clean the worktop around the cutout area.
  2. Attach the supplied 2x6mm seal stripe to the lower edge of the hob, along the outer edge of the glass-ceramic. Do not stretch it. Make sure that the ends of the seal stripe are located in the middle of one side of the hob.
  3. Add some millimeters to the length when you cut the seal stripe.
  4. Join the two ends of the seal stripe together.

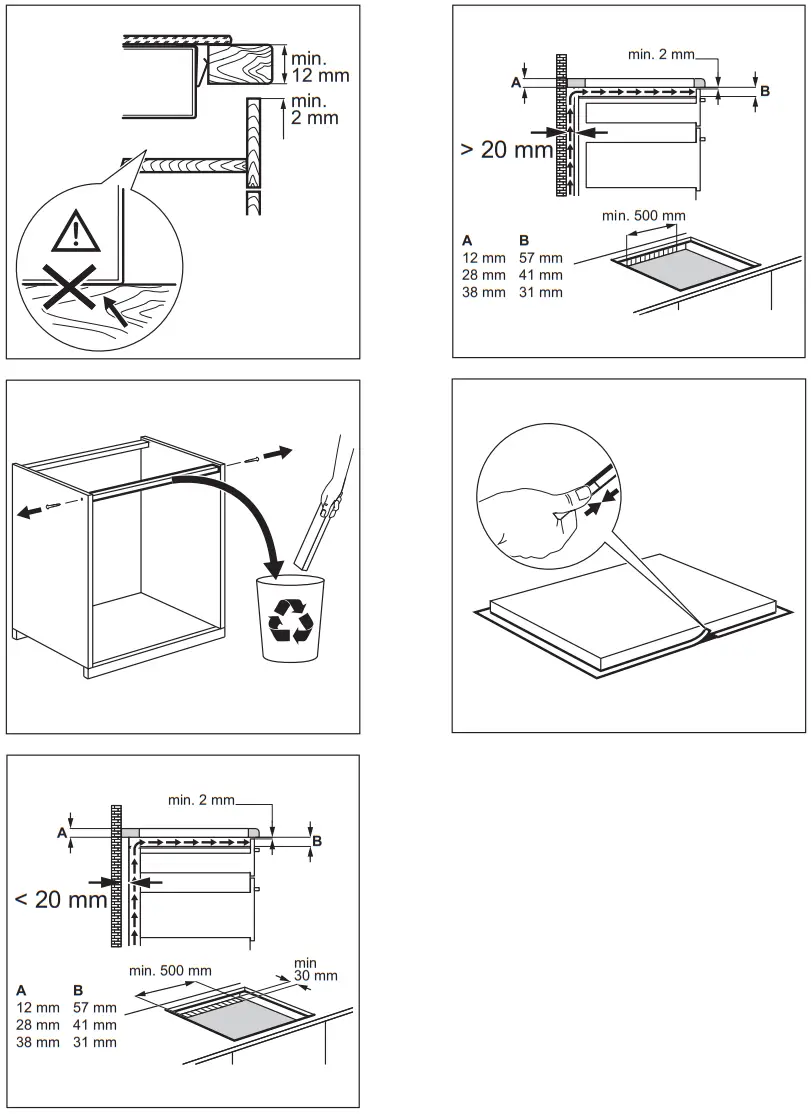

Assembly

AEG IKE42640KB Hob cooking - FigAEG IKE42640KB Hob cooking - Fig 1

Installation of more than one hob

Supplied accessories: connection bar, sealing stripe.
instructions Use only a special heat-resistant silicone.

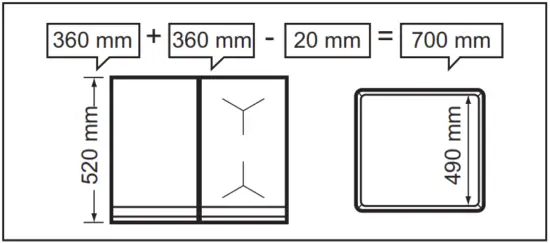

The worktop cutout
Distance: from the wall minimum of 50 mm
Length: 490 mm
Width: the sum of all widths of appliances that you install minus 20 mm
Example: AEG IKE42640KB Hob cooking - Fig 2

Assembly

  • Calculate correct cutout dimensions.
  • Prepare the worktop cutout.
  • Place the appliances on a soft surface (e.g. a blanket) with the bottom side up.
  • In the case of the Teppan Yaki, attach the supplied seal stripe to its lower edge, along the outer edge of the glass-ceramic. Loosely screw the fixing plates into the correct holes in the protective casing.

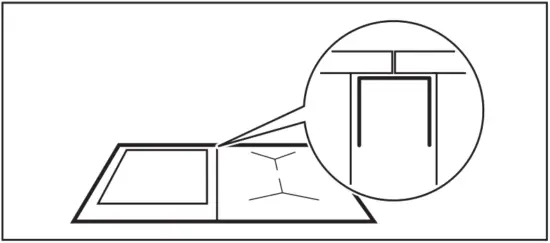

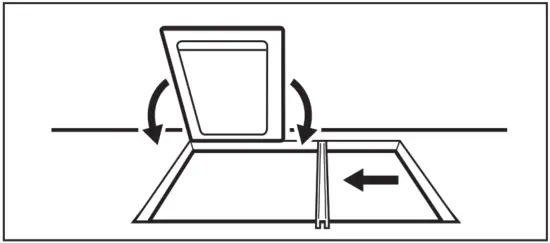

  • Insert the first appliance into the worktop cutout. Mount the connection bar under the appliance so that half of its width is still visible – it will support the next appliance. AEG IKE42640KB Hob cooking - Fig 3
  • For the Teppan Yaki, loosely screw in the fixing plates to the worktop from below (at the front and the rear of the appliance). AEG IKE42640KB Hob cooking - Fig 4

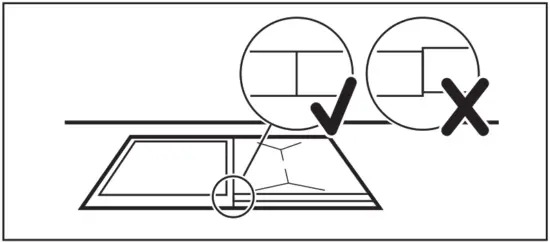

  • Insert the next appliance into the worktop cutout. Make sure that the front edges of the appliances are on the same level. AEG IKE42640KB Hob cooking - Fig 5

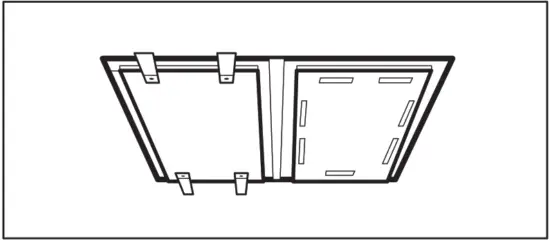

  • Fix appliances other than Teppan Yaki with the use of snap-in springs.
  • In the end, tighten the screws of the Teppan Yaki. AEG IKE42640KB Hob cooking - Fig 6
  • Use silicone to seal the gaps between the appliances and those between the appliances and the worktop.
  • Press the rubber shape firmly against the glass-ceramic and move it slowly along the edges to squeeze out excess silicone.
  • Put some soapy water on the silicone and smoothen out the edges with your finger.
  • Do not touch the silicone until it hardens, it can last for about a day.
  • Carefully remove the silicone squeeze-out with a shaving razor.
  • Clean the glass surface.

PRODUCT DESCRIPTION

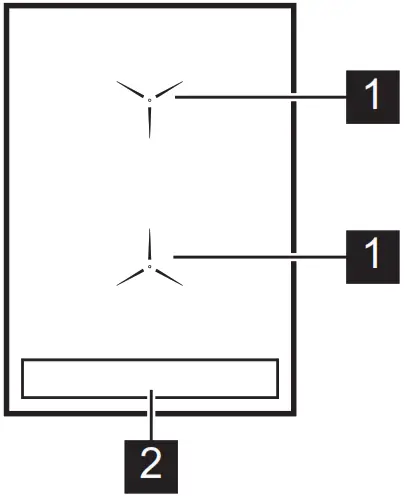

Cooking surface layout

AEG IKE42640KB Hob cooking - Fig 7

  1. Induction cooking surface
  2. Control panel

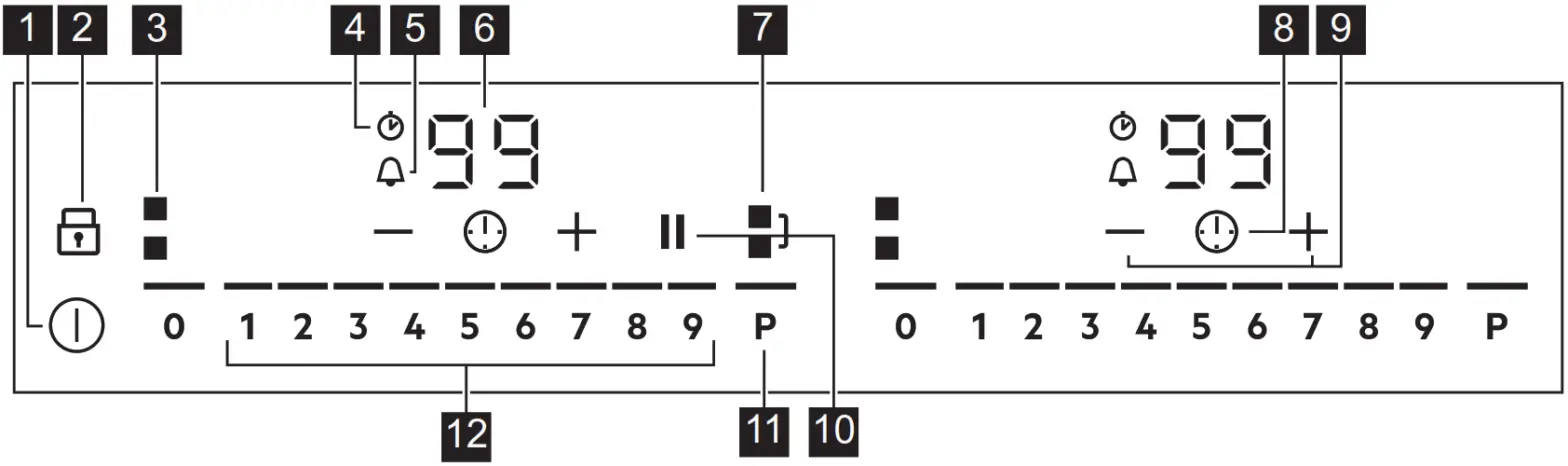

Control panel layout

AEG IKE42640KB Hob cooking - Fig 8

Use the sensor fields to operate the appliance. The displays, indicators, and sounds tell which functions operate.

Sensor field Comment
1AEG IKE42640KB Hob cooking - Icon 4To activate and deactivate the hob.
2AEG IKE42640KB Hob cooking - Icon 5To activate and deactivate the Lock or Child Safety Device.
3AEG IKE42640KB Hob cooking - Icon 6To show the active zone.
4AEG IKE42640KB Hob cooking - Icon 7CountUp Timer indicator.
5AEG IKE42640KB Hob cooking - Icon 8Count Down Timer indicator.
6Timer display: 00 – 99 minutes.
7AEG IKE42640KB Hob cooking - Icon 9To activate and deactivate Bridge and to switch between the modes.
8AEG IKE42640KB Hob cooking - Icon 10To select Timer functions.
9AEG IKE42640KB Hob cooking - Icon 14/AEG IKE42640KB Hob cooking - Icon 15To increase and decrease the time.
10AEG IKE42640KB Hob cooking - Icon 11To activate and deactivate Pause.
11AEG IKE42640KB Hob cooking - Icon 13To activate PowerBoost.
12To set a heat setting: 0 – 9.

DAILY USE

Warning icon WARNING!
Refer to Safety chapters.

Activating and deactivating

Touch AEG IKE42640KB Hob cooking - Icon 4 for 1 second to activate or deactivate the hob.
The control panel comes on after you activate the hob and goes off after you deactivate the hob.

Automatic Switch Off

The function deactivates the hob automatically if:

  • you do not place any cookware on the hob for 50 seconds,
  • you do not set the heat setting for 50 seconds after you place the cookware,
  • you spill something or put something on the control panel for more than 10 seconds (a pan, a cloth). When you hear the acoustic signal, the hob deactivates. Remove the object or clean the control panel.
  • the hob gets too hot (e.g. when a saucepan boils dry). Let the cooking zone cool down before you use the hob again.
  • you do not deactivate a cooking zone or change the heat setting. After some time, the hob deactivates.

The relation between the heat setting and the time after which the hob deactivates:

Heat settingThe hob deactivates after
1-26 hours
3-45 hours
54 hours
6-91.5 hours
Using the cooking zone

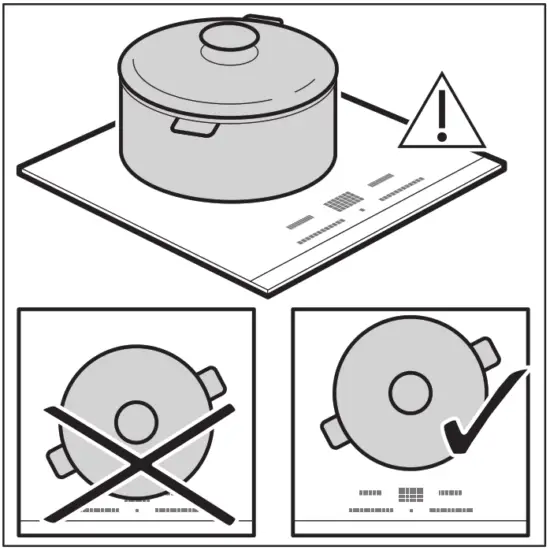

Warning icon CAUTION!
Do not place hot cookware on the control panel. There is a risk of damage to the electronic parts. AEG IKE42640KB Hob cooking - Fig 9Place the cookware in the center of the selected zone.

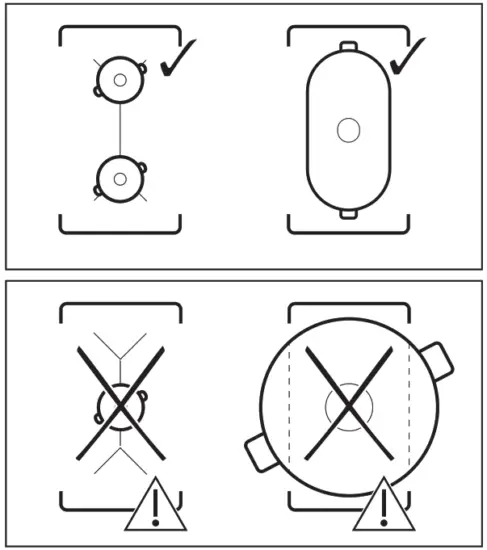

Induction cooking zones adapt to the dimension of the bottom of the cookware automatically.
When you place the cookware in the correct position, the hob recognizes it and the appropriate control bar comes on. A red cooking zone indicator appears above the control bar and indicates the position of the pot.
Each square on the control panel represents one cooking zone on the induction cooking surface. Zone indicators show which cooking zone is controlled by the appropriate control bar.

Heat setting

Touch the control bar at the desired heat setting or move your finger along the control bar to set or change the heat setting for a cooking zone. AEG IKE42640KB Hob cooking - Fig 10Once you place a pot on the cooking zone and set the heat setting, it remains the same for 2 minutes after you remove the pot. The control bar and the cooking zone indicator blink for 2 minutes. If you place the pot on the cooking zone again within this time, the heat setting reactivates. Otherwise, the cooking zone deactivates.

OptiHeat Control (3-step Residual heat indicator)

Warning icon WARNING!
AEG IKE42640KB Hob cooking - Icon 12 As long as the indicator is on, there is a risk of burns from residual heat.
The induction cooking zones produce the heat necessary for the cooking process directly in the bottom of the cookware.
The glass-ceramic is heated by the heat of the cookware. The indicators AEG IKE42640KB Hob cooking - Icon 12 appear when a cooking zone is hot. They show the level of the residual heat for the cooking zones you are currently using.
The indicator may also appear:

  • for the neighboring cooking zones even if you are not using them,
  • when hot cookware is placed in a cold cooking zone,
  • when the hob is deactivated but the cooking zone is still hot.

The indicator disappears when the cooking zone has cooled down.

Bridge

This function connects two cooking zones and they operate as one. You can use the function with large cookware.

  1. Place the cookware in two cooking zones. The cookware must cover the centers of both zones.
    AEG IKE42640KB Hob cooking - Icon 9 turns white.
  2. Touch AEG IKE42640KB Hob cooking - Icon 9 to activate the function.
  3. Set the heat setting.

The cookware must cover the centers of both zones but not go beyond the area marking. AEG IKE42640KB Hob cooking - Fig 11To deactivate the function, touch AEG IKE42640KB Hob cooking - Icon 9. The cooking zones operate independently.

PowerBoost

This function activates more power for the appropriate induction cooking zone, depending on the cookware size. The function can be activated only for a limited period of time.
Touch AEG IKE42640KB Hob cooking - Icon 13 to activate the function for the cooking zone.
The symbol turns red.
The function deactivates automatically.
instructions For maximum duration values, refer to “Technical data”.

Pause

This function sets all cooking zones that operate to the lowest heat setting.
When the function operates, AEG IKE42640KB Hob cooking - Icon 4 and AEG IKE42640KB Hob cooking - Icon 11 can be used. All other symbols on the control panels are locked.
The function does not stop the timer functions.

  1. To activate the function: press AEG IKE42640KB Hob cooking - Icon 11. The symbol turns red. The heat setting is lowered to 1.
  2. To deactivate the function: press AEG IKE42640KB Hob cooking - Icon 11. The symbol turns white. The previous heat setting comes on.
Timer

AEG IKE42640KB Hob cooking - Icon 8Count Down Timer
Use this function to specify how long a cooking zone should operate during a single cooking session.
First set the heat setting, then set the function.

  1. Touch AEG IKE42640KB Hob cooking - Icon 10 to activate the function or change the time.
    The timer digits AEG IKE42640KB Hob cooking - Icon 16 and the indicators come on the display. AEG IKE42640KB Hob cooking - Icon 8 turns red, and AEG IKE42640KB Hob cooking - Icon 7turns white.
    If the timer is not set, all indicators disappear after 4 seconds.
  2. Touch AEG IKE42640KB Hob cooking - Icon 14 or AEG IKE42640KB Hob cooking - Icon 15 set the time (00 – 99 minutes).

After 3 seconds, the timer starts to count down automatically. The indicators AEG IKE42640KB Hob cooking - Icon 10, AEG IKE42640KB Hob cooking - Icon 14 and AEG IKE42640KB Hob cooking - Icon 15 disappear. AEG IKE42640KB Hob cooking - Icon 8 stays red.
When the time comes to an end, a signal sounds and AEG IKE42640KB Hob cooking - Icon 16 flashes. To stop the signal, touch AEG IKE42640KB Hob cooking - Icon 10.
To deactivate the function: touch AEG IKE42640KB Hob cooking - Icon 10. The indicators AEG IKE42640KB Hob cooking - Icon 14 and AEG IKE42640KB Hob cooking - Icon 15 come on. Use or set AEG IKE42640KB Hob cooking - Icon 16 on the display. Alternatively, set the heat level to 0. As a result, a signal sounds, and the timer is canceled.

AEG IKE42640KB Hob cooking - Icon 7 CountUp Timer
You can use this function to monitor how long a cooking zone operates.
Touch AEG IKE42640KB Hob cooking - Icon 7 twice to activate the function.
The indicator AEG IKE42640KB Hob cooking - Icon 7 turns red, the timer starts to count up automatically.
To deactivate the function: touch AEG IKE42640KB Hob cooking - Icon 7. When the indicators light up, touch AEG IKE42640KB Hob cooking - Icon 15.
AEG IKE42640KB Hob cooking - Icon 8Minute Minder,
You can use this function when the hob is activated but no cooking zone operates.
To see the control panel, place a pot on a cooking zone.

  1. Touch AEG IKE42640KB Hob cooking - Icon 10, until the indicator AEG IKE42640KB Hob cooking - Icon 8 turns red, to activate the function.
  2. Touch AEG IKE42640KB Hob cooking - Icon 14 or AEG IKE42640KB Hob cooking - Icon 15 set the time.

The function starts automatically after 4 seconds. The indicators AEG IKE42640KB Hob cooking - Icon 10, AEG IKE42640KB Hob cooking - Icon 14, and AEG IKE42640KB Hob cooking - Icon 15 disappear. AEG IKE42640KB Hob cooking - Icon 8 stays red.
When you set the function, you can remove the pot.
When the time comes to an end, a signal sounds and AEG IKE42640KB Hob cooking - Icon 16 flashes. Touch AEG IKE42640KB Hob cooking - Icon 10 to stop the signal.
To deactivate the function: touch AEG IKE42640KB Hob cooking - Icon 10. The indicators AEG IKE42640KB Hob cooking - Icon 14 and AEG IKE42640KB Hob cooking - Icon 15 light up. Use AEG IKE42640KB Hob cooking - Icon 15 or AEG IKE42640KB Hob cooking - Icon 14 set AEG IKE42640KB Hob cooking - Icon 16 on the display.
instructions The function has no effect on the operation of any cooking zone.

Lock

You can lock the control panel while the hob operates. It prevents an accidental change of the heat setting.
instructions You need to activate the function for each appliance separately.
Set the heat setting first.
Touch AEG IKE42640KB Hob cooking - Icon 5 to activate the function.
The symbol turns red and blinks.
To deactivate the function, touch AEG IKE42640KB Hob cooking - Icon 5 The symbol turns white.
instructions When you deactivate the hob, you also deactivate this function.

Child Safety Device

This function prevents an accidental operation of the hob.
instructions You need to activate the function for each appliance separately.
Activate the hob first and do not set the heat setting.
Touch AEG IKE42640KB Hob cooking - Icon 5 until it turns red to activate the function.
The control bars disappear. Deactivate the hob.
instructions When you deactivate the hob, the function is still active.
To deactivate the function for only one cooking time: Activate the hob AEG IKE42640KB Hob cooking - Icon 4. AEG IKE42640KB Hob cooking - Icon 5 comes on. Touch until it turns white. The control bars appear. Set the heat setting within 50 seconds. You can operate the hob.
When you deactivate the hob the AEG IKE42640KB Hob cooking - Icon 4 function is still active.
To deactivate the function permanently: Activate the hob and do not set the heat setting. Touch AEG IKE42640KB Hob cooking - Icon 5 until it turns white. The control bars appear. Deactivate the hob.

OffSound Control (Deactivating and activating the sounds)

Deactivate the hob first.

  1. Touch AEG IKE42640KB Hob cooking - Icon 4 for 3 seconds to activate the function. The display comes on and goes out.
  2. Touch AEG IKE42640KB Hob cooking - Icon 5 for 3 seconds. AEG IKE42640KB Hob cooking - Icon 18 or AEG IKE42640KB Hob cooking - Icon 17 comes on.
  3. Touch of the timer to choose one of the following:
    AEG IKE42640KB Hob cooking - Icon 17 – the sounds are off
    AEG IKE42640KB Hob cooking - Icon 18 – the sounds are on
  4. Wait until the hob deactivates automatically to confirm your selection.

When the function is set to AEG IKE42640KB Hob cooking - Icon 17 you can hear the sounds only when:

  • you touch AEG IKE42640KB Hob cooking - Icon 4.
  • Minute Minder comes down
  • Count Down Timer comes down
  • you put something on the control panel.
Power management

If multiple zones are active and the consumed power exceeds the limitation of the power supply, this function divides the available power between all cooking zones.
The hob controls heat settings to protect the fuses of the house installation.

  • If the hob reaches the limit of maximum available power (refer to the rating plate), the power of the cooking zones will be automatically reduced.
  • For cooking zones that have reduced power, the control panel shows the maximum possible heat settings.
  • If a higher heat setting is not available reduce it for the other cooking zones first.
  • The activation of the function depends on the number and size of pots.

HINTS AND TIPS

Warning iconWARNING!
Refer to Safety chapters.

Cookware

instructions For induction cooking zones a strong electro-magnetic field creates the heat in the cookware very quickly.
Use the induction cooking zones with suitable cookware.

  • The bottom of the cookware must be as thick and flat as possible.
  • Ensure pan bases are clean and dry before placing them on the hob surface.
  • In order to avoid scratches, do not slide or rub the pot across the ceramic glass.

Cookware material

  • correct: cast iron, steel, enameled steel, stainless steel, multi-layer bottom (with a correct marking from a manufacturer).
  • not correct: aluminum, copper, brass, glass, ceramic, porcelain.

Cookware is suitable for an induction hob if:

  • water boils very quickly on a zone set to the highest heat setting.
  • a magnet pulls onto the bottom of the cookware.

Cookware dimensions

  • Induction cooking zones adapt to the dimension of the bottom of the cookware automatically.
  • The cooking zone efficiency is related to the diameter of the cookware. The cookware with a diameter smaller than the minimum receives only a part of the power generated by the cooking zone.
  • For both safety reasons and optimal cooking results, do not use cookware larger than indicated in the “Cooking zones specification”. Avoid keeping cookware close to the control panel during the cooking session. This might impact the functioning of the control panel or accidentally activate hob functions.

instructions Refer to “Technical data”.

The noises during the operation

If you can hear:

  • crack noise: cookware is made of different materials (a sandwich construction).
  • whistle sound: you use a cooking zone with a high power level and the cookware is made of different materials (a sandwich construction).
  • humming: you use a high power level.
  • clicking: electric switching occurs.
  • hissing, buzzing: the fan operates.

The noises are normal and do not indicate any malfunction.

Öko Timer (Eco Timer)

To save energy, the heater of the cooking zone deactivates before the count-down timer sounds. The difference in the operation time depends on the heat setting level and the length of the cooking operation.

Examples of cooking applications

The correlation between the heat setting of a zone and its consumption of power is not linear. When you increase the heat setting, it is not proportional to the increase in the consumption of power. It means that a cooking zone with a medium heat setting uses less than half of its power.
instructions The data in the table is for guidance only.

Heat settingUse to:Time (min)Hints
1

Keep cooked food warm.

as necessaryPut a lid on the cookware.
1 – 2Hollandaise sauce, melt: butter, choco- late, gelatine.5 – 25Mix from time to time.
1 – 2Solidify fluffy omelets and baked eggs.10 – 40Cook with a lid on.
2 – 3Simmer rice and milk-based dishes, and heat up ready-cooked meals.25 – 50Add at least twice as much liquid as rice, and mix milk dishes halfway through the procedure.
3 – 4Steam vegetables, fish, and meat.20 – 45Add a couple of tablespoons of liquid.
4 – 5Steam potatoes.20 – 60Use max. 1/4 I of water for 750 g of potatoes.
4 – 5Cook larger quantities of food, stews, and soups.60 – 150Up to 3 I of liquid plus ingredients.
6 – 7Gentle fry: escalope, veal cordon bleu, cutlets, rissoles, sausages, liver, roux, eggs, pancakes, doughnuts.as necessaryTurn halfway through.
7 – 8Heavy fry, hash browns, loin steaks, steaks.5 – 15Turn halfway through.
9

Boil water, cook pasta, sear meat (goulash, pot roast), and deep-fry chips.

PBoil large quantities of water. PowerBoost is activated.

CARE AND CLEANING

Warning iconWARNING!
Refer to Safety chapters.

General information
  • Clean the hob after each use.
  • Always use cookware with a clean base.
  • Scratches or dark stains on the surface have no effect on how the hob operates.
  • Use a special cleaner suitable for the surface of the hob.
  • Use a special scraper for the glass.
Cleaning the hob
  • Remove immediately: melted plastic, plastic foil, sugar, and food with sugar, otherwise, the dirt can cause damage to the hob. Take care to avoid burns. Use a special hob scraper on the glass surface at an acute angle and move the blade on the surface.
  • Remove when the hob is sufficiently cool: limescale rings, water rings, fat stains, shiny metallic discoloration. Clean the hob with a moist cloth and a non-abrasive detergent. After cleaning, wipe the hob dry with a soft cloth.
  • Remove shiny metallic discoloration: use a solution of water with vinegar and clean the glass surface with a cloth.

TROUBLESHOOTING

Warning iconWARNING!
Refer to Safety chapters.

What to do if…
ProblemPossible causeRemedy
You cannot activate or operate the hob.

The hob is not connected to an electrical supply or it is connected incorrectly.

Check if the hob is correctly connected to the electrical supply.
The fuse is blown.Make sure that the fuse is the cause of the malfunction. If the fuse is blown again and again, contact a qualified electrician.
You touched 2 or more sensor fields at the same time.Touch only one sensor field.
Pause operates.Refer to “Daily use”.
There are water or fat stains on the control panel.Clean the control panel.
You cannot select the maximum heat setting for one of the cooks- ing zones.The other zones consume the maximum available power.
Your hob works properly.
Reduce the heat setting of the other cooking zones connected to the same phase. Refer to “Power management”.
An acoustic signal sounds and the hob deactivates.
An acoustic signal sounds when the hob is deactivated.
You put something on one or more sensor fields.Remove the object from the sensor fields.
The hob deactivates.You put something on the sensor field AEG IKE42640KB Hob cooking - Icon 4.Remove the object from the sensor field.
The residual heat indicator does not come on.The zone is not hot because it operated only for a short time or the sensor is damaged.If the zone operated sufficiently long to be hot, speak to an Authorised Service Centre.
There is no sound when you touch the panel sensor fields.The sounds are deactivated.Activate the sounds. Refer to “Daily use”.
AEG IKE42640KB Hob cooking - Icon 5 comes on.Child Safety Device or Lock operates.Refer to “Daily use”.
The control bar blinks.There is no cookware on the zone or the zone is not fully covered.Put cookware on the zone so that it fully covers the cooking zone.
The cookware is unsuitable.Use suitable cookware. Refer to “Hints and tips”.
The diameter of the bottom of the cookware is too small for the zone.

Use cookware with correct dimensions. Refer to “Technical data”.

ProblemPossible causeRemedy
AEG IKE42640KB Hob cooking - Icon 19 and a number come on.There is an error in the hob.Deactivate the hob and activate it
again after 30 seconds. If AEG IKE42640KB Hob cooking - Icon 19 comes on
again, disconnect the hob from the electrical supply. After 30 seconds, connect the hob again. If the problem
continues, speak to an Authorised Service Centre.
You can hear a constant beep noise.The electrical connection is incorrect.Disconnect the hob from the electrical supply. Ask a qualified electrician to check the installation.
If you cannot find a solution…

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. Give the data from the rating plate. Make sure, you operated the hob correctly. If not the servicing by a service technician or dealer will not be free of charge, also during the warranty period. The information about the guarantee period and  Authorised Service Centres are in the guarantee booklet.

TECHNICA L DATA

Rating plate
Model IKE42640KB
Typ 61 A2A 00 AD
Induction 3.65 kW
Ser.Nr. ……………..
AEG
PNC 949 597 883 00
220 – 240 V 50 – 60 Hz
Made in: Germany
3.65 kW
Uk CA SymbolSONY MDR-RF855RK Wireless Stereo Headphone System - warning
Cooking zones specification
Cooking zoneNominal power (maximum heat setting) [W]PowerBoost [W]PowerBoost maximum duration [min]Cookware diameter [mm]
Middle front2300320010145 – 265
Middle rear2300320010145 – 265

The power of the cooking zones can be different in some small range from the data in the table. It changes with the material and dimensions of the cookware.
For optimal cooking results use cookware no larger than the diameter of the table.

ENERGY EFFICIENCY

Product Information Sheet according to UK Ecodesign Regulation
Model identificationIKE42640KB
Type of hobBuilt-In Hob
Number of cooking areas1
Heating technologyInduction
Length (L) and width (W) of the cooking areaMiddleL 36.5 cm
W 27.5 cm
Energy consumption of the cooking area (EC electric cooking)Middle182.4 Wh / kg
Energy consumption of the hob (EC electric hob)182.4 Wh / kg

BS EN 60350-2 – Household electric cooking appliances – Part 2: Hobs – Methods for measuring performance.
The energy measurements referring to the cooking area are identified by the markings of the respective cooking zones.

Energy saving

You can save energy during everyday cooking if you follow the below hints.

  • When you heat up water, use only the amount you need.
  • If it is possible, always put the lids on the cookware.
  • Before you activate the cooking zone put the cookware on it.
  • Put the smaller cookware on the smaller cooking zones.
  • Put the cookware directly in the center of the cooking zone.
  • Use the residual heat to keep the food warm or to melt it.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol AEG IKE42640KB Hob cooking - Icon 21. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol WEE-Disposal-icon.png with the household waste. Return the product to your local recycling facility or contact your municipal office.

AEG Logowww.aeg.com/shopAEG IKE42640KB Hob cooking - Icon 20867366896-B-112022Uk CA Symbol

References

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
