Haier Hwo60s8epx2 Self-cleaning Oven User Guide

Haier Hwo60s8epx2 Self-cleaning Oven User Guide

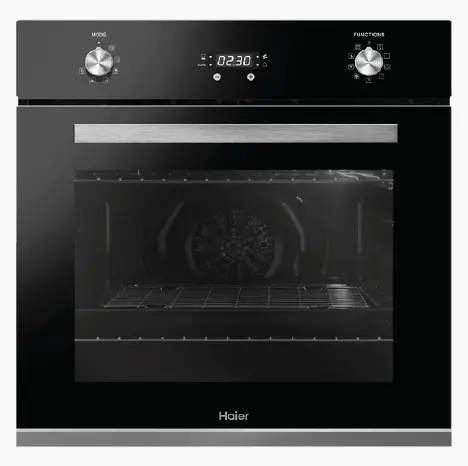

Haier logo Haier HWO60S8EPX2 Self-Cleaning OvenHaier HWO60S8EPX2 Self-Cleaning Oven-product

Product Information

The HWO60S8EPX2 oven is a 60cm wide, stainless steel, multi-function oven that comes with eight cooking functions. It has even heat distribution, which allows you to cook multiple dishes at once. The Pyrolytic Self-cleaning function breaks down food residue to make cleaning easier. The oven door, inner glass of the door, and side racks are removable for easy cleaning. You can program the cooking duration or delay cooking to plan your meals seamlessly. The oven has safety features such as a child lock and cool-to-touch oven door. It also has a non-tip shelf safety system and telescopic guides that make pulling out hot dishes easy.

Product Usage

To use the HWO60S8EPX2 oven:

  1. Place the oven on a flat surface away from any flammable materials.
  2. Plug the oven into a power outlet that supplies 220-240V at 50Hz.
  3. Choose your preferred cooking function from the eight available options, such as Fan Forced or Pastry Plus.
  4. Set the cooking duration or delay cooking if needed.
  5. Place your dish inside the oven and close the door.
  6. After cooking, use the Pyrolytic Self-cleaning function to break down food residue at a high temperature. You can choose between Eco or Super Clean mode for this process.
  7. If needed, remove the oven door, inner glass of the door, and side racks for easy cleaning.
  8. The oven also has safety features such as a child lock and cool-to-touch oven door. The non-tip shelf safety system and telescopic guides make pulling out hot dishes easy.

Oven, 60cm, 8 Function, Self-cleaning

Stainless Steel

This stylish oven has even heat distribution and room to cook a number of dishes at once, as well as a Self-cleaning function.

  • Eight oven functions including Fan Forced and Pastry Plus
  • Pyrolytic Self-cleaning function breaks down food residue to make cleaning a breeze
  • The door, inner glass of the door and side racks are removable for easy cleaning
  • Plan meals seamlessly, with the ability to program cooking duration, or delay cooking

DIMENSIONS

Height595mm
Width595mm
Depth568mm

FEATURES & BENEFITS

A function for every food
Eight cooking functions including specialised Pastry Plus, for a golden pastry crust on the top and bottom.

Simple cleaning
The Pyrolytic Self-cleaning function, in either Eco or Super Clean mode, breaks down food residue at a very high temperature. The removable door and side racks make a deep clean even easier.

Stylish design
A refined black-glass design gives a modern finish to your kitchen, making this oven perfect for matching with a Haier induction cooktop.

Safety features
Designed for safety with a child lock and cool-to-touch oven door. The non-tip shelf safety system and telescopic guides make pulling out hot dishes easy.

SPECIFICATIONS

Accessories

Roasting dish1
Telescopic side runners1 set
Wire shelf1

Capacity

  • Shelf positions
    • 5
  • Usable capacity
    • 62L

Cleaning

Eco pyrolytic self-clean mode
Removable oven door
Removable oven door inner glass
Removable shelf runners
Super pyrolytic self-clean mode

Controls

Audio feedback
Automatic cooking/minute timer
Automatic pre-set temperatures
Dial with anisotropic finish
Electronic clock
Internal lightRear
Intuitive capacitive touch controls
LCD display
Pre-programme automatic cooking
Soft close door

Functions

Bake
Defrost
Fan bake
Fan forced
Fan grill
Grill
Number of functions8
Pastry plus
Pyrolytic self-clean

Performance

Multi-function oven
Temperature range50 to 280°C

Power requirements

Supply frequency50Hz
Supply voltage220-240V

Product dimensions

Depth568mm
Height595mm
Width595mm

Safety

Automatic switch off after
Child lock
Cool to touch oven door
Cooling fan
Non-tip shelves

Warranty

Parts and labour2 years
SKU61745

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
