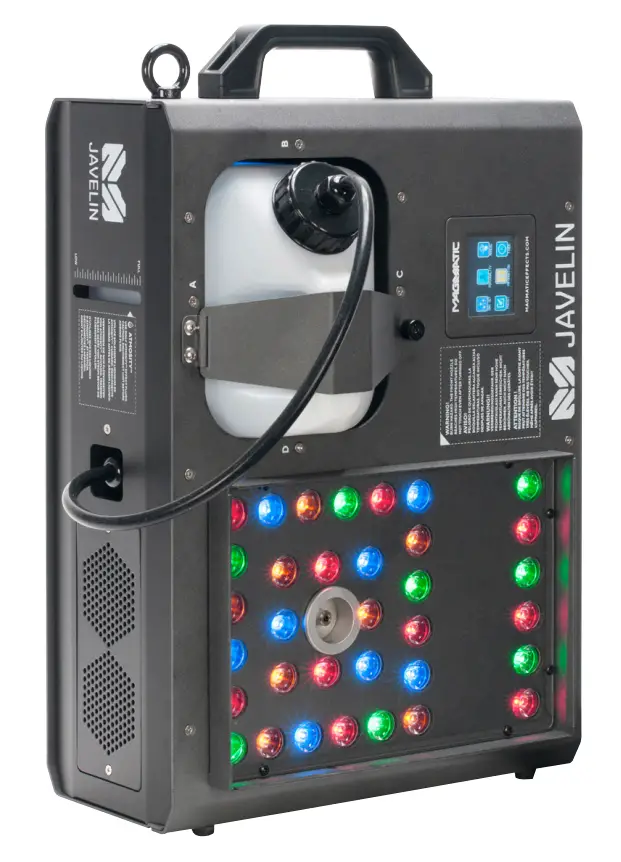

JAVELIN User Manual
US SKU#: RSJ150
UPC#: 810008261545

©2021 MAGMATIC EFFECTS all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. MAGMATIC EFFECTS logo and identifying product names and numbers herein are trademarks of MAGMATIC EFFECTS. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted. Product names used in this document may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. All non-MAGMATIC brands and product names are trademarks or registered trademarks of their respective companies.

MAGMATIC EFFECTS and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information contained within this document, and/or as a result of the improper, unsafe, insufficient and negligent assembly, installation, rigging, and operation of this product.

DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of this document may be available online.
Please check www.elationlighting.com for the latest revision/update of this manual before beginning installation and/or programming.

GENERAL INFORMATION

INTRODUCTION
Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this device. These instructions contain important safety and use information.
This product is intended to be used by professionally trained personnel only and is not suitable for private use.

UNPACKING
Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton is damaged, carefully inspect the device for damage, and be sure all accessories necessary to install and operate the device have arrived intact. In the event that damage has been found or parts are missing, please contact our customer support team for further instructions. Please do not return this device to your dealer without first contacting customer support. Please do not discard the shipping carton in the trash. Please recycle whenever possible.

BOX CONTENTS
Twist-locking power cable
CUSTOMER SUPPORT
Contact MAGMATIC customer service for any product-related service and support needs.
Also visit forums.elationlighting.com with questions, comments, or suggestions.
ELATION SERVICE USA – Monday – Friday 8:00am to 4:30pm PST
323-582-3322 | Fax 323-832-9142 | [email protected]
ELATION SERVICE EUROPE – Monday – Friday 08:30 to 17:00 CET
Voice: +31 45 546 85 63 | Fax: +31 45 546 85 96 | [email protected]
REPLACEMENT PARTS: Please visit parts.elationlighting.com

IMPORTANT NOTICE!
THERE ARE NO USER-SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY REPAIRS YOURSELF. DOING SO WILL VOID YOUR MANUFACTURER’S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE DISREGARD OF

SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS. NEVER POINT OR AIM A FOG MACHINE TOWARD PEOPLE OR THEIR CLOTHING. THIS UNIT EMITS HOT VAPOR AND SHOULD BE USED WITH THE SAME CARE THAT YOU WOULD OBSERVE WHEN USING AN ELECTRIC KETTLE OR IRON.

LIMITED WARRANTY (USA ONLY)

A. Magmatic Effects hereby warrants, to the original purchaser, Magmatic products to be free of manufacturing defects in material and workmanship for a period of two years (730 days) from the original date of purchase. This warranty excludes discharge lamps and all product accessories. This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought.
B. For warranty service, send the product only to the Magmatic Effects factory. All shipping charges must be pre-paid. If the requested repairs or services (including parts replacement) are within the terms of this warranty, Magmatic Effects will pay return shipping charges only to a designated point within the United States. If any product is sent, it must be shipped in its original package and packaging material. No accessories should be shipped with the product. If any accessories are shipped with the product, Magmatic Effects shall have no liability whatsoever for loss and/or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the product is modified in any manner that Magmatic Effects concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the Magmatic Effects factory unless prior written authorization was issued to purchaser by Magmatic Effects; if the product is damaged because not properly maintained as set forth in the product instructions, guidelines and/or user manual.
D. This is not a service contract, and this warranty does not include any maintenance, cleaning, or periodic check-up. During the periods specified above, Magmatic Effects will replace defective parts at its expense and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of Magmatic Effects under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of Magmatic Effects. All products covered by this warranty were manufactured after January 1, 1990, and bear identifying marks to that effect.
E. Magmatic Effects reserves the right to make changes in design and/or performance improvements upon its products without any obligation to include these changes in any products theretofore manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with the products described above. Except to the extent prohibited by applicable law, all implied warranties made by Magmatic Effects in connection with this product, including warranties of merchantability or fitness, are limited in duration to the warranty periods set forth above. And no warranties, whether expressed or implied, including warranties of merchantability or fitness, shall apply to this product after said periods have expired. The consumer’s and/or dealer’s sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall Magmatic Effects be liable for any loss and/or damage, direct and/or consequential, arising out of the use of, and/or the inability to use, this product.
G. This warranty is the only written warranty applicable to Magmatic Effects products and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published.

WARRANTY RETURNS (USA ONLY)

To obtain warranty service, a Return Material Authorization (RMA) number must first be obtained from MAGMATIC. It is the Customer’s responsibility to provide product proof of purchase and serial
number by acceptable evidence such as an invoice copy or an approved MAGMATIC Extended Warranty Certificate (“EWC”) and any relevant maintenance records at the time warranty service is sought. Failure to provide acceptable evidence of product proof of purchase or EWC and any relevant maintenance records may be cause for denial of warranty service.
Products returned for warranty service must be sent without any accessories (i.e., power, data, and safety cables, brackets, clamps, rigging hardware, frost filters, gel frames, barn doors, lenses, hoses, nozzles, rack mounting hardware, etc.), must be boxed using the original and/or suitable packaging materials (double-box and foam) that provide ample product protection for ground and/or air freight transit, and must be shipped freight pre-paid and insured to MAGMATIC in Los Angeles, CA or a MAGMATIC Authorized Service Center. The RMA number must be clearly written on the outside of the return box, and a brief description of the problem and the RMA number must be documented and included in the box.
Products returned for warranty service without an RMA number clearly marked on the outside of the package will be refused and returned to the shipper at the Customer’s expense. Products returned for warranty service, which are received damaged due to inadequate and/or improper packaging and/or due to damage caused by the shipping carrier, may incur additional repair charges before warranty service begins and/or may void this warranty. If any product accessories (included and/ or optional) are shipped with the product, MAGMATIC and/or the MAGMATIC Authorized Service Center shall have no liability whatsoever for the loss and/or damage to any such accessories, nor the safe return thereof. If the requested warranty repairs or service (including parts replacement) are
within the terms of this warranty, MAGMATIC will pay return ground transportation shipping charges to a single designated point within the United States.

SAFETY GUIDELINES

This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. Magmatic Effects is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of this fixture and only the original rigging parts included with this fixture should be used for installation. Any modifications to the fixture and/or the included mounting hardware will void the original
manufacturer’s warranty and increases the risk of damage and/or personal injury.

	PROTECTION CLASS 1 – FIXTURE MUST BE PROPERLY GROUNDED.
	THERE ARE NO USER-SERVICEABLE PARTS INSIDE THIS UNIT. DO  NOT ATTEMPT ANY REPAIRS YOURSELF. DOING SO WILL VOID YOUR MANUFACTURER’S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS DEVICE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS.
	DO NOT PLUG THIS UNIT INTO A DIMMER PACK DO NOT REMOVE THE COVER UNDER ANY CONDITIONS KEEP THE UNIT IN AN UPRIGHT POSITION NEVER OPERATE THIS UNIT WITH THE COVER REMOVED UNPLUG POWER DURING LONG PERIODS OF NON-USE ENSURE THE TANK IS EMPTY BEFORE STORAGE OR TRANSPORT DO NOT MOVE WHEN FILLED WITH FLUID DISCONNECT POWER BEFORE ADDING FLUID OR PERFORMING MAINTENANCE
	FOR USE IN INDOOR / DRY LOCATIONS ONLY DO NOT EXPOSE THE DEVICE TO RAIN AND/OR MOISTURE PLACE THE UNIT IN A WELL-VENTILATED AREA AND ALLOW 40” (100CM) ABOVE AND AROUND THE UNIT FOR PROPER VENTILATION.
IP20	PROTECTED AGAINST INTRUSION OF SOLID THE SIZE OF A HUMAN FINGER OR LARGER. NOT PROTECTED AGAINST LIQUID EXPOSURE OF ANY KIND!

IMPORTANT SAFETY INSTRUCTIONS. READ THESE INSTRUCTIONS THOROUGHLY BEFORE USE, AND SAVE THEM FOR FUTURE REFERENCE.

CAUTION:

• Risk of burn, fire, or electric shock.
• For indoor use only.
• Please read the instruction manual carefully before use.
• Do not immerse in liquid.
• Not for space heating use.

WARNING: To prevent the risk of personal injury, fire, and electric shock:

• Never leave the unit unattended while plugged in. Unplug the device when not in use.
• Read all important safety instructions and cautions before attempting to use them.
• Connect only to a properly grounded power outlet.
• Place product on a flat, level, HARD surface and connect the cord to prevent the product from tipping or overturning.
• For use in covered areas only! Keep the unit dry, and do not expose it to rain, moisture, or liquid immersion.
• Leave enough space for adequate ventilation. Keep the device cool and away from other objects.
• Do not operate the device without fog liquid in the reservoir.
• Use caution when filling the fluid reservoir in order to avoid spillage, as spilled liquid can result in electrical shock.
• Do not use if liquid spills into or onto the unit, and allow the device to dry completely before attempting usage.
• Do not overfill the fluid reservoir.
• Keep away from flames and flammable or explosive substances.
• Never pour flammable liquids, such as gas, perfume, etc, into the fog machine.
• Keep the device and fog fluid out of reach of children.
• Use only under adult supervision.
• Do not direct fog output in the direction of people or open flame.
• Stay at least 20 inches (50cm) from the output nozzle on the front of the unit.
• Do not obstruct the output nozzle.
• Do not open the unit for any reason. There are no user serviceable parts inside, and all maintenance and repair procedures should be referred to an authorized vendor or technician.
• Only a certified electrician may replace the power cord.
• Clean the unit prior to storage to avoid damage.

POWER SUPPLY CORD:

• A short power-supply cord (or short detachable power-supply cord) is provided to reduce the risk of a person becoming entangled in or tripping over the cord.
• Extension cords (or long detachable power-supply cords) are available and may be used as long as care is exercised during use.
• If an extension cord (or long detachable power-supply cord) is used, follow the guidelines below:
  1. The indicated electrical rating of the cord should meet or exceed the rating of the device.
  2. If the device is of the grounded type, the cord must use a grounding-type 3-wire cord.
  3. The cord should be routed in such a way as not to cause a tripping hazard or result in unintentional snagging or pulling of the cord, especially in the presence of children.

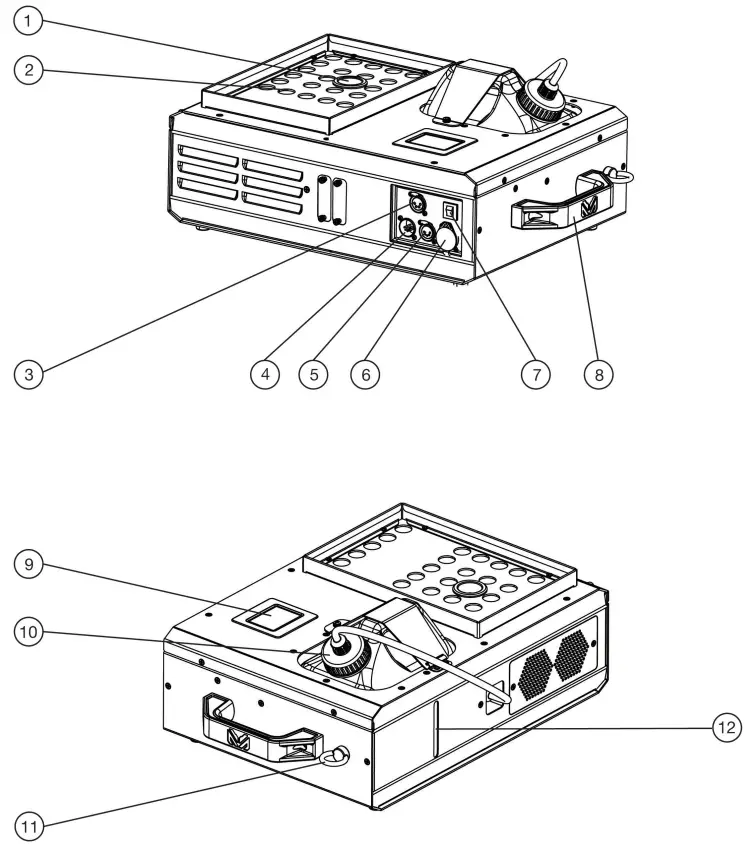

OVERVIEW

INSTALLATION

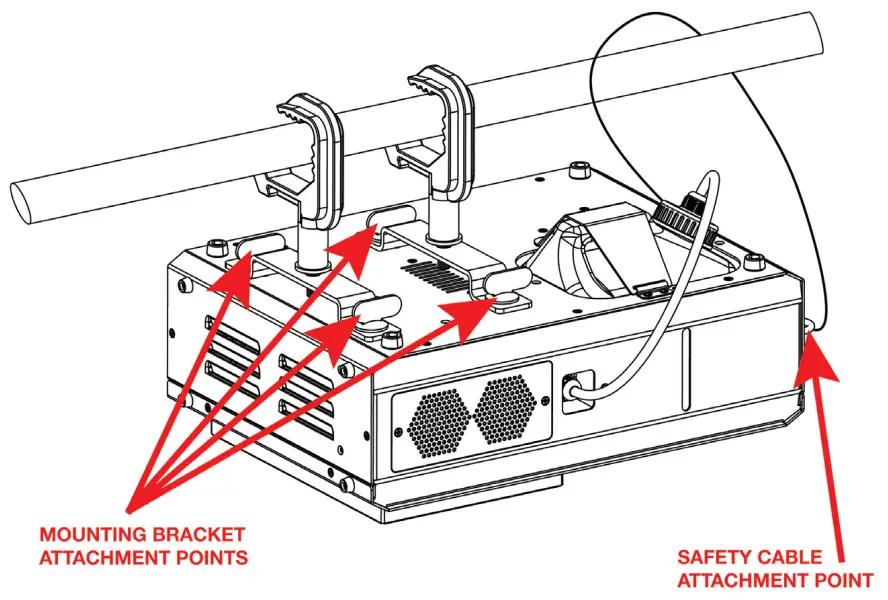

CLAMP INSTALLATION
This device features attachment points for two (2) omega brackets (SKU: SY2504F-B20) located on the device underside, near the underside vents. A safety cable rigging point is also included, located beside the carry handle (see the illustration below). When mounting this unit to the truss, be sure to secure appropriately rated omega brackets (not included) to the mounting bracket attachment points and attach a separate SAFETY CABLE of the appropriate rating to the safety cable rigging point.

SAFETY CABLE:
ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS UNIT IN A SUSPENDED ENVIRONMENT TO ENSURE THAT THE DEVICE WILL NOT FALL IF THE CLAMPS FAIL.

RIGGING
Overhead rigging requires extensive experience, including but not limited to: calculating working load limits, understanding the installation material being used, and periodic safety inspection of all installation material and the device. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury.

OPERATION

FOG FLUID
Fill tank only with approved Atmosity Flash Fog Fluid (AFF-4L) or Atmosity Extreme Filtered Fog Fluid (AEF-4L).
WARM-UP
Allow the device 540 seconds (9 minutes) to warm up after the initial power-up or refilling of the fluid tank.
FOG DURATION
While the fog duration setting can be set as high as 250 seconds, the individual bursts of continuous fog output will only occur for a maximum of 8 seconds. For example, when the user sets a duration of 250 seconds, this does NOT mean that the device will be emitting fog continuously for the entire 250-second period. Rather, the device will produce a series of shorter fog bursts, each lasting up to 8 seconds, throughout the 250-second period.

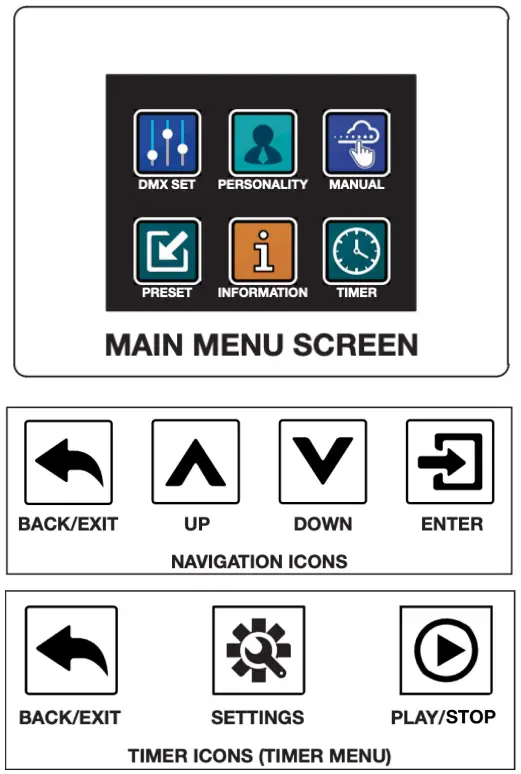

CONTROL PANEL

This unit includes a system menu with an easy-to-navigate touch screen control panel where all necessary settings and adjustments are made. When first powering on the machine, the main menu will be displayed (see Main Menu Screen below).
Press the main menu icon you would like to access. Use the ENTER button to access the sub-menus and use the UP and DOWN buttons to make adjustments. Press the ENTER button to confirm your adjustments. You may exit the main menu at any time without making any adjustments by pressing the BACK/EXIT button.

SYSTEM MENU

	DMX SET	DMXADDR	1 – 512
		DMX MODE	1-CH
			4-CH
			7-CH
			12-CH
	PERSONALITY	Mapp Set	Mapp Name
			Mapp Passcode
			Mapp IP
			Mapp Port
			Mapp Reset	Complete
				Failed, try again
			MagApp >DMX & Magfly	On /  Off	Allows MagApp data to be converted to DMX data and then sent out via MAX port and Mayfly
		LCD Set	Screen OFF	Never
				IOs
				The 40s
				1 min
				2 min
				5 min
				10 min
				20 min
			Display Flip	0 deg
				180 deg
		Mayfly Set	Mayfly Channel	0 – 14	When Magfly is not equipped,
			Mayfly	ON / OFF	selecting this function causes “Optional Module Not Installed” to show on the screen.
CONTINUED ON NEXT PAGE

	PERSONALITY (cont’d from prey page)	MagRF Learn	Frequency Matching feature. The display will read “Connected” if the connection attempt succeeds within 20 seconds. Otherwise, the display will read “Connection Failed.”	When Magfly is not equipped, selecting this function causes “Optional Module Not Installed” to show on the screen.
		Last State	Yes / No	When powered up, the device adheres to the last settings from before power was shut off
		Default	Yes / No	Restore to factory settings
	MANUAL		LED Off	Start or pause device operation according to these values by pressuring the Play/Start icon.
			Auto 1 – 4
			Color 1 – 75 (see Color Table)
			Intensity 0 – 100%
	TIMER	Duration	0 – 250 s	Start or pause device operation according to these values by pressuring the Play/Start icon.
		Interval	0 – 2500 s
			LED Off
			Auto 1 – 4
			Color 1 – 75 (see Color Table)
			Intensity 0 – 100%
CONTINUED ON NEXT PAGE

	PRESET	OPT Effect	OPT 1	Selection effect for different liquid (types)
			OPT2
			OPT3
			OPT4
		LED Status	On	LED always on
			Follow	LED illuminates when fog is outputted
			Off	LED always off
		LED Bright	0 – 100%	LED brightness adjustment
		LED Effect	Off
			Random
			Pulse
			Strobe
		LED Style	LED Off
			Auto 1 – 4
			Color 1 – 75	see Color Table
		MagRF1 Style	LED Off
			Auto 1 – 4
			Color 1 – 75	see Color Table
		MagRF2 Style	LED Off
			Auto 1 – 4
			Color 1 – 75	see Color Table
		MagRF3 Style	LED Off
			Auto 1 – 4
			Color 1 – 75	see Color Table
		MagRF4 Style	LED Off
			Auto 1 – 4
			Color 1 -75	see Color Table
	INFORMATION	State	Normal / Error	Operational status of the unit
		Slot 1	Null	Displays what type of module is connected to Slot 1
			Mag Fly
			Mapp
			Mag RF
CONTINUED ON NEXT PAGE

	INFORMATION (cont’d from prey page)	Slot 2	Null	Displays what type of module is connected to Slot 2.
			Magaly
			Mapp
			MagRF
		Last Control	LCD_auto	Displays current control method
			LCD_manual
			DMX
			Mapp
			MagRF
			MagRemote
			Error
		MagRemote State	Yes / No	Displays whether the remote has been connected
		Mapp Connect	Null	Displays the type of the device that the MagApp has connected to
			Phone
			Route (router)
			No
		Mapp IP		IP address set by the user
		Magaly Ch	0 – 14	Current MagFly channel
		DMX Address	1 – 512	Current DMX address of the unit
		DMX Mode	1/4/12	Current DMX mode of the unit
		Timer Int	0 – 2500 s	Current timer interval setting
		Timer Dur	0 – 250 s	Current timer duration setting
		Heating	0 – 100%	Progress of fluid heating
		Heater State	Normal	Operational status of the fluid heater
			Error
			No Heat
		LCD Ver.	V1.2	LCD version
		Software Ver.	V1.0	Software version

DMX CHANNEL FUNCTIONS & VALUES

LED LAYOUT for 12-Channel Mode

MACROS LIST

COLOR LIST

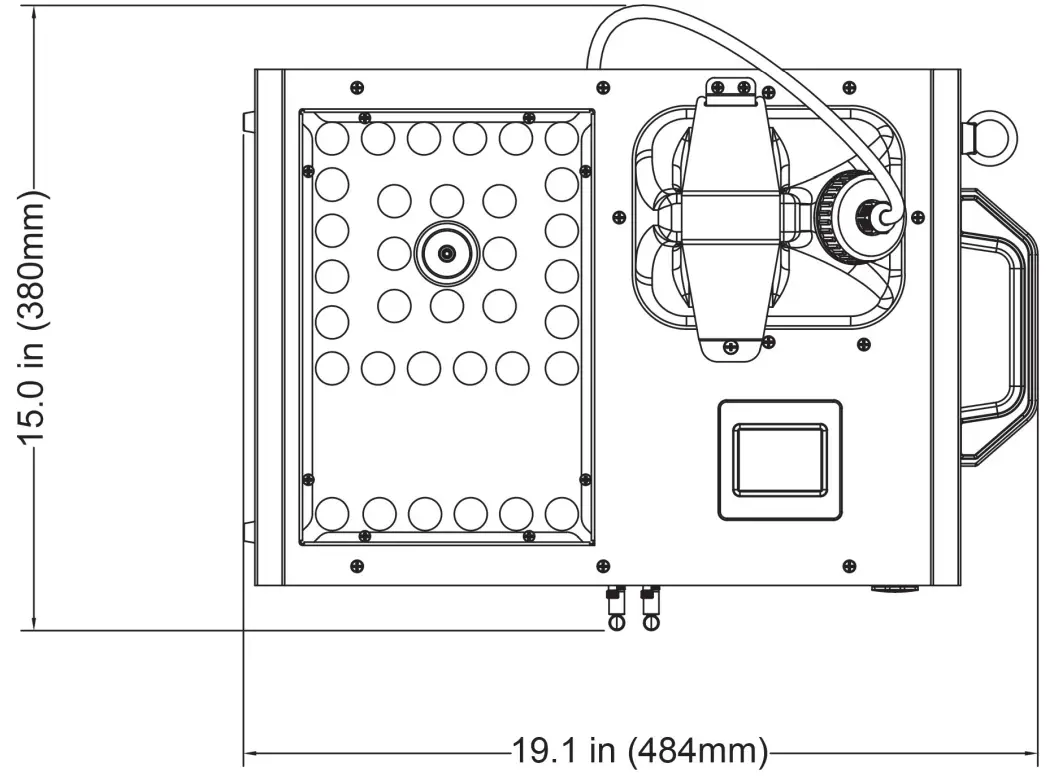

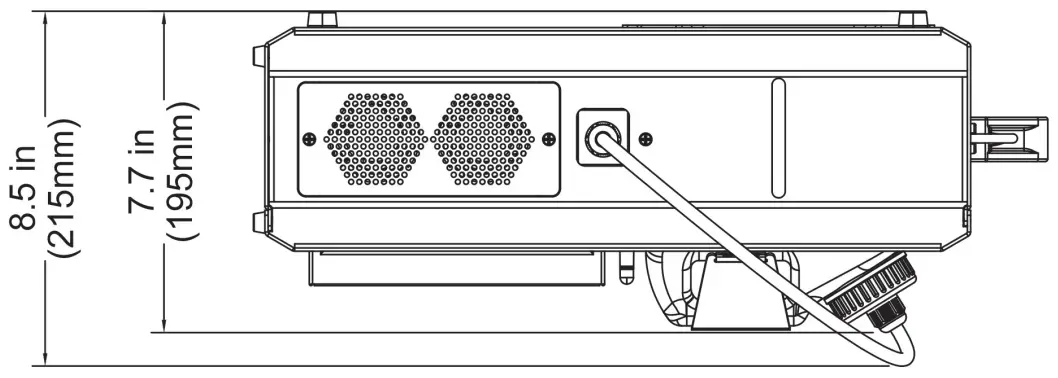

DIMENSIONAL DRAWINGS

Dimensions may not be drawn to scale.

TROUBLESHOOTING

If you experience low output, pump noise, or no output at all, disconnect the device and discontinue use immediately. Do not attempt to continue operation as this may damage the machine. Check the fluid level, the breaker, and the wall outlet to ensure it is sending power. If all the above factors do not appear to be causing the issue, and the unit still fails to operate correctly, it will require service.
Please contact Magmatic Effects for assistance.

CLEANING & MAINTENANCE

When storing your device, be sure to store it in a cool area. Cover the device so that dust does not build up on the device. When storing for long periods of time it is highly advisable to run the device at least once every 3-4 months. Long periods of inactivity can severely shorten the life of your device. Only run Magmatic’s Atmosity fluid through your machine. Never run plain water, vinegar, or any other liquid solution through your device, as doing so will severely damage your device.

SPECIFICATIONS

PERFORMANCE
Rated Power: 1450W
Max Output: 50,000 CFM* (cu ft/min.)
Fog Burst Distance 5-6m / 3 sec.
Ready Time: Initial = 9 Minutes*
Fluid Capacity: 0.66 gallons (2.5 liters)
Fluid Consumption: 6.09 oz/min (180 ml/min) *approximate
Max Continuous Output Duration: 8 Seconds
COMPATIBLE FLUID
Atmos Flash Fog Fluid (AFF-4L)
Atmos Extreme Filtered Fog Fluid (AEF-4L)
CONSTRUCTION
Thermally Protected Heat Exchanger
Advanced HPA (high-pressure air) Pump Technology
Energy Saving Mode with Auto-Clean Process
Sealed Fluid Reservoir
External Visual Fluid Level Detection
Compact Light Weight Mobile Design
CONTROL
4 DMX Channel Modes (1 / 4 / 7 / 12)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MagFly Wireless DMX Transceiver
Optional MagRF Wireless and Wired Remotes
CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 15.0 in (380mm)
Width: 7.7 in (195mm)
Height: 19.1 in (484mm)
Weight: 28.7 lbs. (13kg)
ELECTRICAL
AC 120V 60Hz / 230V 50Hz
NFB: 20A (120V) / 10A (230V)
Max Power Consumption: 1580W
THERMAL
Maximum Ambient Temperature (Ta max) 104°F (40°C)
Exterior Surface Temperature, Steady State: 140°F (60°C)
ACCESSORIES
MagFLY (MSR934) Wireless DMX Transceiver Module
MagRF (MSR912) RF Module and Wireless Remote
Omega Rigging Bracket x2 (SY2504F-B20)
APPROVALS / RATINGS
CE | cETLus | IP20

Specifications are subject to change without prior notice.

FCC STATEMENT

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC RADIO FREQUENCY INTERFERENCE WARNINGS & INSTRUCTIONS
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device uses and can radiate radio frequency energy, and if not installed and used in accordance with the included instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following methods:

• Reorient or relocate that device.
• Increase the separation between the device and the receiver.
• Connect the device to an electrical outlet on a circuit different from the one connected to the radio receiver.
• Consult the dealer or an experienced radio/TV technician for help.

Please note that the changes or modifications of this product that are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
