Ronite logoD SERIES Digital radiator with Wi-Fi
User Manual

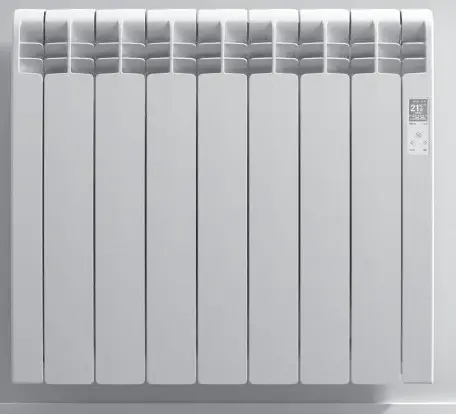

Ronite D Series 990W WiFi Electric Radiator

D Series 990W WiFi Electric Radiator

GUARANTEE
10 YEARS ON THE BODY
3 YEARS ON ELECTRONICS

SYMBOLS
BLAUPUNKT MS46BT Bluetooth CD-MP3 player with FM and USB - icon 3 DANGER.
This symbol indicates a medium-high risk hazard which can result in serious injury or even death.
Ronite D Series 990W WiFi Electric Radiator - icon 1 DO NOT COVER. Do not dry or leave clothes or towels on the radiator. Do not leave or place magazines, spray cans, volatile substances, or similar objects within 250 mm of the radiator.
ecostrad Heatglo Infrared Heater - icon 2 HOT SURFACE. This symbol indicates that your surfaces are hot during and immediately after use. These must not be touched: danger of burns.
nuaire DRI-ECO CO2 CO2 Sensor For Use With RF Enabled Hall Control DRI ECO Units - book icon OBSERVE THE INSTRUCTIONS IN THE MANUAL. Please read this manual carefully before installing and using the product. Keep it for later use. Read all instructions and safety warnings. Failure to follow these can result in electric shock, fire or serious injuries.

GENERAL WARNINGS

BLAUPUNKT MS46BT Bluetooth CD-MP3 player with FM and USB - icon 3 WARNINGS
This product may be used by children over 8 years of age and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge under strict supervision or instruction in the safe use of the product and if they understand the hazards involved. Children should not plug, adjust, clean, play with, or perform maintenance on this product. Children under 3 years of age should be kept away from this product unless supervised.
DO NOT use the product in enclosed spaces if the persons present cannot leave the room independently and are not under constant supervision.
Ronite D Series 990W WiFi Electric Radiator - icon 1DO NOT COVER. To avoid overheating, do not cover the radiator.
DO NOT place spray cans, volatile substances, or similar objects within 250mm of the product.
DO NOT use insecticides, paints, or chemicals on or near the product.
ecostrad Heatglo Infrared Heater - icon 2Some parts of this product could reach high temperatures and cause burns. DO NOT touch the external parts of the product when in operation.
DO NOT install near curtains or other flammable materials.
Particular attention should be paid when children and vulnerable people are present.
When using electrical appliances, precautions should be taken to reduce the risk of fire, electric shock and injury.
Never insert fingers, body parts or objects inside the product.
Make sure that the voltage indicated on the product’s technical information corresponds to the voltage output you have at your socket.
Any repair or maintenance that requires the product to be opened the product must be carried out by personnel authorised by ROINTE, who must also be notified if a leak is observed. Only official spare parts approved by ROINTE should be used. Please observe the current and relevant regulations when disposing of this product and its thermal fluid.
If the power cable is damaged, it must be replaced by personnel authorised by ROINTE to prevent any damage.
To avoid the risk of suffocation, do not leave the packaging including bags and other items within reach of babies or children.

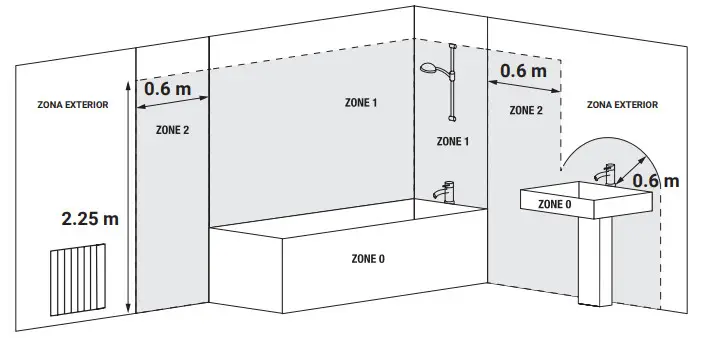

The product has an IP24 degree of protection and can be used in bathrooms, but not in the vicinity of bathtubs, taps, showers, water connections, toilets, swimming pools or other masses of water. The product must never be installed where it, the switches or the control panel are within the reach of people in the water. Never use the product with wet hands.
Do not place any water containers (glasses, vases, etc.) on or near the product.
important icon IMPORTANT!

  • Disconnect the product from the power supply and make sure the product is at room temperature before any cleaning or maintenance. Do not use any abrasive substances on the product, such as (but not limited to) chemicals, coarse cloths, brushes, hard bristle, or wire/steel wool.
  • To disconnect the product from the power source, remove the mains plug from the socket. Do not pull on the cable.
  • ROINTE cannot be held responsible for incorrect sizing of the product unless it has been followed by an official ROINTE technical study.
  • Before the first start-up, or before the start of winter, or when the product has not been used for many days, the appliance should be cleaned (follow the steps in the “maintenance” section of this manual).
  • Do not sit or lean on the product.
  • Temperature contrasts can generate “clicks” or noises in the device. This is not a fault of the product, but due to the expansion/contraction of the materials.
  • When disposing of the product, the requirements set out in the legislation for the waste treatment and recycling must be followed. See WEEE in section 8.

TECHNICAL INFORMATION

MODELS0330RAD0550RAD0770RAD0990RAD1210RAD1430RAD1600RAD
Number of elements3579111315
DIMENSIONS, WEIGHTS & FINISHES
Width (mm)3505106708309901,1501,310
Height (mm)585585585585585585585
Depth (mm)97979797979797
Installed depth (mm)120120120120120120120
Weight (kg)7,712,216.420.424.125.932.1
FinishWhite RAL 9016 / Graphite / RAL color
ELECTRICAL CHARACTERISTICS
Nominal power (W)3305507709901,2101,4301,600
Effective power (W)125209293376460543608
Voltage (V)230 ~V230 ~V230 ~V230 ~V230 ~V230 ~V230 ~V
Current (A)1.52.43.44.35.36.27.0
SAFETY & INSTALLATION
Safety thermostat
Protection GradeIP 24IP 24IP 24IP 24IP 24IP 24IP 24
Template & Installation Kit
EAN CODEWHITE8436045913708843604591371584360459137228436045913739843604591374684360459137538436045913760
GRAPHITE8436045913777843604591378484360459137918436045913807843604591381484360459138218436045913838

INSTALLATION

We recommend using a trusted Rointe supplier for installation of the product. Find the nearest one by calling us on 0203 321 5929 or using the locator on www.rointe.co.uk.

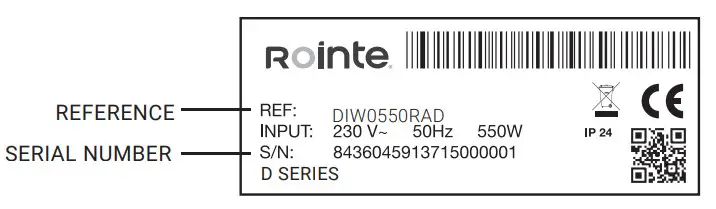

IMPORTANT: Prior to installation, please locate the metal tag located at the back of the product and note the product reference and serial number. You will need this  information to register your guarantee. See section 10 for help on how to register the guarantee.
WARNING: Do not install the product directly over an electrical outlet or junction box.
Do not install the product or use it outdoors. Do not install directly under a shelf. This product is designed to be installed on an interior wall using the ROINTE template, the
installation kit and the fixings supplied. Do not install the product in such a way that it encounters the power cable.

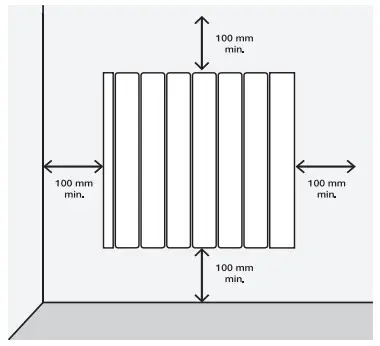

The product must be mounted on the wall in the position shown in the accompanying image using the brackets and with the fixings supplied.
Our products transfer heat through the natural air convection. If the product is covered, this will disrupt the airflow and could cause overheating. It must be positioned in accordance with the minimum distances shown in the accompanying picture.Ronite D Series 990W WiFi Electric Radiator - Figure 1WARNING: The product has an IP24 degree of protection and can be used in bathrooms, but not in the vicinity of bathtubs, taps, showers, water connections, toilets, swimming pools or other masses of water. The product can only be installed in zone 3 of the accompanying picture. The product must never be installed where it, the switches or the control panel are within the reach of people in the water. Never use the product with wet hands. Do not place any water containers (glasses, vases, etc.) on or near the product. Ronite D Series 990W WiFi Electric Radiator - Figure 2An installation kit is included in the product packaging. You will need a drill, a rubber mallet, a spirit level and a pencil to complete the installation.
Ronite D Series 990W WiFi Electric Radiator - icon 2 WARNING: The weight of some of the products may be heavy. The installation may require two people.
IMPORTANT: Please follow these instructions carefully.Ronite D Series 990W WiFi Electric Radiator - Figure 3

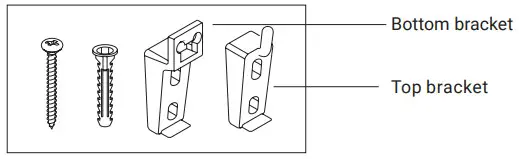

  1. Remove the packaging and check that the installation contains brackets, screws, rawl plugs and a cardboard template.

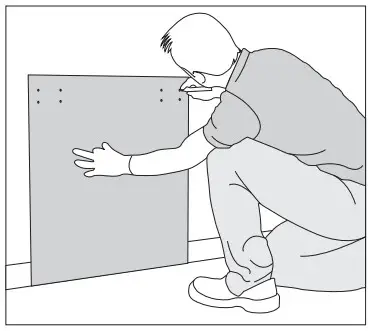

  2. Select a suitable location on the wall. Place the template on the wall and mark the holes for the brackets and screws. Observe the minimum distance requirements from the previous page.
    Use the floor as a base for the template, not the skirting board.
    Ronite D Series 990W WiFi Electric Radiator - Figure 4
  3. Remove the template and carefully drill out the marked holes.
  4. Secure the upper brackets with the rawl plugs and screws provided. Then fix the lower bracket. To distinguish it, the lower bracket has a different design from the top  ones.
    Ronite D Series 990W WiFi Electric Radiator - Figure 5
  5. Slide the product up and down over the fixed brackets.
  6. Check the straightness with a spirit level and adjust the supports accordingly if necessary.
    Ronite D Series 990W WiFi Electric Radiator - Figure 6

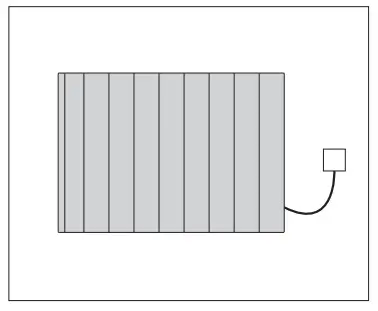

  7. Connect your product to the power supply and switch it on.
  8. See section 5 for operating instructions.
    Ronite D Series 990W WiFi Electric Radiator - Figure 7

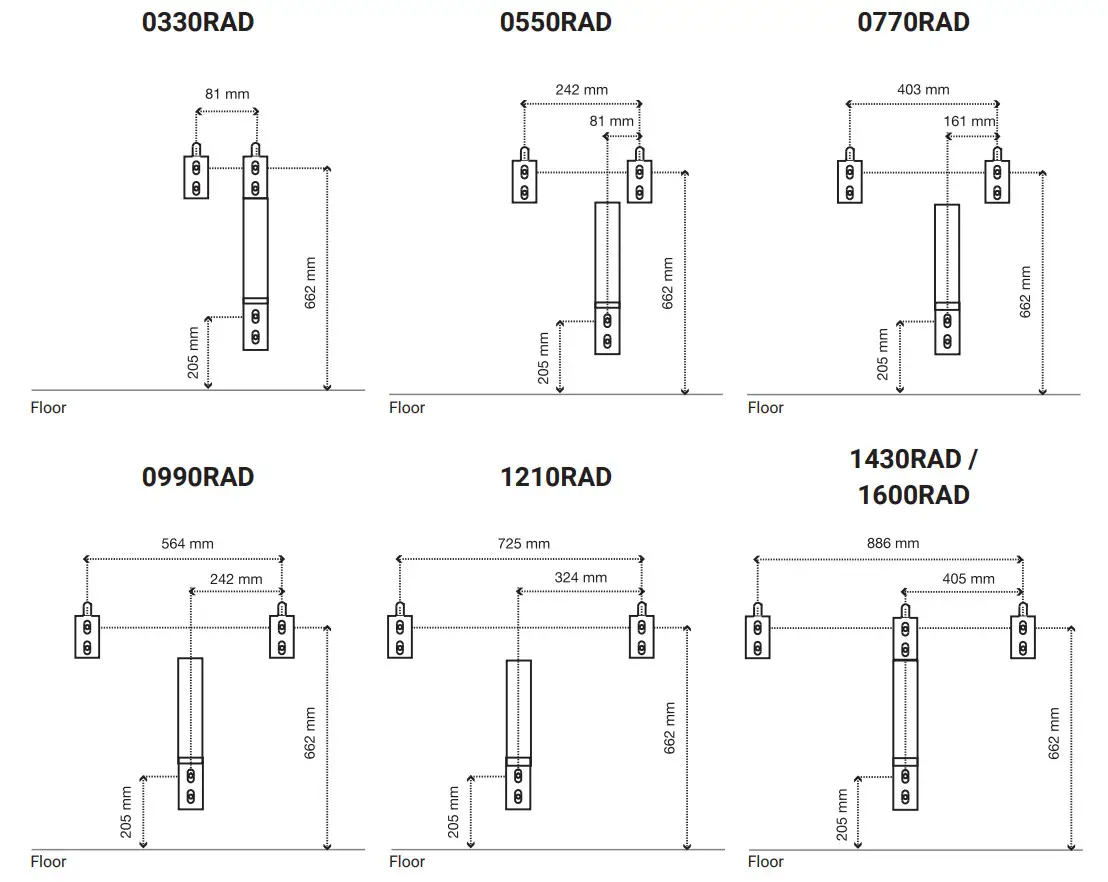

IMPORTANT: Measurement template per model. Ronite D Series 990W WiFi Electric Radiator - Figure 8

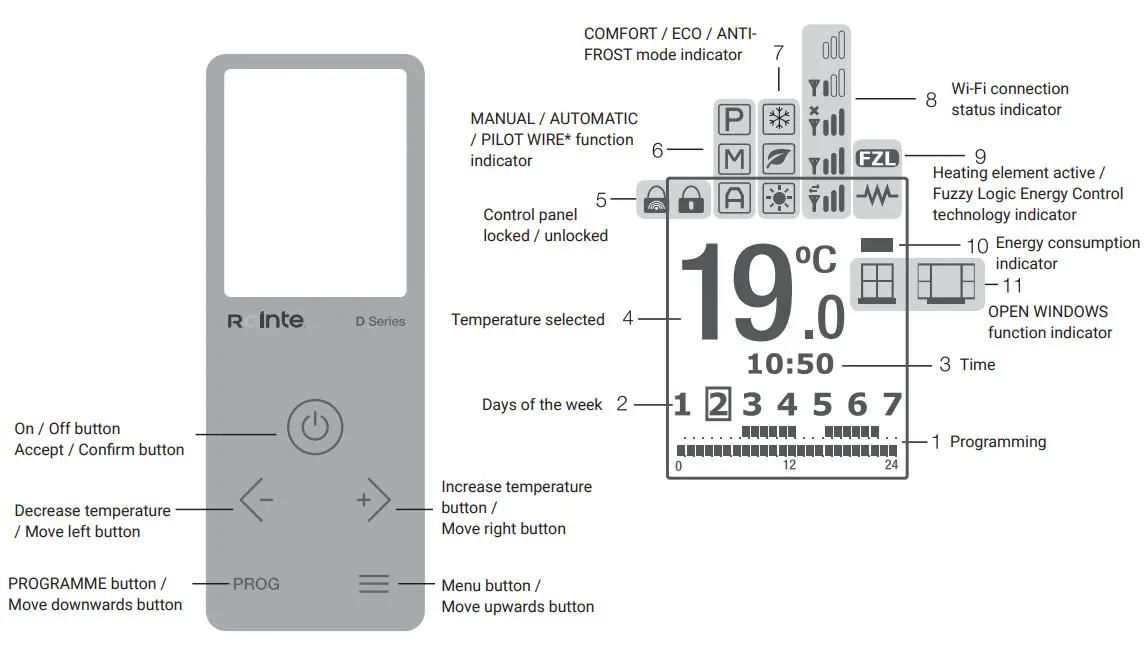

SCREEN & KEYPAD

Ronite D Series 990W WiFi Electric Radiator - Figure 9

SYMBOLDESCRIPTIONSYMBOLDESCRIPTION
Ronite D Series 990W WiFi Electric Radiator - icon 3Heating element – activeRonite D Series 990W WiFi Electric Radiator - icon 14MANUAL function – active
Ronite D Series 990W WiFi Electric Radiator - icon 4OPEN WINDOWS function – DETECTEDRonite D Series 990W WiFi Electric Radiator - icon 15PILOT WIRE function – active
Ronite D Series 990W WiFi Electric Radiator - icon 5OPEN WINDOWS function – ACTIVERonite D Series 990W WiFi Electric Radiator - icon 16AUTOMATIC function – active when USER mode active
Ronite D Series 990W WiFi Electric Radiator - icon 6Energy consumption status – green / amber / redRonite D Series 990W WiFi Electric Radiator - icon 17MANUAL function – active when USER mode active
Ronite D Series 990W WiFi Electric Radiator - icon 7Fuzzy Logic Control technology – activeRonite D Series 990W WiFi Electric Radiator - icon 18PILOT WIRE function active* when USER mode active
Ronite D Series 990W WiFi Electric Radiator - icon 8COMFORT mode – activeRonite D Series 990W WiFi Electric Radiator - icon 19Connected to the server and router – sending and receiving.
Ronite D Series 990W WiFi Electric Radiator - icon 9ECO mode – activeRonite D Series 990W WiFi Electric Radiator - icon 20Connected to the server and router – maximum net signal.
Ronite D Series 990W WiFi Electric Radiator - icon 10ANTI-FROST mode – activeRonite D Series 990W WiFi Electric Radiator - icon 21Connected to the server and router – minimum net signal.
Ronite D Series 990W WiFi Electric Radiator - icon 11Control panel locked through keypadRonite D Series 990W WiFi Electric Radiator - icon 22Connected to router. Not connected to the server.
Ronite D Series 990W WiFi Electric Radiator - icon 12Control panel locked through remoteRonite D Series 990W WiFi Electric Radiator - icon 23Not connected to the server or to the router.
Ronite D Series 990W WiFi Electric Radiator - icon 13AUTOMATIC function – active* PILOT WIRE function not available in UK. Only on demand.

FUNCTIONALITY & PROGRAMMING

5.1. SWITCHING ON AND OFF (STAND-BY)

To switch the product on, please press the Ronite D Series 990W WiFi Electric Radiator - icon 24 button on the keypad once.Ronite D Series 990W WiFi Electric Radiator - icon 25
After 3 seconds the temperature, time and days of the week will show on the display panel.Ronite D Series 990W WiFi Electric Radiator - icon 26
To switch the product off, please press the Ronite D Series 990W WiFi Electric Radiator - icon 24 button again once.
The product will go into stand-by mode with the word ‘STAND-BY’ displayed on the display panel. After 3 seconds the Rointe logo will appear.
Ronite D Series 990W WiFi Electric Radiator - icon 27

5.2. ADJUST THE DAY AND TIME
It is possible to change the radiator time from the control panel, but it is preferable to wait for automatic synchronisation once it is paired with the Rointe Connect application and the product is connected to the E-life Technology servers.
Pressing the Ronite D Series 990W WiFi Electric Radiator - icon 28 key, you can access the Main Menu. To move left press the Ronite D Series 990W WiFi Electric Radiator - icon 30 button and to move right press the Ronite D Series 990W WiFi Electric Radiator - icon 29 button. Once the Ronite D Series 990W WiFi Electric Radiator - icon 31 icon is highlighted on the display panel, press the Ronite D Series 990W WiFi Electric Radiator - icon 24 button to access.Ronite D Series 990W WiFi Electric Radiator - icon 32Now use the Ronite D Series 990W WiFi Electric Radiator - icon 30 and Ronite D Series 990W WiFi Electric Radiator - icon 29 buttons again to select the clock option Ronite D Series 990W WiFi Electric Radiator - icon 33 and press Ronite D Series 990W WiFi Electric Radiator - icon 24 to access.
Ronite D Series 990W WiFi Electric Radiator - icon 34Use the Ronite D Series 990W WiFi Electric Radiator - icon 30 and Ronite D Series 990W WiFi Electric Radiator - icon 29 buttons to set the hour and then press Ronite D Series 990W WiFi Electric Radiator - icon 24 to confirm.
Then use the Ronite D Series 990W WiFi Electric Radiator - icon 30 and Ronite D Series 990W WiFi Electric Radiator - icon 29 buttons to set the minutes and press Ronite D Series 990W WiFi Electric Radiator - icon 24 to confirm. Finally, use the Ronite D Series 990W WiFi Electric Radiator - icon 30 and Ronite D Series 990W WiFi Electric Radiator - icon 29 buttons to set the day (1 = Monday, 2 = Tuesday etc.) and confirm by pressing the Ronite D Series 990W WiFi Electric Radiator - icon 24 button.
Ronite D Series 990W WiFi Electric Radiator - icon 355.3. ADJUST THE TEMPERATURE

To change the temperature, please press the Ronite D Series 990W WiFi Electric Radiator - icon 30 or Ronite D Series 990W WiFi Electric Radiator - icon 29 button. To decrease the temperature press the Ronite D Series 990W WiFi Electric Radiator - icon 30 button and to increase the temperature press the Ronite D Series 990W WiFi Electric Radiator - icon 29 button.
When the room temperature is lower than the set temperature on the display panel, the product will come on with the Ronite D Series 990W WiFi Electric Radiator - icon 36 symbol appearing in the top right of the display panel.
Ronite D Series 990W WiFi Electric Radiator - icon 37
When the Fuzzy Logic Energy Control technology is activated the symbol Ronite D Series 990W WiFi Electric Radiator - icon 38 will replace the symbol Ronite D Series 990W WiFi Electric Radiator - icon 36 in the top right of the display panel.
To learn more about Fuzzy Logic Energy Control technology please see section 5.9.5.
Ronite D Series 990W WiFi Electric Radiator - icon 39

5.4. LOCK THE CONTROL PANEL

To lock the keypad manually, please hold and press the Ronite D Series 990W WiFi Electric Radiator - icon 30 button AND theRonite D Series 990W WiFi Electric Radiator - icon 29 button TOGETHER for 3 seconds. TheRonite D Series 990W WiFi Electric Radiator - icon 40symbol will appear on the display panel and the keys will not respond.
To unlock the keypad manually, please hold and press the Ronite D Series 990W WiFi Electric Radiator - icon 30 button AND the Ronite D Series 990W WiFi Electric Radiator - icon 29 button TOGETHER for 3 seconds.
Ronite D Series 990W WiFi Electric Radiator - icon 41
When locking from the mobile application, the remote keypad lock icon will appear on the screenRonite D Series 990W WiFi Electric Radiator - icon 40. When pressing any key on the product, the image on the right will be displayed on the screen. The remote keypad lock can only be unlocked from the mobile application.Ronite D Series 990W WiFi Electric Radiator - icon 42

5.5. MAIN MENU

The Main Menu is accessed by pressing the menu Ronite D Series 990W WiFi Electric Radiator - icon 28 button. You can navigate through the different options available on the menu by pressing the Ronite D Series 990W WiFi Electric Radiator - icon 30 and Ronite D Series 990W WiFi Electric Radiator - icon 29 buttons to move left and right respectively and to scroll through all 4 options. The selected sub-menu will be highlighted with a frame, as shown in the image to the right on the ‘Settings’   section of the display panel.
The below icons displayed on the screen take you to the following sub-menus:
Ronite D Series 990W WiFi Electric Radiator - icon 46
Ronite D Series 990W WiFi Electric Radiator - icon 31Ronite D Series 990W WiFi Electric Radiator - icon 43Ronite D Series 990W WiFi Electric Radiator - icon 44Ronite D Series 990W WiFi Electric Radiator - icon 45

Settings

Energy

Equilibrium/ Balance

Program

5.6. MAIN MENU: SETTINGS SUB-MENU

The `Settings´ sub-menu configures the technical parameters of your product. To access, select the Ronite D Series 990W WiFi Electric Radiator - icon 31icon displayed in the Main Menu screen and press Ronite D Series 990W WiFi Electric Radiator - icon 24 to confirm.
Use the Ronite D Series 990W WiFi Electric Radiator - icon 30 and Ronite D Series 990W WiFi Electric Radiator - icon 29 buttons to move across the different options on the sub-menu to choose your parameter and press Ronite D Series 990W WiFi Electric Radiator - icon 24 to access.
The below icons displayed on the screen take you to the following parameters:
Ronite D Series 990W WiFi Electric Radiator - icon 50
Ronite D Series 990W WiFi Electric Radiator - icon 47Ronite D Series 990W WiFi Electric Radiator - icon 48Ronite D Series 990W WiFi Electric Radiator - icon 49Ronite D Series 990W WiFi Electric Radiator - icon 33

Display backlight brightness

Wi-Fi settings

Language

Time

• Adjust display backlight brightness

This allows you to change the brightness of the display panel in both the STAND-BY and ON modes separately. To change the brightness of the display panel ensure the Ronite D Series 990W WiFi Electric Radiator - icon 47 icon is highlighted and press the Ronite D Series 990W WiFi Electric Radiator - icon 24 button to confirm. Then with the Ronite D Series 990W WiFi Electric Radiator - icon 28and PROG buttons you can switch between the two modes.
With the Ronite D Series 990W WiFi Electric Radiator - icon 30 and Ronite D Series 990W WiFi Electric Radiator - icon 29 buttons you can increase or decrease the brightness as you wish. The cursor indicates the intensity of the light. Once you have set the required brightness press the Ronite D Series 990W WiFi Electric Radiator - icon 24 button to save and exit.
Ronite D Series 990W WiFi Electric Radiator - icon 51

• Wi-Fi settings

This option prepares the product to perform the PAIRING mode, creating its own network to which we will connect for the correct configuration of the product. Make sure that the icon Ronite D Series 990W WiFi Electric Radiator - icon 48 is flashing and confirm with Ronite D Series 990W WiFi Electric Radiator - icon 24.
The next screen will show the data of the network created, the name of the Wi-Fi network (NET:) and the password (PIN:). Pressing the Ronite D Series 990W WiFi Electric Radiator - icon 28 button will exit the PAIRING mode, returning to the main screen.
Both to enter and exit the submenu you have to wait about 15 seconds. In addition, the product will restart.

Ronite D Series 990W WiFi Electric Radiator - icon 52

• Change the language

To change the language of your product, ensure theRonite D Series 990W WiFi Electric Radiator - icon 49 icon is highlighted in the ‘Settings’ sub-menu and press the Ronite D Series 990W WiFi Electric Radiator - icon 24 button to access.
Use the Ronite D Series 990W WiFi Electric Radiator - icon 28 and PROG buttons to move up or down respectively until your chosen language is highlighted and confirm by pressing the Ronite D Series 990W WiFi Electric Radiator - icon 24 button.

Ronite D Series 990W WiFi Electric Radiator - icon 53

• Adjust the day and time

 This option sets the hour, minutes and day of the week in your product. Please refer to section 5.2.

Ronite D Series 990W WiFi Electric Radiator - icon 54

5.7. MAIN MENU: ENERGY SUB-MENU

The energy submenu gives access to the functions related to the energy management of the product. Select using the keys Ronite D Series 990W WiFi Electric Radiator - icon 30 and Ronite D Series 990W WiFi Electric Radiator - icon 29 the icon Ronite D Series 990W WiFi Electric Radiator - icon 43 of the main menu. Press Ronite D Series 990W WiFi Electric Radiator - icon 24 to access this screen. The following icons allow access to the different submenus:Ronite D Series 990W WiFi Electric Radiator - icon 58
Ronite D Series 990W WiFi Electric Radiator - icon 55Ronite D Series 990W WiFi Electric Radiator - icon 56Ronite D Series 990W WiFi Electric Radiator - icon 57important icon

OPEN WINDOWS function

Rointe Eye Detect function
* Not available in UK. Only on demand*
Effective
Power function

Information

• Open WINDOWS function

This option allows you to activate or deactivate the OPEN WINDOWS function. Use the and buttons Ronite D Series 990W WiFi Electric Radiator - icon 28 and PROG, to select ON to activate and OFF to deactivate. Once the desired option has been selected, press Ronite D Series 990W WiFi Electric Radiator - icon 24 to confirm and exit.Ronite D Series 990W WiFi Electric Radiator - icon 59

• Rointe Eye Detect function

Allows you to enable or disable the Rointe Eye Detect function. Using the Ronite D Series 990W WiFi Electric Radiator - icon 28 and PROG buttons select ON to activate or OFF to disable. Once the desired option is selected press Ronite D Series 990W WiFi Electric Radiator - icon 24 to confirm and return to the main display.Ronite D Series 990W WiFi Electric Radiator - icon 60

• Efective Power function

To check the Power status of your product, make sure the icon Ronite D Series 990W WiFi Electric Radiator - icon 57 is flashing in the ‘Energy’ submenu and press the button Ronite D Series 990W WiFi Electric Radiator - icon 24 to access. This option shows on the display the actual consumption time of the product and the total time during which our product is connected to the mains. After a few seconds without pressing any button, the display will show the nominal power and the effective power of the product. The effective power corresponds to the average power value that our product actually consumes during operation.

Ronite D Series 990W WiFi Electric Radiator - icon 61

Ronite D Series 990W WiFi Electric Radiator - icon 62

• Information

This function will display the software version, the date of this release and the rated power of the product.
To access this information, ensure the important icon icon is highlighted in the ‘Energy’ sub- menu and press the   button to confirm. The information will then show in the display panel. To exit press the Ronite D Series 990W WiFi Electric Radiator - icon 24 button or press the Ronite D Series 990W WiFi Electric Radiator - icon 24 button again to move onto the next display in the Information function.

Ronite D Series 990W WiFi Electric Radiator - icon 63

Pressing Ronite D Series 990W WiFi Electric Radiator - icon 24, the screen displays the Wi-Fi connection status, connection type, IP address, subnet mask and gateway. To exit press the Ronite D Series 990W WiFi Electric Radiator - icon 28 or press Ronite D Series 990W WiFi Electric Radiator - icon 24 to return to the next screen in the information function.Ronite D Series 990W WiFi Electric Radiator - icon 64
By pressing Ronite D Series 990W WiFi Electric Radiator - icon 24 we can know the MAC address and RSSI, signal strength which is measured in dbm. When this appears, if you press the power button once more, it gives you the option to update the firmware. If you press the same button again it will ask you “Wi-Fi?” and you will have to answer yes or no. It then restarts after a few seconds of waiting. To exit the information screen, pressRonite D Series 990W WiFi Electric Radiator - icon 28.Ronite D Series 990W WiFi Electric Radiator - icon 65

5.8. MAIN MENU: EQUILIBRIUM / BALANCE SUB-MENU

The balance submenu makes the product work in MANUAL function with a constant temperature of 19 °C. Access it by selecting the balance icon Ronite D Series 990W WiFi Electric Radiator - icon 44 using the keys Ronite D Series 990W WiFi Electric Radiator - icon 30 and Ronite D Series 990W WiFi Electric Radiator - icon 29 . Confirm by pressing the key Ronite D Series 990W WiFi Electric Radiator - icon 24. Once pressed, the product returns to the main screen, with the temperature set at 19°C and the MANUAL function icon on.Ronite D Series 990W WiFi Electric Radiator - icon 66

5.9. MAIN MENU: PROGRAM SUB-MENU
This section explains the operational aspects of your product in its various functions and modes.
What are the functions of MANUAL, AUTOMATIC and PILOT WIRE* functions?

MANUALThis function allows you to change the product between the COMFORT, ECO and ANTI-FROST modes and to change the temperature (see section 5.3).
AUTOMATICThis function will activate the programming that has previously been set in the product.
PILOT WIREThis function allows the product to be controlled by a central programmer.
* Not available in UK. Only on demand*

What are the COMFORT, ECO and ANTI-FROST modes?

Ronite D Series 990W WiFi Electric Radiator - icon 77 COMFORTRonite D Series 990W WiFi Electric Radiator - icon 79 ECORonite D Series 990W WiFi Electric Radiator - icon 67 ANTI-FROST
From 19ºC to 30ºCFrom  7.5ºC to 18.5ºC7ºC
The ‘Program’ sub-menu provides access to functions related to programming the product. To access, select the Ronite D Series 990W WiFi Electric Radiator - icon 68 icon displayed in the Main Menu screen, the buttons Ronite D Series 990W WiFi Electric Radiator - icon 69 and Ronite D Series 990W WiFi Electric Radiator - icon 70 and press Ronite D Series 990W WiFi Electric Radiator - icon 24 to confirm. The icons below provide access to the various submenus explained below:

Ronite D Series 990W WiFi Electric Radiator - icon 71

 MAN/AUTO

Ronite D Series 990W WiFi Electric Radiator - icon 68

USER

 PILOT

MANUAL / AUTOMATIC functions

Programming options USER mode

PILOT WIRE function
* Not available in UK. Only on de- mand.*

5.9.1. MANUAL / AUTOMATIC FUNCTIONS

To change or choose the MANUAL or AUTOMATIC function, ensure the MAN/AUTO icon is highlighted in the ‘Program’ sub-menu and press the Ronite D Series 990W WiFi Electric Radiator - icon 24 button to confirm. You can change from AUTOMATIC to MANUAL and vice versa by pressing the Ronite D Series 990W WiFi Electric Radiator - icon 24 button again. The Automatic function activates the programming set in the product.Ronite D Series 990W WiFi Electric Radiator - icon 72Ronite D Series 990W WiFi Electric Radiator - icon 73
On the display panel, the symbol Ronite D Series 990W WiFi Electric Radiator - icon 13 will appear for the AUTOMATIC function and the symbol Ronite D Series 990W WiFi Electric Radiator - icon 14 for the MANUAL function.Ronite D Series 990W WiFi Electric Radiator - icon 74Ronite D Series 990W WiFi Electric Radiator - icon 75

5.9.2. PROGRAMMING OPTIONS

To start programming you must be in AUTOMATIC mode. Press the flashing icon Ronite D Series 990W WiFi Electric Radiator - icon 68 using the buttons Ronite D Series 990W WiFi Electric Radiator - icon 30 and Ronite D Series 990W WiFi Electric Radiator - icon 29 and confirm by pressing the button Ronite D Series 990W WiFi Electric Radiator - icon 24.Ronite D Series 990W WiFi Electric Radiator - icon 76
Start programming for AUTOMATIC function
To program the AUTOMATIC mode, see points above and ensure that START PROGRAMMING is highlighted. Press theRonite D Series 990W WiFi Electric Radiator - icon 24 button to access and the display panel will show a flashing screen.
STEP 1 – Select *COMFORT mode temperature COMFORT mode will be programmed first. Select the COMFORT mode temperature between 19ºC and 30ºC using the  and  buttons. The *icon and the temperature will flash. Press the  Ronite D Series 990W WiFi Electric Radiator - icon 24button to confirm.
Ronite D Series 990W WiFi Electric Radiator - icon 78
STEP 2 – Select ECO mode temperature
Ronite D Series 990W WiFi Electric Radiator - icon 79ECO mode will be programmed next. Select the ECO mode temperature between 7.5ºC and 18.5ºC using the – and + buttons. The Ronite D Series 990W WiFi Electric Radiator - icon 24icon and the temperature will flash. Press theRonite D Series 990W WiFi Electric Radiator - icon 79 button to confirm.
Ronite D Series 990W WiFi Electric Radiator - icon 80
STEP 3 – Select the Days
The days of the week will start flashing on the display panel and show as DAY 1, DAY 2, DAY 3 etc.
Use the and buttons to move forwards or backwards through the days. Press to select the day or days that you wish to include in your AUTOMATIC program. The day will stop flashing once selected. Repeat for all the days you wish to program and once all days are selected press the button to move onto setting the hour.
Ronite D Series 990W WiFi Electric Radiator - icon 81
STEP 4 – Select the Hours
Once step 3 has been completed, appears on the display panel. is equal to midnight. Use the or buttons to select the hour you wish toRonite D Series 990W WiFi Electric Radiator - icon 24 change. Use the   button to change the mode (COMFORT, ECO or nothing) for the hour you wish to modify. The corresponding icon for that mode will appear at the top of the screen. To finish the programming press   or leave for 30 seconds without Ronite D Series 990W WiFi Electric Radiator - icon 28pressing any buttons. To change the programming go back to step 1 and proceed as described before.
*If you wish to have individual days with different programming within your program you will need to modify each day separately, starting from the Main Menu again for each day/days. Follow Steps 1 to 4 above to program multiple differing days/ hours/temperatures.
If you wish to activate the anti-frost mode in the hours that do not have COMFORT or ECO mode, from the main screen of the radiator and in automatic mode, press the key Ronite D Series 990W WiFi Electric Radiator - icon 70. If you want to reverse this action, pressRonite D Series 990W WiFi Electric Radiator - icon 83.
Ronite D Series 990W WiFi Electric Radiator - icon 82
To enter the USER function, ensure the  icon is highlighted in the ‘Program’ sub-menu and press the Ronite D Series 990W WiFi Electric Radiator - icon 24 button to access.  A 4-digit PIN code is required in order to access the menu. The default PIN is 0000.
To enter the PIN use the -and+ Ronite D Series 990W WiFi Electric Radiator - icon 28 and buttons to move left, right, up or down to select the correct numbers,  pressingRonite D Series 990W WiFi Electric Radiator - icon 24  after each number is highlighted to confirm. Once the full 4 digits have been entered, move to OK on the display panel and pressRonite D Series 990W WiFi Electric Radiator - icon 24 the  button to confirm. Once the PIN number has been entered correctly, the main USER  function sub-menu will be shown.
The below icons displayed on the screen take you to the following functions:
Ronite D Series 990W WiFi Electric Radiator - icon 84
Ronite D Series 990W WiFi Electric Radiator - icon 85Ronite D Series 990W WiFi Electric Radiator - icon 86
ENABLE /DISABLE functionsChange PINUpper temperature limitLower temperature limit

Enable / Disable functions

To access the Enable/Disable function, ensure the Ronite D Series 990W WiFi Electric Radiator - icon 85icon is highlighted in the ‘Program’ sub-menu and press the Ronite D Series 990W WiFi Electric Radiator - icon 24 button to access.
Use theRonite D Series 990W WiFi Electric Radiator - icon 28  and  buttons to move up and down respectively to select ON to enable or OFF to disable. Once the  desired option is highlighted press the button to confirm. Use the Ronite D Series 990W WiFi Electric Radiator - icon 28button to go back to the main display panel or  leave for 30 seconds without pressing any buttons.
On the main screen you will see theRonite D Series 990W WiFi Electric Radiator - icon 16 icon in AUTOMATIC function, theRonite D Series 990W WiFi Electric Radiator - icon 17 icon in MANUAL function and  Ronite D Series 990W WiFi Electric Radiator - icon 18when in  PILOT WIRE* function.
*PILOT WIRE function not available in UK. Only upon demand.*
Ronite D Series 990W WiFi Electric Radiator - icon 89

FUZZY LOGIC ENERGY CONTROL TECHNOLOGY
This product includes FUZZY LOGIC ENERGY CONTROL technology, which manages the product’s energy consumption in the most efficient way. FUZZY LOGIC  ENERGY CONTROL is a technology that bases its operation on the generation of thousands of micro cuts in the energy consumption of the heating element to keep the  water temperature stable with minimum consumption.
When the symbolRonite D Series 990W WiFi Electric Radiator - icon 38  replaces the symbolRonite D Series 990W WiFi Electric Radiator - icon 36, then FUZZY LOGIC ENERGY CONTROL technology is in operation.

WI-FI PAIRING

To pair the device you must first create a zone in the application. Once inside this zone, press the icon to start the pairing wizard. If you need more information, you can  consult the complete installation manual from the following QR code:

Ronite D Series 990W WiFi Electric Radiator - qr codehttps://rebrand.ly/pairing_EN

MAINTENANCE AND CLEANING

The product does not require any maintenance. We recommend cleaning the product (back, bottom of the product, etc.). Do not use abrasive substances on the product,  clean it with a damp cloth and neutral pH soap and the screen with a dry cloth. Before carrying out any cleaning operation, make sure that the product is switched off and at  room temperature.

EUROPEAN REGULATION (WEEE) 2012/19/EU

Based on the European regulation 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), these appliances cannot be thrown in the usual council bins; they  must be collected selectively to optimise the recovery and recycling of the components and materials that make them up, and reduce the impact on human health and the  environment. The crossedout wheelie bin symbol on a horizontal bar is marked on all ROINTE products to remind the consumer of the obligation to separate them for  separate collection. The consumer should contact the local authority or the retailer for information regarding the correct disposal of their product.

GUARANTEE

Agreement
1.1. This section describes the guarantee conditions available to the buyer when purchasing a new product of the Rointe brand. These conditions include all the rights that the  buyer has in accordance with current national legislation, as well as the guarantee and additional rights offered by the brand. Any incident detected in your Rointe product  can be dealt with by the seller of the product or in a more agile way through the manufacturer itself.
1.2. Rointe offers you Technical Assistance from our After-Sales Service by telephone at +44 (0)203 321 5929 or email to [email protected], where we will indicate the  steps to follow to solve the incident. You will need the product reference (located on the metal characteristics label), serial number, date of purchase and the nature of the  fault when contacting us. In addition, you must have a copy of the proof of purchase of the product.
1.3. ROINTE guarantees there are no material defects of design or manufacture at the time of original purchase. ROINTE guarantees the body for 120 months (10 years) and the electrical plus electronic components for 36 months (3 years) for this product only, from the date of purchase, or delivery if later, provided it has not been modified, and  in accordance with the provisions of the following stipulations.

Conditions

  1. If during the guarantee period, the product under normal use, and with proper maintenance, fails to function properly and is found to be defective in design, material, or  workmanship, it will be repaired or replaced at the customer’s option, in accordance with the provisions of the law, and subject to the following terms and conditions:
  2. The guarantee is only applicable if the original guarantee is issued by the seller and when such guarantee has been registered with Rointe correctly, including the product  reference, serial number (marked on the metal label of the product), date of purchase and proof of purchase. The product guarantee can be registered on our website  at www.rointe.co.uk or can be emailed to [email protected]
    within 90 days of installation. ROINTE reserves the right to refuse a guarantee when this information has been removed or modified after the original product purchase.
  3. The guarantee is only applicable if the product has been installed by a competent person in accordance with this installation manual and all regulations in force at the  time of installation.
  4. The guarantee is only applicable to those cases that refer to defects in material, design and manufacture, and in no case covers damage to the product for the following  reasons:
    i) Damage caused by negligence and/or misuse of the product, i.e. used for purposes other than its normal use, or by not respecting the instructions for use, maintenance and  cleaning given by ROINTE, as well as by incorrect or inadequate installation or use of the product that may not comply with the technical safety standards in force.
    ii) Corrosion of any part of the product caused by direct exposure to saltwater.
    Where the product is installed within 200 m of the coast, the guarantee period for damage caused by corrosion shall be reduced by 50%.
    iii) Any unauthorised modifications or repairs to the product carried out by third parties or unauthorised persons, or the opening of the product by third parties or  unauthorised persons.
    iv) Any accident deemed to be beyond ROINTE’s control, such as (but not limited to): lightning, fire, flood, natural disasters, public disorder, atmospheric or geological phenomena, and all those of a similar nature.
    v) Failures resulting from incorrect installation. In case of doubt, please contact ROINTE.
  5. Any repair or replacement carried out as part of this guarantee service does not allow for extension periods or new guarantee periods, i.e. your guarantee will not be extended in the event that a repair or replacement of this product is carried out, but will be suspended until the product is returned repaired or a new one is delivered.
  6. Any repair or replacement covered by this guarantee must be a functionally equivalent part. Defective parts or parts removed or replaced shall become the property of  ROINTE and must be returned as such.
  7. The product must be installed in such a way as to allow access by ROINTE technicians or authorised persons in the event that they need to access the product for repair  or maintenance. The user/customer is responsible for the organisational means necessary to allow access to the products by ROINTE for repair or replacement.
  8. ROINTE’s Technical Support department will advise you if you need to purchase any parts not covered by this guarantee or outside of this guarantee.
  9. This guarantee will not be valid if the product has been tampered with, modified and/or repaired in any way and/or by unauthorised persons. This guarantee will also not be valid if the product is not correctly installed.
  10. This guarantee is not transferable and does not include claims for limescale or frost damage.
  11. This guarantee does not affect the purchaser’s statutory rights under applicable national legislation, nor does it affect any rights contracted with the dealer or installer  that  may arise in performance of the contract of sale.
  12. ROINTE, its offices, employees, distributors and installers shall not be liable for any incidental damages arising from the infringement of any rule implied in this product, as well as for its improper or incorrect use.
  13. Check the EULA conditions (supplied with the product for Wi-Fi connected products) for information on the legal agreement you accept when installing a ROINTE
    product. For product or guarantee assistance, please contact ROINTE by telephone at +44 (0)203 321 5929 or by email to [email protected].

10. HOW TO REGISTER YOUR PRODUCT GUARANTEE
IMPORTANT: It is important that you register your ROINTE product as part of our guarantee service, in case you wish to make a claim.

You can register your ROINTE product in the following ways:
WEB

  1. Go to https://rointe.com/uk/register-your-guarantee/
  2. Log in to your existing account or create a new account if necessary.
  3. Click on “My products”.
  4. Enter your product reference (alphanumeric and in capital letters).
  5. Enter your serial number (26 digits located on the metal tag of your product starting with 84).
  6. Upload your proof of purchase, such as your invoice in PDF, JPEG or PNG format. This is not mandatory, but doing so ensures that your warranty period is accurate.
  7. Click on “Register”.
  8. Congratulations! Your product is now registered.

EMAIL

  1. Send an email to [email protected] with the following information:
    • Customer name
    • Address and postcode
    • Telephone number and email address
    • Product reference
    • Serial number
    • The date of purchase of the product and proof of purchase (as described in the WEBSITE section above).
    • Our technical support team will confirm product registration and request any additional information needed by email.

POSTAL

  1. Send the information listed in the EMAIL section to:
    • INDUSTRIAS ROYAL TERMIC, S.L. – Rointe, C/E Parcela 43, 30140, Santomera (ESPAÑA).
  2. Please ensure you obtain proof of postage.

Copyright © Rointe Heating 2022.
All rights reserved. As part of our continuous improvement policy, we reserve the right to alter or modify any product or specifications without prior notice. This also applies  to products that have already been ordered, provided that such alterations can be made without subsequent changes to the already agreed specifications. We cannot accept  responsibility for any errors in catalogues or other printed materials.
MSDRML22V1 – MPPAMAN430

Rointe Ireland
20 Harcourt Street, #247,
Dublin 2, D02 H364
T. +44 (0)203 321 5929 / 01 553 0523
Rointe Nederland
3197 LG Botlek, RT
T. 010 742 00 46

Ronite D Series 990W WiFi Electric Radiator - qr code 2

References

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
