NEUMANN.BERLIN

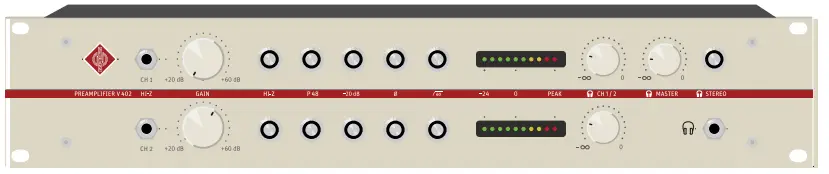

V 402
Quick Guide

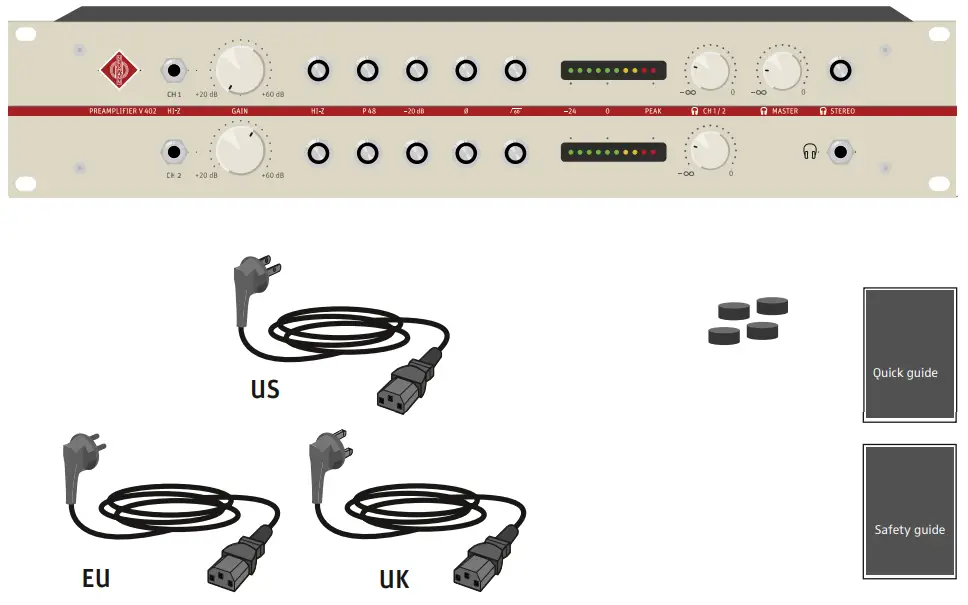

In the box

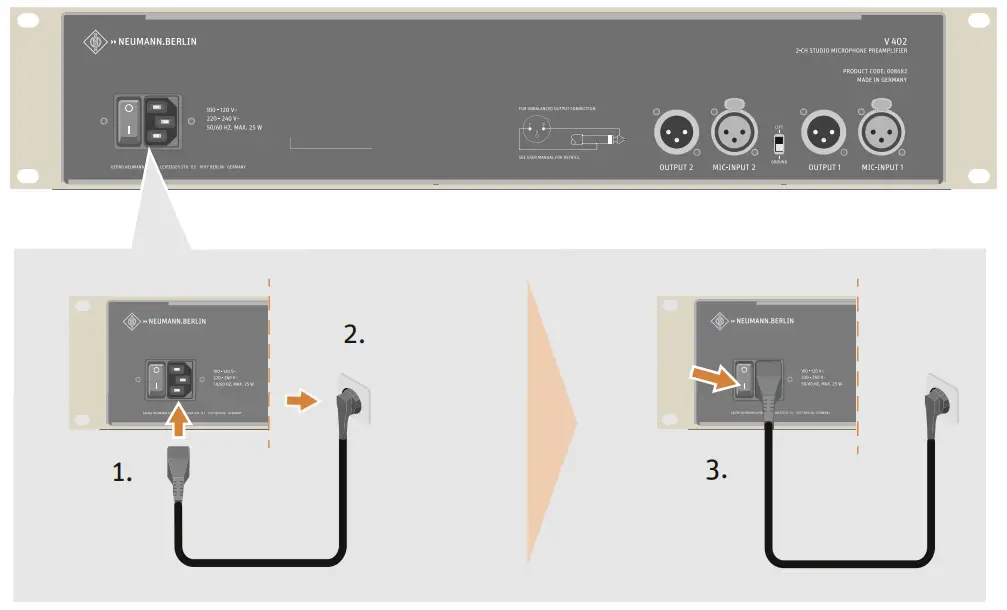

Power
Setup

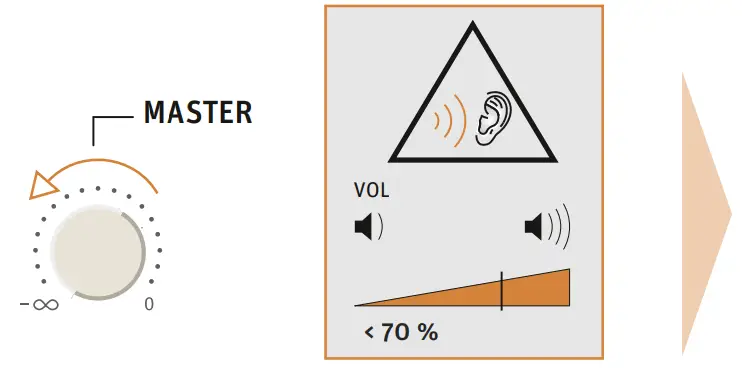

- Reduce Volume

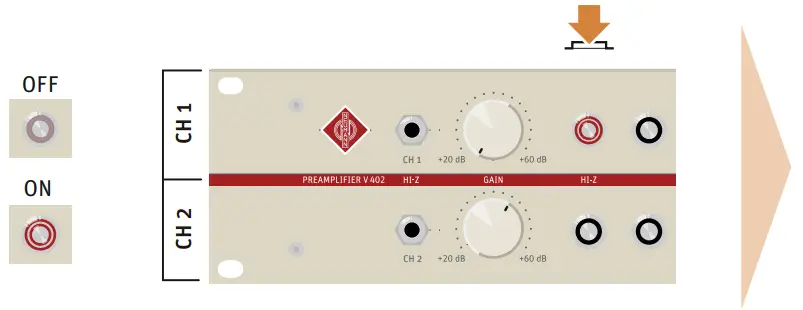

- Switch ON
- Connect

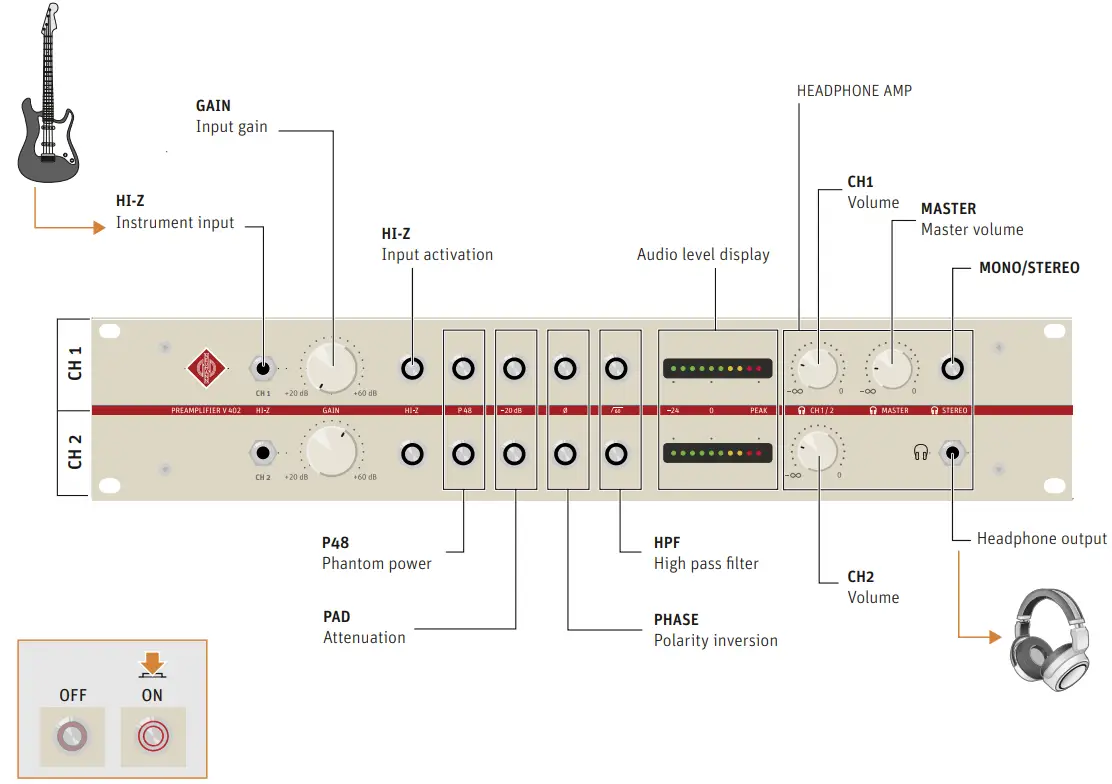

Controls

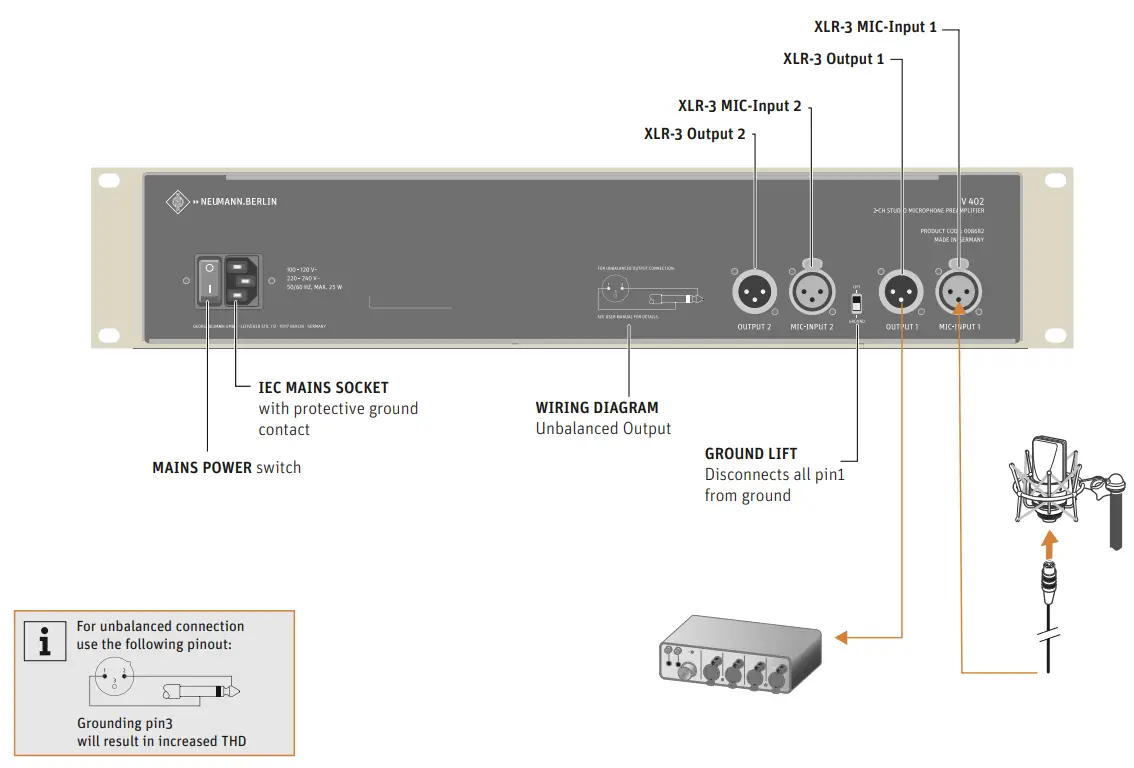

Analog Audio Inputs & Outputs / Power
Specifications
| Mains Power Supply | |
| Supply Voltage; frequency | 100-120 V, 220-240 V; 50 Hz/60 Hz |
| Power Consumption | max. 25 W |
| Microphone Inputs | |
| Connector | 2 x XLR 3 F |
| Input Impedance | approx. 3 kΩ |
| Minimum Gain | +20 dB (PAD of) |
| Maximum Gain | +60 dB (PAD of) |
| Attenuation PAD switchable | of/-20 dB |
| Maximum Input Level (PAD of) | +8 dBu |
| Maximum Input Level (PAD on) | +28 dBu |
| Power Supply (P48, IEC 61938) | 48 V, max. 10 mA, switchable on/of |
| Hi-Z | |
| Hi-Z Input active | switchable on/of |
| Connector | jack 6.3 mm (1/4″), mono, unbalanced (front) |
| Input Impedance | 3.3 MΩ |
| Maximum Input Level | +21 dBu |
| Minimum Gain | 0 dB (PAD of) |
| Maximum Gain | +40 dB (PAD of) |
| Bargraphs | |
| per channel: -24 dBu to +24 dBu in 6 dB steps Peak Hold indication @ +24 dBu (hold time approx. 3 sec.) | |
| Headphone Output | |
| Mono / Stereo | switchable |
| Connector | jack 6.3 mm (1/4″), stereo (front) |
| Volume Control | for left & right channel + Master |
| Output Impedance | approx. 2 Ω |
| Maximum Output Voltage | +20 dBu into 150 Ω load impedance |
| Outputs | |
| Connector | 2 x XLR 3 M |
| Output Impedance | approx. 200 Ω |
| Maximum Output Voltage | +26 dBu into 1 kΩ load impedance |
| Ground Lift | switchable on/of |
| Amplifier | |
| Frequency Range | <10 Hz to >100 kHz (-3 dB@ 40 dB Gain) |
| High Pass Filter (HPF, 60 Hz, 12 dB/oct) | switchable on/of |
| General | |
| Dimensions (H x W x D) | 89 mm x 463 mm x 242 mm |
| Weight | 6.2 kg |
| Operating Conditions | 0°C to +50°C; < 75% RH@ +40°C; non-condensing |
| Transport/Storage Conditions | -25°C to +70°C; < 95% RH; non-condensing |
| Working Altitude | < 2000 m |
A complete list of specifications can be found on the product page at www.neumann.com.
