Samsung Hw-j6000 Curved Wireless Audio Soundbar User Guide

Samsung HW-J6000 Curved Wireless Audio Soundbar

Safety Information

• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
• This product contains chemicals known to the State of California to cause cancer and reproductive toxicity.

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

• Reorienting or relocating the receiving antenna.
• Increasing the separation between the equipment and receiver.
• Connecting the equipment to an outlet that is on a different circuit than the radio or TV.
• Consulting the dealer or an experienced radio/TV technician for help.

1. Read these instructions.
2. Keep these Instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for the replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

GETTING STARTED

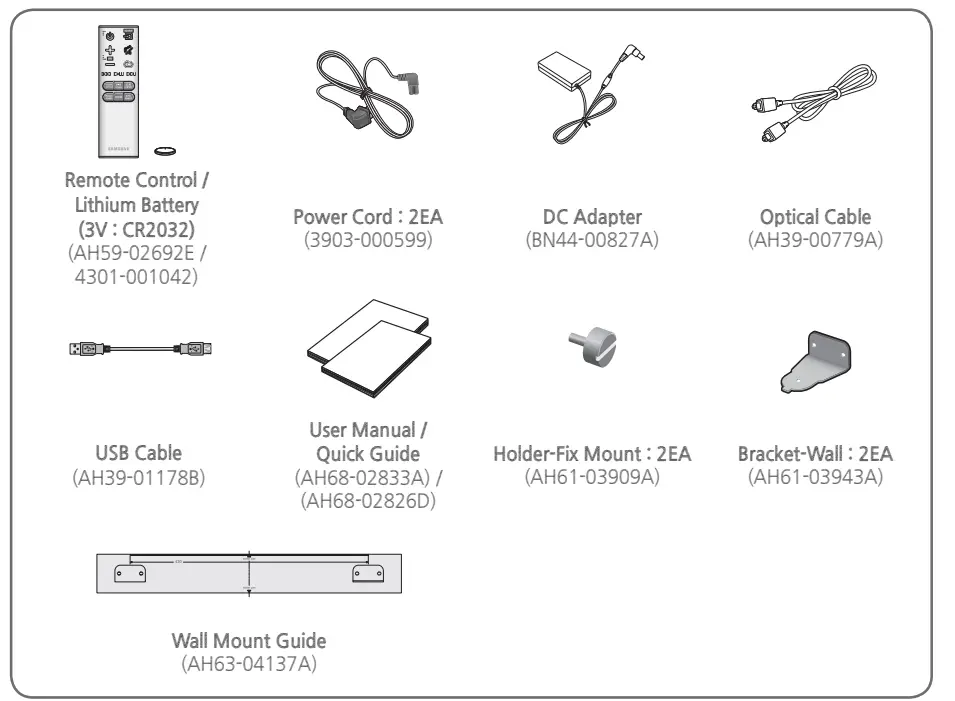

• The appearance of the accessories may differ slightly from the illustrations above.
• Use the dedicated USB cable to connect external USB devices to the unit.

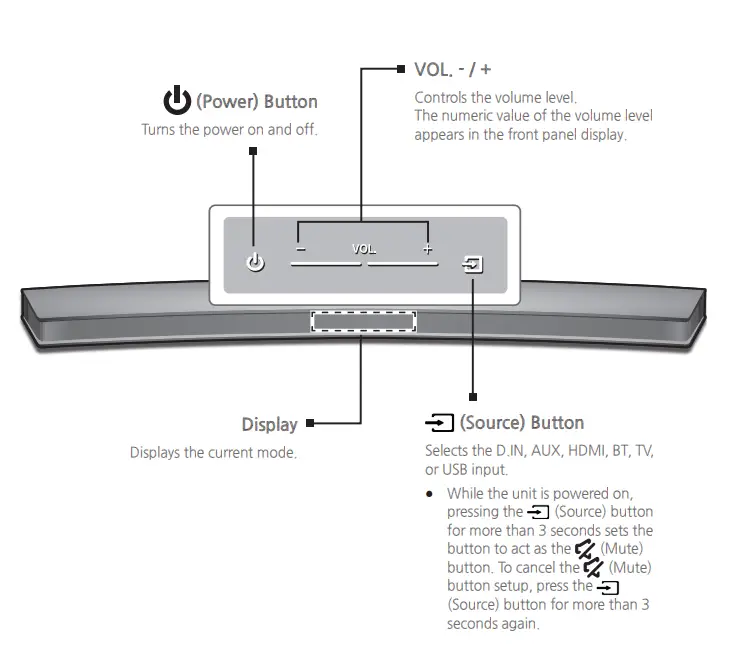

Top / Front Panel

• When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.
• When you turn on this unit, there will be a 4 to 5-second delay before it produces sound.
• If you want to enjoy sound only from the Soundbar, you must turn off the TV’s speakers in the Audio Setup menu of your TV. Refer to the owner’s manual supplied with your TV.

Rear / Bottom Panel

• When disconnecting the power cable of the AC power adaptor from a wall outlet, pull the plug.
  Do not pull the cable.
• Do not connect this unit or other components to an AC outlet until all connections between components are complete.

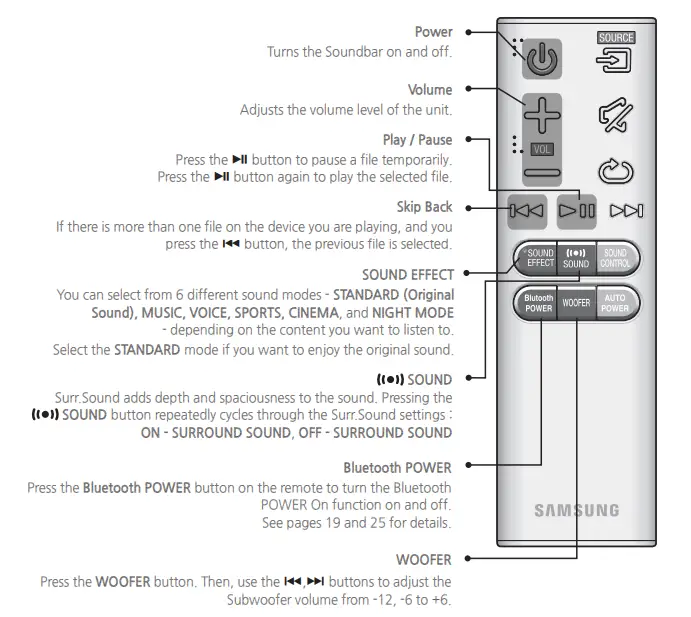

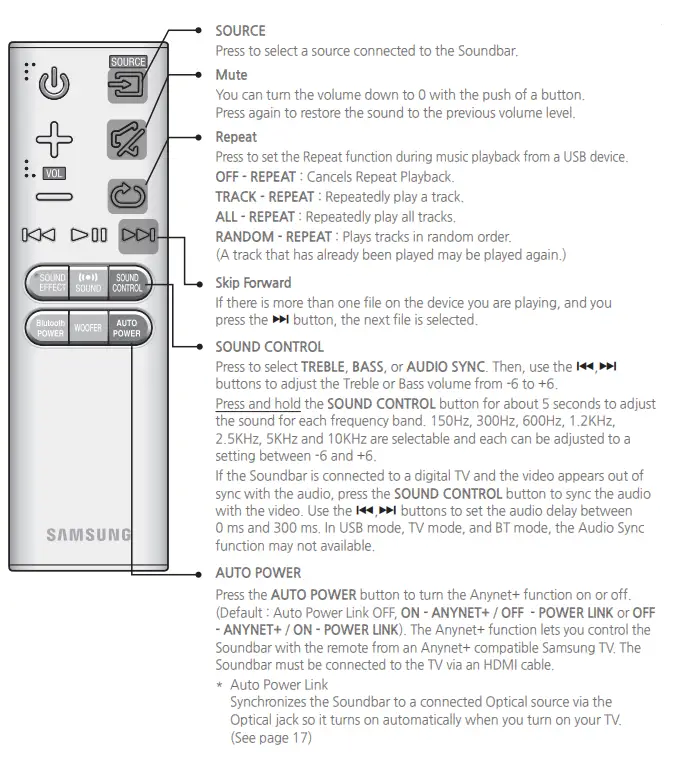

Remote Control

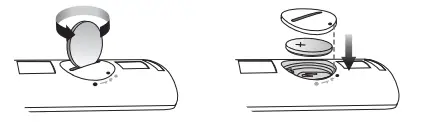

Installing the Battery in the Remote Control

1. Use a suitable coin to turn the remote control’s battery cover counterclockwise to remove it as shown in the figure above.
2. Insert a 3V lithium battery. Keep the positive (+) pole facing up when inserting the battery. Put the battery cover on and align the ‘●’ marks side by side as shown in the figure above.
3. Use a suitable coin to turn the remote control battery cover clockwise as far as it will go to fix it in place.

Installing the Soundbar

Installing the Wall Mount
Installation Precautions

• Install on a vertical wall only.
• For the installation, avoid a location with high temperature or humidity, or a wall that cannot sustain the weight of the set.
• Check the strength of the wall. If the wall is not strong enough to support the unit, reinforce the wall or install the unit on a different wall that can support the unit’s weight.
• Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.
• Purchase wall mounting screws according to the type and thickness of the wall you will mount the Soundbar on.
  • Diameter: M5
  • Length: 1 3/8 inches or longer recommended.
• Connect cables from the unit to external devices before you install it on the wall.
• Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

1. Place the installation guide against the wall surface.
   • The installation guide must be level.
     • If the TV is mounted on the wall, install the Soundbar at least 2 inches (5 cm) below the TV.

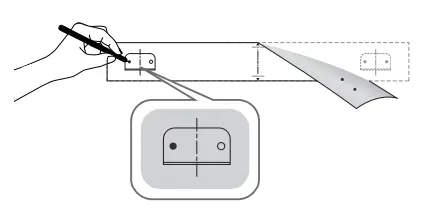

2. Mark the location where the screws will go through on the wall, and then remove the installation guide.
   Next, drill holes for the screws using an appropriately sized drill bit.

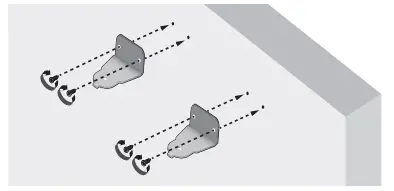

3. Fasten the 2 Bracket-Wall pieces firmly to the wall at the marked locations using the appropriate screws.

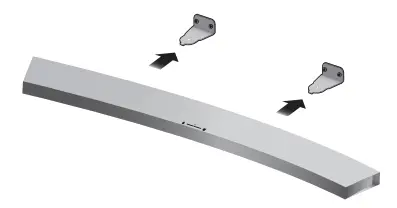

4. Attach the Soundbar to the 2 Bracket-Wall pieces as shown in the illustration.

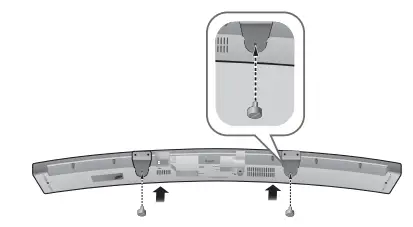

5. Insert a Holder-Fix Mount into each hole on the product’s bottom side. Tighten each Holder-Fix Mount to fix the Soundbar to the 2 Bracket-Wall pieces.

• Do not hang onto the installed unit and avoid striking or dropping the unit.
• Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may cause an injury or damage the product.
• When the unit is installed on a wall, please make sure that children do not pull any of the connecting cables, as this may cause it to fall.
• For the optimal performance of a wall mount installation, install the speaker system at least 2 inches (5 cm) below the TV, if the TV is mounted on the wall.
• For your safety, if you do not mount the unit on the wall, install it on a secure, flat surface where it is unlikely to fall.

Attaching the Soundbar to your TV’s Stand

You can attach the Soundbar to your TV’s stand if you have a Samsung TV that has a stand that is compatible with this Soundbar.

• This Soundbar is compatible with JU6700, JU6500, and JU7500 48-inch, 55-inch, and 65-inch 2015 Samsung curved TVs. It is also compatible with JU6610 48-inch and 55-inch 2015 Samsung curved TVs. Please visit the home page of Samsung Electronics (www.Samsung.com) to see a detailed list of compatible models.
• You cannot mount this Soundbar on an incompatible TV or attach it to the stand of an incompatible TV.

1. Align the Soundbar’s center with the center of the base of the TV, and then carefully push it onto the stand as far as it will go, as shown in the illustration. Be careful not to unbalance the TV.

Installi ng the Sou ndbar as a Free -Sta ndi ng Unit

1. Center the Soundbar on the flat area in front of the TV.
   • Install it on a level and firm surface.
   • Do not connect the power cord of this product or your TV to a wall outlet until all connections between components are complete.
   • Before moving or installing this product, be sure to turn off the power and disconnect the power cord.

Connecting the Subwoofer

Connecting to the Subwoofer Automatically
The Subwoofer’s linking ID is preset at the factory and the main unit and subwoofer should link (connect wirelessly) automatically when the main unit and subwoofer are turned on.

• When the subwoofer is completely connected, the blue LED Link Indicator on the subwoofer stops blinking.

Connecting to the Subwoofer Manually

If the blue LED light does not stop blinking when the main unit and subwoofer are turned on, please set the ID by following the procedure below.

1. Plug the power cords of the main unit and subwoofer into an AC wall outlet.

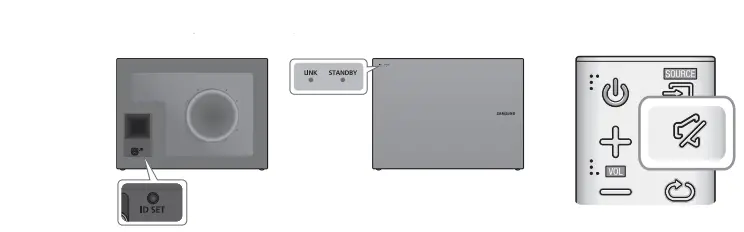

2. Press the ID SET button on the back of the subwoofer with a small, pointed object for 5 seconds.
   • The STANDBY indicator is turned off and the LINK indicator (Blue LED) blinks quickly.
3. While the main unit is powered off (in STANDBY mode), press and hold the (Mute) on the remote control for 5 seconds.
4. The ID SET message appears on the Soundbar’s display.
5. To finalize the link, turn the main unit’s power on while the subwoofer’s Blue LED blinks.
   • The main unit and the subwoofer should now be linked (connected).
   • The Link indicator (Blue LED) on the subwoofer should be glowing continuously and not blinking.
   • If the Link indicator is not solid blue, the linking process has failed. Turn off the main unit and start again from Step 2.
   • You can enjoy better sound from the wireless subwoofer by selecting a Sound Effect. (See page 10)
   • Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
   • If the main unit is powered off, the wireless subwoofer will be in standby mode and the STANDBY LED on the upper side will come on after the Link indicator (Blue LED) blinks for 30 seconds.
   • If you use a device that uses the same frequency (2.4GHz) as the Soundbar near the Soundbar, interference may cause some sound interruption.
   • The maximum transmission distance of the wireless signal between the main unit and subwoofer is about 32.8 ft, but may vary depending on your operating environment. If a steel-concrete or metallic wall is between the main unit and the wireless subwoofer, the system may not operate at all, because the wireless signal cannot penetrate metal.
   • If the main unit doesn’t make a wireless connection, follow steps 1-5 on the previous page to re-set the connection between the main unit and wireless subwoofer.
   • The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from water and moisture.
   • For optimal listening performance, make sure that the area around the wireless subwoofer location is clear of any obstructions.

Connecting to a TV

Connecting to a TV Usi ng a Digital Optical Cable

1. Connect the OPTICAL IN (Audio) jack on the Soundbar to the OPTICAL OUT jack of the TV with a digital optical cable.
2. Press the (Source) button on the top panel of the Soundbar or the SOURCE button on the remote control to select the D.IN mode.

Auto Power Link
If you have connected the main unit to a TV with a digital optical cable, you can set the Auto Power function ON to have the Soundbar turn on automatically when you turn the TV on.

1. Connect the Soundbar and a TV with a digital optical cable.
2. Press the (Source) button on the main unit’s top panel or the SOURCE button on the remote control to select the D.IN mode.
3. Press the AUTO POWER button on the remote control to toggle the Auto Power Link function on and off.

Depending on the connected device, Auto Power Link may not function.

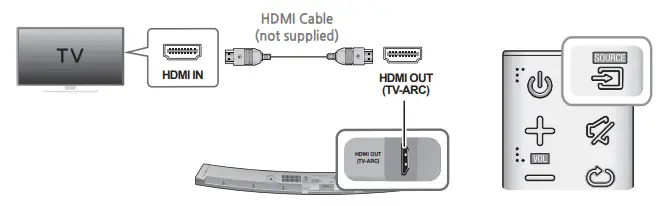

Connecting to a TV Using an HDMI (Digital ) Cable

1. Connect an HDMI cable (not supplied) from the HDMI OUT (TV-ARC) jack on the back of the product to the HDMI IN jack on your TV.
2. Press the (Source) button on the top panel of the Soundbar or the SOURCE button on the remote control to select the D.IN mode.

• HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.
• If the TV provides an ARC port, connect the HDMI cable to the HDMI IN (ARC) port.
• We recommend you use a coreless HDMI cable if possible. If you use a cored HDMI cable, use one whose diameter is less than 0.55 inches.
• Anynet+ must be turned on.
• This function is not available if the HDMI cable does not support ARC.

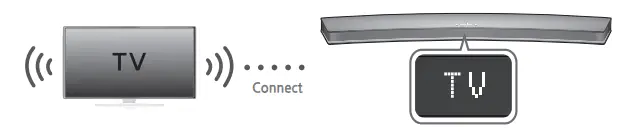

TV Sound Connect

You can enjoy TV sound through your Soundbar when it is connected to a Samsung TV that supports the TV SoundConnect function.

1. Turn on the TV and Soundbar.
   • Open the menu of the TV.
   • Navigate to Speaker Settings on the Sound tab.
   • Set the “Add New Device” menu to “On”.
2. press the (Source) button on the main unit’s top panel or the SOURCE button on the remote control to select the TV mode.
3. On the TV, a message asking whether to enable the TV SoundConnect function appears.
4. Select <Yes> using the TV’s remote control to finish connecting the TV and Soundbar.

• Switching the Soundbar’s mode from TV to another mode automatically terminates TV SoundConnect.
• To connect the Soundbar to another TV, the existing connection must be terminated.
• To terminate the existing connection, press and hold the p button on the remote for 5 seconds or switch to another mode. To connect to the other TV, follow Steps 1 through 4 on the previous page.
• The TV SoundConnect (SoundShare) function is supported by some Samsung TVs released from 2012 on. Check whether your TV supports the TV SoundConnect (SoundShare) function before you begin. (For further information, refer to the TV’s user manual.).
• If your Samsung TV was released before 2014, check the SoundShare setting menu.
• If the distance between the TV and Soundbar exceeds 32.8 ft, the connection may not be stable or the audio may stutter. If this occurs, relocate the TV or Soundbar so that they are within operational range, and then re-establish the TV SoundConnect connection.
• TV SoundConnect Operational Ranges:
  • Recommended pairing range: within 78.7 inches (within 2m).
  •  Recommended operational range: within 32.8 ft. (10m).
• The Play/Pause, Next, and Prev buttons on the Soundbar or Soundbar’s remote do not control the TV.

using the Bluetooth POWER On function

The Bluetooth POWER On function is available after you have successfully connected the Soundbar to a Bluetooth compatible TV using TV SoundConnect. When the Bluetooth POWER On function is ON, turning the connected TV on or off will turn the Soundbar’s power on and off as well.

1. Connect the TV to your Soundbar using the TV SoundConnect function.
2. Press the Bluetooth POWER button on the Soundbar remote. ON – BLUETOOTH POWER appears on the soundbar’s display.
   • ON – BLUETOOTH POWER: The Soundbar turns on and off when you turn the TV on or off.
   • OFF – BLUETOOTH POWER: The Soundbar only turns off when you turn the TV off.
   • This function is supported by some Samsung TVs released in 2013 on.

Connecting to External Devices

HDMI Cable
HDMI is the standard digital interface for connecting to TVs, projectors, DVD players, Blu-ray players, set-top boxes, and more.
HDMI prevents any degradation to the signal due to conversion to analog and maintains the video and audio quality of the original digital source.

1. Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the HDMI OUT jack on your digital device.
2. Press the (Source) button on the top panel of the Soundbar or the SOURCE button on the remote control to select the HDMI mode.

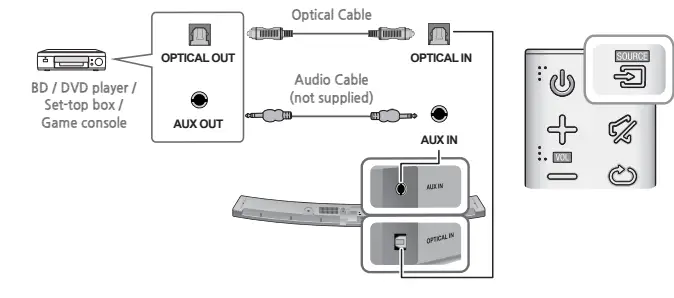

Optical or Analog Audio Cable

This unit comes equipped with one digital optical in jack and one analog audio (AU X) in jack, giving you two ways to connect it to external devices.

AUX Cable

1. Connect AUX IN (Audio) on the main unit to the AU DIO OUT jack of the Source Device.
2. Press the (Source) button on the top panel of the Soundbar or the SOURCE button on the remote control to select the AUX mode.

Optical Cable

1. Connect OPTICAL IN (Audio) on the main unit to the OPTICAL OUT jack of the Source Device.
2. Press the (Source) button on the top panel of the Soundbar or the SOURCE button on the remote control to select the D.IN mode.

USB

You can play music files located on USB storage devices through the Soundbar.

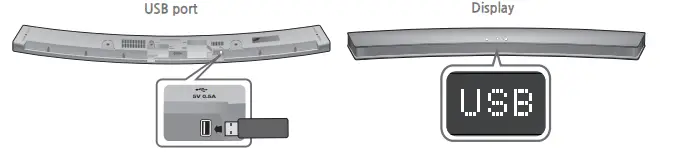

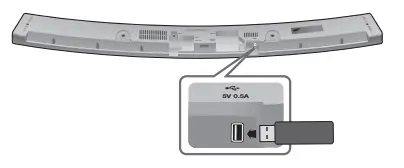

1. Connect the USB device to the USB port on the back of the product.
2. Press the (Source) button on the main unit’s top panel or the SOURCE button on the remote control to select the USB mode.
3. USB appears on the display screen.
   1. The Soundbar connection to the USB device is complete.
   2. The Soundbar automatically turns off (Auto Power Off) if no USB device has been connected for more than 25 minutes.

Before you connect a USB device
Be aware of the following:

• If the file name of a file or folder on a USB device exceeds 10 characters, it is not displayed on the Soundbar’s display.
• This product may not be compatible with certain types of USB storage media.
• The Soundbar supports the FAT16 and FAT32 file systems.
  • The NTFS file system is not supported.
• Connect USB devices directly to the USB port of the product. Otherwise, you may encounter a USB compatibility problem.
• Do not connect multiple storage devices to the product via a multi-card reader. It may not operate properly.

CONNECTIONS

• Digital camera PTP protocols are not supported.
• Do not remove the USB device while it is transferring files.
• DRM-protected music files (MP3, WMA) from commercial web sites cannot be played.
• External HDDs are not supported.
• Mobile phone devices are not supported.
• File Format Type Compatibility list:


  Extension	Codec	Sampling Rate	Bitrate
  *.mp3	MPeG 1 Layer2	16KHz ~ 48KHz	80kbps~320kbps
  	MPeG 1 Layer3	16KHz ~ 48KHz	80kbps~320kbps
  	MPeG 2 Layer3	16KHz ~ 48KHz	80kbps~320kbps
  	MPeG 2.5 Layer3	16KHz ~ 48KHz	80kbps~320kbps
  *.wma	Wave_Format_MSaudio1	16KHz ~ 48KHz	56kbps~128kbps
  	Wave_Format_MSaudio2	16KHz ~ 48KHz	56kbps~128kbps
  *.aac	aaC	16KHz ~ 96KHz	48kbps~320kbps
  	aaC-LC	16KHz ~ 96KHz	128kbps~192kbps   5.1ch 320kbps
  	He-aaC	24KHz ~ 96KHz	48kbps~64kbps   5.1ch 160kbps
  *.wav	–	16KHz ~ 48KHz	up to 3000kbps
  *.ogg	OGG 1.1.0	16KHz ~ 48KHz	50kbps~500kbps
  *.flac	FLaC 1.1.0, FLaC 1.2.1	16KHz ~ 96KHz	up to 3000kbps

  If there are too many folders and files stored on the USB device, it may take the Soundbar some time to access and play files.

Input Mode

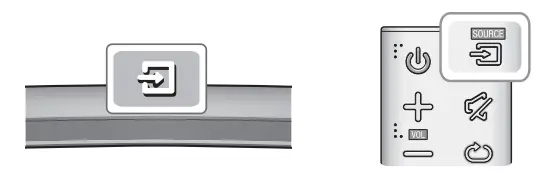

Press the (Source) button on the main unit’s top panel or the SOURCE button on the remote control to select the mode you want.

The unit turns off automatically in the following situations.

• D.IN / HDMI / BT / TV / USB / AR C Mode
  • If there is no audio signal for 25 minutes.
• AU X Mode
  • If the AU X cable is disconnected for 25 minutes.
  • If there is no KEY input for 8 hours when the AU X cable is connected.
    To turn the Auto Power Down function ON or OFF, press and hold the p button for 5 seconds.
    ON – AUTO POWER DOWN / OFF – AUTO POWER DOWN appears on the display.

Bluetooth

You can connect a Bluetooth device to the Soundbar and enjoy music with high-quality stereo sound, all without wires!

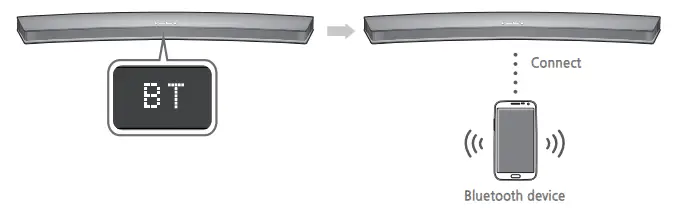

To connect the Soundbar to a Bluetooth device
Check if the Bluetooth device supports the Bluetooth-compliant stereo headset function.

1. Press the (Source) button on the main unit’s top panel or the SOURCE button on the remote control to select the BT mode.
   • You will see BT READY on the front display of the Soundbar.
2. Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth device’s user manual.)
3. Select “[Samsung] Soundbar J-Series” from the list.
   • When the Soundbar is connected to the Bluetooth device, it will display [Bluetooth device name] BT on the front display.
   • The device name can only be displayed in English. An underline ” _ ” will be displayed if the name is not in English.
   • If the Bluetooth device has failed to pair with the Soundbar, delete the previous “[Samsung] Soundbar J-Series” found by the Bluetooth device and have it search for the Soundbar again.
4. Play music on the connected device.
   • You can listen to the music playing on the connected Bluetooth device over the Soundbar.
   • In BT mode, the Play / Pause / Next / Prev functions are not available. However, these functions are available in Bluetooth devices supporting AVRCP.
   • If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
   • Only one Bluetooth device can be paired at a time.
   • The Bluetooth connection will be terminated when you turn the Soundbar off.
   • The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:
     • If there is a strong electrical field around the Soundbar.
     • If several Bluetooth devices are simultaneously paired with the Soundbar.
     • If the Bluetooth device is turned off, not in place, or malfunctions.
   • Note that such devices as microwave ovens, wireless LAN adaptors, fluorescent lights, and gas stoves use the same frequency range as Bluetooth device, which can cause electric interference.
   • The Soundbar supports SBC data (44.1kHz, 48kHz).
   • Connect only to a Bluetooth device that supports the A2DP (AV) function.
   • You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands-Free) function.
   • Once you have paired the Soundbar to a Bluetooth device, selecting “[Samsung] Soundbar J-Series” from the device’s scanned devices list will automatically change the Soundbar to BT mode.
   • Available only if the Soundbar is listed among the Bluetooth device’s paired devices. (The Bluetooth device and the Soundbar must have been previously paired at least once.)
   • The soundbar will appear in the Bluetooth device’s searched devices list only when the Soundbar is displaying BT READY.
   • In the TV SoundConnect mode, the Soundbar cannot be paired to another Bluetooth device.

Bluetooth POWER On (Bluetooth POWER)

If a previously paired Bluetooth device tries to pair with the Soundbar when the Bluetooth POWER On function is on and the Soundbar is turned off, the Soundbar turns on automatically.

1. Press the Bluetooth POWER on the remote while the Soundbar is turned on.
2. ON – BLUETOOTH POWER appears on the Soundbar’s display.
   To disconnect the Bluetooth device from the Soundbar
   You can disconnect the Bluetooth device from the Soundbar. For instructions, see the Bluetooth device’s user manual.
   • The Soundbar will be disconnected.
   • When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display BT DISCONNECTED on the front display.
     To disconnect the Soundbar from the Bluetooth device Press the SOURCE button on the remote control or the (Source) button on the product’s top panel to switch from BT to another mode or turn off the Soundbar.
   • The connected Bluetooth device will wait a certain amount of time for a response from the Soundbar before terminating the connection. (Disconnection time may differ, depending on the Bluetooth device).
   • In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 32.8 ft.
   • The Soundbar automatically turns off after 25 minutes in the Ready state.

More About Bluetooth

Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection.

• A Bluetooth device may cause noise or malfunction, depending on usage, if:
  •  A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Soundbar.
  • It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.
  • It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.
• Pair the Soundbar with the Bluetooth device while they are close together.
• The further the distance between the Soundbar and Bluetooth device, the worse the quality is.
  If the distance exceeds the Bluetooth operational range, the connection is lost.
• In poor reception areas, the Bluetooth connection may not work properly.
• The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.
• This wireless device may cause electric interference during its operation.

Using the Samsung Audio Remote App

Installing the Samsung Audio Remote App
To control the Soundbar with your smart device and the Samsung Audio Remote app, download the Samsung
Audio Remote app from Google Play store.

Launching the Samsung Audio Remote App
To launch and use the Samsung Audio Remote app, touch the Audio Remote icon on your smart device, and then follow the directions on the screen.

The Samsung Audio Remote app is only compatible with Android mobile phones and mobile devices running Android OS 3.0 or later.

Software Update

Samsung may offer updates for the Soundbar’s system firmware in the future.
If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it to the USB port on your Soundbar.
Note that if there are multiple update files, you must load them onto the USB device singly and use them to update the firmware one file at a time.
Please visit samsung.com or contact the Samsung call center to receive more information about downloading updated files.

• Insert a USB device containing the firmware update into the USB port on the main unit.
• Updating firmware may not work properly if audio files supported by the Soundbar are stored in the USB storage device.
• Do not disconnect the power or remove the USB device while updates are being applied. The main unit will turn off automatically after completing the firmware update.
• After the update, all settings are reset to their factory default settings. We recommend you write down your settings so that you can easily reset them after the update. Note that updating firmware resets the subwoofer connection too.
  If the connection to the subwoofer is not re-established automatically after the update, refer to page15.
  If the firmware fails to update, we recommend formatting the USB device in FAT16 and trying again.
• Once the software update is completed, turn off the product and then press and hold the ( p ) button on the remote control for more than 5 seconds. “INIT” appears on the display and the unit is powered off. The upgrade is complete.
• Do not format the USB device in the NTFS format. The Soundbar does not support the NTFS file system.
• Depending on the manufacturer, some USB devices may not be supported.

Troubleshooting

Refer to the table below when this product does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, turn off the product, disconnect the power cord, and contact Samsung Electronics at 1-800-SAMSUNG (1-800-726-7864).

Specifications

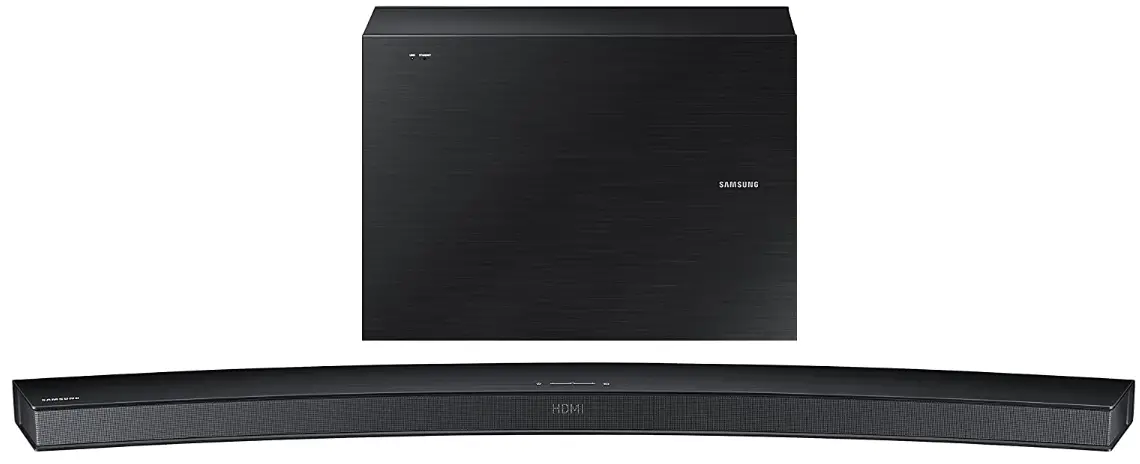

Model name HW-J6000, HW-JM6000

• S/N ratio, distortion, separation, and usable sensitivity are based on measurements using AE S (Audio Engineering Society) guidelines.
• Nominal specification
  • Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
  • Weight and dimensions are approximate.
  • For more information about the power supply and power consumption, refer to the label attached to the product.
  • Dispose unwanted electronics through an approved recycler.

To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect or call, (877) 278 – 0799
Open Source License Notice
To send inquiries and requests regarding open sources, contact Samsung via Email ([email protected]).
Important Note About Service

• An administration fee may be charged if either:
  • An engineer is called out to your home at your request and there is no defect in the product.
  • You bring the unit to a repair center and there is no defect in the product.
• You will be advised of the amount of the administration fee before any work is done or a home visit is made.
• If you have a problem with this product, we strongly recommend you read the appropriate section of this manual, review the Troubleshooting section on page 28, visit the Support page for your product at www.samsung.com, or call Samsung Product Support (1-800-726-7864) to find an answer before you contact a service center for a repair.

Warranty

LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:
One (1) Year Parts and Labor*
(*90 Days Parts and Labor for Commercial Use)

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. Transportation of the product to and from the service center is the responsibility of the purchaser. SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.
SAMSUNG’s obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand name are set forth in the applicable end user license agreement. Non-SAMSUNG hardware and software products, if provided, are on an “AS IS” basis. Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their own warranties.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent otherwise expressly provided for in this statement, noncommercial use of this product, and shall not apply to the following, including, but not limited to: damage that occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in service problems; incorrect electrical line voltage, fluctuations, and surges; customer adjustments and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal or reinstallation; reception problems and distortion related to noise, echo, interference or other signal transmission and delivery problems. SAMSUNG does not warrant the uninterrupted or error-free operation of the product.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRA TIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MER MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL APPLY AFTER THE EXPRESS SS WARRA NTY PER IODS STATED ABOVE, AND NO OTHER EXPRESS SS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORA TION WITH RESPECT TO THIS THE PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE  CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEE N ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RE-COVER Y OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAU SING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, THE PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY Y TO THE PURCHASER AND PUR CHASER ’S PROPERTY AND TO OTHER S AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAU SED DIRE CTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRA NTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PUR CHASER OF THIS PRODUCT, WHO IS NONTRA NSFERA BLE AND STATES YOUR EXCLUSIVE RE ME.

The benefits of this Limited Warranty extend only to the original purchaser of Samsung products from an authorized Samsung reseller. THIS LIMITED WARRA NTY SHALL NOT APPLY TO ANY SAMSUNG PRODUCTS PUR CHASED FROM UNAUTHORIZED RESELLERS OR RETAILER S, EXCEPT IN STATES WHERE SUCH RESTRICTION MAY BE PROHIBITED. For a list of Samsung authorized retailers, please go to: http://www.samsung.com/us/peaceofmind/authorized_resellers.html Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
To obtain warranty hardware service, please contact the SAMSUNG customer care center.

QUESTIONS OR COMMENTS?

FAQS

Is this sound bar wall mountable
