MAP EVOX-OP-REV2
Install Instructions

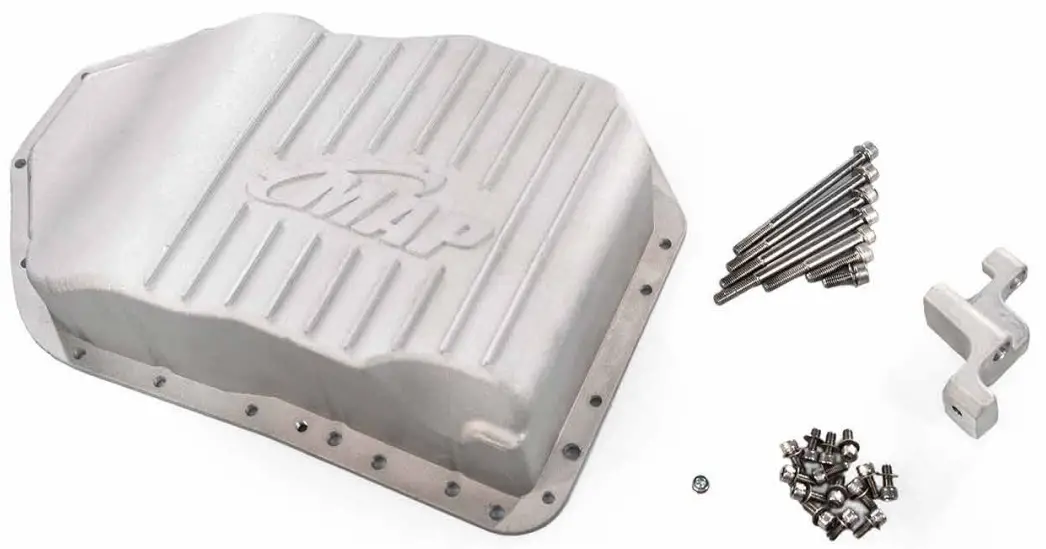

What’s in the box?
1x MAP EvoX Oil Pan – Assembled
1x MAP EvoX AC Bracket
15x M6 Bolts 16mm Length, 1mm Pitch
15x M6 Washers
5x M8 Washers
4x M8 Bolts 110mm Length, 1.25mm Pitch
1x M8 Bolt 70 mm Long, 1.25 mm Thread
1x M8 Bolt 35mm Length, 1.25 mm Thread
1x M8 Bolts 20mm Length, 1.25mm Pitch
1x 1/8” NPT Plug
Tools needed

You will need:
- 10mm socket
- 3/8ths ratchet
- 3/16ths, 5mm, and 6mm Hex Bit Sockets
- Gasket scraper
- Ultra grey or equivalent gasket sealer
Step 1 | Step 2 |
Step 3 | Step 4 |
Step 5 | Step 6 |
Step 7 | |
We hope you enjoy your purchase! Reach out to us with any issues or concerns.

1-888-627-3736
@maperformance
[email protected]
www.facebook.com/modernautomotiveperformance/

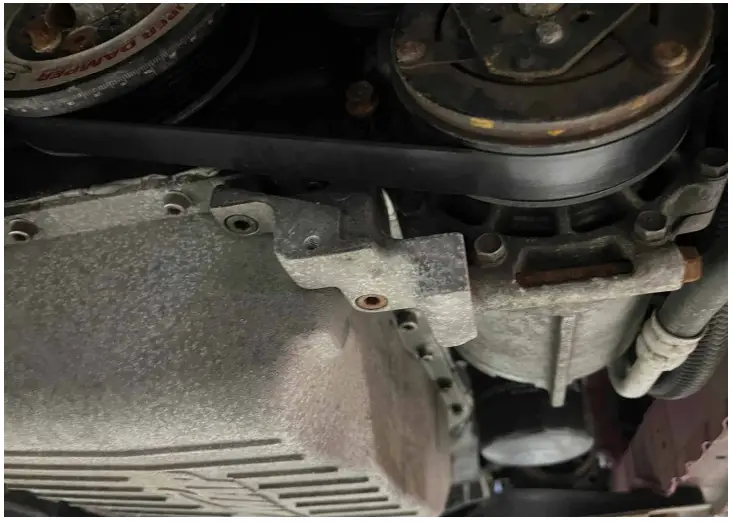

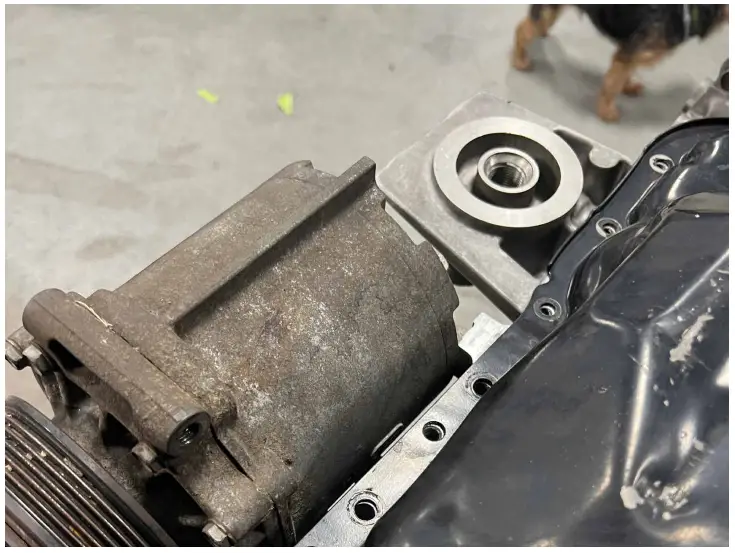

Remove OEM AC compressor bracket downpipe

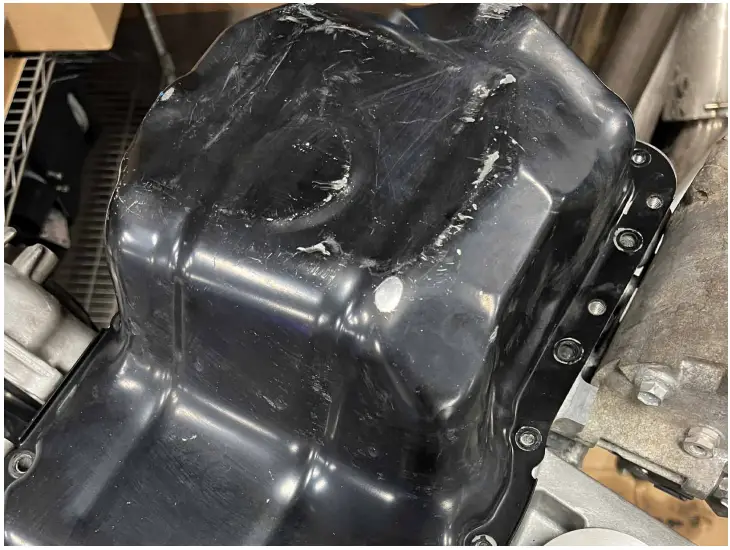

Remove oil pan bolts
Remove oil pan, some prying may required to remove oil pan

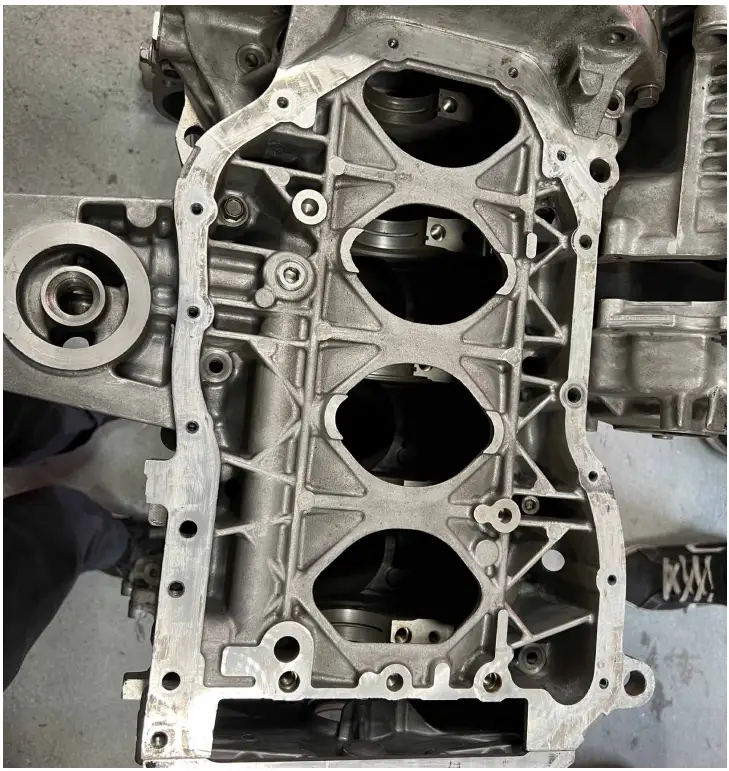

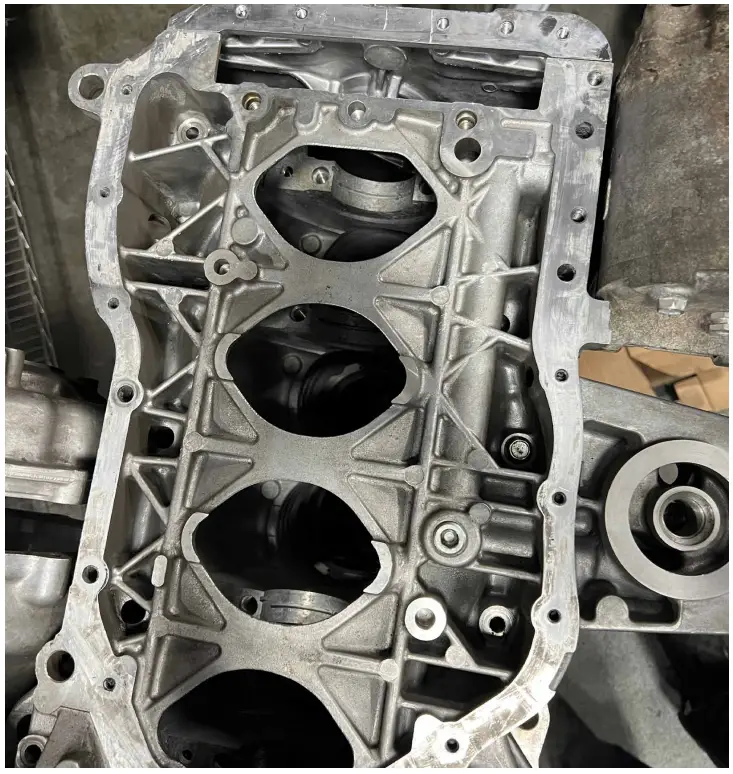

Clean gasket surface on oil pan,

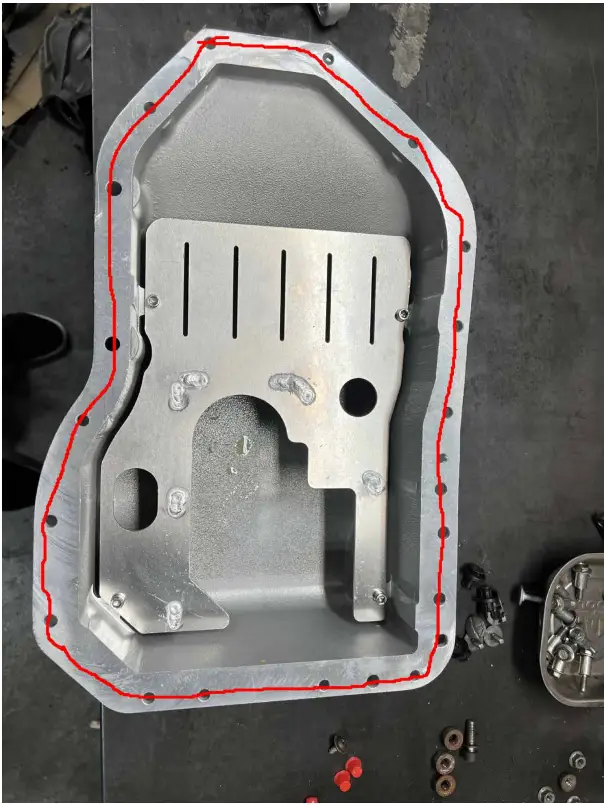

Apply gasket maker to
Install evo x oil pan with included

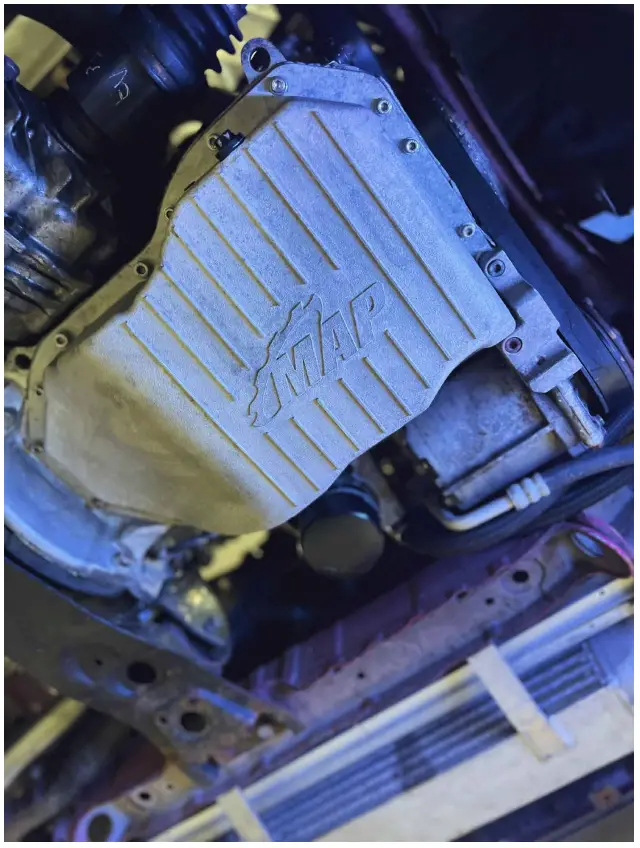

Install MAPerformance EVO x oil pan
