QUICK REFERENCE GUIDE > CI122DTB4
Induction Cooktop, 12″, 2 Zones with SmartZone
Series 9 | Minimal Black Glass

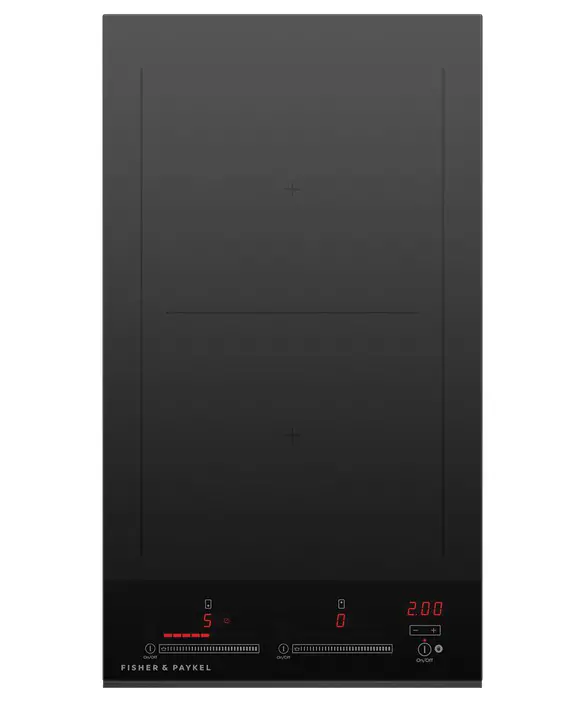

CI122DTB4 Induction Cooktop, 12 Inches, 2 Zones with SmartZone
This Series 9 cooktop is a joy to use, with the instant response and energy efficiency of induction technology.
- Immediate heat response and extremely accurate temperature control
- Child and pet safe – cooktop remains cool to touch until a pot or pan is placed on the surface
- PowerBoost activates a very high heat, bringing liquid to boil in less than a minute
- Easily control each cook zone with Touch&Slide, including pairing cook zones to create a large SmartZone
DIMENSIONS
| Height | 2 3/4″ |
| Width | 11 13/16″ |
| Depth | 20 7/8″ |
FEATURES & BENEFITS
COMPLEMENTARY DESIGN
The subtle black glass and durable matte black detailing are designed to pair with the Minimal style Series 9 Ovens. With premium styling and detailing, these cooktops seamlessly blend with other appliances for a cohesive, considered kitchen design.
ENHANCED FEATURES
PowerBoost and GentleHeat deliver either very high or very low heat, fast. Perfect for specialized cooking tasks such as searing meat and melting chocolate. An integrated timer ensures a great result every time.
INSTANT RESPONSE
Go from a boil to a simmer in seconds. Touch&Slide controls react immediately when you adjust the temperature so you don’t waste time in the kitchen.
SAFER CHOICE
Induction cooktops only start heating your pot or pan once you’ve placed it on the ceramic surface and stop as soon as you remove it so you don’t have to worry about curious little fingers or leaving a cook surface on.
EASY CLEANING
The surface around your cookware stays cool when you cook preventing baked-on spills and making cleaning up a breeze. The ceramic cooktop surface, including anodized detailing for durability, just needs a quick wipe after use to maintain its good looks.
SUPERIOR EFFICIENCY
Less heat is wasted during induction cooking because only the cookware is heated, not the cooktop surface. This makes induction cooking more energy-efficient than electric or gas cooktops.
SPECIFICATIONS
| Cleaning | |
| Flat easy clean glass surface | • |
| Pan detection system | • |
| Controls | |
| Auto cut-off timer for each | • |
| Minute timer | • |
| Soft-touch electronic controls | • |
| Touch and slide controls | • |
| Performance | |
| Auto rapid heat | • |
| Gentle heat | • |
| Heat settings | 9 |
| Induction cooking technology | • |
| PowerBoost | • |
| SmartZone | • |
| Zone bridging | • |
| Power requirements | |
| Amperage | 16A |
| Supply frequency | 60Hz |
| Supply voltage | 240V |
| Product dimensions | |
| Depth | 20 7/8″ |
| Height | 2 3/4″ |
| Width | 11 13/16″ |
| Safety | |
| ADA compliant | • |
| Keylock | • |
| Pan detection system | • |
| Safety time out | • |
| Spillage auto off | • |
| Surface hot indicators | • |
| Warranty | |
| Parts and labour | 2 years |
| Zone ratings | |
| Left front zone (PowerBoost | 2100W (3700W) |
| PowerBoost | up to 3700W |
| Right front zone (PowerBoost | 2100W (3700W) |
| Zones | |
| Number of elements | 2 |
| SKU | 81969 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
