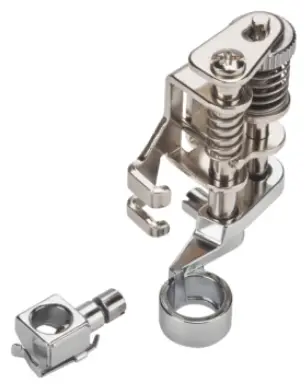

bernette 502021 Ruler Foot Set
Information
Scope of Delivery

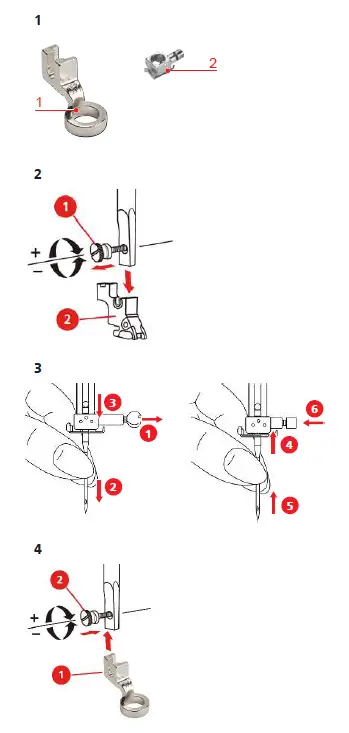

- Ruler Foot JR (1) (Fig. 1)
- Needle Holder (2) (Fig. 1)
Intended Use
- For quilting with 1/4″ rulers.
- For free-motion quilting.
For Your Safety
Before using this accessory, please read this instruction manual as well as the instruction manual of your machine carefully.
Application
Installing the Ruler Foot
- Update firmware according to «Firmware Update Step by Step».
- Switch the machine off and disconnect it from the power supply system.
- Remove the presser foot holder. (Fig. 2)
- Remove the needle and replace the needle holder with the enclosed needle holder. (Fig. 3)
- Install the ruler’s foot. (Fig. 4)
Adjusting Settings

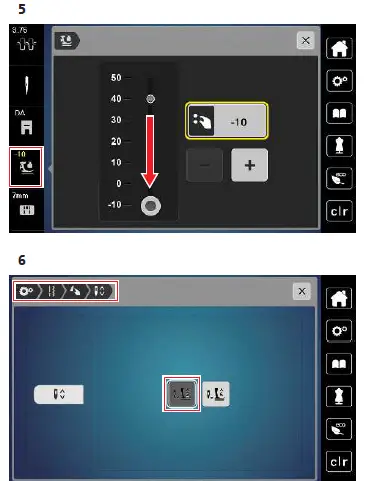

- To raise the foot height further for use with thicker materials, set the presser foot pressure to below zero. (Fig. 5)
- Limit the hovering height of the presser foot to a maximum 2 mm in the sewing settings for the «Needle Up/Down» button. (Fig. 6)
