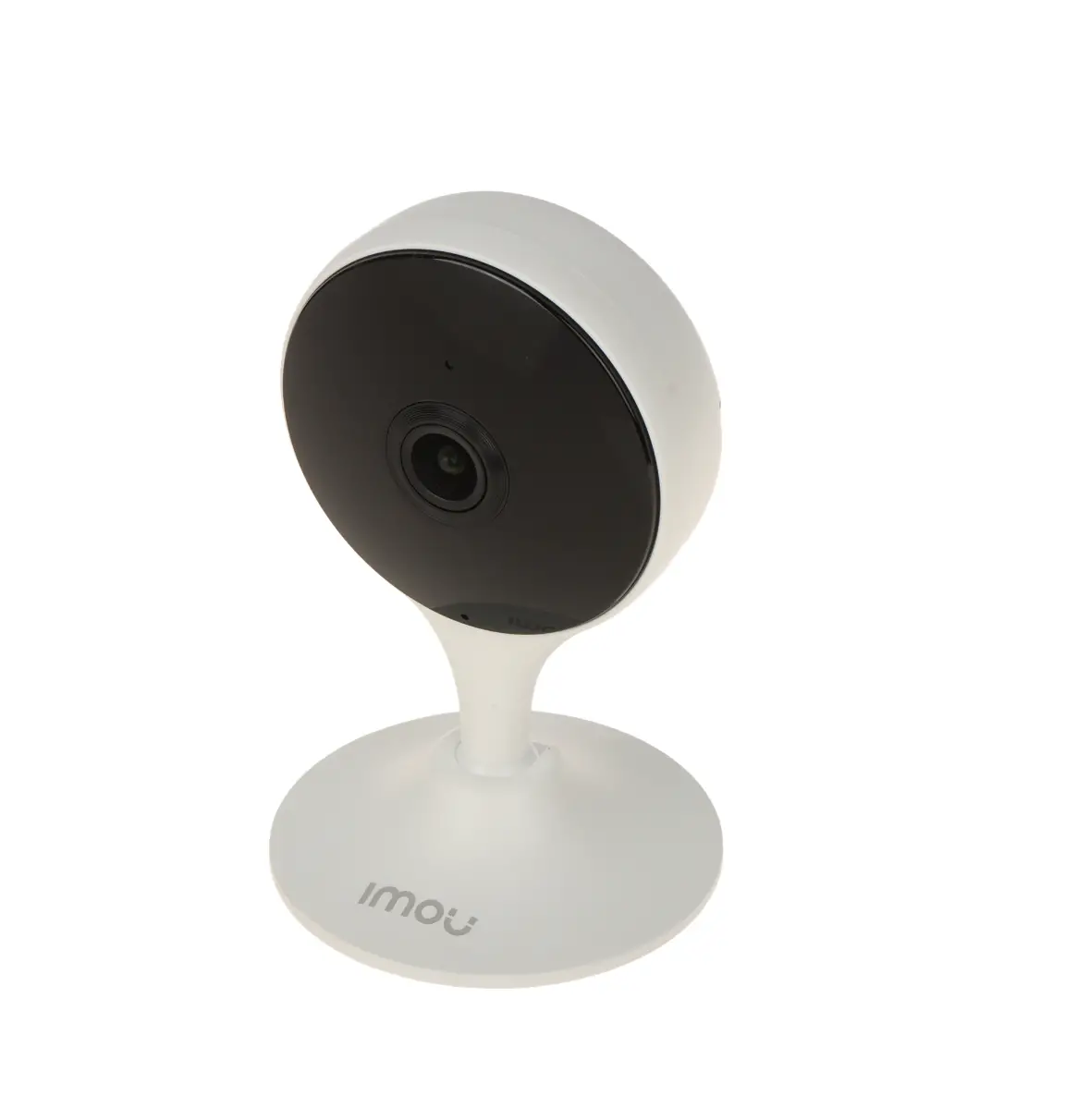

Imou IPC-C22EP-D Cue 2 IP Camera

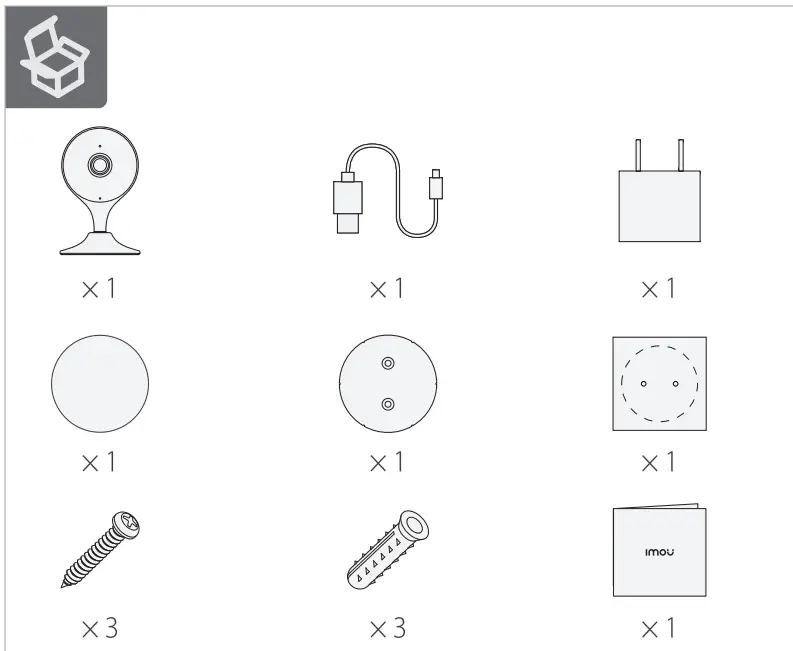

BOX CONTENTS
NOTE
[email protected]
https://en.imoulife.com/support/help/faq
https://en.imoulife.com
@imouglobal

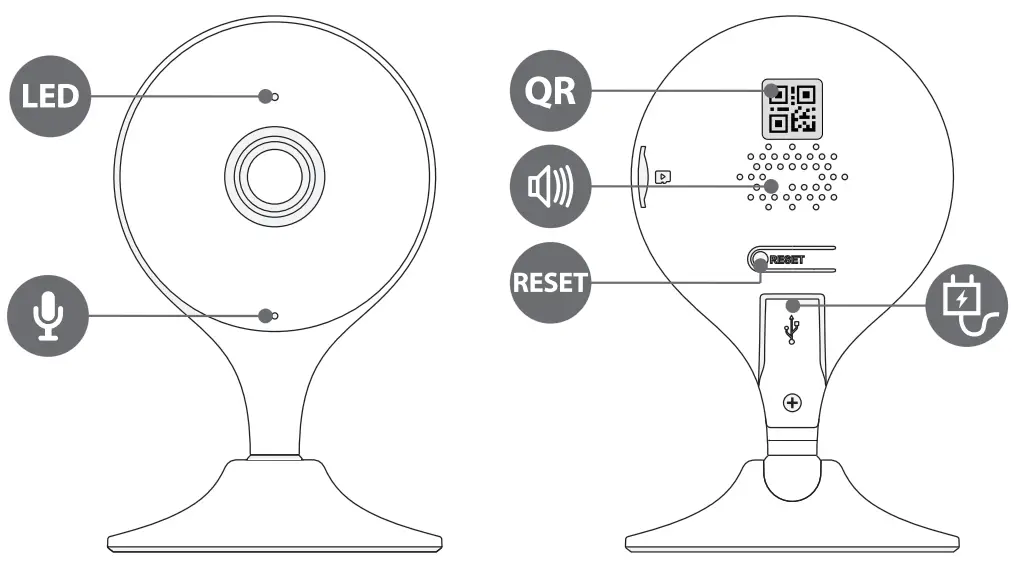

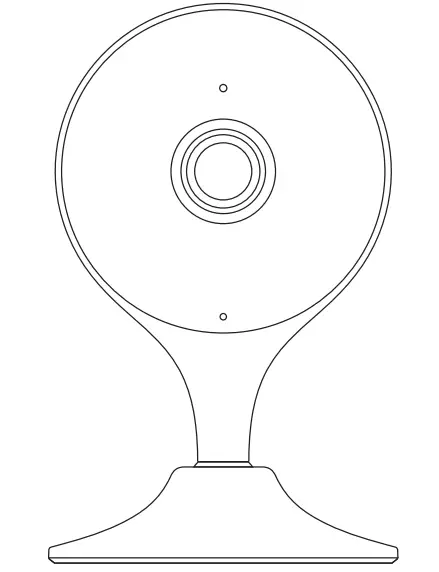

OVERVIEW

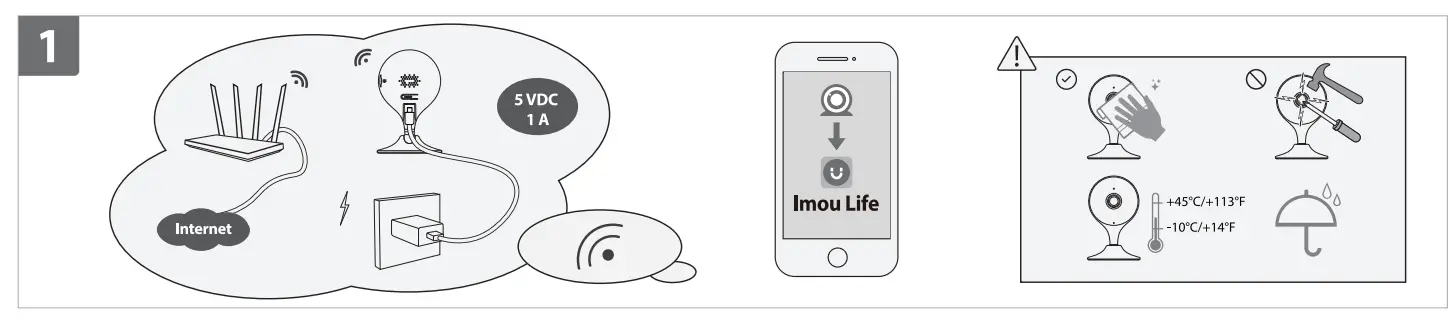

Power On the Camera
Connect the camera to power (see part 1).
 |  |  |
 | ||
 |  |
Set Up the Camera

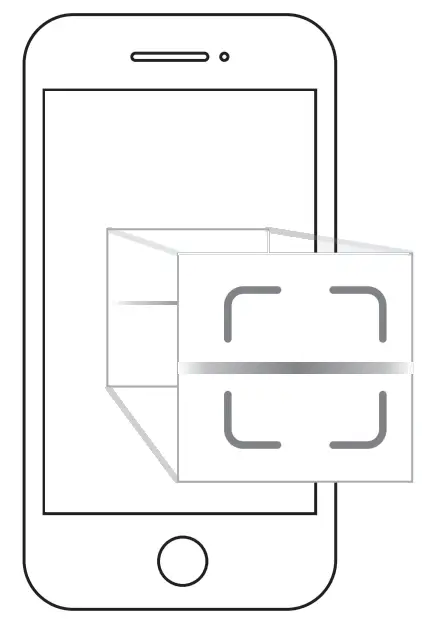

Scan the QR code on the body of the device or on the cover of this guide with the app, and then follow on-screen instructions to complete the setup (see part 3).

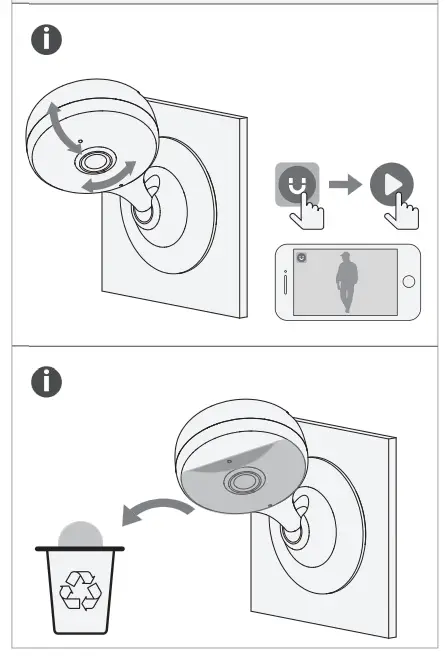

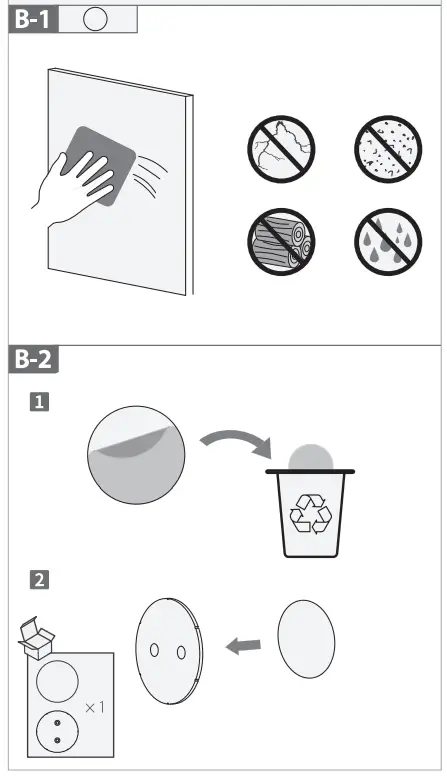

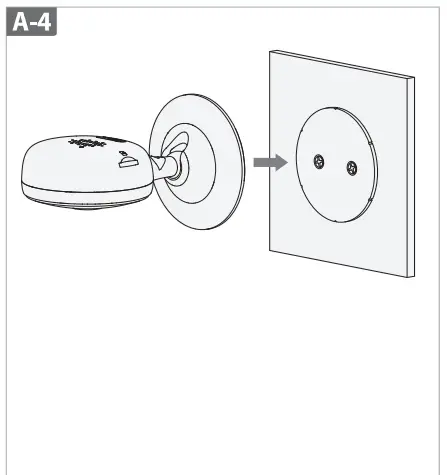

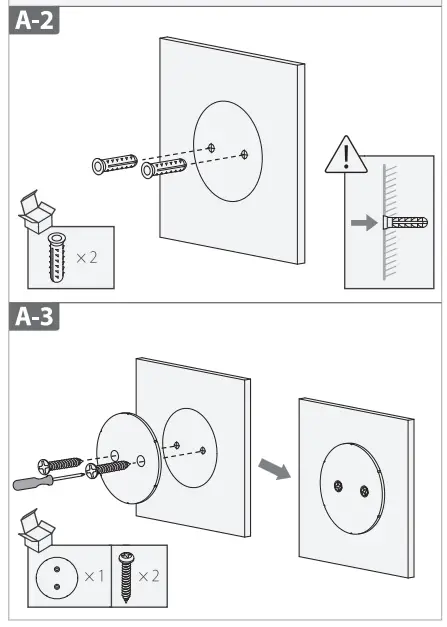

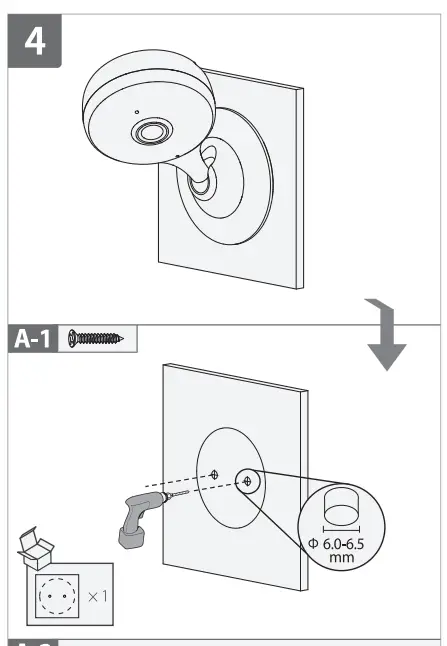

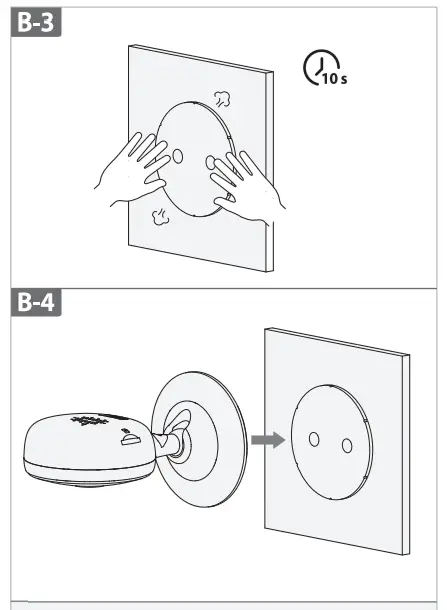

Install the Camera
Make sure the mounting surface is strong enough to hold three times the weight of the camera. For detailed installation process, please see part 4.
| LED Status | Device Status | |
| Green | Flashing | Ready t:o set up the device |
| Solid | Working properly | |
| Red | Flashing | Network disconnected |
| Failed to set up the device | ||
| Solid | Booting | |
| Device malfunction | ||
| Green & Red | Alternating | Updating firmware |
| Off | / | Power off |
| LED turned off | ||

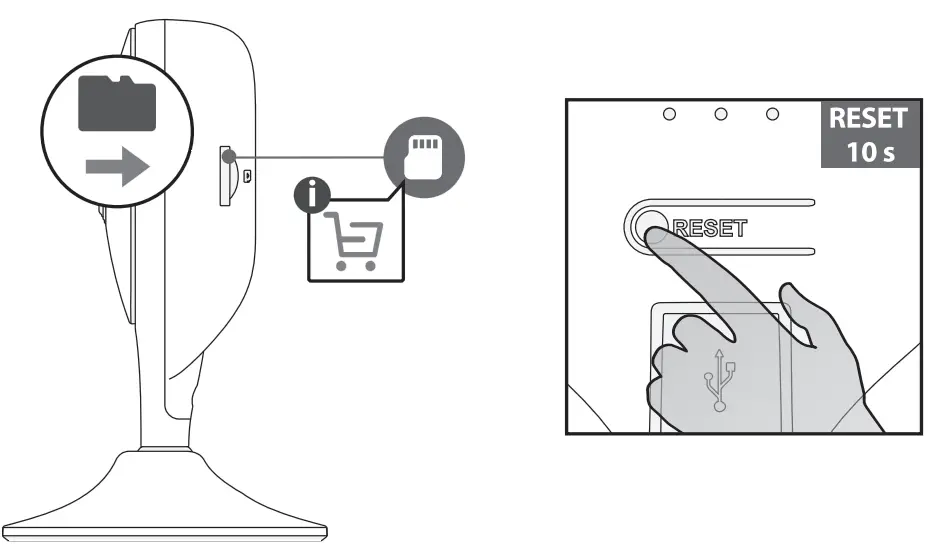

If you need to reset the camera, press and hold the reset button for 10s. The LED turns solid red when the camera is booting.
