Kogan Fsefbtm300a Electric Foldable Treadmill T300 User Guide

USER GUIDE

ELECTRIC FOLDABLE TREADMILL T300
FSEFBTM300A

SAFETY & WARNINGS

1. Caution
   To avoid injury, please read this manual carefully before use.
   • For safety purposes, do not stand on the running belt when starting the unit.
   • Please stop immediately if you feel any nausea or the unit’s motion is no longer smooth.
   • Always increase or decrease the speed at a slow rate.
   • Never adjust the belt during use.
   • It is suggested to wear sports shoes when using the machine.
   • Children, the elderly, pregnant women should not use the machine.
   • Always clip the safety key on your clothing during use.
   • Firmly hold the grip bars during use
2. Safety Information
   • Place the machine on flat ground. Do not use the machine in the following locations:
   1. Outdoors. (The machine is specially designed for indoor use only).
   2. Any ground that is uneven.
   3. Any areas in high sunlight or in close proximity to heating units.
   • The input for the machine is AC 220V.
   • An error may appear if the power is not stable. The unit must not have any other items connected to the same power socket and should not be used through a power board.
   • It is suggested to wear sports shoes and gym clothes when using the machine.
   • Always increase or decrease the speed at a slow rate.
   • Be careful of children or surrounding objects when folding and unfolding the machine.
   • Never put the machine near wet objects or areas. The unit may produce an error if it is wet.
3. Caution during use
   • If you do not feel well during exercise, please consult with your doctor.
   • No liability will be accepted for improper use of the device and any resulting injuries or damage.
   • Please pull out the safety key after use.
   • Please pull out the safety key when moving or changing any parts of the machine.
   • Children, the elderly, pregnant women should not use the machine.
   • Do not place any items within two meters of the machine.
   • Do not start the machine when it is folded.
   • Ensure water does not come in contact with the machine, especially the motor, power cable, and plug.
   • Never wear long dresses or other unsuitable garments during use.
   • Do not use the machine in enclosed spaces, locations with uncirculated air, or flammable areas.
   • Do not put any objects on the machine.
   • Keep the plug away from heat.
   • Please switch off the unit and remove the plug after use.
   • Please do not stand directly on the belt while starting the machine.
   • Do not disassemble or modify this machine in any way.
   • Please make sure the running belt is fastened before use.
   • The running belt on this treadmill has a visible joint mark. This is completely normal and will not affect the performance or operation of your treadmill.

OVERVIEW

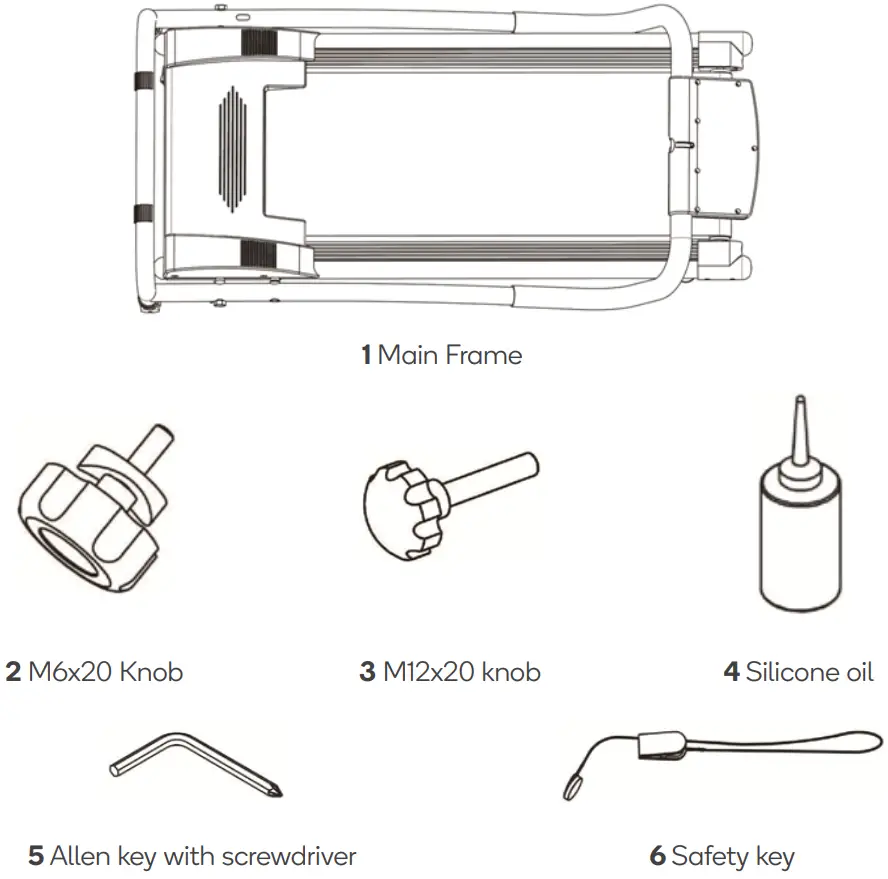

Hardware and Tools

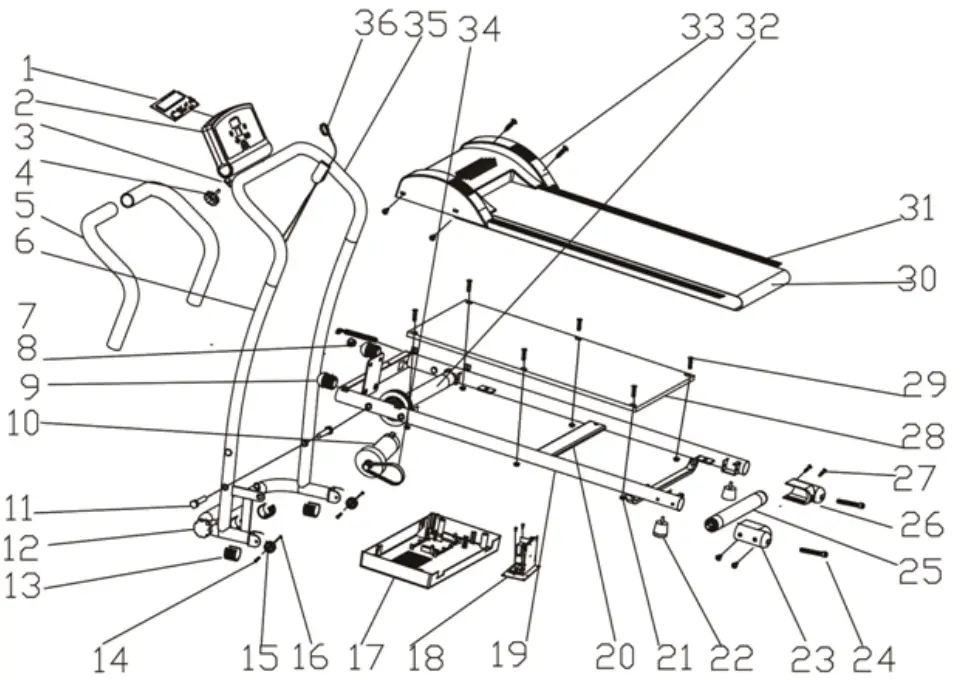

Parts List

ASSEMBLY

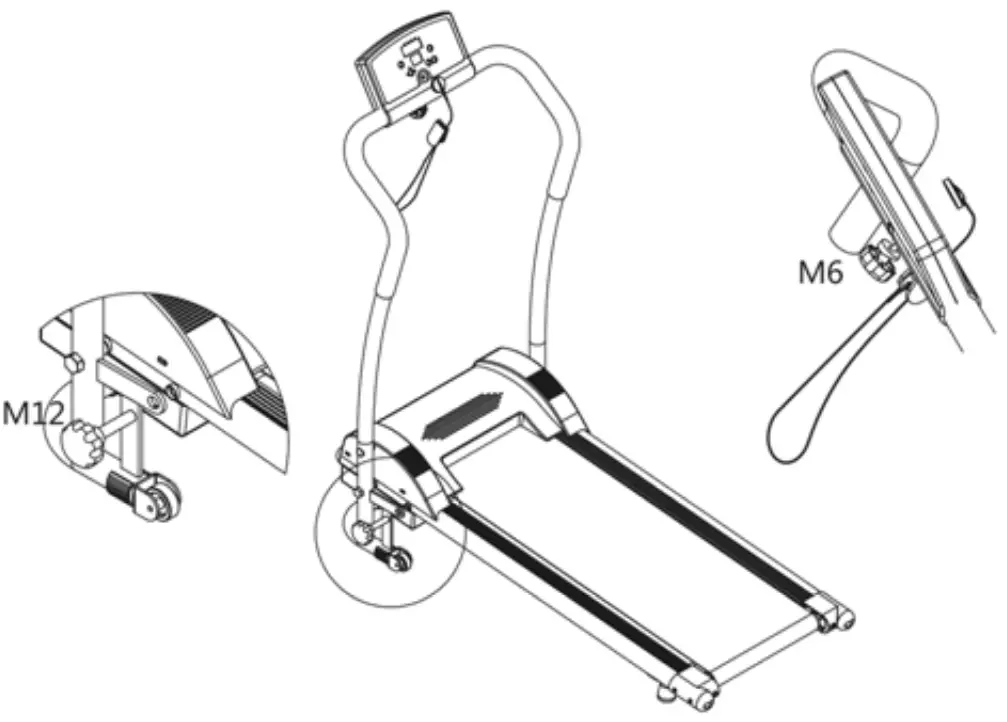

Fasten the M12 knob and M6 knob in the corresponding positions.
Ensure the safety key placed is placed in the middle of the console and keep clear free from the M6 knob.

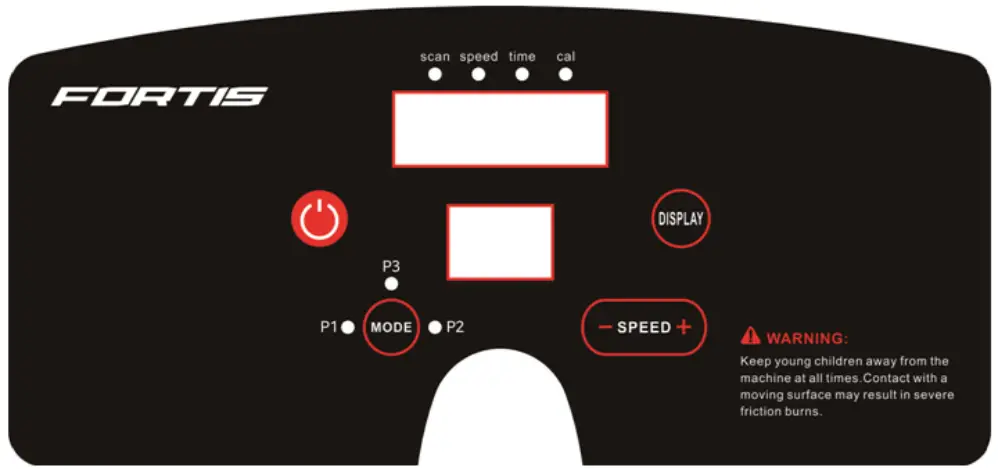

OPERATION

1. Ensure the safety key is in place and press the “START” key, the machine will start by counting down for 3 seconds with audible beeps before starting slowly at 1km/h.
2. Press the “+” key to speed up and the “-” key to slow down. The fastest speed is 5 km/h and the lowest is 1km/h.
3. Press the “DISPLAY” key to change the display between Distance, Time, and Calories. When “scan” is selected the screen will automatically move between Distance, Time, and Calories every 5 seconds.
4. The treadmill has 3 inbuilt programs. To select a program, ensure that the treadmill is on standby with the belt stationary. Press the “PROG” button to select the desired program then press “START” to start the machine.
5. To stop the unit in an emergency, pull the red safety key. The machine will then stop. When the red safety key magnet is not in place the screen will show “Err”. When the Red safety key magnet is in place, the display will show “OFF”.
6. Press “STOP” to stop the machine after use.

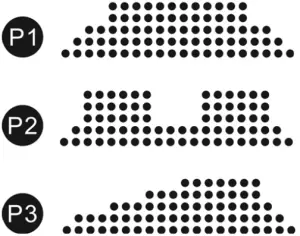

Auto Mode:

TRANSPORTING

Unfolding

• Pull out the tension knob then carefully lower the running board.
• Secure the treadmill using the fixed knob.
• Connect the treadmill to a power outlet.
• The treadmill is ready for operation.

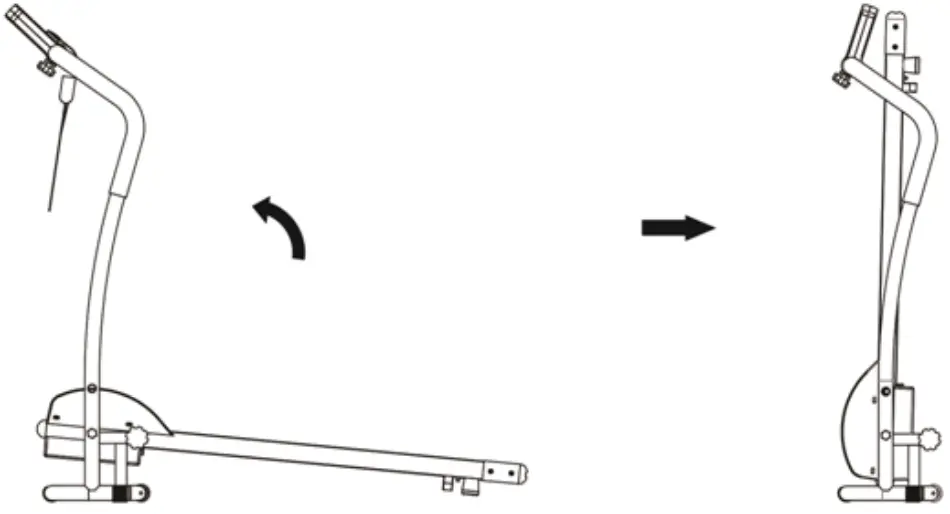

Fold & Move:

• Turn the fixed knob then lift the running board to fold the treadmill.
• Pull out the tension knob, aimed at the platform then release the knob to fix the treadmill in place.
• The treadmill can be moved and stored safely.

CLEANING & CARE

Always disconnect the unit’s power before performing any maintenance or cleaning.

• Clean the belt and dial plate using a slightly damp, clean cloth.
• Check and tighten the screws and spines at the fixing point.
• Do not hang clothes or other objects on the machine.

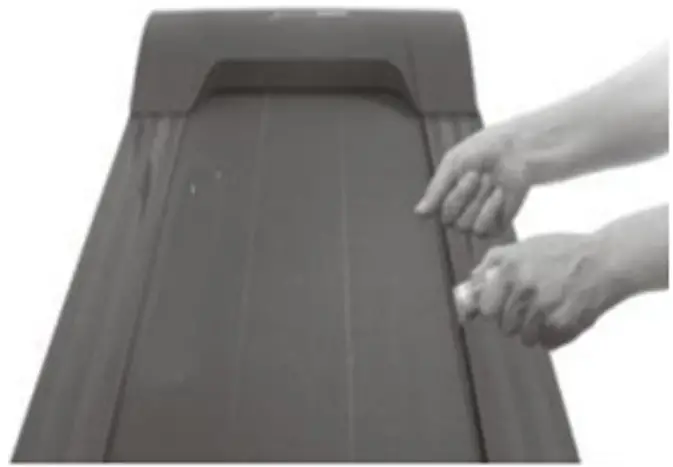

Lubrication

• Pull up the running belt carefully.
• Apply silicone oil to the running board.
• Start the machine and let it run for 3 minutes without any weight applied.
• This should be completed after every 30 hours of use and will increase the lifespan of your unit.

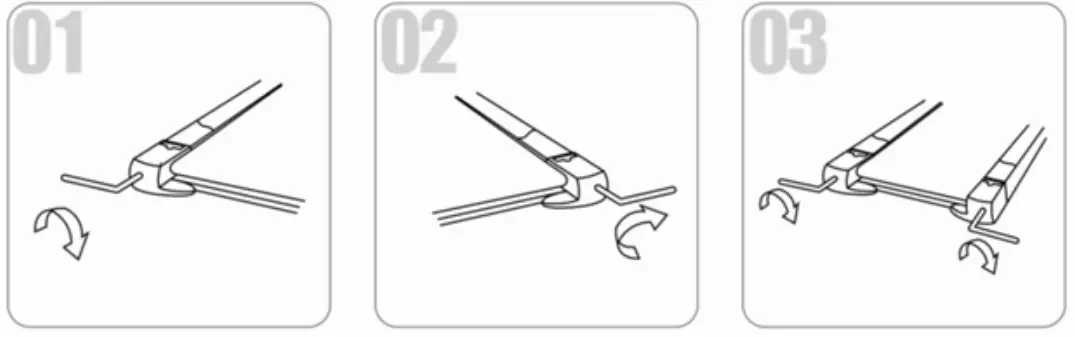

Adjusting the Belt

1. If the belt is deviating to the left:
   • Start the machine and adjust to 2-3km/h without loading, use a hex key to tighten 1/4 of a rotation.
   • Let the unit run without loading for 1-2 minutes.
   • Repeat this process until the belt is centered.
2. If the belt is deviating to the right:
   • Start the machine and adjust to 2-3km/h without loading, use a hex key to tighten 1/4 of a rotation.
   • Let the unit run without loading for 1-2 minutes.
   • Repeat this process until the belt is centered.
3. Running belt has jammed:
   If the running belt is unable to move, use a hex key to tighten 1/2 a rotation on the left and right until the unit is able to move.

TROUBLESHOOTING

Note: The visible line or mark on the belt is the seam. This is not a fault and does not affect the operation of the treadmill.

Error Codes

If any error codes appear on the screen, please attempt the following:

NOTES

Need more information?
We hope that this user guide has given you the assistance needed for a simple setup.
For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com.
