Triple UHF CH 21-48 29 Elements
ZTL-236B5G
Cod. 559573507

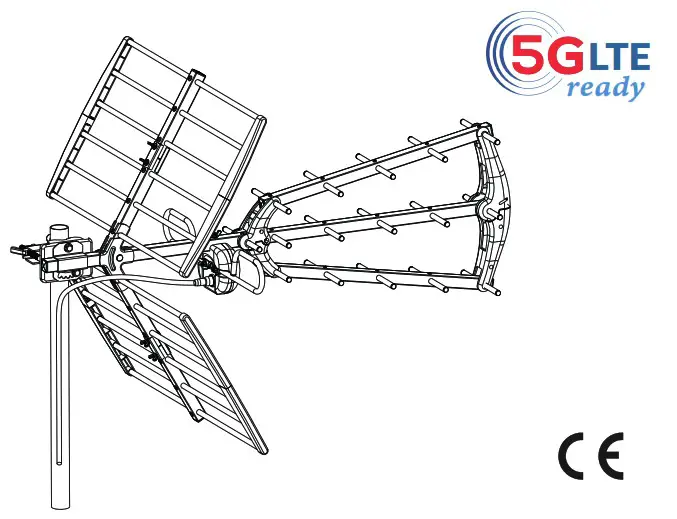

ZTL-236B5G Triple Digital Terrestrial Antenna
FEATURES
Number of elements: 29
Band: UHF
Channels: 21-48
Gain: 10 – 15 dB
Impedance: 75 Ohms
Working frequency: 470-694 Mhz
A/D ratio: >25 dB
H/V opening: H 32°/ V 35°
Material: Tubular aluminum
Pasthes: White ABS
Packaging: in single cardboard box
Masters: 8 pcs
Antenna dimensions (H x W x D): 580 x 580 x 670 mm
Multipack size (H x W x D): 820 x 350 x 670 mm
Antenna / Multiple packing weight: 1.8 Kg / 15Kg
Product disposal
According to Directive 2012/19/EU of the European Parliament and of the Council, of 4 july 2012, on waste electrical and electronic equipment (WEEE), the presence of the crossed-out bin symbol indicates that this appliance is not to be considered as urban waste: its disposal must therefore be carried out by separate collection. Disposal in a non-separate manner may constitute a potential harm to the environment and health. This product can be returned to the distributor when purchasing a new device. Improper disposal of the appliance constitutes misconduct and is subject to sanctions by the Public Security Authority. For further information, contact the local administration responsible for environmental matters.
Made in China
Melchioni Spa
Via Colletta, 37 – 20135 Milano
Tel. 02 49486000 | www.melchioni-ready.com
