Radio Alarm Clock with Wireless Charging
Introduction

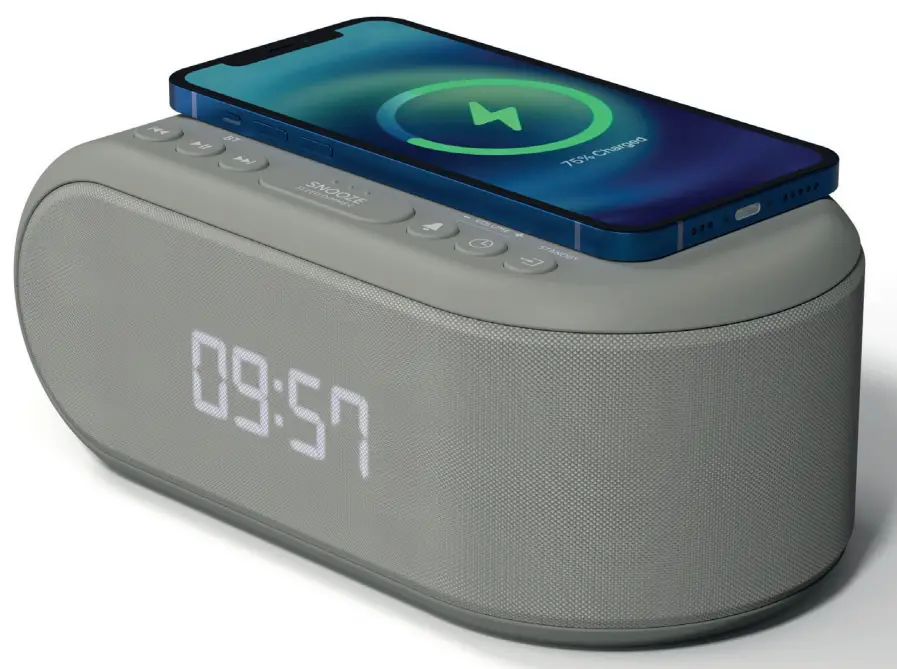

The i-box Awake combines a traditional bedside radio alarm clock with a stereo Bluetooth speaker. In addition, the wireless charging pad on the top and USB socket on the back ensure your phone gets charged while you sleep.
- FM radio with 20 presets for rapid recall of your favorite stations
- Dual alarms can be set for any day or day of the week
- Wireless charging panel for Qi-enabled devices and a USB charging port
Caring for your Radio Alarm Clock
Do not place naked flame sources, such as lighted candles on or near the Awake.
Keep away from dripping or splashing liquids.
The unit should not be exposed to direct sunlight, very high or low temperatures, moisture, strong magnetic fields high frequencies, and dusty environments.
Always leave sufficient space around the unit for ventilation.
Do not use abrasives, thinner, or other solvents to clean the unit.
To clean, wipe with a clean soft cloth.
Never attempt to insert wires, pins, or other such objects into the vents or opening of the unit.
Do not disassemble or modify the unit, there are no user-serviceable parts.
If the radio is damaged or malfunctions do not use it. Consult a qualified service engineer.
This product contains a Lithium coin cell battery to keep the battery away from children. The battery could be harmful if swallowed.
Seek immediate medical advice if you believe a battery has been swallowed.
Do not dispose of this product with household waste at the end of its life cycle; take it to a designated collection center for the recycling of electrical and electronic appliances with batteries. Please check with your Local Authority for recycling advice.
 |  |  |
Controls & Features

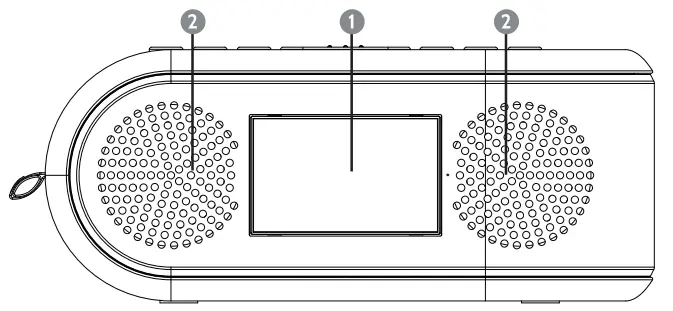

Front View
Controls & Features
- LED Display
- Speakers

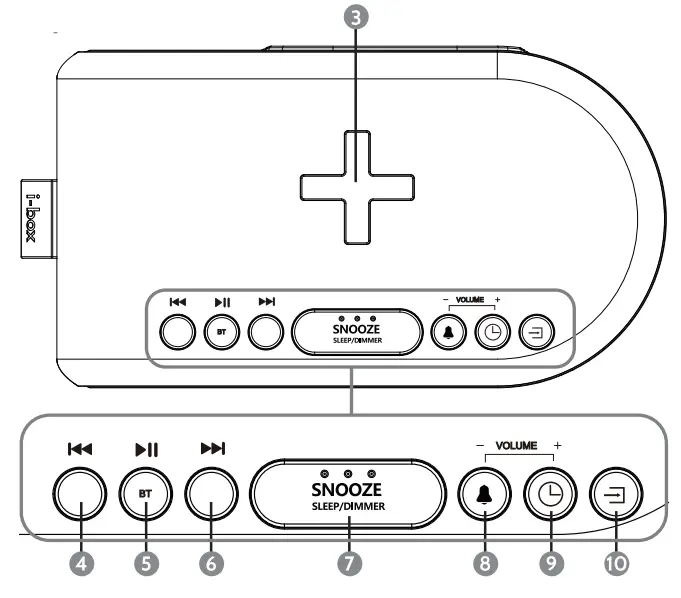

Top View
- Wireless Charging Pad
- Prev / Tune
- Play/Pause/ Bluetooth
- Next/ Tune +
- Snooze I Sleep/ Dimmer
- Alarm / Volume
- Time/ Volume +
- Standby/ Mode Select

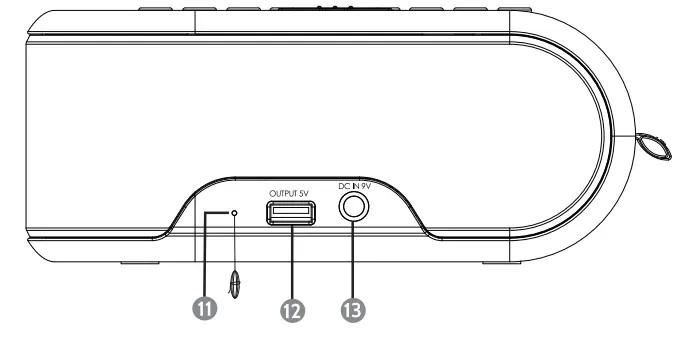

Back View
- Wire Antenna
- USB Charging Port
- Power Supply Input

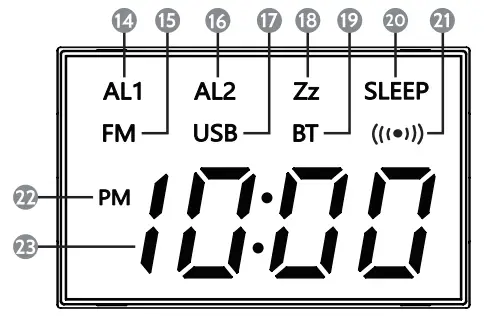

- Alarm 1 Active
- FM Mode Active
- Alarm 2 Active
- USB Output Active
- Snooze Active
- Wireless Connection Mode
- Sleep Timer Active
- Wireless Charing Active
- PM Time
- Main Display
- Backup Battery Compartment

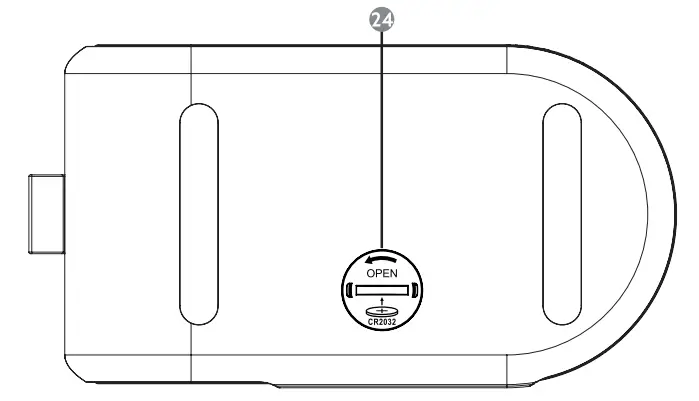

| Bottom View | Screen Display |
 |  |

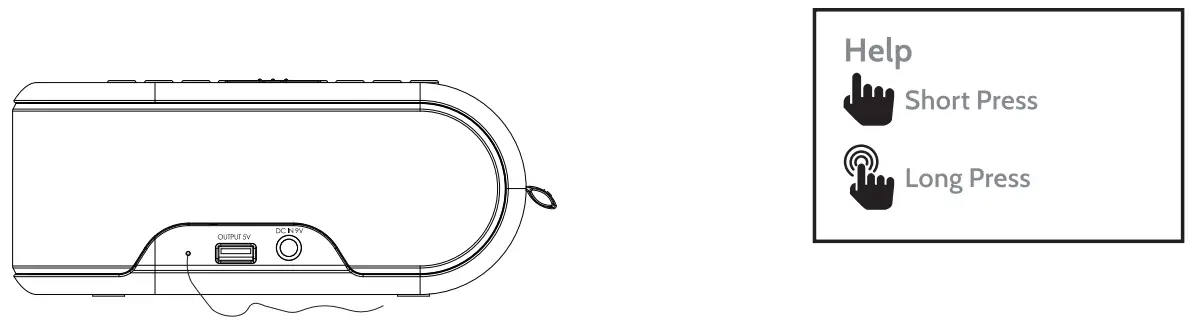

Before getting started
Before setup or making connections please extend the antenna fully.

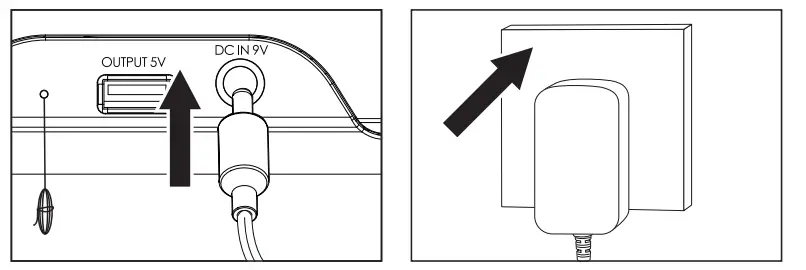

Powering your Radio Alarm Clock
To power, the i-box Awake alarm clock, plug the power adaptor (supplied) into a wall socket and the jack plug into the DC In port on the back of the Awake (13).

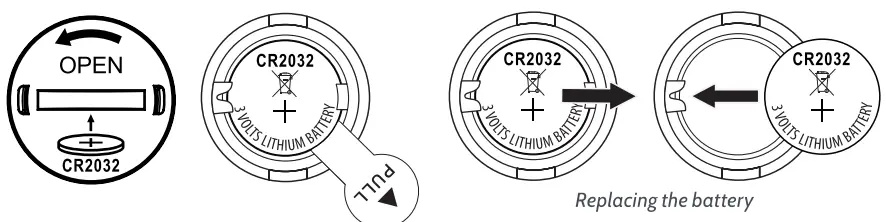

Battery Backup Installation
1 x CR-2032 battery is installed in the battery compartment (24) to provide a backup power supply. If the mains supply is disconnected or interrupted this backup power supply ensures that the time and alarm settings are saved but does not power any other functions (e.g. Radio or display). Remove the plastic tab as shown below to activate the battery.
Setting the Clock
Long press the Volume + / Clock Key (9) to start setting the time manually.
Set the Time Display Format – 24-hour clock (military time) or 12 hours (AM/PM)
Set the Time – Hour and Minutes
Standby Mode and Mode Select
Long Press the Standby/ Function Mode key (10) to enter Standby. Short press the Standby/ Function Mode key (10) to enter playback mode and select mode (FM or BT).
Alarm Setting
To set an alarm, you need to be in Standby Mode long-press the Standby/ Function Mode key (10) to enter standby mode. Long press the Alarm set key (8) to enter alarm set mode.
Set Alarm – Alarm 1 or 2
Set Alarm – Time
Set Alarm – Source
Select the source of the alarm, choose from FM Radio (tu) or Buzzer Beep (bP).
FM will use the last played station or one of the presets for the source for the alarm sound.
Alarm – Set volume
Alarm – Set On/Off
When in Standby mode, short press the Alarm key (8) to activate or deactivate a set alarm.
Alarm Snooze/Stop
Bluetooth Connection Mode
The Awake alarm clock has a Bluetooth mode, press the Mode key (6) to enter Bluetooth (bt) mode.
If no device is connected, the radio will automatically enter pairing mode, the screen will flash (BT) to show the radio is ready to pair.

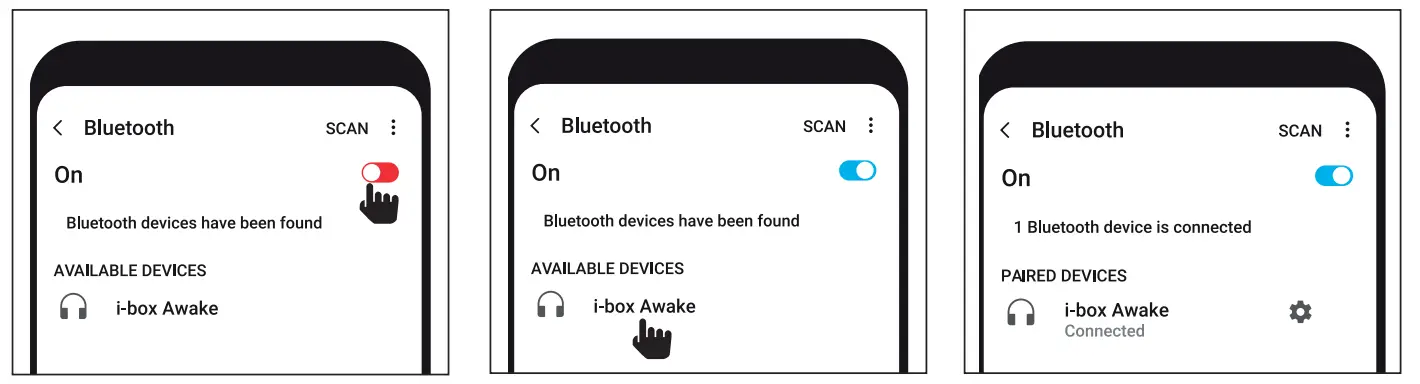

Pairing with Bluetooth Enabled Devices
To connect a compatible Bluetooth device, follow the steps below.
You don’t need to re-pair. Your radio will automatically reconnect with this device when it is in range and both are turned on.

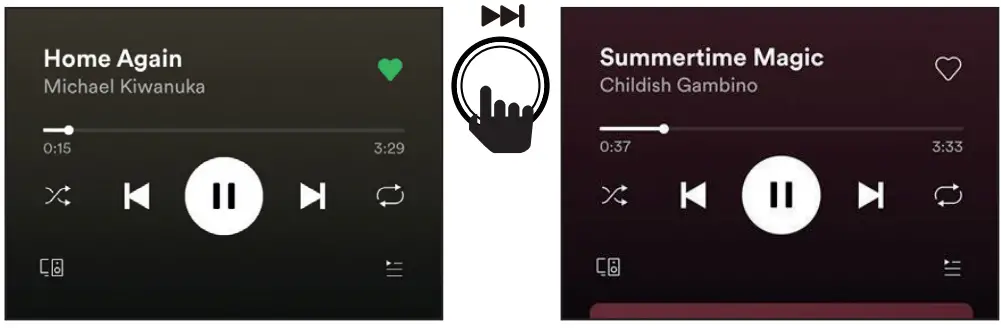

Bluetooth Playback
The radio or device can also be used to go to the previous or next track by using the
or
(4 or 6). You can also play/pause the audio using the radio by pressing the► II key (5).
Press and hold the Play/Pause/ BT key (5) to disconnect from the currently connected Bluetooth device.
FM Mode
Short press the Standy / Mode Select key (10) to enter FM radio mode.
FM Autoscan
Long press the Tune -/ Tune + key (4 or 6) to auto scan for the next available radio station.
FM Manual Tune
If you know the frequency of a radio station you can manually search for it by using the/ keys (4 or 6).
Storing a Station to a Preset Slot
Save your favorite stations to one of the 20 available DAB preset slots.
Recalling a Preset Station
Quickly access your favorite stations saved to a preset slot
Wireless Charging
If your phone has Qi wireless charging capability you can use the charging panel on the top of the Awake to charge it.
Please Note: Wireless charging is likely to interfere with radio reception therefore we advise you not to try listening to FM radio during charging.

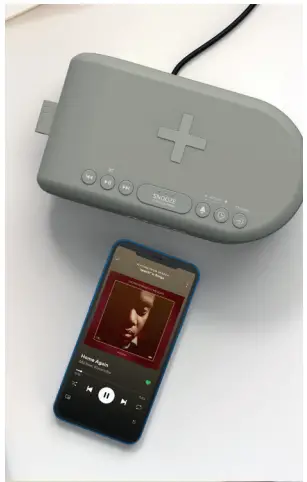

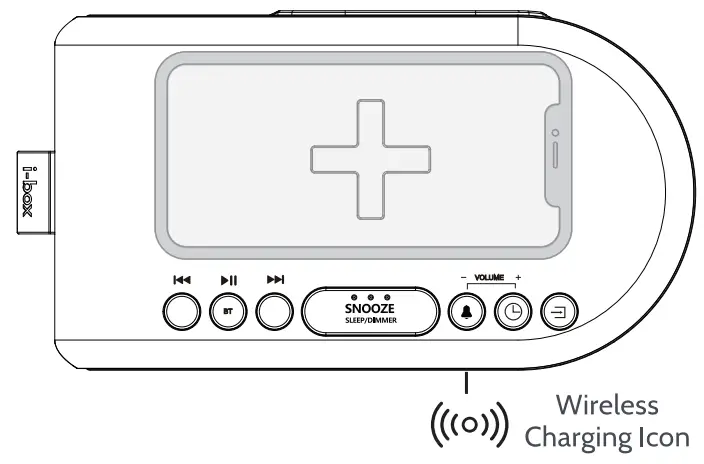

- Center your smartphone on the cross in the middle of the charging panel (1).
- The (o») wireless charging icon will be displayed in the bottom right corner of the LCD panel while your phone is charging and the battery charge status can be seen on your phone’s display.
Please Note: Your phone will not charge when the Awake is in backup mode (not being powered by the power adapter).
USB Power Output
You can also charge a phone or other device via the USB charging port (12) on the back panel (cable not included).

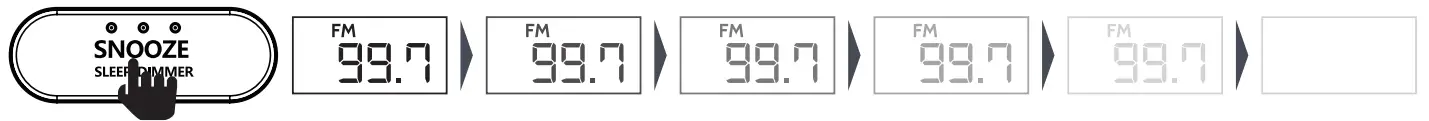

Screen Dimmer
Adjust the brightness of the display by repeatedly short pressing the Snooze/Sleep/Dimmer key (7).

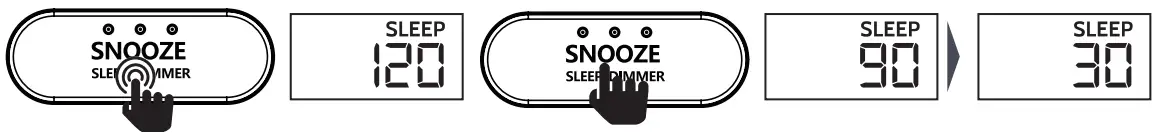

Sleep Timer
In FM and bt modes, a sleep timer can be set to automatically switch the Awake into standby mode after the selected number of minutes. Choose from 120, 90, 60, 30, 20, 10, 5 minutes and Off.
SLEEP will appear above the time on the display, indicating that the sleep timer is active.

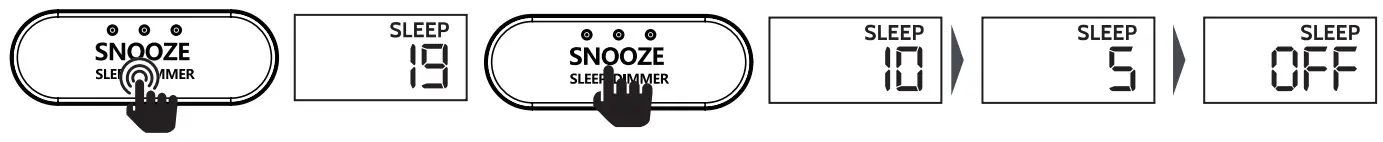

To deactivate the sleep timer, repeatedly press the snooze key (11) until OFF is displayed.
Specifications
| Power Input | 9V2.5A |
| Audio Output | 2x3WRMS |
| FM Frequency | 87.5-108MHz |
| USB charging port | 5V.1A |
| Bluetooth Version | 5 |
| Battery Backup | CR2032 |
Troubleshooting
| Problem | Solutions |
| Radio reception is poor | Check that the antenna is extended for maximum signal strength and improved reception. Adjust the antenna direction to improve the signal. Move the radio closer to a window. Check that the radio is not close to microwaves, fluorescent lights, or other equipment which may cause interference. |
| No sound | Check if the volume is turned down. Increase the volume. Check that the radio is switched on. Try tuning to another radio station. |
| Bi orCUn clock does not turn on | Check power supply connections. Check mains socket is switched on. |
| After a power cut, time and alarm settings ee my t | No backup battery fitted – Insert the CR2025 battery Backup battery incorrectly fitted – insert properly see diagram |
| Wireless charging not working | Normally your smartphone should be centered on the charging pad as shown. However, some phones may need to be placed slightly off center. As the built-in wireless receiver may not be centered inside the phone. This varies by brand/model. Remove your smartphone from its case if the thickness of the case exceeds 5mm or if it contains metal. The charging time varies depending on the charging capacity of the battery and its current residual capacity. The components may heat up during the charging process. They will slowly cool down again after the charging process. |
Disclaimer
Updates to Firmware and/or hardware components are made regularly. Therefore some of the instructions, specifications, and pictures in this documentation may differ slightly from your particular situation. All items described in this guide are for illustration purposes only and may not apply to your particular situation. No legal rights or entitlements may be obtained from the description made in this manual.
Declaration of conformity
Hereby, Philex Electronic Ltd. declares that the radio equipment: model i-box Awake, for wireless reception in domestic premises is in compliance with the Radio Equipment Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.philex.com/doc
Technical support
For further help, advice, information or live chat visit www.iboxstyle.com Technical support
For further help, advice, information or live chat visit www.iboxstyle.com
Waste electrical and electronic products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority for
recycling advice.
