Schlage Fb50n B60 Single Cylinder Deadbolt And F51 Keyed Entry Flair Lever Keyed Alike Instruction Manual

SCHLAGE FB50N B60 Single Cylinder Deadbolt and F51 Keyed Entry Flair Lever Keyed Alike

Keyed Entrance (F51) shown

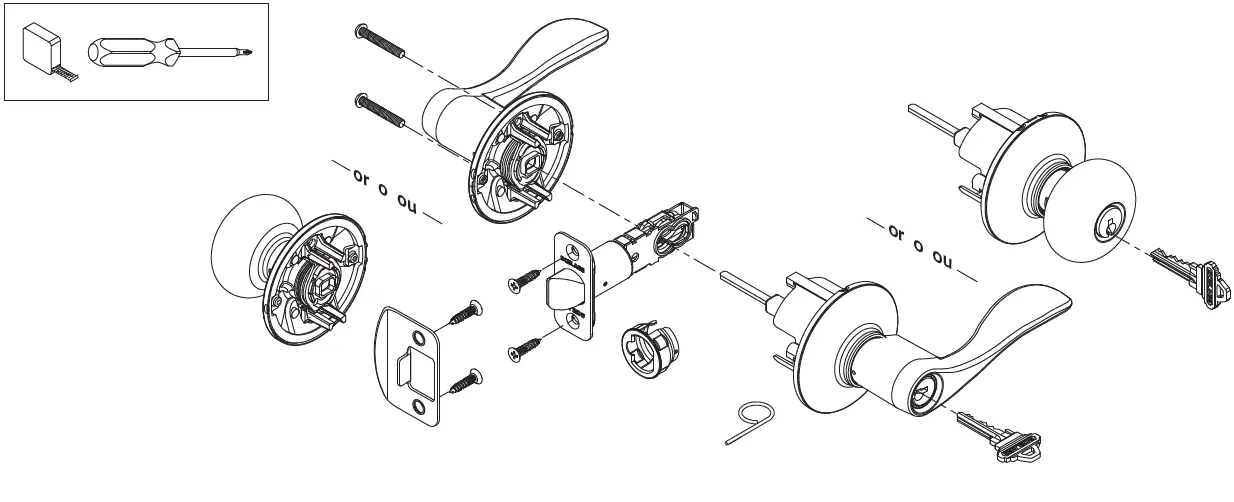

OVERVIEW

Installation Instructions

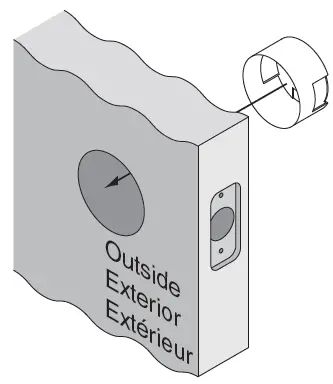

Check door preparation.

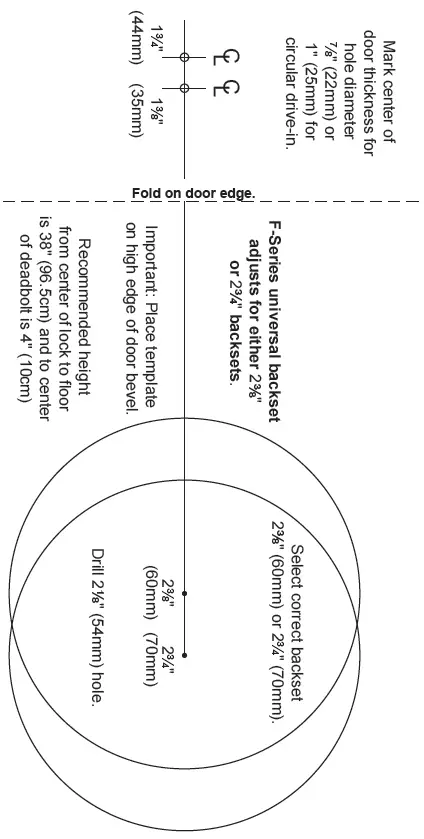

TEMPLATE

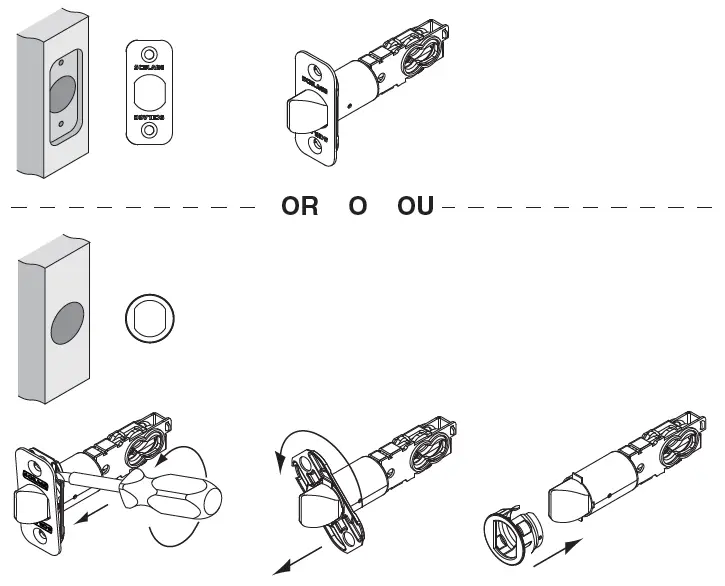

Choose a faceplate to match door.

For UL functions only (CF, CS)

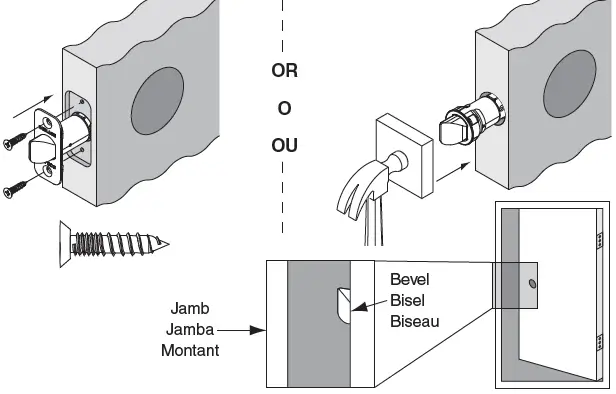

Install latch

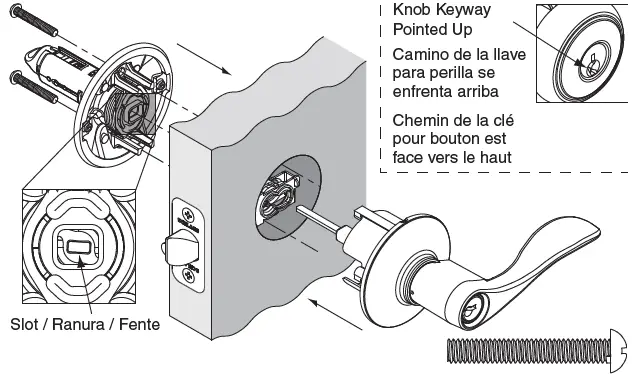

Install outside lever or knob

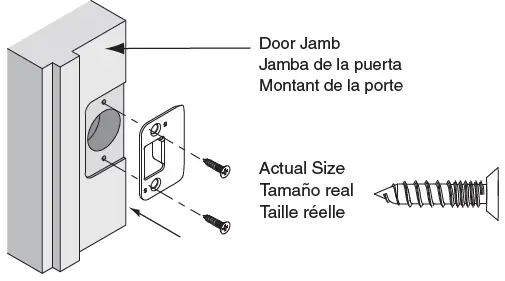

Install strike

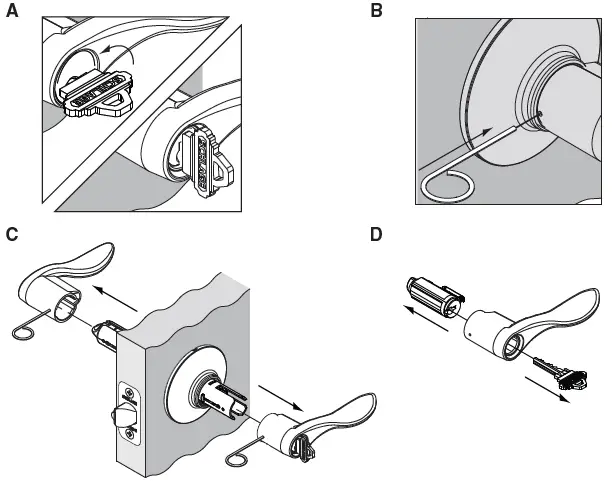

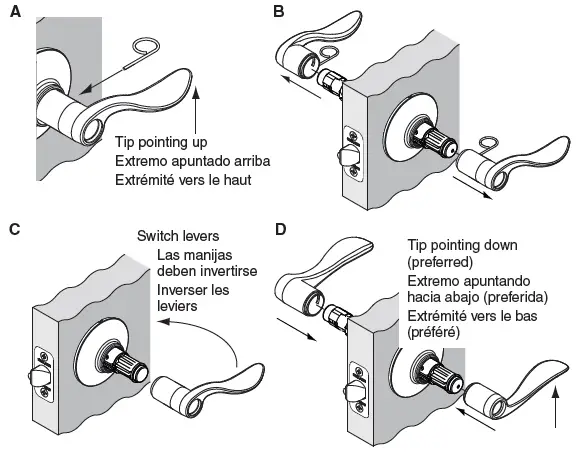

If necessary, switch levers.

Non-Keyed Functions

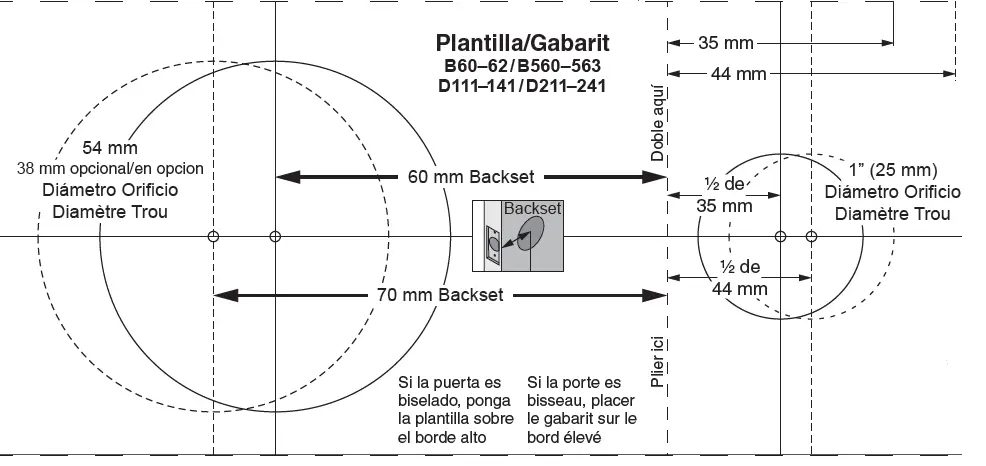

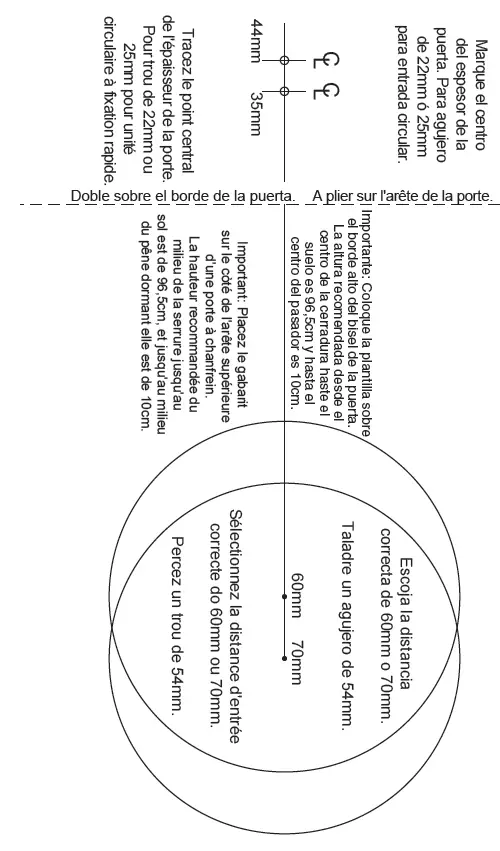

PLANTILLA gabarit

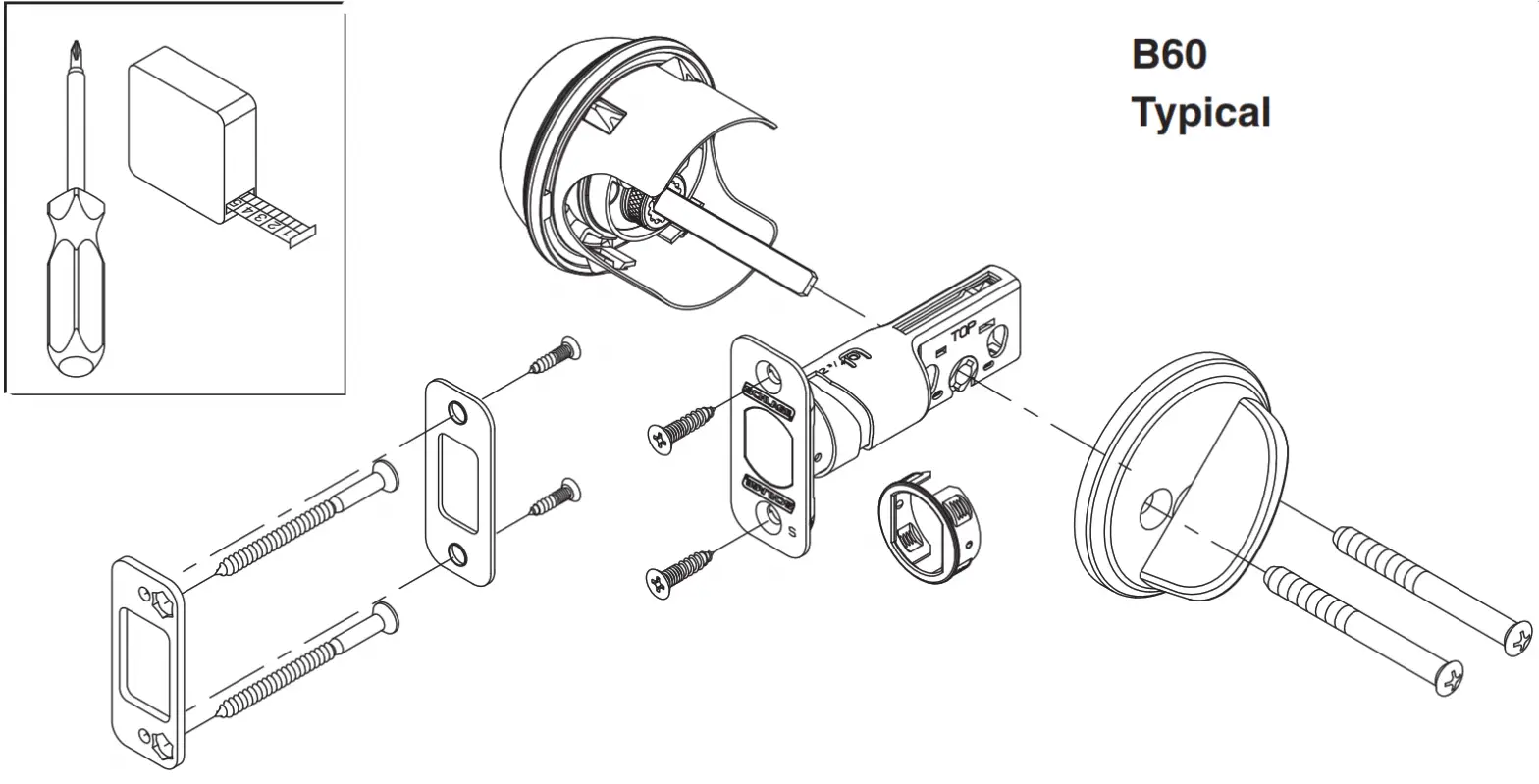

B-Series Deadbolts

1. If needed, check door and jamb preparation.
   Use the template below for this step.

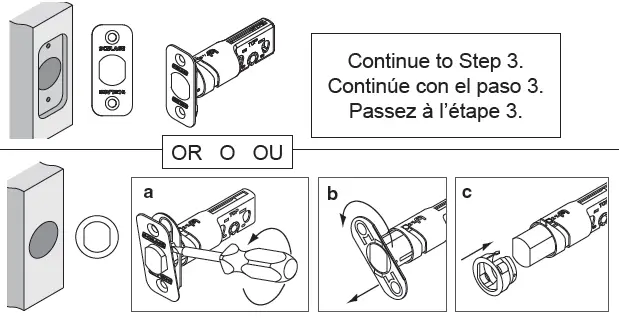

2. Choose the faceplate.

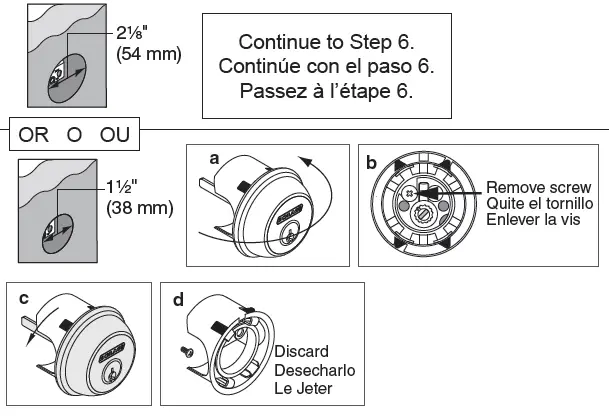

3. If needed, adjust the deadbolt.

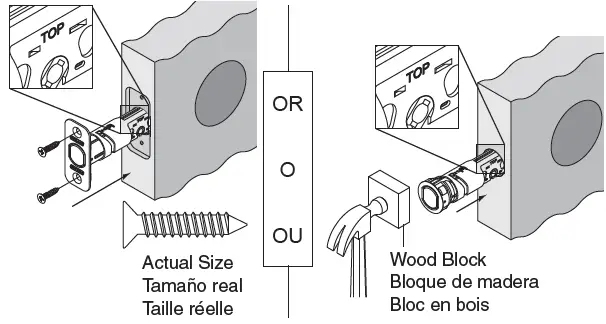

4. Install the deadbolt.
5.

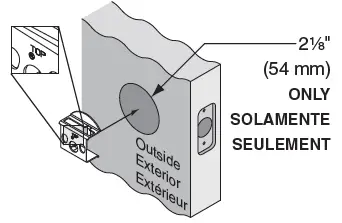

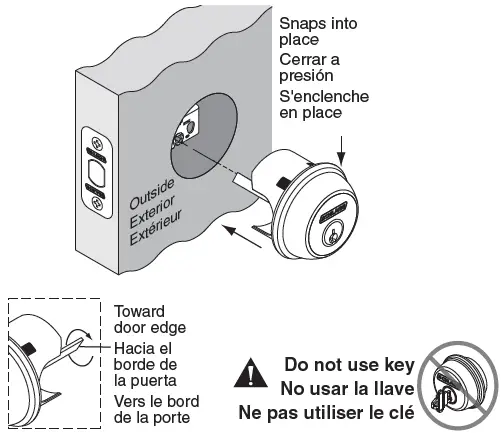

6. Install the outside housing.
   Right hand door shown, left hand door opposite.

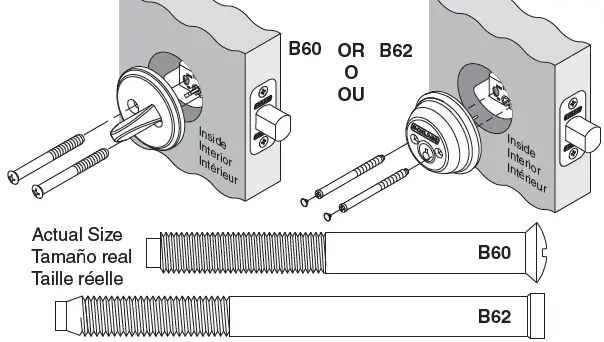

7. Install the inside housing.

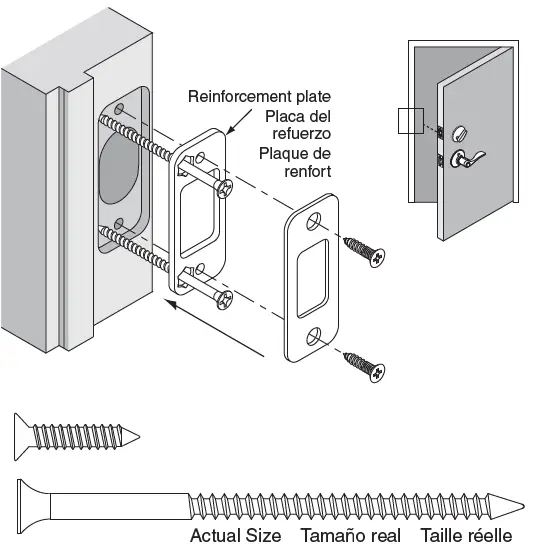

8. Install the strike.

IMPORTANT
For UL Functions Only (B60F, B60CS)

For the product warranty, go to:
https://instructions.allegion.com/instr/114/0

Customer Service
Servicio al cliente
Service à la clientèle
U.S.A.: 888-805-9837
Canada: 800-900-4734
Mexico: 018005067866
www.schlage.com

© Allegion 2019
Printed in U.S.A.
P515-788 Rev. 05/19-h
