Komodo 20l Portable Toilet Kdpor20tltb User Guide

20L Portable Toilet KDPOR20TLTB
Quick Start Guide

Safety & Warnings

1. Never add the toilet cleaning fluid to the fresh water tank.
2. Make sure you have enough water in the freshwater tank prior to use.
3. Do not lean on the back cover of the toilet whilst upright.
4. Clean the waste holding tank regularly.
5.  Avoid long-term exposure to direct sunlight.
6. Avoid high temperatures. (over 60°C, 140°F)
7. Children should be supervised when using this toilet.

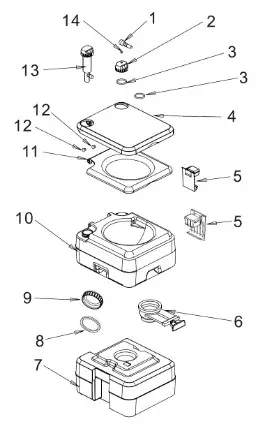

Overview

Part List

Operation

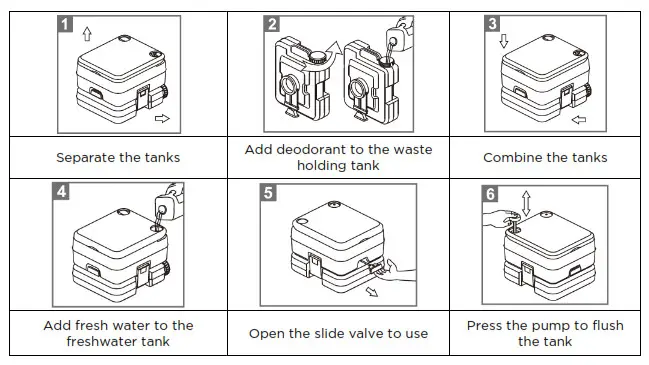

Preparing
Before use, make sure that the pressure in the waste holding tank is equalized by opening and closing the slide valve with the seat cover closed.

1.  Separate tanks. (fig. 1)
2.  Remove pour-out spout cap while it is pointing upward and then add appropriate deodorant (fig.2). Replace cap and tighten securely.
3. Combine the tanks and close the slide valve. (fig.3)
4. Remove the cap of the fresh water tank and fill it up with the appropriate amount of fresh water. Screw the cap again on the freshwater tank. (fig.4)

Never add deodorant to the freshwater tank.

Flushing

1. Pull out the slide valve to allow the waste to pass into the waste holding tank. (fig.5)
2.  Press the pump to flush the portable toilet. (fig.6)
3. Close the slide valve.

Emptying the Waste Holding Tank

1. Do not overfill the tank. Open valve to check visually.
2. Be sure valve handle is closed. Separate tanks.
3. Carry the waste holding tank to a permanent toilet to empty.
4. Remove pour-out spout cap while it is pointing upward.
5.  If there is a water supply, flush out the waste holding tank.

Never empty the waste holding tank directly into the environment.

Storage

1. Remove all water from the tanks, pump assembly before storing.
2. Store the portable toilet in a dry, clean area.

Specifications

In The Box

User manual is subject to change without notice. For the latest version of your user manual, please visit https://www.kogan.com/usermanuals/
