SCANSTRUT SPR-1u-AM Uncut Instrument Arm Mount Helm Pod

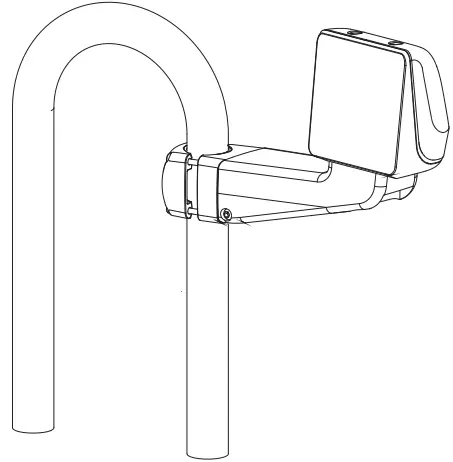

SCANSTRUT SPR-1u-AM Uncut Instrument Arm Mount Helm Pod-fig1

IMPORTANT

  • Pods are only compatible with marine electronics devices as stated in the latest Scanstrut Product guide – subject to change without
    prior notice.
  • Use with unapproved products, or overloading, invalidates any warranty.
  • No liability is accepted for damage caused by incorrect installation.
  • The installation and assembly must be regularly inspected for evidence of damage or loose parts.
  • Product has been designed specically for the mounting of approved marine electronics devices and used under normal boating
    conditions.
  • For installations that dier from those stated here, please consult Scanstrut head oce.

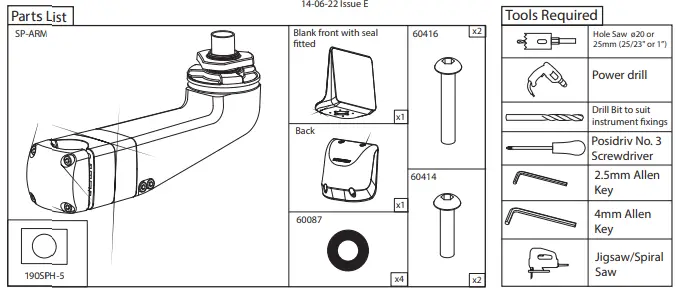

Parts List & Tools Required

SCANSTRUT SPR-1u-AM Uncut Instrument Arm Mount Helm Pod-fig2

INSTALLATION

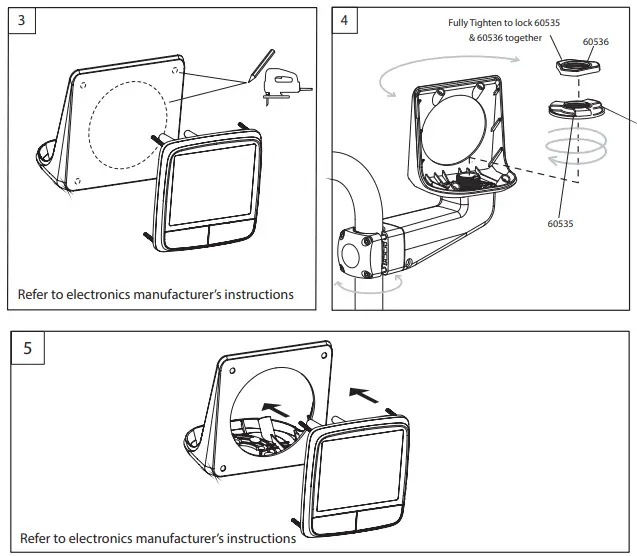

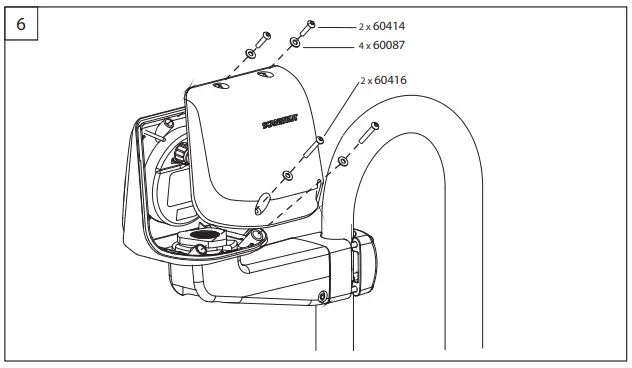

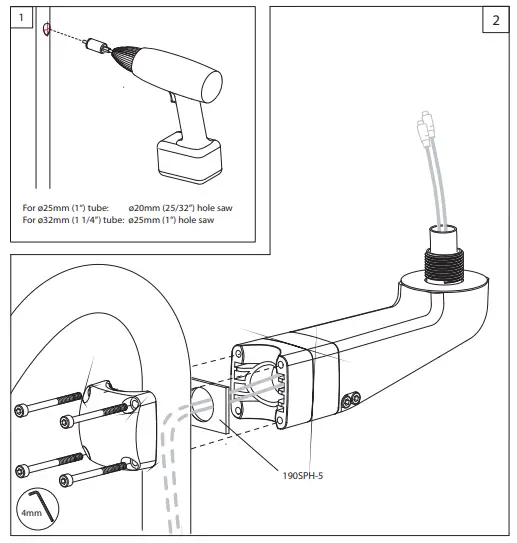

SCANSTRUT SPR-1u-AM Uncut Instrument Arm Mount Helm Pod-fig3SCANSTRUT SPR-1u-AM Uncut Instrument Arm Mount Helm Pod-fig4SCANSTRUT SPR-1u-AM Uncut Instrument Arm Mount Helm Pod-fig5
