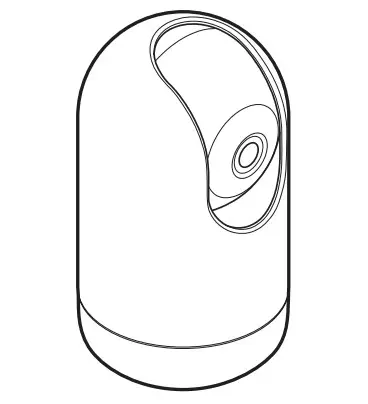

CLP723419 Wiser Indoor IP Camera
User Manual
Wiser IP Camera Indoor
Prerequisites
Download the Wiser by SE app to your smartphone/tablet.
About this product
With the Wiser IP Camera Indoor (hereinafter referred to as IP Camera) you can monitor sensitive areas of your home. The IP Camera can be triggered by other Wiser devices.
https://play.google.com/store/apps/details?id=com.schneiderelectric.WiserBySE
https://itunes.apple.com/us/app/wiser-by-se/id1026806919?ls=1&mt=8

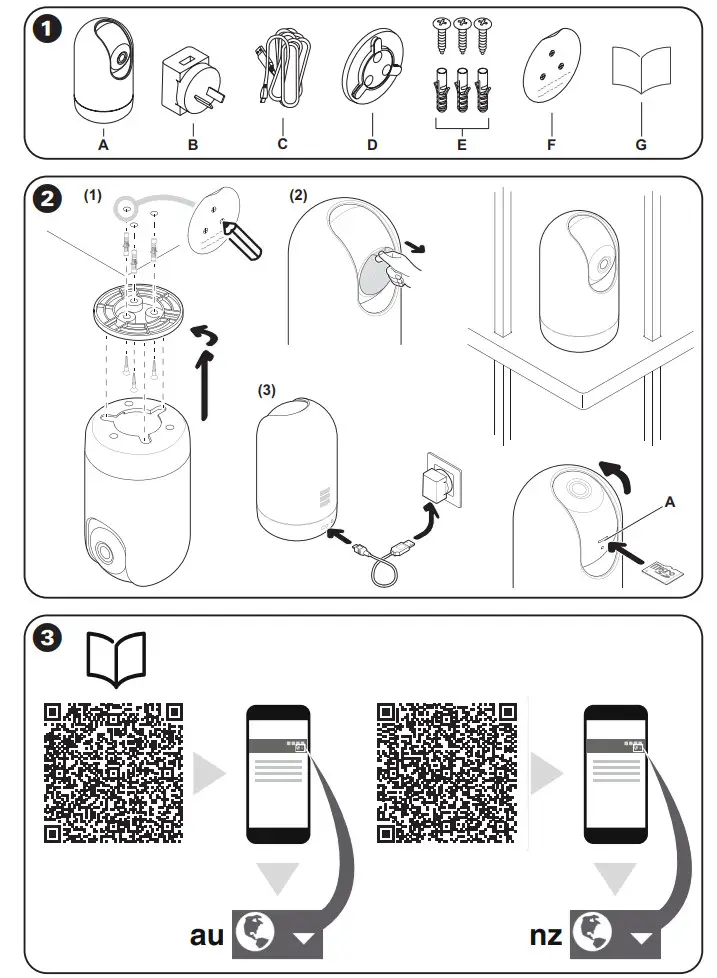

Package content
A IP Camera
B Power supply
C Power supply cord
D Mounting base
E 3 screws with wall plugs
F Marking template
G Installation instructions
Installing
You can install the camera in all directions, e.g. at the ceiling or just put it on a table.
Users are solely responsible for adhering to applicable laws (e.g. privacy or any other relevant laws around surveillance). Users must ensure that guarantees are taken to avoid any misuse of equipment for surveillance or entirely different and unexpected purposes than intended.
A Micro SD card slot
Reading the full device guide online
Scan the QR code and choose your language for complete information about the device, including operation, configuration, and using the product with a Wiser system.
Technical data
| Nominal voltage: | AC 100-240 V, 50/60 Hz |
| Power supply: | DC 5 V, 2 A |
| Power consumption: | max. 10 W |
| Ambient temperature: | -10 °C to 45 °C |
| Ambient humidity: | <95% RH |
| Storage temperature: | -20 °C to 60 °C |
| Operating Frequency: | 2405 – 2480 MHz |
| Max. radio-frequency power transmitted: | < 100 mW |
| Wi-Fi® standard: | IEEE 802.11 b/g/n 2.4 GHz |
| Wi-Fi® security: | WPA-PSK / WPA2-PSK |
| Channel bandwidth: | Support 20/40 MHz |
| Data security: | AES128 |
| Resolution: | 1080p |
| Wide angle lens: | 80° horizontally 40° vertically |
| IR range: | 7 m |
| Pan angle: | 0° to 340° |
| Tilt angle: | -75° to 75° |
| Local storage support: | Micro SD Card, max. 128 GB |
Dispose of the device separately from household waste at an official collection point. Professional recycling protects people and the environment against potential negative effects.
Trademarks
- Wiser™ is a trademark and the property of Schneider Electric SE, its subsidiaries, and affiliated companies.
- Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
- Apple® and App Store® are brand names or registered trademarks of Apple Inc.
- Google Play™ Store and Android™ are brand names or registered trademarks of Google Inc.
Other brands and registered trademarks are properties of their relevant owners.
