Buffalo Cp921 Db266 Planetary Mixer Instruction Manual

Planetary Mixer
Instruction manual

Planetaire Mixer
Handleiding

Model

Safety Tips

THE PLANETARY MIXER IS A DANGEROUS APPLIANCE AND MUST ONLY BE USED BY TRAINED PERSONNEL IN ACCORDANCE WITH THESE INSTRUCTIONS.

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:
  – Heal th and Safety at Work Legislation
  – BS EN Codes of Practice
  – Fir e Precautions
  – IEE Wiring Regulations
  – B uilding Regulations
• Always stand BEHIND the safety guard when operating the appliance.
• DO NOT place hands near the rotating attachments when in use. This can result in severe injury.
• DO NOT remove food from the appliance until the mixing attachments have come to a complete stop.
•  DO NOT immerse the appliance in water.
• DO NOT attempt to mix items that this machine is not designed for. This can damage the mixing attachments.
• DO NOT use with a damaged mixing attachment.
• DO NOT bypass the safety interlocks.
• Always switch off and disconnect the power supply to the appliance when not in use.
• NEVER leave the appliance unattended when in use.
• The appliance is heavy. Take care when moving.
• This appliance must only be used in accordance with these instructions and by persons competent to do so.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a BUFFALO agent or a recommended qualified technician in order to avoid a hazard.
• Never use accessories that are not recommended by the manufacturer. They could pose a safety risk to the user and might damage the appliance. Only use original parts and accessories.
• BUFFALO recommends that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to: Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity and Functional Testing.
• BUFFALO recommends that this product is connected to a circuit protected by an appropriate RCD (Residual Current Device).

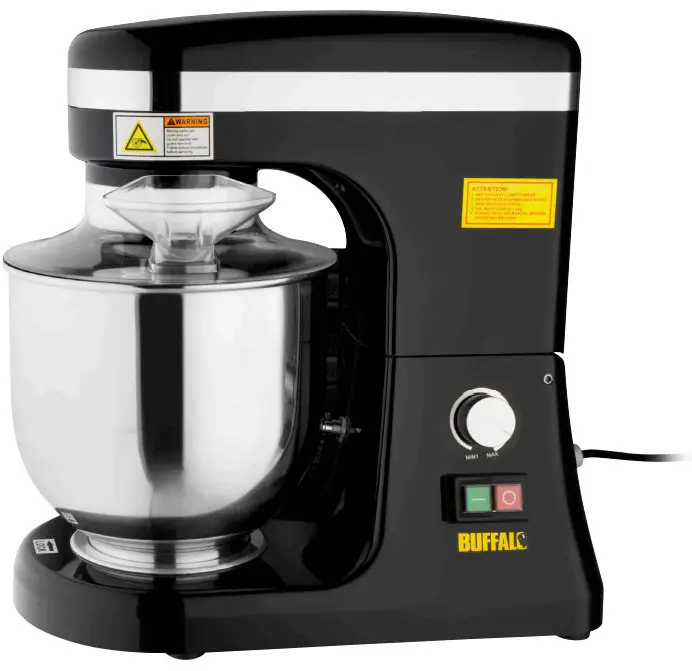

Product Description

CP921 – Tabletop Planetary Mixer – Black – 7Ltr
DB266 – Tabletop Planetary Mixer – White – 7Ltr

Introduction

The BUFFALO Planetary Mixer has been designed to mix a range of foodstuffs, varying from cream to dough.
Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• BUFFALO Planetary Mixer
• Mixing Bowl
• Spiral Dough Hook
• Beater
•  Whisk
•  Instruction Manual
• Funnel

Installation

• Remove the appliance from all packaging.
• While positioning on a worktop, ensure the appliance is secured in position.
• Note: Ensure the feet are level to reduce vibration during operation.

Assembly

WARNING:

• Ensure the appliance is switched off and disconnected from the power supply before assembly/disassembly.
• BUFFALO accepts no responsibility for any injury caused by the incorrect assembly of this appliance.
• The bowl must be attached into position prior to starting the Planetary Mixer.

1. Lift the handle clockwise ( position) until the mixer head rises and rests stably.
2. Select the desired mixer attachment and fix it onto the mixer head. Turn right to fix it into place.
3. Attach the bowl to the bowl seat. Turn clockwise to lock it into place. Note: Reverse the procedure to remove the bowl.
4. Lift and hold the handle ( position) while lowering the mixer head fully. Then lower the handle counter-clockwise ( position) and release to lock the mixer head in place.

Note: Ensure the mixer head is locked in place or the mixer will not work.

Changing the Mixer Attachment

1. Turn Off the appliance.
2. Raise the mixer head as instructed previously.
3. Push the mixer attachment up and to the left to release.
4.  Insert the desired attachment. Push up and to the right to lock it into place.
5. Lower the mixer head in place.

BUFFALO recommend the following uses for each attachment:

Mixer attachment		Intended use	Suitable speed
	Spiral Dough hook	Heavy mixes dough, pie pastry, etc.	Slow
	Beater	Firm mixes light pastry, cake/biscuit mix, icings, fillings, and mashed vegetables	Medium
	Whisk	Light mixes whipped cream, mayonnaise, egg whites, pancakes and souffles	Fast

Operation

• Ensure that these instructions have been read thoroughly and the operation of the appliance is fully understood before use.

• All personnel must be fully trained on the operation and safety precautions of the Planetary Mixer.

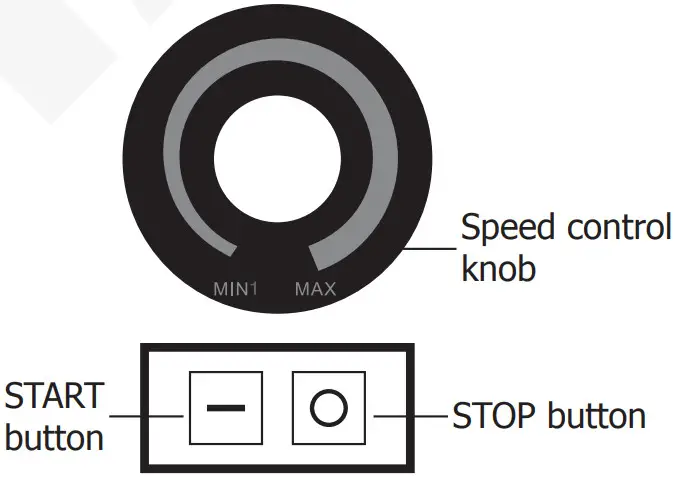

Layout of Controls

• START button: Press to start the mixer.
• STOP button: Press to stop the mixer.
• Speed control knob: Use to set the speed of the mixer.

Mixing

WARNING: Always ensure the appliance is turned off before placing hands in the mixing bowl.

1. Raise the mixer head.
2. Fill the bowl.
3. Lower the mixer head and lock it in place.
4. Select the desired speed.

   • BUFFALO recommends that you start with the slowest speed and increase the speed gradually as necessary.
   • Ensure the mixer head and bowl are fully locked in place or the mixer will not work.
5. Press the START button to begin mixing.

   Note: If the appliance is straining to mix then turn the appliance Off and remove some of the contents from the bowl before restarting.
6. After use, slowly turn the speed control knob to MIN. Then press the STOP button and disconnect the mixer from the power supply.

Mixing Capacity

Overload protection
The appliance is featured with overload protection.
In case of overload, the appliance will beep then stop working automatically.

1. Turn Off the mixer.
2. Reduce the load in the mixing bowl.
3. Press the START button to re-start.

Cleaning, Care & Maintenance

• Always turn off the mixer and disconnect from the power supply before cleaning.
• Use warm soapy water to clean the bowl and mixing attachments. Do not use abrasive cleaning chemicals as these can leave harmful residues.
• Clean the exterior of the appliance with a damp cloth.
•  Dry all parts thoroughly after cleaning.
• Do not use jet/pressure washers to clean the appliance.
• Clean the appliance regularly.
• NO WATER INGRESS!

Troubleshooting

If your BUFFALO appliance develops a fault, please check the following table before making a call to the Helpline or your BUFFALO dealer.

Technical Specifications

Electrical Wiring

This appliance is supplied with a 3 pin BS1363 plug and lead.
The plug is to be connected to a suitable mains socket.
This appliance is wired as follows:

• Live wire (colored brown) to the terminal marked L
• Neutral wire (colored blue) to terminal marked N
• Earth wire (colored green/yellow) to terminal marked E
  This appliance must be earthed.
  If in doubt consult a qualified electrician.
  Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.
BUFFALO products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO.
Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

DECLARATION OF CONFORMITY

• Conformiteitsverklaring

I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s) and Standard(s).

Date	5 January 2021
Signature
Full Name	Ashley Hooper	Eoghan Donnellan
Position	Technical & Quality Manager	Commercial Manager/ Importer
Producer Address	Fourth Way, Avonmouth, Bristol,  BS11 8TB  United Kingdom	42 North Point Business Park  New Mallow Road  Cork Ireland

http://www.buffalo-appliances.com/

CP921_DB266_ML_A5_v5_20210528

2021/5/28 14:10
