Ets-lindgren 2302 Type Positioners Automated 3-dimensional Pattern Measurements User Manual

 2302 Positioners
User Manual
User Manual

PN: 1723280
July, 2021
Rev A
ets-lindgren.com

ETS-Lindgren Inc. reserves the right to make changes to any products herein to improve functioning or design. Although the information in this document has been carefully reviewed and is believed to be reliable, ETS-Lindgren does not assume any liability arising out of the application or use of any product or circuit described herein; nor does it convey any license under its patent rights nor the rights of others. All trademarks are the property of their respective owners.
© Copyright 2021 written permission from ETS-Lindgren Inc. All Rights Reserved. No part of this document may be copied by any means without written permission from ETS-Lindgren Inc.
Trademarks used in this document: ETS-Lindgren logo is a registered trademark of ETS-Lindgren, Inc.
Revision Record
MANUAL, 2302 | Part # 1723280 Rev A

NOTES, CAUTIONS, AND WARNINGS

	Note: Denotes helpful information intended to provide tips for better use of the product.
	CAUTION: Denotes a hazard. Failure to follow instructions could result in minor personal injury and/or property damage. The included text gives proper procedures.
	WARNING: Denotes a hazard. Failure to follow instructions could result in SEVERE personal injury and/or property damage. The included text gives proper procedures.

*All notes, cautions, and warnings will be located on the left column area of the page.
See the ETS-Lindgren Product Information Bulletin Product Information Bulletin for safety, regulatory, and other product marking information

SAFETY INFORMATION

	Refer to Manual: When product is marked with this symbol, see the instruction manual for additional information. Manuals are available for download at ETS-Lindgren.com or contact ETS-Lindgren Customer Service.
	High Voltage: Indicates the presence of hazardous voltage. The unsafe practice could result in severe personal injury or death.
	Protective Earth Ground (Safety Ground): Indicates protective earth terminal. You should provide uninterruptible safety earth ground from the main power source to the product input wiring terminals, power cord, or supplied power cord set. Before power is applied to this instrument, ground it properly through the protective conductor of the AC power cable to a power source provided with the protective earth contact. Any interruption of the protective (grounding) conductor, inside or outside the instrument, or disconnection of the protective earth terminal could result in personal injury.
	Warning: HEAVY OBJECT. Unassisted lifting can cause injury. Mechanical assistance is required.
	Laser Warning: Denotes a laser (class 2) is part of the operating system of the device.
	Before servicing: contact ETS-Lindgren – servicing (or modifying) the unit by yourself may void your warranty. If you attempt to service the unit by yourself, disconnect all electrical power before starting. There are voltages at many points in the instrument which could, if contacted, cause personal injury. Only trained service personnel should perform adjustments and/or service procedures upon this instrument. Capacitors inside this instrument may still be CHARGED even when the instrument is disconnected from its power source.
	Only qualified personnel should operate (or service) this equipment.
	NEVER ROCK OR TILT: Tipping or rocking may cause serious injury or death.

Note:
See the ETS-Lindgren Product Information Bulletin for safety, regulatory, and other product marking information.

Note:
ETS-Lindgren may substitute a similar or new part number with the same functionality for another part number. Contact ETSLindgren for questions about part numbers and ordering parts.
Only qualified personnel should operate (or service) this equipment. If you have any questions concerning maintenance, contact ETS-Lindgren Technical Support. Warranty may be voided if housing is opened.
Before performing any maintenance, read the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment.

INTRODUCTION

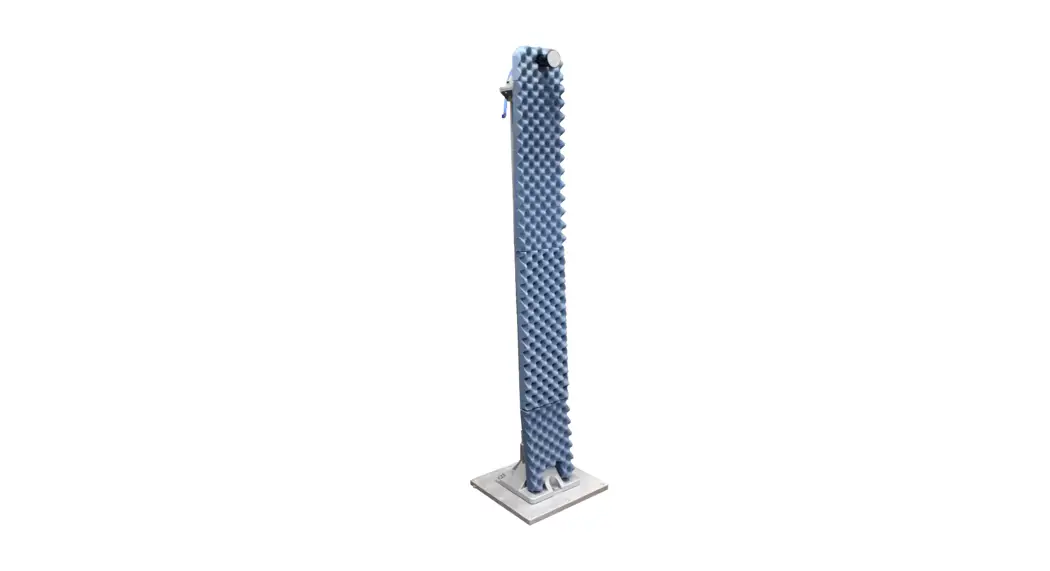

The ETS-Lindgren’s 2302 Type Positioners (Columns) are designed to perform automated 3-dimensional pattern measurements. The positioner is automated 3-dimensional pattern measurements. The positioner is a vertical support column that will accommodate its respective antenna. a vertical support column that will accommodate its respective antenna. There are three types of 2302 positioners available. Each have varying There are three types of 2302 positioners available. Each has varying heights, capabilities, absorber, and antenna types and are equipped with heights, capabilities, absorber, and antenna types and are equipped with XY alignment capabilities that allow for fine adjustment of antennas. XY alignment capabilities that allow for fine adjustment of antennas.

Standard Configuration

• Model 2302 Assembly
• 1723531 User Manual available in PDF

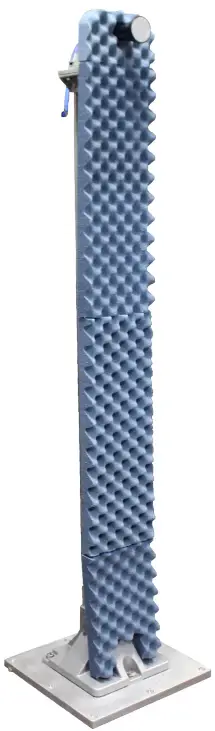

  2302 Positioner Assembly
•  Vertical column
• Absorber to cover the positioner
• Laser for aligning system (002, 003)
• Antenna/Horn (sold separately)

Note: See the ETS-Lindgren Product Information Bulletin for safety, regulatory, and other product marking information.

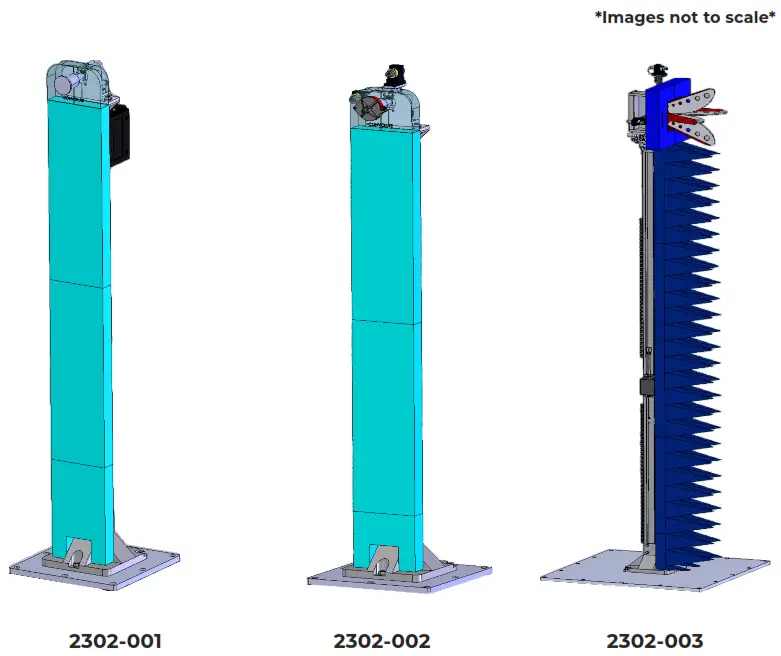

2302-001

• 66.0″ Centerline Column
•  1722996 Horn
  2302-002
• 60.0″ Centerline Column
•  1722996 Horn
  2302-003
• 114.0″ Centerline Column
• 3164-08 Antenna

ETS-Lindgren Product Information Bulletin

See the ETS-Lindgren Product Information Bulletin included with your shipment for the following:

• Safety, regulatory, and other product marking information
•  Steps to receiving your shipment
•  Steps to return a component for service
•  ETS-Lindgren calibration service
•  ETS-Lindgren contact information

Before assembling, installing, or connecting any components, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment.
High Voltage: Unsafe practice could result in severe personal injury or death.

Note: Contact ETS-Lindgren Technical Support for assistance with replacement parts.

Disconnect the power before proceeding with recommended maintenance. Do not perform any maintenance while the positioner is operating.

MAINTENANCE

Before installing any components, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment. If you have any questions
concerning maintenance, contact ETS-Lindgren Customer Service.
Maintenance Recommendations

• Periodically review absorber and cables for wear
• Place positioner away from busy traffic areas and walkways
•  Level out antenna when relocating

Replacement Parts
Following are the part numbers for ordering replacement parts for the 2302 positioner:

Service Procedures
For the steps to return a system or system component to ETS-Lindgren for service, see the Product Information Bulletin included with your shipment.
Safety Precautions
Keep eyes clear from lasers. Avoid leaning or hanging from column to prevent damage to device and/or person.

SPECIFICATIONS

Electrical Requirements for 2302s Single Phase, 200-240VAC and 10A max.
2302-001
2302-002
Physical Specifications

Before assembling, installing, or connecting any components, follow the safety information in the ETS-Lindgren Product Information Bulletin included with your shipment.
Other than during installation, do not touch the absorber. Skin oils and other debris can damage and discolor the foam.

HEAVY OBJECT:
Unassisted lifting can cause injury. Mechanical assistance is required.
NEVER ROCK OR TILT: Tipping or rocking may cause serious injury or death.

INSTALLATION

Pre-Installation Tasks
Pre-planning is essential for a successful installation. Discuss requirements with your sales representative and request dimensional drawings prior to the construction of your site.
Positioner Installation
Proper installation of the 2302 Positioner unit directly affects the performance of the positioning system as well as the accuracy of the test results.

2302 Positioner Assembly

•  Vertical column
• Absorber to cover the positioner
•  Laser for aligning system (002, 003)
• Antenna/Horn (sold separately)

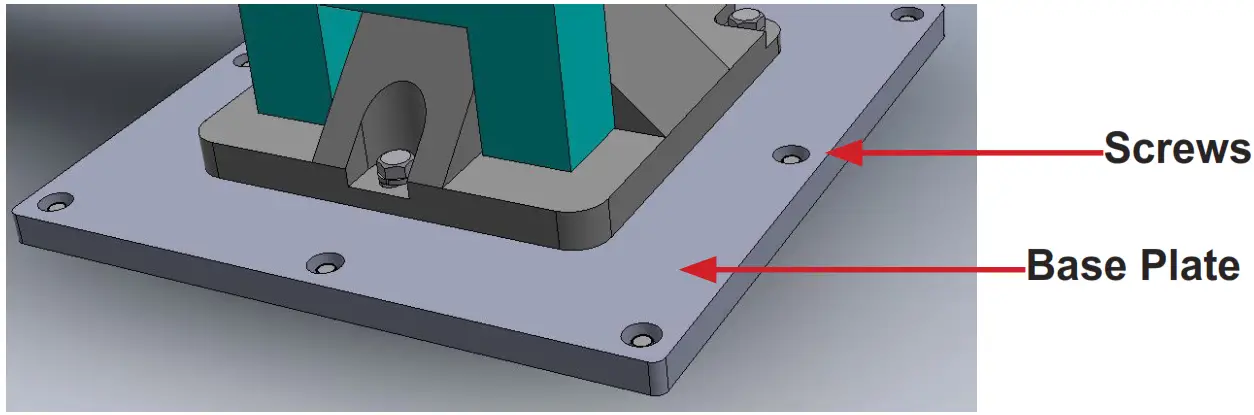

Securing the Base Plate Key Reminders:

• Be sure to secure the column properly to prevent any tipping or movement.
• Ensure that drilling only occurs on aluminum panel flooring.
• Do not use any screws other than 25mm length screws.
• Note a power drill is needed for securing screws.

1. Uncrate all parts. Check all parts for any shipping damage.
2. Mark off the desired area in the chamber to ensure a clear area is available to assemble the positioner unit safely.
3. Align base plate in the chamber according to markings.
4. Gather all included self-drilling screws.
5. With a power drill, use screws to mount the plate to the chamber floor.
6. Vacuum any debris left from drilling.

Denotes a laser (class 2) is part of the operating system of the device.
Only qualified personnel should operate (or service) this equipment. If you have any questions concerning maintenance, contact ETS-Lindgren Technical Support. Warranty may be voided if housing is opened.

Leveling the Fixture

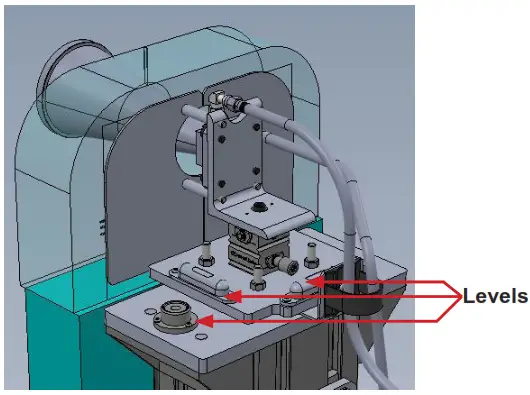

1.  Once secured to the chamber floor, use the three levels to level the fixture.

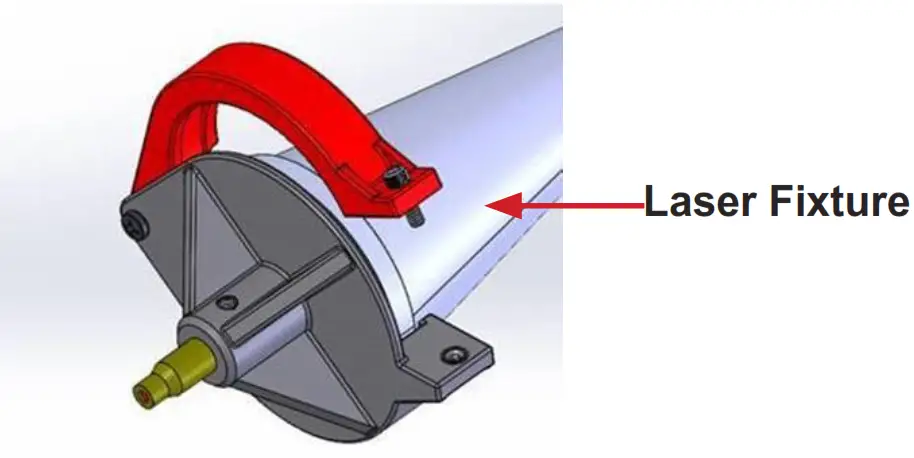

2. Place the laser fixture (001 exempts) on the end of the antenna/ horn and secure the fixture by using the thumbscrew.

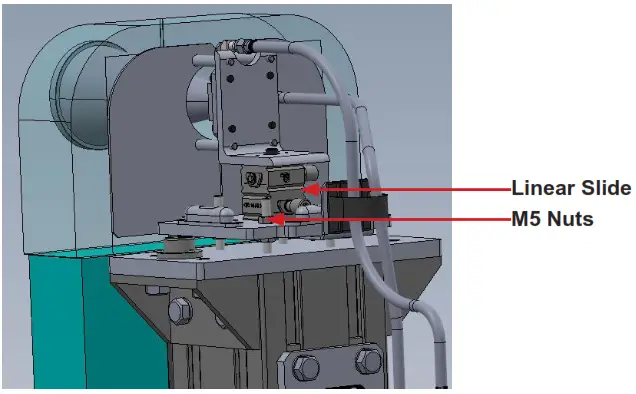

3. Adjust vertically by using the M5 nuts, and adjust horizontally by using the linear slide.

OPERATION

Pre-Operational Tasks

•  Verify that the power line is properly connected to the column assembly
• Verify fixture(s) are secured to the column assembly

Laser Fixture (002 & 003)

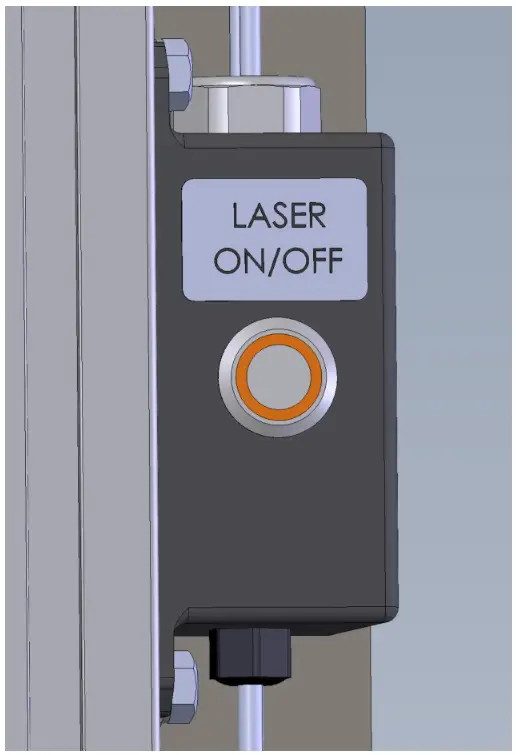

To activate laser on the column, first, locate the on/off button and press to switch between desired positions.

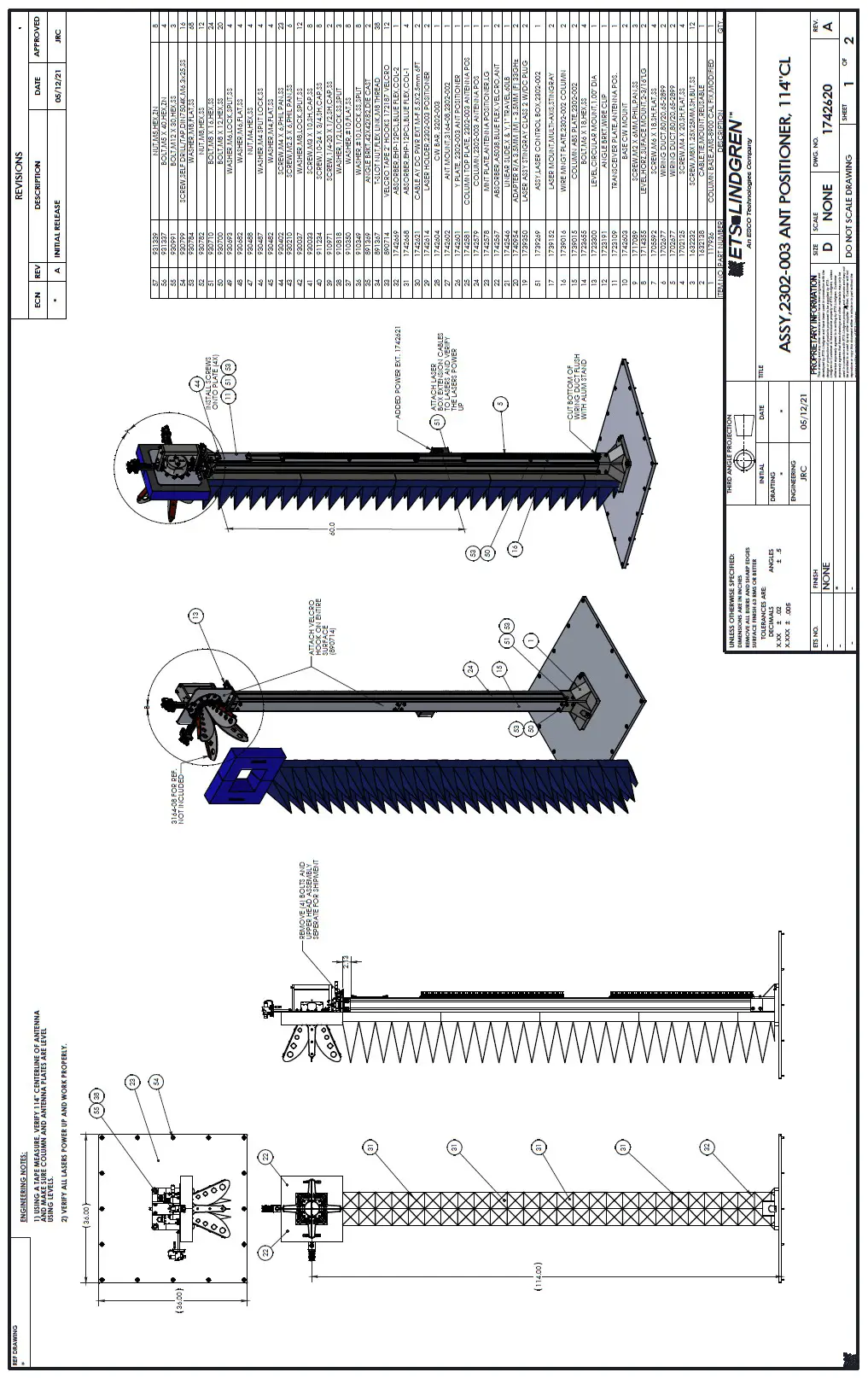

DRAWINGS

2302-001
