SIEMENS 4 Pole WL Low Voltage Switchgear
Product Information
The 4 Pole WL Low Voltage Switchgear is a type of switchgear that provides neutral isolation capability which is advantageous for low voltage switchgear applications where multiple separately derived power sources are individually grounded. This switchgear is equipped with a 4 pole breaker that eliminates the problem of multiple neutral grounding points and multiple paths for ground fault and normal neutral current when only one main breaker is closed at a time. It is rated for UL 1066 Listed (ANSI C37) Listed Breakers and has frame ratings for Frame Size 2 and Frame Size 3. The WL Power Circuit Breaker is also part of this switchgear and has various ratings and applicable rating plug ranges depending on the frame size.
Product Usage Instructions
To use the 4 Pole WL Low Voltage Switchgear, follow these instructions:
- Ensure that the switchgear is installed and wired correctly according to the manufacturer’s instructions.
- For a typical 3-phase 4-wire Main-Main or Main-TieMain low voltage switchgear application, solidly connect the neutral throughout the equipment and ground (bond) the neutral at each incoming source.
- For a low voltage switchgear application where multiple separately derived power sources are individually grounded, use the 4 pole breaker in conjunction with traditional residual or zero sequence ground fault to prevent nuisance ground fault tripping and/or failure to trip on ground fault.
- If using a 4 Pole main breaker, ensure that only one main breaker is closed at a time to eliminate the problem of multiple neutral grounding points and multiple paths for ground fault and normal neutral current.
- Refer to the WL Power Circuit Breaker ratings and applicable rating plug range based on the frame size for proper usage and maintenance.

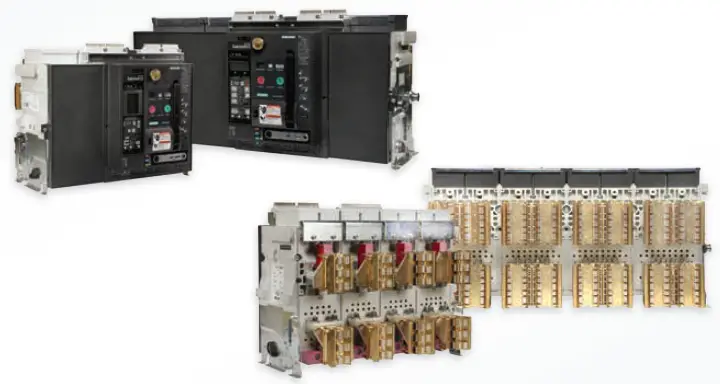

4 Pole WL Low Voltage Switchgear
4 pole breakers provide the neutral isolation capability that is advantageous for low voltage switchgear applications where multiple separately derived power sources are individually grounded. In a typical 3-phase 4-wire Main-Main or Main-Tie-Main low voltage switchgear application the neutral is solidly connected throughout the equipment. Additionally the neutral is grounded (bonded) at each incoming source and this provides multiple paths for ground fault and normal neutral current to flow. If a 3 pole breaker is used in conjunction with traditional residual or zero sequence ground fault, nuisance ground fault tripping and/or failure to trip on ground fault can occur.
With a 4-pole main breaker, the neutral is disconnected (isolated) when the breaker is open and provided that only one main breaker is closed at a time, the problem with multiple neutral grounding points and multiple paths for ground fault and normal neutral current is eliminated.
WL Power Circuit Breaker
Ratings for UL 1066 Listed (ANSI C37) Listed Breakers
| WL Frame Ratings – Frame Size 2 | 800A | 1600A | |||||
| Rating Class | S | H | L | S | H | L | |
| Interrupting current frame Ics (kAIR RMS) 50/60Hz | |||||||
| 254VAC | 65 | 85 | 100 | 65 | 85 | 100 | |
| 508VAC | 65 | 85 | 100 | 65 | 85 | 100 | |
| 635VAC | 65 | 65 | 85 | 65 | 65 | 85 | |
| Short-time current Icw (kA RMS) | 1 sec. | 65 | 65 | 85 | 65 | 65 | 85 |
| Close and latch rating (kA RMS) | 65 | 65 | 85 | 65 | 65 | 85 | |
| Applicable rating plug range | 200-800A | 200-1600A | |||||
| Mechanical make-time (ms) | 35 | 35 | |||||
| Mechanical break-time (ms) | 34 | 34 | |||||
| Electric close make-time (ms) | 50 | 50 | |||||
| Electric trip/UV break-time (ms) | 40/73 | 40/73 | |||||
| Electric trip and reclose interval (ms) | 80 | 80 | |||||
| Mechanical duty cycles (with maint.)a | 15000 | 15000 | |||||
| Electrical duty cycles (with maint.)a | 15000 | 15000 | |||||
| Draw-out breaker efficiency (Watts loss at rated In) | 85 | 320 | |||||
| Ambient operating temperature (˚C) | -25 to 40 | -25 to 40 | |||||
| Weights (D.O. Breaker/Cradle/Fixed mount) lbs. | 210/161/185 | 210/161/185 | |||||
| WL Frame Ratings – Frame Size 2 | 2000A | 3200A | |||||
| Rating Class | S | H | L | S | H | L | |
| Interrupting current frame Ics (kAIR RMS) 50/60Hz | |||||||
| 254VAC | 65 | 85 | 100 | 65 | 85 | 100 | |
| 508VAC | 65 | 85 | 100 | 65 | 85 | 100 | |
| 635VAC | 65 | 65 | 85 | 65 | 65 | 85 | |
| Short-time current Icw (kA RMS) | 1 sec. | 65 | 65 | 85 | 65 | 65 | 85 |
| Close and latch rating (kA RMS) | 65 | 65 | 85 | 65 | 65 | 85 | |
| Applicable rating plug range | 200-2000A | 200-3200A | |||||
| Mechanical make-time (ms) | 35 | 35 | |||||
| Mechanical break-time (ms) | 34 | 34 | |||||
| Electric close make-time (ms) | 50 | 50 | |||||
| Electric trip/UV break-time (ms) | 40/73 | 40/73 | |||||
| Electric trip and reclose interval (ms) | 80 | 80 | |||||
| Mechanical duty cycles (with maint.)a | 15000 | 15000 | |||||
| Electrical duty cycles (with maint.)a | 15000 | 15000 | |||||
| Draw-out breaker efficiency (Watts loss at rated In) | 700 | 1650 | |||||
| Ambient operating temperature (˚C) | -25 to 40 | -25 to 40 | |||||
| Weights (D.O. Breaker/Cradle/Fixed mount) lbs. | 227/181/203 | 258/212/229 | |||||
- Maintenance means: replacing main contacts and arc chutes (see operating instructions).
Ratings for UL 1066 Listed (ANSI C37) Listed Breakers
| WL Frame Ratings – Frame Size 3 | 4000A | 5000A | 6000A | |
| Rating Class | L | L | L | |
| Interrupting current frame Ics (kAIR RMS) 50/60Hz | ||||
| 254VAC | 100 | 100 | 100 | |
| 508VAC | 100 | 100 | 100 | |
| 635VAC | 85 | 85 | 85 | |
| Short-time current Icw (kA RMS) | 1 sec. | 85 | 85 | 85 |
| Close and latch rating (kA RMS) | 85 | 85 | 85 | |
| Applicable rating plug range | 800-4000A | 800-5000A | 800-6000A | |
| Mechanical make-time (ms) | 35 | 35 | 35 | |
| Mechanical break-time (ms) | 34 | 34 | 34 | |
| Electric close make-time (ms) | 50 | 50 | 50 | |
| Electric trip/UV break-time (ms) | 40/73 | 40/73 | 40/73 | |
| Electric trip and reclose interval (ms) | 80 | 80 | 80 | |
| Mechanical duty cycles (with maint.)a | 10000 | 10000 | 10000 | |
| Electrical duty cycles (with maint.)a | 10000 | 10000 | 10000 | |
| Draw-out breaker efficiency (Watts loss at rated In) | 1100 | 1650 | 2475 | |
| Ambient operating temperature (˚C) | -25 to 40 | -25 to 40 | -25 to 40 | |
| Weights (D.O. Breaker/Cradle/Fixed mount) lbs. | 434/410/375 | 434/410/375 | 434/410/375 | |
Ratings for UL 1066 Listed Non-Automatic Switches
| WL Frame Ratings | Frame Size 2 800-2000A | Frame Size 3 3200-6000A | |
| Rating Class | L | L | |
| Breaking capacity with external relay (kA RMS) | 254VAC | 100 | 100 |
| 50/60Hz, instantaneous trip | 508VAC | 100 | 100 |
| 635VAC | 85 | 85 | |
| Short-time current Icw (kA RMS) | 1 sec. | 85 | 100b |
- Maintenance means: replacing main contacts and arc chutes (see operating instructions).
- Do not apply a switch or breaker rated at 635VAC to a system with a fault current > 85kA RMS.
Dimensional Information
Breaker Type/LVS Section Width
- 800-3200A (FS2) 32”
- 4000-6000A (FS3) 40”
4 Pole Main/Tie Section 800 – 5000A Breakers
FS2 4 Pole Main/Tie Breaker Section
| Blank or Instrument Compartment Feeder Breaker 800, 1600, 2000 |
| Main/Tie Breaker 800, 1600, 2000, 3200 |
| Blank or Instrument Compartment Feeder Breaker 800, 1600, 2000, 3200* |
| Blank or Instrument Compartment Feeder Breaker 800, 1600, 2000, 3200* |
 |
FS2 4 Pole Main/Tie Breaker Section
| Blank or Instrument Compartment Feeder Breaker 800, 1600, 2000 |
| Blank or Instrument Compartment Feeder Breaker 800, 1600, 2000, 3200* |
| Main/Tie Breaker 800, 1600, 2000, 3200 |
| Blank or Instrument Compartment Feeder Breaker 800, 1600, 2000, 3200* |
|
FS3 4 Pole Main/Tie Breaker Section
| Blank or Instrument Compartment |
| Main/Tie Breaker 4000, 5000 |
| Blank or Instrument Compartment (4000A only) Vent Panel (5000A) |
| Blank or Instrument Compartment |
 |
FS3 4 Pole Main/Tie Breaker Section
| Blank or Instrument Compartment |
| Blank or Instrument Compartment |
| Main/Tie Breaker 4000, 5000 |
| Blank or Instrument Compartment (4000A only)
Vent Panel (5000A) |
|
4 Pole Main/Tie Section 6000A Breaker
FS3 4 Pole Main/Tie Breaker Section
| Blank or Instrument Compartment |
| Main/Tie Breaker 6000 |
| Vent Panel & Fan Control |
|
4 Pole Feeder Section 800 – 3200A Breakers
FS2 4 Pole Feeder Breakers
| Feeder Breaker 800, 1600, 2000 |
| Feeder Breaker 800, 1600, 2000, 3200* |
| Feeder Breaker 800, 1600, 2000, 3200* |
| Feeder Breaker 800, 1600, 2000, 3200* |
|
Contact the factory for 3200A feeder breaker application guidelines.
Contact Information
Siemens Industry, Inc.
5400 Triangle Parkway Norcross, GA 30092 1-800-241-4453
[email protected]
Order No. PDSA-4PSWG-0915 | Printed in USA | © 2015, Siemens Industry, Inc.
www.usa.siemens.com/switchgear.
