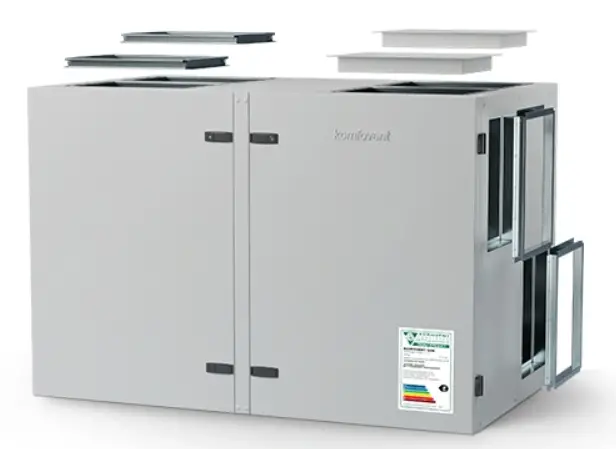

komfovent VERSO Standard Compact Units

VERSO STANDARD air handling units are not suitable to install in outdoor areas without additional modification.
Units intended be installed outdoor, should be fixed to the base frame and air dampers must be installed on to the duct connections. AHU must be protected from the weather influence by installing dedicated roof and hoods. If possible, it is recommended to install the unit near the walls for the extra protection from the wind.

AHU
Hoods
Roof
Base frame
Air dampers on the room side (recommended)
Outdoor air closing dampers (mandatory)

Connections of outdoor units must be additionally sealed (the sealant is not included).
If the outdoor unit will be switched off during the cold season, supply and extract air ducts (on the indoor side) must be fitted with additional air shut-off dampers. They should prevent warm indoor air from circulating inside the unit when it is stopped to avoid condensation, which may be detrimental to electronic components.

Air intake and outlet hoods must be installed as far apart as possible (for example by installing additional duct segments between AHU and hood), to prevent the exhaust air from returning to the air intakes.

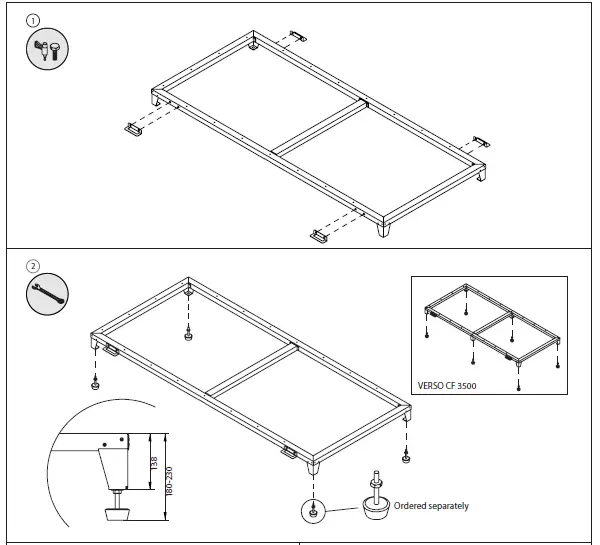

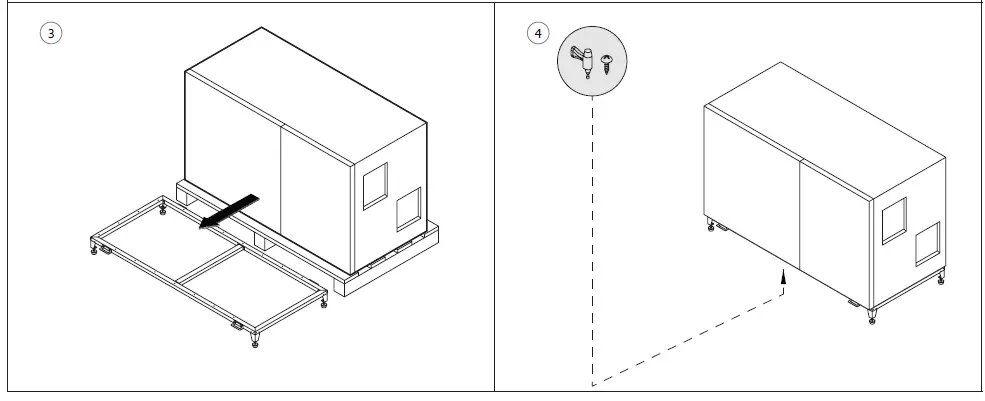

MOUNTING OF THE BASE FRAME

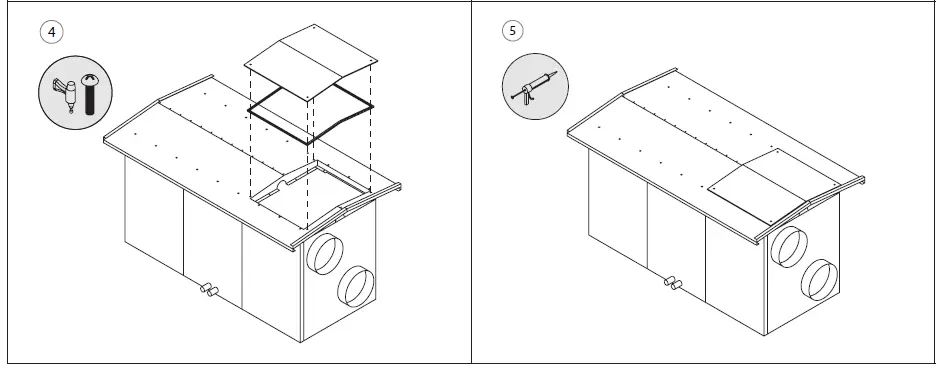

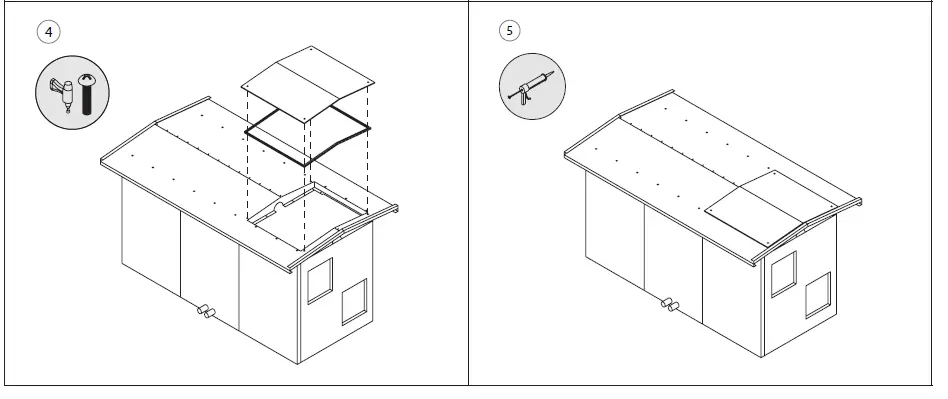

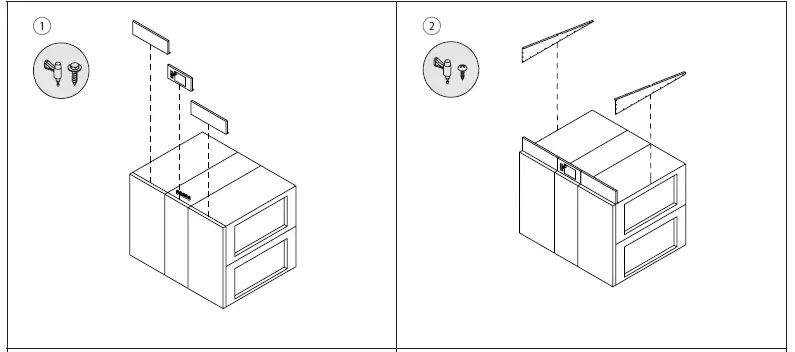

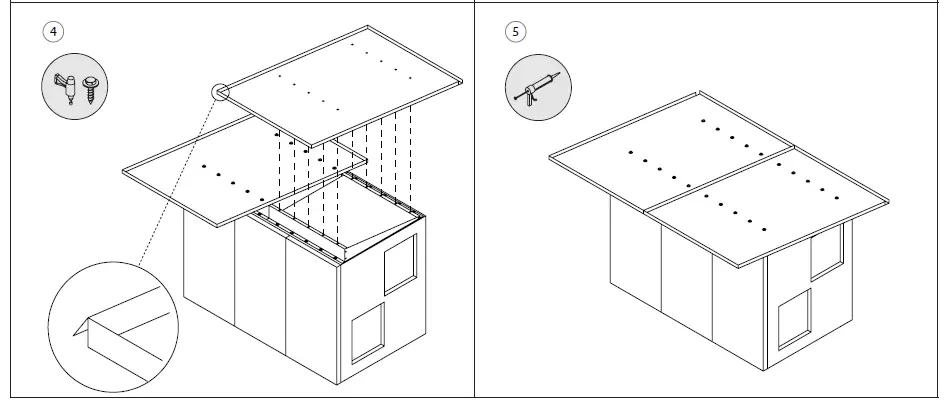

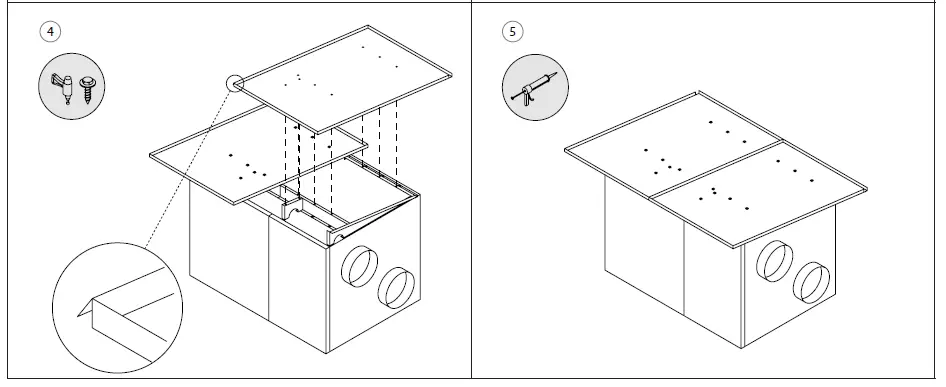

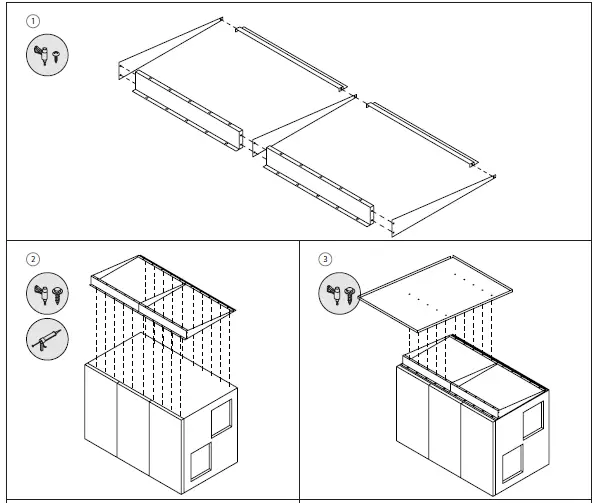

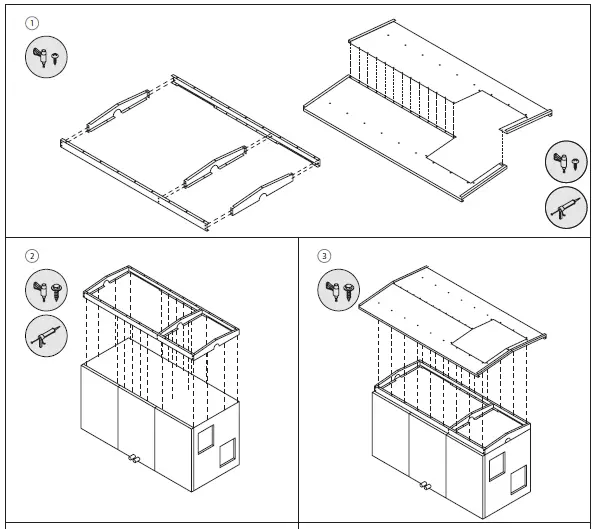

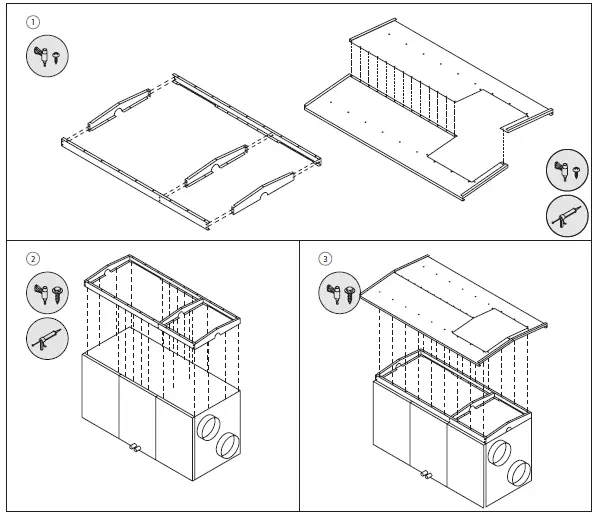

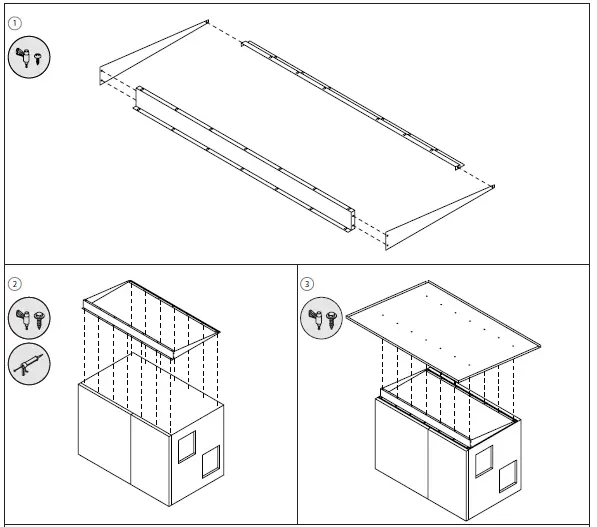

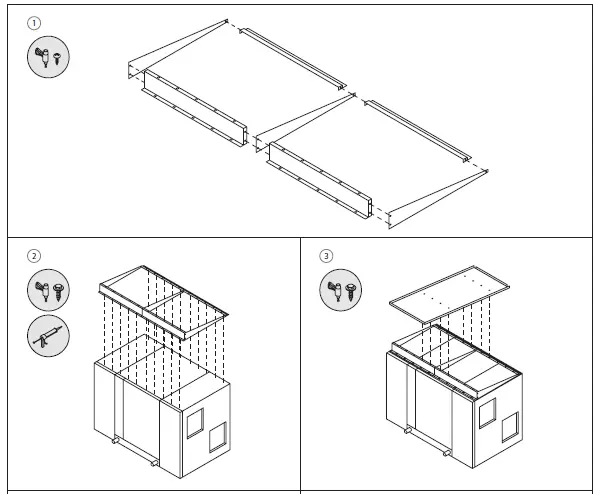

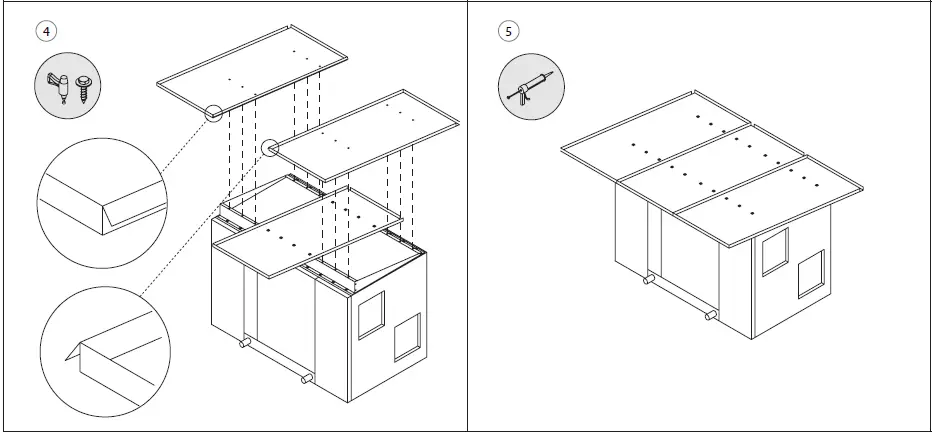

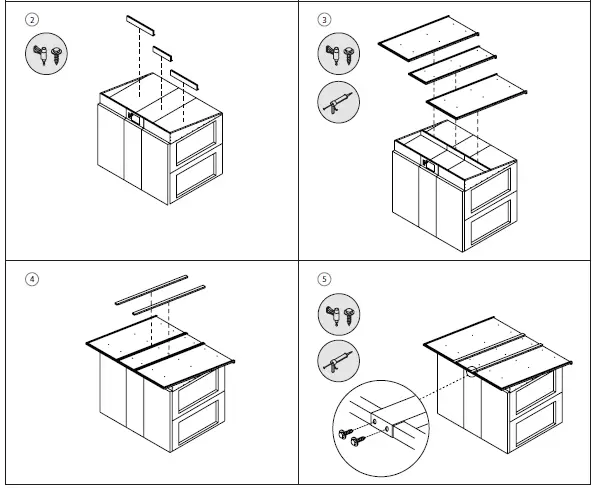

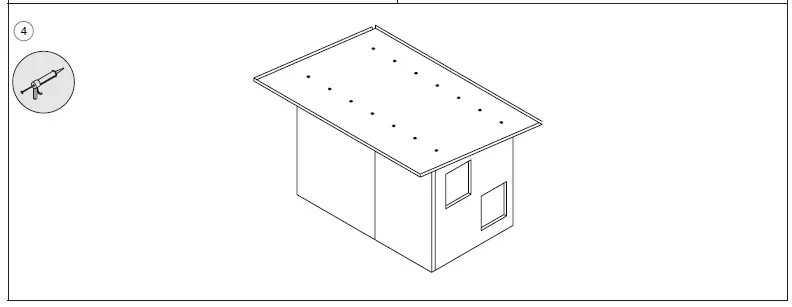

MOUNTING OF THE ROOFS

Verso R 1000 – R 1300 – R 1500 VERSO R 1700 – R 2000
RHP 800 – 1300 – 1500 Verso R 2500 – R 5000 – R 7000 Verso R 3000 – R 4000 Verso CF 1000 – CF 1300 – CF 1700 Verso CF 2300 Verso CF 3500

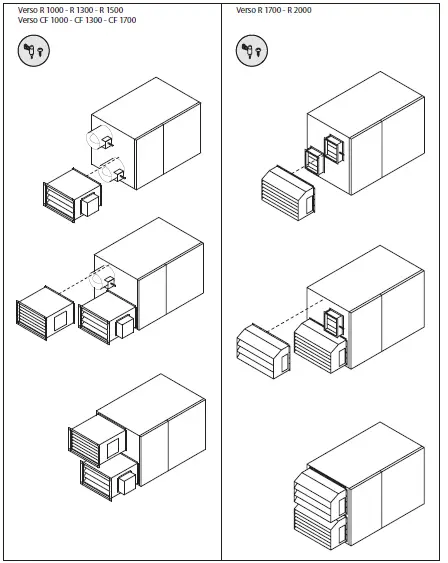

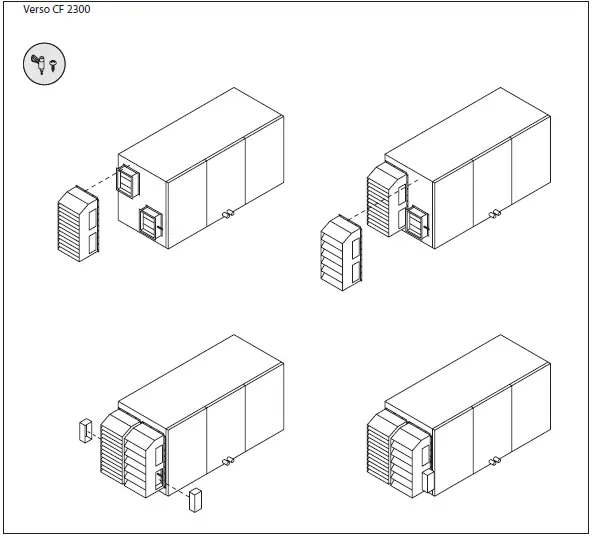

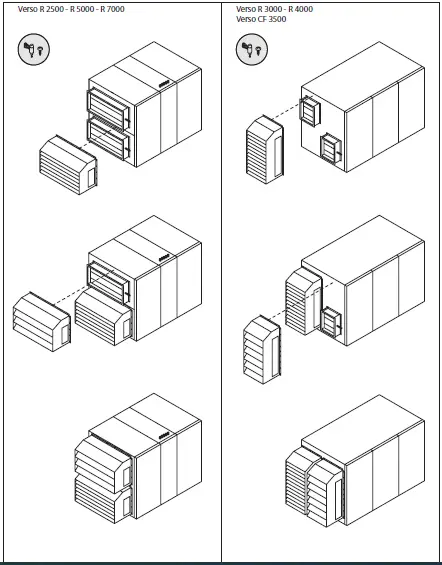

MOUNTING OF THE HOODS
