Core Distro Plate 360 Left VPP/D5 Instructions
Alphacool
CORE DISTRO PLATE SERIES

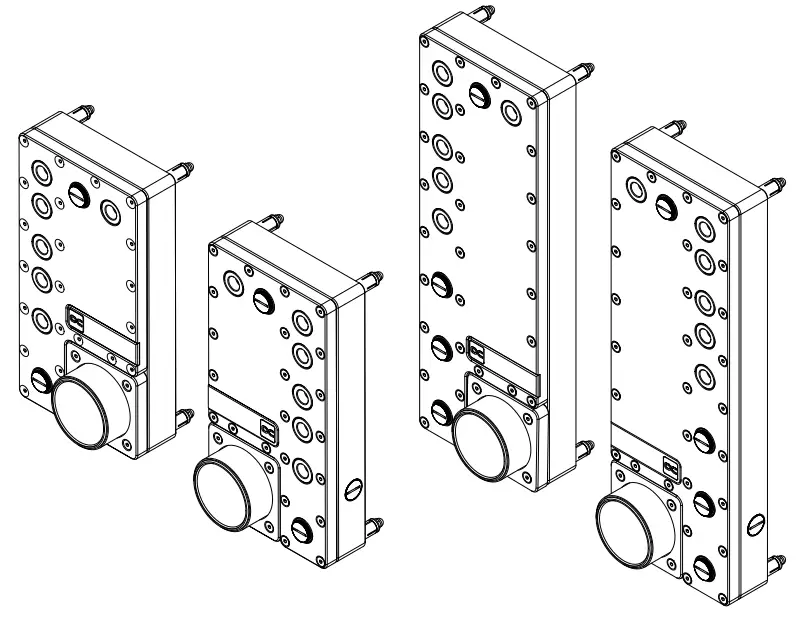

Core Distro Plate 360 Left VPP/D5
Safety instructions
https://www.alphacool.com/download/SAFETY%20INSTRUCTIONS.pdf
Digital guide
https://alphacool.com#mmm_?acg=1001

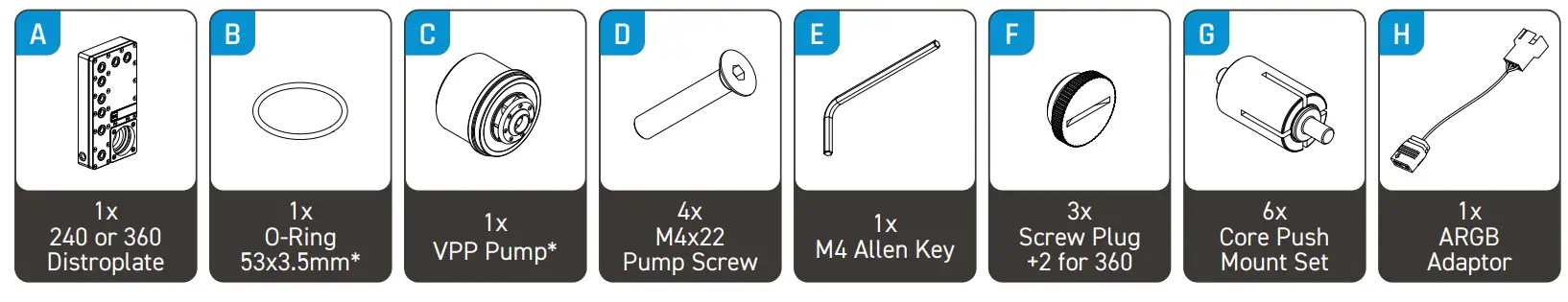

Accessories
*Only applies to Preassembled Version, ‘standalone’ Version does not have a pump supplied.

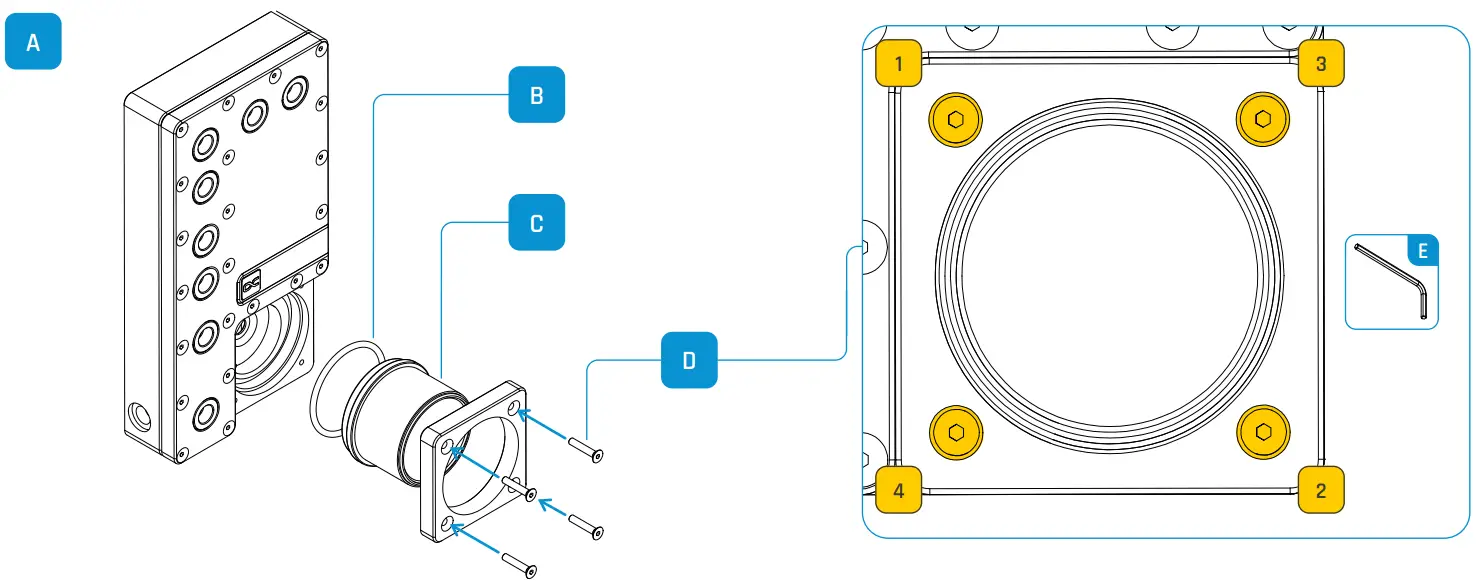

Pump installation
* Please tighten the screws cross-wise at 1.5 Nm.

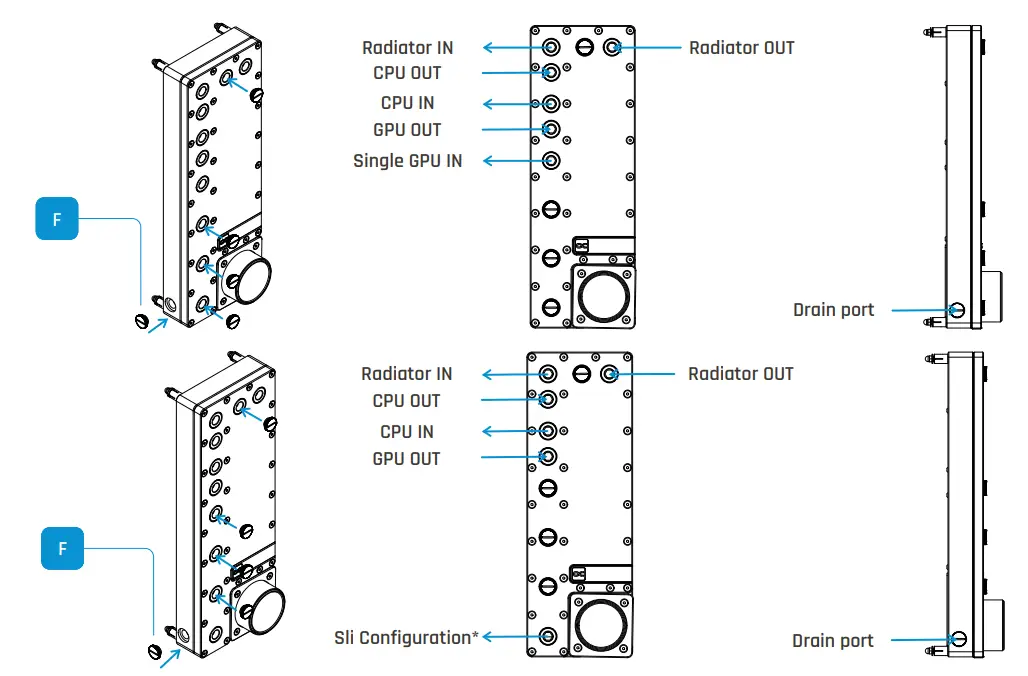

Configuration options
* Please choose the port closest to your GPU configuration.

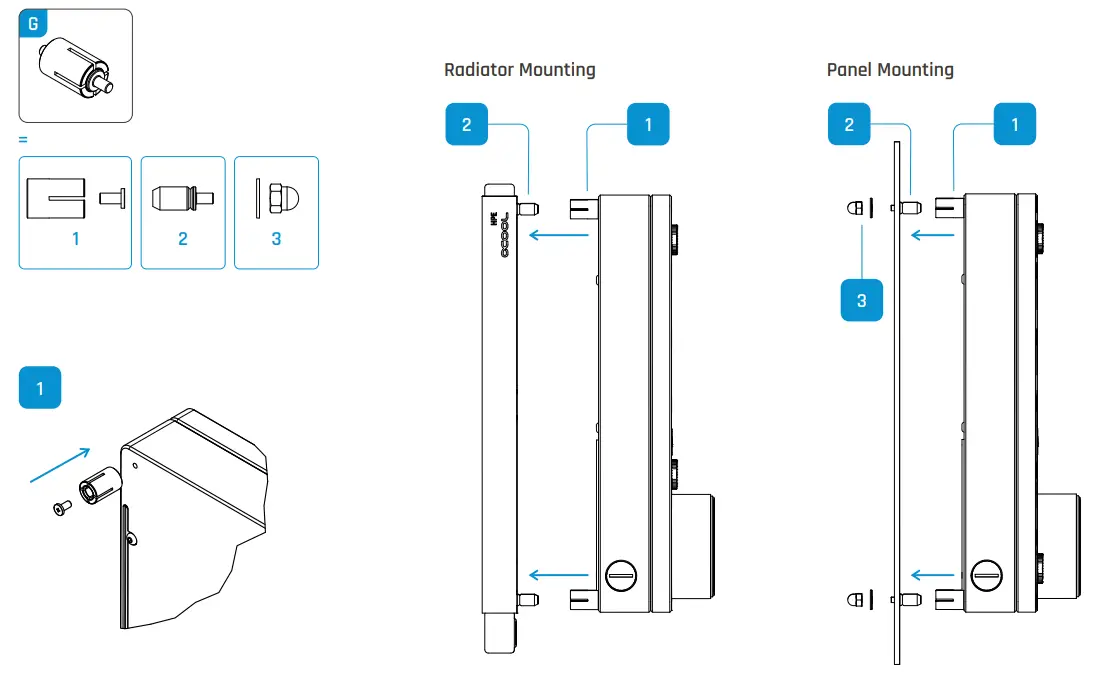

Push Pin mounting
Connect ARGB lighting
Filling and Bleeding
Fill your finished loop with your desired coolant (we recommend in-house products only) and power the pump to fill.
Once filled, run the pump until all of the air is purged from the system.
You will notice air may collect in the Radiator return feed, this is normal and is expected. To remove the final air pocket in the radiator line, please power off the pump and tip the PC over, with the return feed at the lowest point to move the air into the main reservoir, top up the fluid level once this step has been completed.

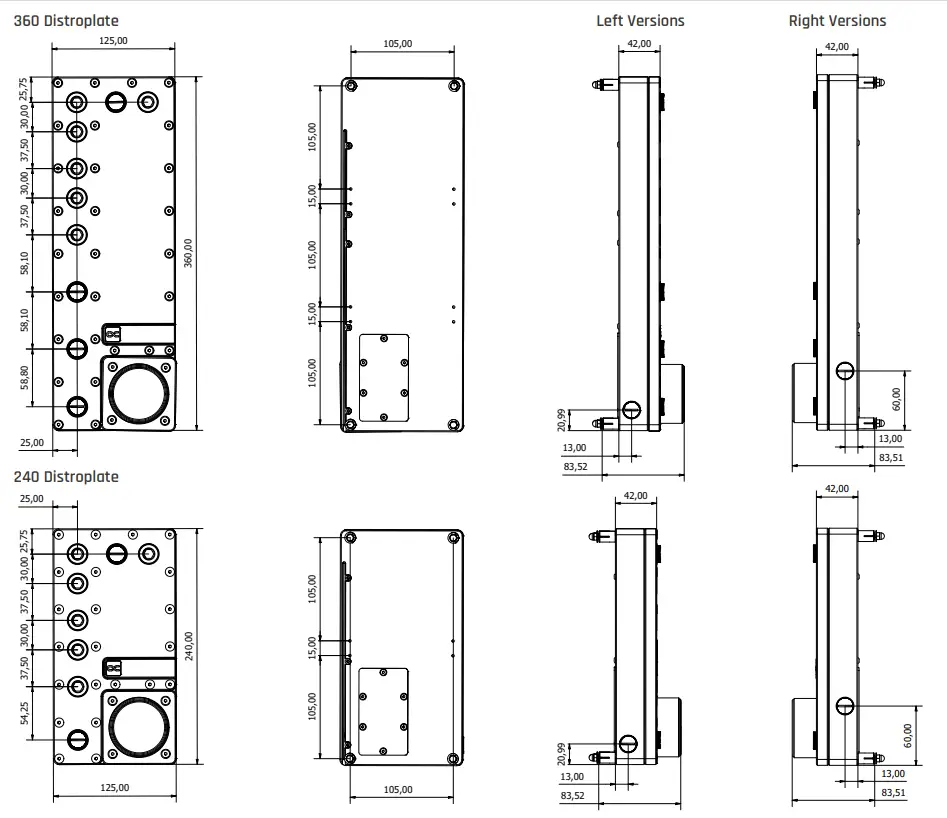

Dimensions in mm
