Msi G274qpf-qd Lcd Monitor User Guide

G274QPF-QD LCD Monitor
User GuideG Series LCD Monitor
G274QPF-QD (3CC2)
User Guide

Getting Started

This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity.

Package Contents

⚠ Important

• Contact your place of purchase or local distributor if any of the items is damaged or  missing.
• Package contents may vary by country.
• The included power cord is exclusively for this monitor and should not be used with other products.

Installing the Monitor Stand

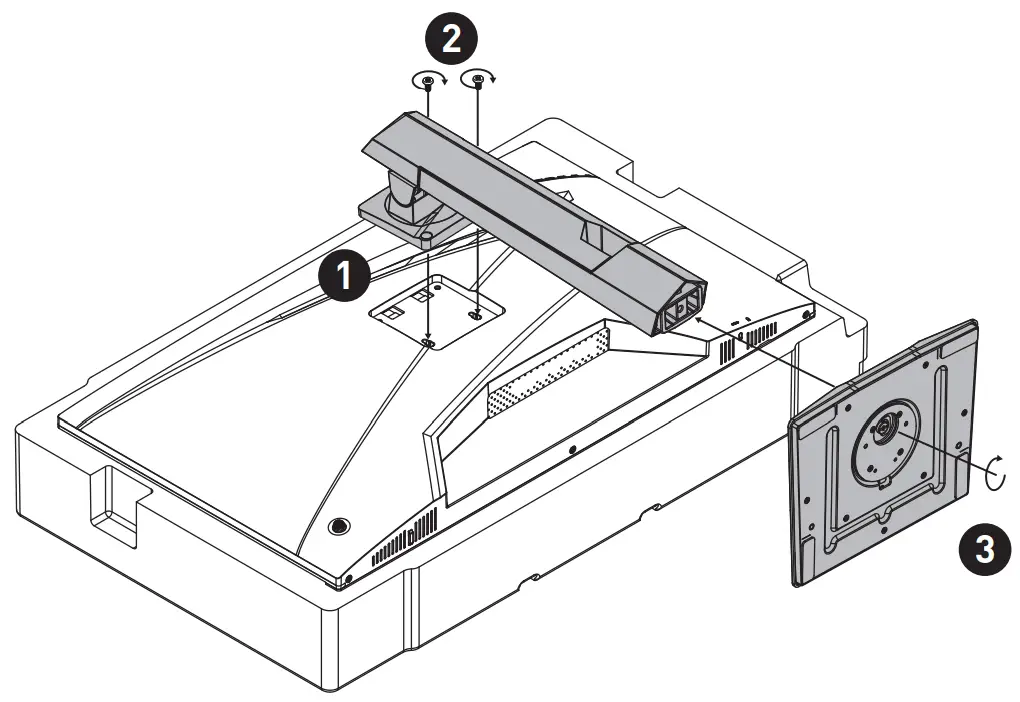

1. Leave the monitor in its protective foam packaging. Align the stand bracket to the monitor groove.
2. Tighten the stand bracket with screws.
3. Connect the base to the stand and tighten the base screw to secure the base.
4. Make sure the stand assembly is properly installed before setting the monitor upright.

⚠ Important

• Place the monitor on a soft, protected surface to avoid scratching the display panel.
• Do not use any sharp objects on the panel.
• The groove for installing the stand bracket can also be used for wall mount. Please contact your dealer for proper wall mount kit.

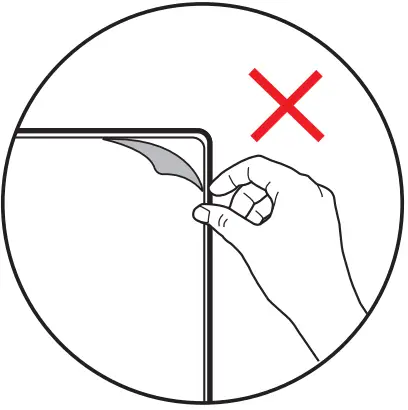

• This product comes with NO protective film to be removed by the user! Any mechanical damages to the product including removal of the polarizing film may affect the warranty!

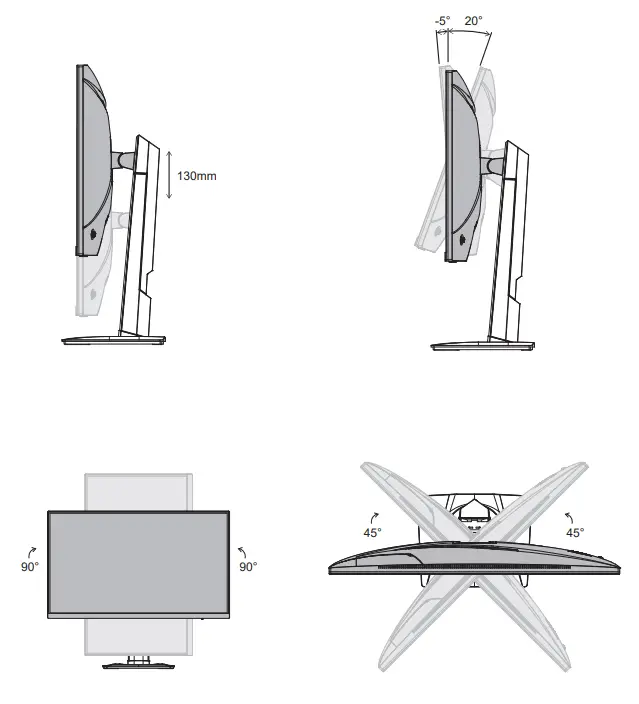

Adjusting the Monitor
This monitor is designed to maximize your viewing comfort with its adjustment capabilities.
⚠ Important

• Avoid touching the display panel when adjusting the monitor.
• Please slightly tilt the monitor backwards before pivoting it.

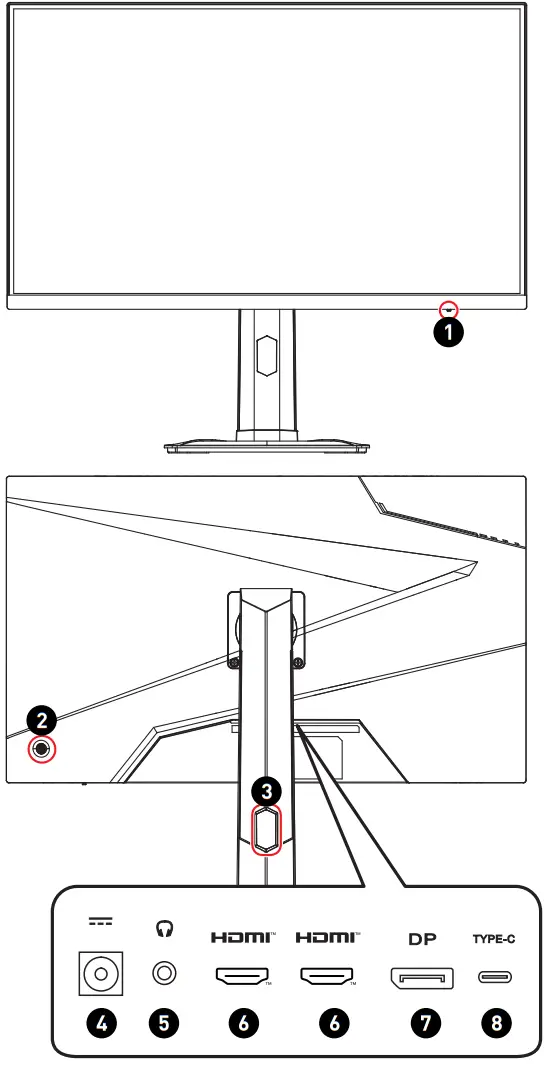

Monitor Overview

1	Power LED Lit in white after the monitor is turned on. If no signal input, the LED will turn into orange. Lit in orange when the monitor is in Stand-by mode.
2	Power Button & Navi Key
3	Cable Routing Hole
4	Power Jack
5	Headphone Jack
6	HDMI™ Connector Supports 2560×1440@144Hz as specified in HDMI™ 2.0b.
7	DisplayPort
8	USB Type-C Port This port supports DisplayPort Alternate (DP Alt) Mode and up to 5V/3A (15W) power delivery.

Connecting the Monitor to PC

1. Turn off your computer.
2. Connect the video cable from the monitor to your computer.

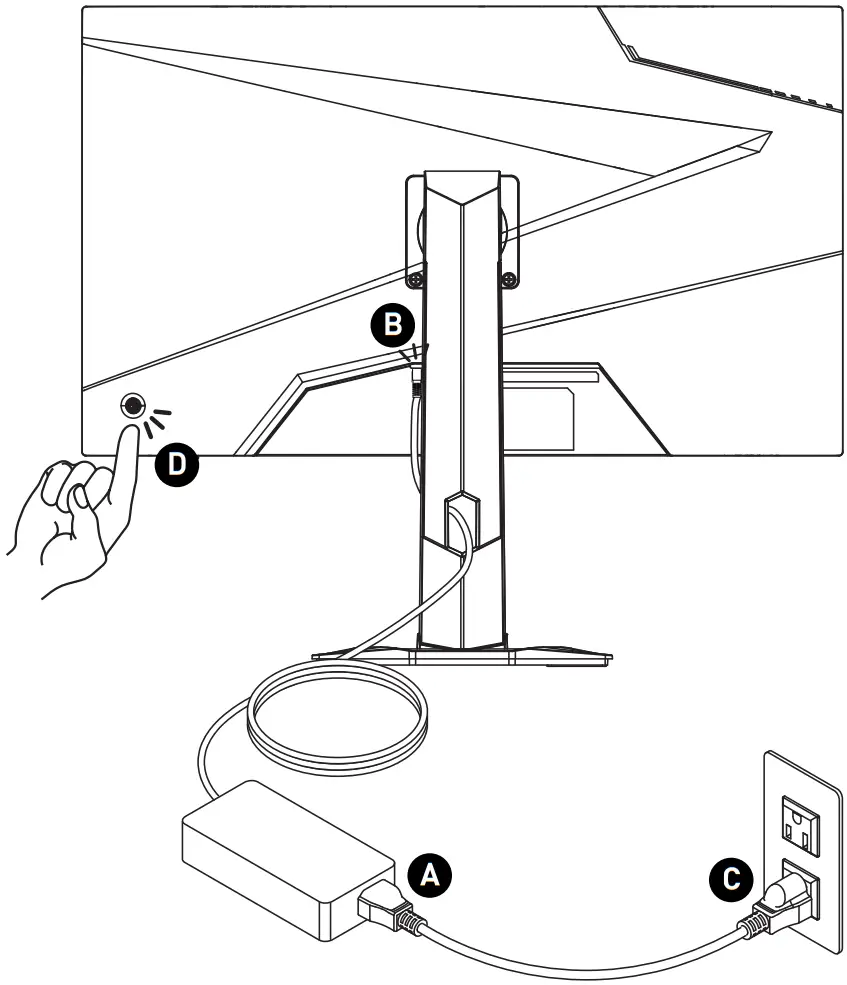

3. Assemble the external power supply & power cord. (Figure A)
4. Connect the external power supply to the monitor power jack. (Figure B)
5. Plug the power cord into the electrical outlet. (Figure C)
6. Turn on the monitor. (Figure D)
7. Power on the computer and the monitor will auto detect the signal source.

OSD Setup

This chapter provides you with essential information on OSD Setup.
⚠ Important
All information is subject to change without prior notice.

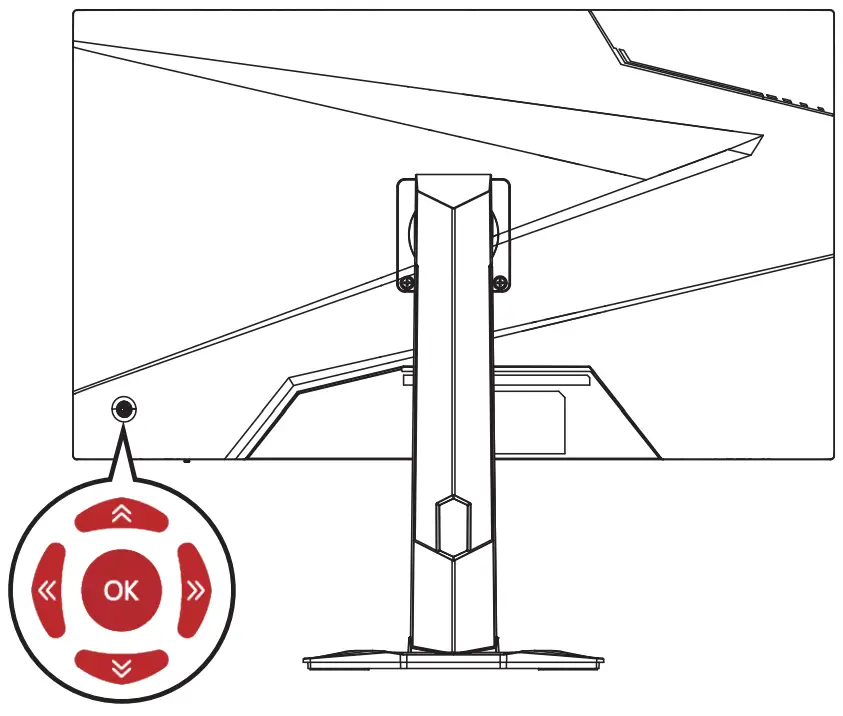

Navi Key
The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu.
Up/Down/Left/Right:

• selecting function menus and items
• adjusting function values
• entering into/exiting from function menus

Press (OK):

• launching the On-Screen Display (OSD)
• entering submenus
• confirming a selection or setting

Hot Key

• Users may enter into preset function menus by moving the Navi Key up, down, left or right when the OSD menu is inactive.
• Users may customize their own Hot Keys to enter into different function menus.

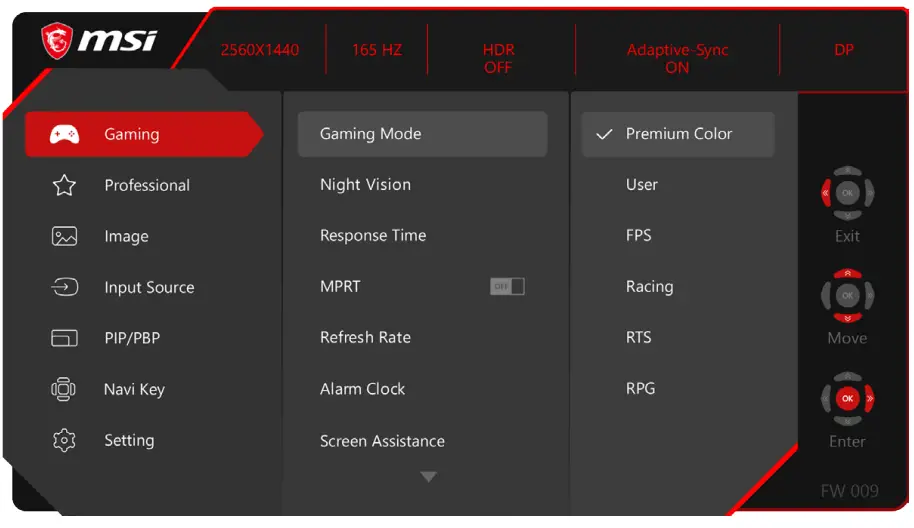

OSD Menus

⚠ Important
The following settings will be grayed out when HDR signals are received:

• Night Vision
• MPRT
• Low Blue Light
• HDCR
• Brightness
• Contrast
• Color Temperature
• PIP/PBP

Gaming

1st Level Menu	2nd/3rd Level Menu		Description
Refresh Rate	Location	Left Top	∙ Location is adjustable in OSD Menu. Press the OK Button to confirm and apply your Refresh Rate Location. ∙ This monitor follows and works at the Operating System’s preset Screen Refresh Rate.
		Right Top
		Left Bottom
		Right Bottom
		Customize
	OFF
	ON
Alarm Clock	Location	Left Top	∙ After setting the time, press the OK Button to activate the timer. ∙ Users have to manually restore their preset Alarm Clock after any AC power loss and reconnection.
		Right Top
		Left Bottom
		Right Bottom
		Customize
	OFF
	15:00	00:01 ~99:59
	30:00
	45:00
	60:00
Screen Assistance	None		∙ Users can adjust Screen Assistance in any mode.
	Icon
	Position
	Reset

Professional

Input Source

PIP/PBP

Navi Key

Setting

Specifications

Monitor	G274QPF-QD
Size	27 inch
Curvature	Flat
Panel Type	Rapid IPS
Resolution	2560 x 1440
Aspect Ratio	16:9
Brightness	∙ SDR: 300 nits (typ.) ∙ HDR Peak: 400 nits
Contrast Ratio	1000:1
Refresh Rate	170Hz (Default: 165Hz)
Response Time	∙ 1ms (MPRT) ∙ 1ms (GTG)
I/O	∙ DisplayPort x 1 ∙ HDMI™ Connector x 2 ∙ USB Type-C Port (DP Alt Mode) x 1 ∙ Headphone Jack x 1
View Angles	178°(H) , 178°(V)
DCI-P3*/ sRGB	98%/154%
Surface Treatment	Anti-glare
Display Colors	1.07B (8 bits + FRC)
Monitor Power Options	19V3.42A
External Power Supply	65W, 19V
Power Input	100~240Vac, 50~60Hz
Power Output	19V 3.42A
Adjustment (Height)	0 ~ 130mm
Adjustment (Tilt)	-5° ~ 20°
Adjustment (Swivel)	-45° ~ 45°
Adjustment (Pivot)	-90° ~ 90°

Preset Display Modes

⚠ Important
All information is subject to change without prior notice.

* Users have to set DP OverClocking to ON. This is the highest refresh rate supported by DP OverClocking. If any monitor error occurs during overclocking, please downscale the refresh rate.

Troubleshooting

The power LED is off.

• Press the monitor power button again.
• Check if the monitor power cable is properly connected.

No image.

• Check if the computer graphics card is properly installed.
• Check if the computer and monitor are connected to electrical outlets and are turned on.
• Check if the monitor signal cable is properly connected.
• The computer may be in Standby mode. Press any key to activate the monitor.

The screen image is not properly sized or centered.

• Refer to Preset Display Modes to set the computer to a setting suitable for the monitor to display.

No Plug & Play.

• Check if the monitor power cable is properly connected.
• Check if the monitor signal cable is properly connected.
• Check if the computer and graphics card are Plug & Play compatible.

The icons, font or screen are fuzzy, blurry or have color problems.

• Avoid using any video extension cables.
• Adjust brightness and contrast.
• Adjust RGB color or tune color temperature.
• Check if the monitor signal cable is properly connected.
• Check for bent pins on the signal cable connector.

The monitor starts flickering or shows waves.

• Change the refresh rate to match the capabilities of your monitor.
• Update your graphics card drivers.
• Keep the monitor away from electrical devices that may cause electromagnetic interference (EMI).
