SR-30CM-2 Under Cabinet Lights Wireless for Kitchen
User Manual

SR-30CM-2 Under Cabinet Lights Wireless for Kitchen

User Manual Under Cabinet Lights
Note:

1. Please fully charge the battery before first use.
2. Non-waterproof, only for indoor use.
3. Improper installation or sensor being covered will affect the sense functioning.

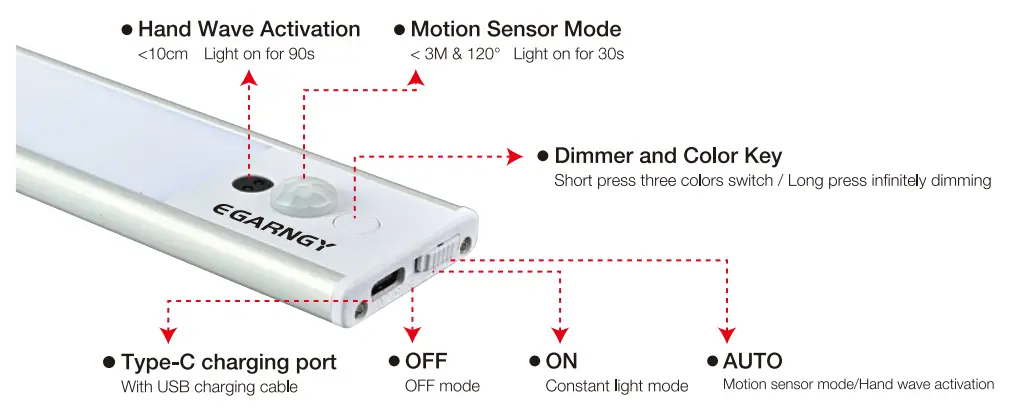

Key/Function Introduction

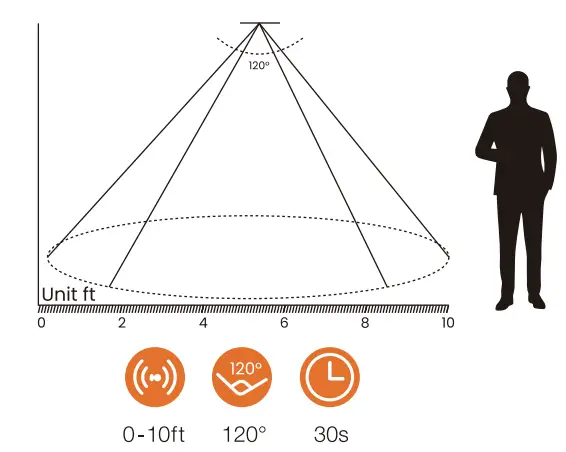

Motion Sensor Mode

Under “Auto’ mode:

1. In a bright environment, no human sensor is triggered, energy saving and power saving. if there is a demand for bright lights, the lights can be turned on by hand sweep mode
2. In a dark environment. human motion is detected and the light will turn on automatically within 10 feet/120° and turn off automatically after 30 seconds of no motion.

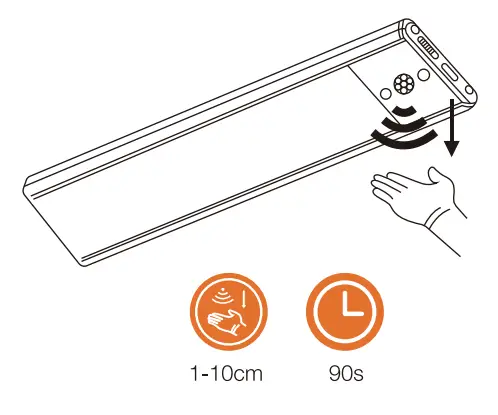

Hand Wave Activation

Under “Auto” mode:
No matter in tight or dark environment, the light can detect the Hand Wave Activation to turn on/off. Hand sweep beneath the sensor head within 10cm to turn on the light and It will last for 90 seconds.
To avoid unintentional battery consumption, you can hand sweep beneath the sensor head with 10cm to turn off the light when you no longer need

Basic Parameters

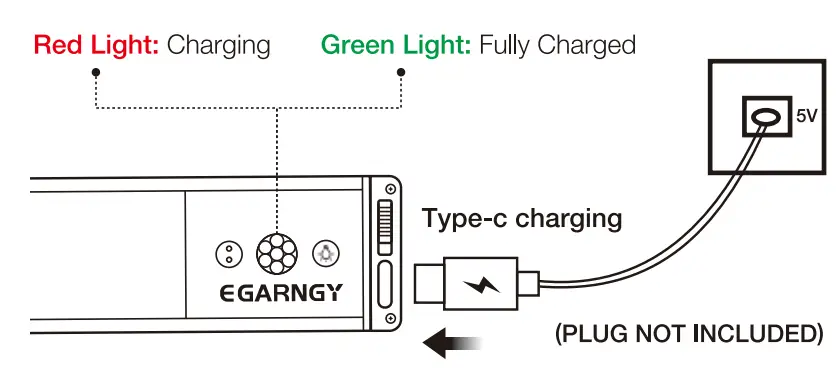

Charging and Power Usage Instructions

Full charge time: About 6 hours
Constant light mode: About 7 hours
Hand sweep mode: About 7 days (10 braes a day. 93 seconds each bM0)
Body sensor mode: About 20 days on tiros a day. tech brae 30 seconds)
Charging Precautions:

1. Please do not use charging device with an output voltage greater than 5V to charge the EGARNGY Under Counter Light
2. To ensure chargrig safety and charging efficiency, please use a oatl phone charging adapter with safety certification to charge the EGARNGY Under Counter Light!
3. It is not recommended to use it when charging. (The indicator lights up when charging, interfering with the human body induction function, and can not work properly)

Warm lips:

1. According to different usage, the power usage duration would be different. The longer use will result it faster power consumption and more frequent recharging.
2. The brightness MI decrease with the decrease of power. when the brightness is low, please recharge the light in time.

Installations Steps

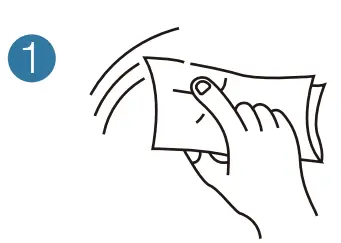

1. Please use a clean cloth to wipe clean the location where you need to paste and ensure it is dry.

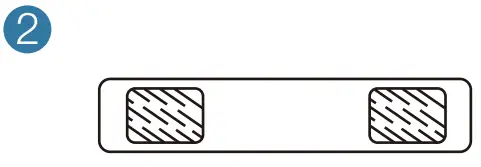

2. Place the 2 magnet sheets on the back of the light bar and move them around to find the built-in magnet position point and fix them.

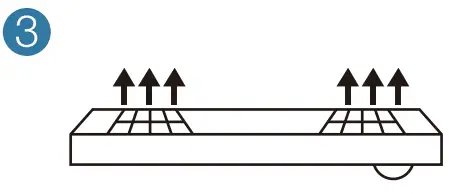

3. Installation is complete, the light body adsorbed on the iron sheet, can be removed at any time.

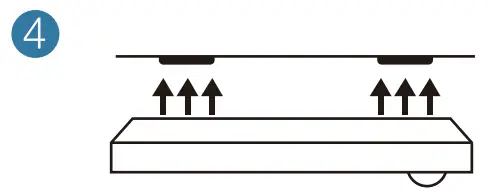

4. Peel off the adhesive sticker on the back of the pilot magnet patch and stick it on the target location (bottom of the cabinet or wall).
   ( adhesive back side facing out)

Installation Precautions:

1. The installation position is too low or too high or too deep or an obstruction near the sensor will affect the sensing range.
2. To ensure the sensing effect, it is recommended to install it in a suitable location and close the sensing probe to the side where people pass.
3. Glass can block the human body induction.

After Sales Service:

Sometimes WE ALL Just need a bit of help.
PROBLEMS OR QUESTIONS contact us directly on Amazon.
Give us a chance to answer all your questions and we guarantee you’ll be satisfied!
WE ALL can benefit from a bit of HELP!

No Harmful UV/IR Irradiation
