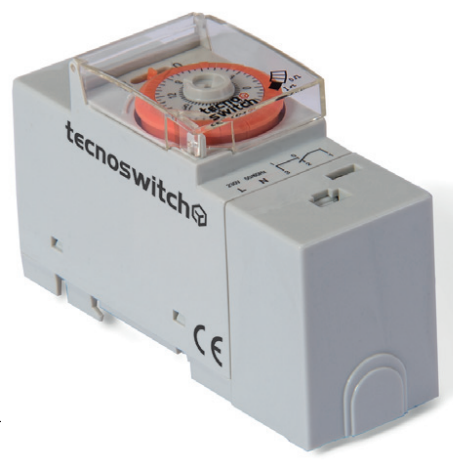

tecnoswitch EN 61000-6-1 Daily Mechanical Timer Switch
DAILY MECHANICAL TIME
SWITCH CONFORME ALLE NORME IN CONFORMITY WITH NORMATIVES
- EN61000-6-1, EN61000-6-3, EN61000-3-2, EN61000-3-3, EN60730-2-7, EN60730-1, JEC62321-1
- IEC62321-3-1, IEC62321-4, IEC62321-5, IEC62321-6, IEC62321-7-1, IEC62321-7-2, IEC62321-8
Specifications
- Power supply 230 Vac, 50-60 Hz
- Modular case in DIN rail
- Suitable also for wall mounting
- Backup battery autonomy 100 h
- Minimum setting time interval 30 min.
- 48 setting pins
- 2 ways changeover switch (SPDT)
- Connectable rated load 16(4)A – 250 Vac
- Accuracy 1,5 sec. /day
- Connections via screw terminals

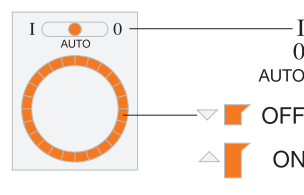

Instructions
- I Manual mode:ON
- 0 Manual mode:OFF
- AUTO Automatic mode
- OFF programmation disabled
- ON programmation enabled

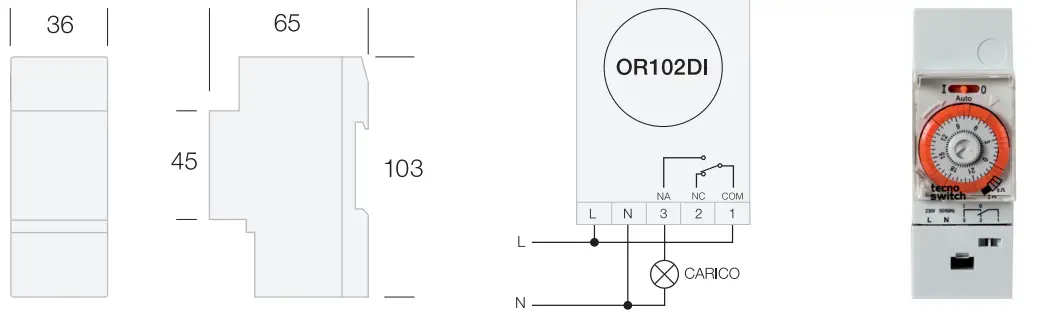

Dimensions
| CODICE | INCANDESCENZA | DUO/ELETTRONICO | FLUORESCENZA | INTERVAJ…LO MINIMO Ffl03RAMMAZIONE | PR0<3RAMMA | MODULO | PESO |
| CODE | INCANDESCENT | DUO/ELECTRONIC | FLUORESCENT | MIN. SETTING TIME | SCHEDULING | MODULE | WEIGHT |
| Watt | Watt | Watt | min | DIN | gr | ||
| OR1020I | 2000 | 400 | 750 | 30 | giomaliero/1jaily | 2 | 120 |
