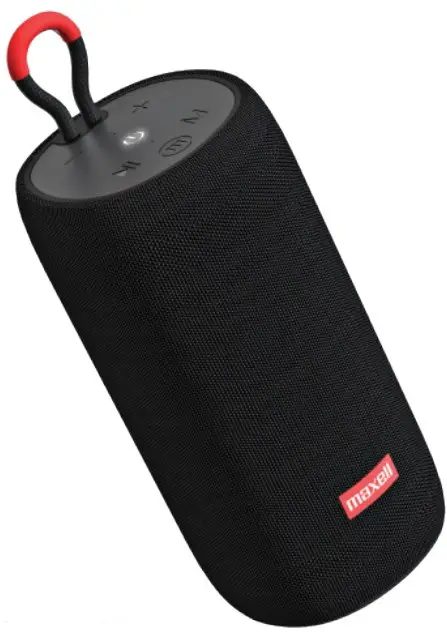

maxell BT-DISTRIKT Portable Bt Speaker User Manual

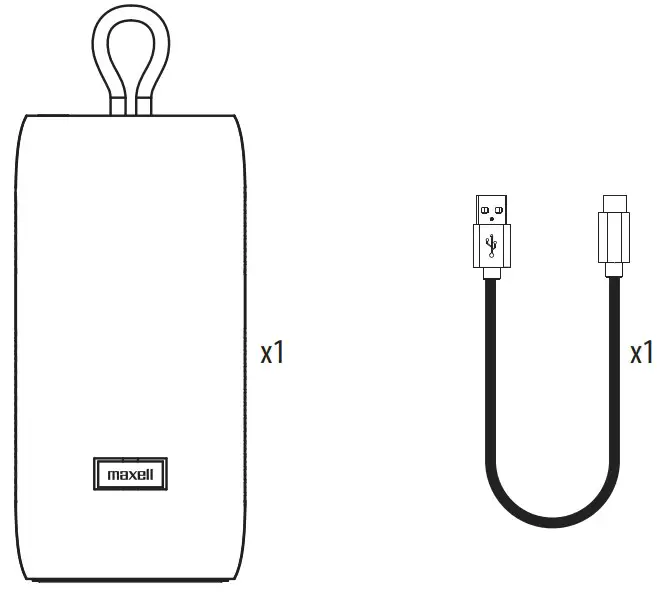

PACKAGE INCLUDES
LOCATION OF CONTROLS
- Volume-
- Volume +
- Power
- Play/Pause
- Mode Button
- Micro SD Audio Reader
- USB-C Charging Port
- USB Audio Reader
SPECIFICATIONS
| Bluetooth version | 5.2 |
| Speaker | 66MM |
| Battery capacity: | 2600mAh |
| Charging input : | 5V/1000mAh |
| Talk or music: | About 7 hours (50% volume) |
| Charging time: | About 3.5-4 hours |
| Operating range: | 10M |
| Output Power | 10W |
| Connection Type: | USB-C 5V |

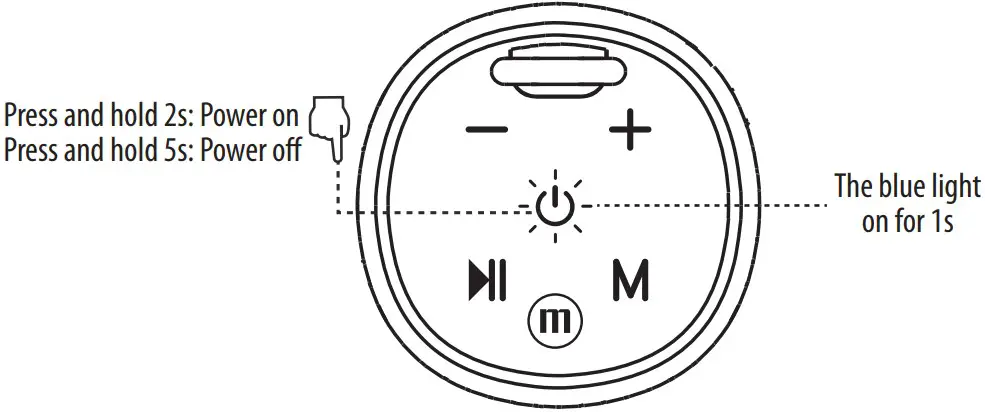

POWER
BLUETOOTH

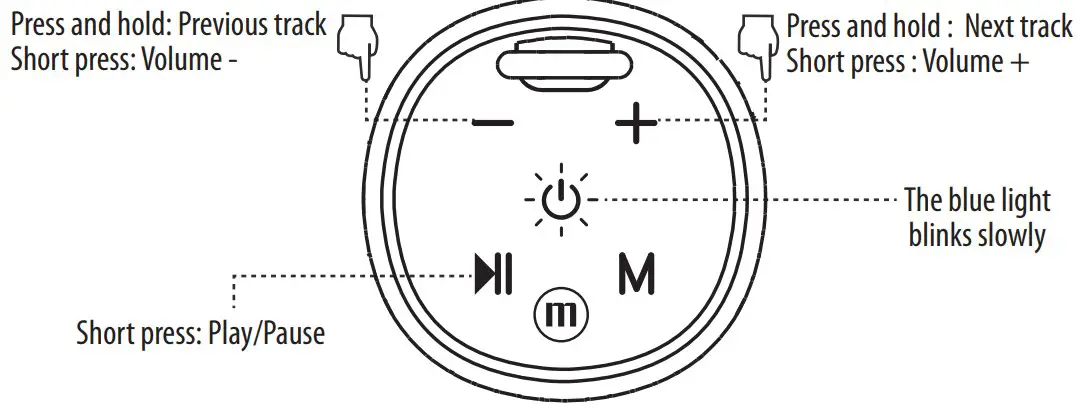

MUSIC CONTROL

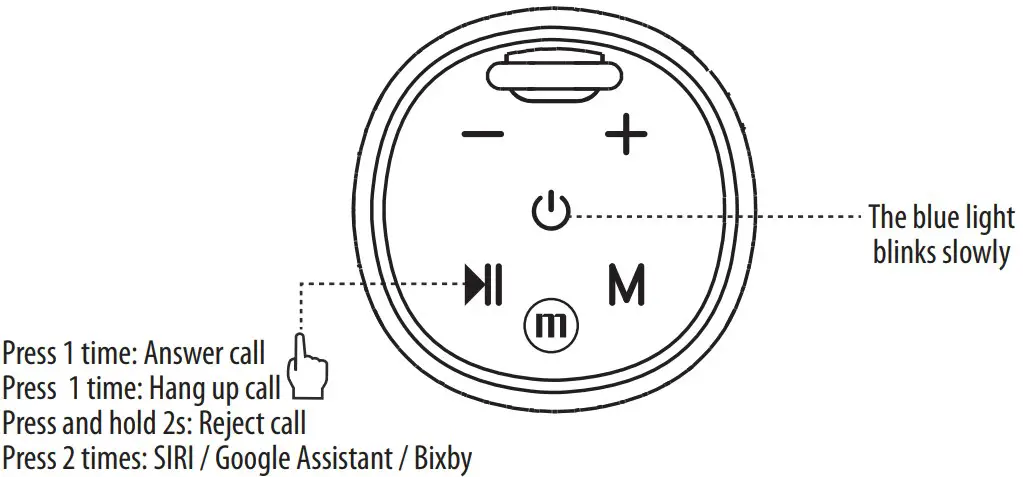

ON CALLS

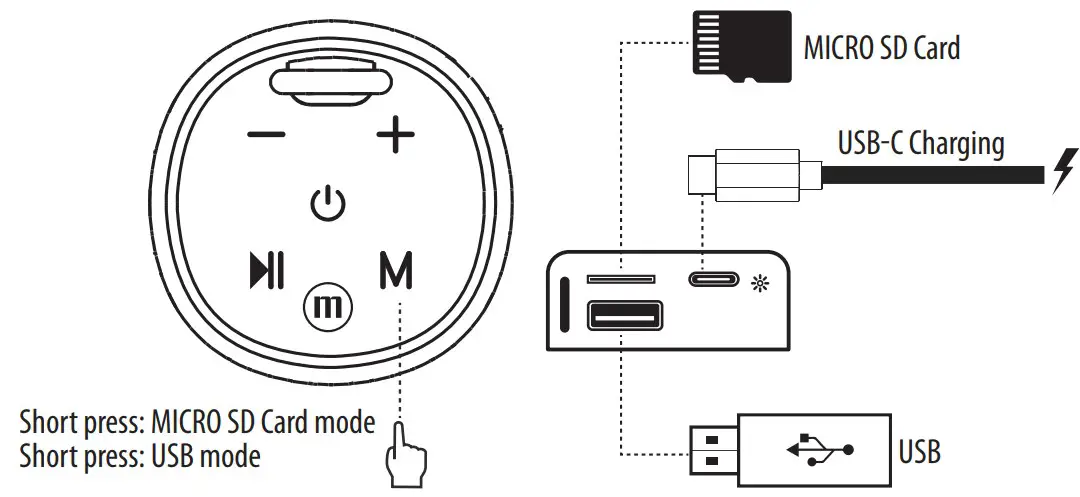

CONNECTIONS
BATTERY
| Low battery | “Low battery” warning at 10% charge, it will warn again at 5%; Speaker will power off when battery is at 1% charge. |
| Power On | The blue light will ash for 1s, before powering on. |
| Power Off | The blue light will ash for 1s, before powering o. |
| Auto Power Off | After 3min of inactivity speaker will automatically power off |
| Charging | indicator light will turn solid red. |
| Charging complete | About 3~4 Hours to charge fully, red light will turn off. |

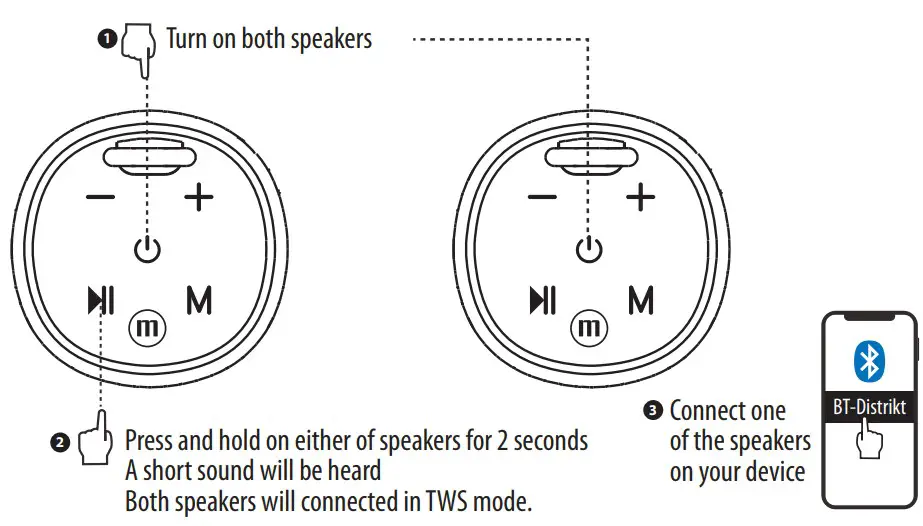

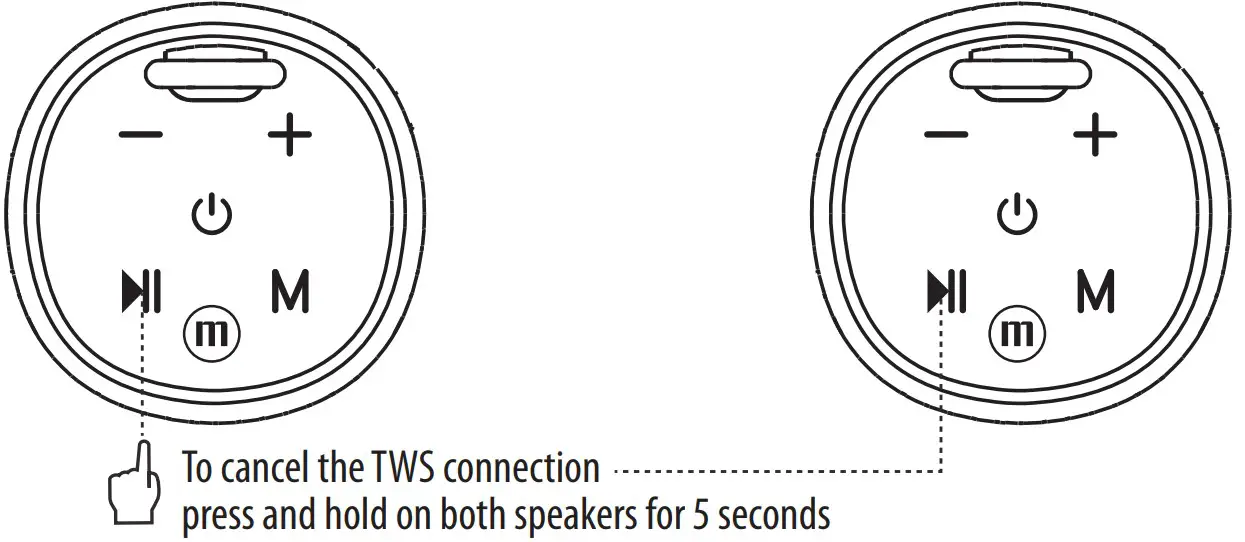

TWS FUNCTION
