HuddleCamHD Small Base Camera Wall Mount

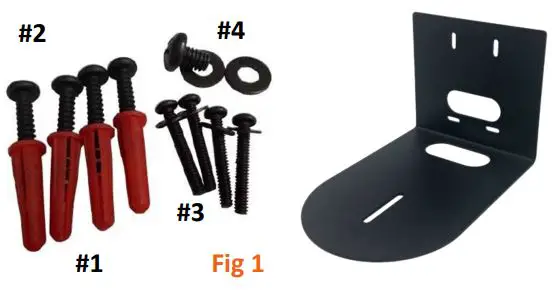

What’s Included
QTY 1—Small Wall Mount BK/WH
QTY 4—10-12 x 1″ Conical Plastic Anchor 1/4″ Drill Size (Fig 1, #1)
QTY 4—#10-16x 1 1/4″ PPH Sheet Metal Screw with Flat Washer (Fig 1, #2)
QTY 4—#6-32x 1″ PPH Machine Screw (Fig 1, #3)

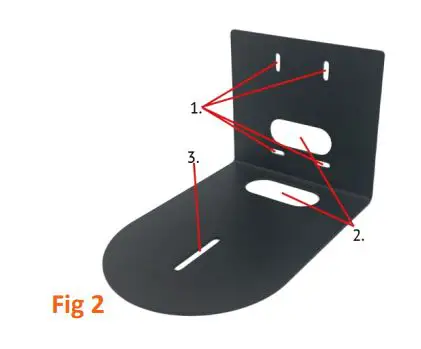

Mounting Instructions
Step 1
For masonry or drywall wall:
Position small wall mount (Fig 2) on wall and mark wall for anchor placement (Fig 2, # 1). Pre-drill 1/4″ holes, minimum 1″ deep.
For double gang electrical box:
Position over the box with slots overlaying device mounting holes (Fig 2, #1) on the box.
Step 2
For masonry or drywall wall:
Place included anchors (Fig 1, #1) in-wall and mount to anchors using included #10 sheet metal screws. (Fig 1, #2)
For double gang electrical box:
Mount to box using #6 machine screws and washers. (Fig 1, #3)
Step 3
Drill hole in the wall through rear exit opening for cable access, or use base exit opening. (Fig 2, #2)
Step 4
Mount Camera to mount (Fig 2, #3) with included 1/4-20 machine screw. (Fig 1, # 4)
Utilize (0,1,2) 1/4″ machine screw flat washers as required. (Fig 1, #4) Note: 1/4″ machine screw flat washers are to be used depending upon the depth of thread insert in the base of the camera, in order to achieve a snug fit. Pass all cables through the opening in mount (Fig 2, #2) and connect.
Mount Compatibility
HuddleCamHD
HC-WEBCAM-94
HC-GO
HC-EPTZ-XXX
HC3X-XX-G2
HC3XA-XX
HC3XW-XX-G2
HC10X-USB2-XX
HC10XA-XX
HC10X-XX-G3
HC20X-XX-G2
PTZOptics
PT-WEBCAM-80
PTEPTZ-XXX-ZCAM
PTVL-XXX-ZCAM
PT12X-XXX-ZCAM
PT20X-XXX-ZCAM
PT12X-XXX-XX-G2
PT20X-XXX-XX-G2
PT30X-XXX-XX-G2
Other Cameras… This mount has been designed for use with most small-based cameras utilizing a 1/4-20″ mounting hole as can be found on SONY, Panasonic, Cisco, Polycom, and Vaddio cameras.
For more information on HuddleCamHD mounts and other products please visit:
https://huddlecamhd.com
