Cabelas 4000w Dual Fuel Portable Generator User Manual

Cabelas 4000W Dual Fuel Portable Generator

Set Up

1. Open shipping carton.
   Assembly > Unpacking

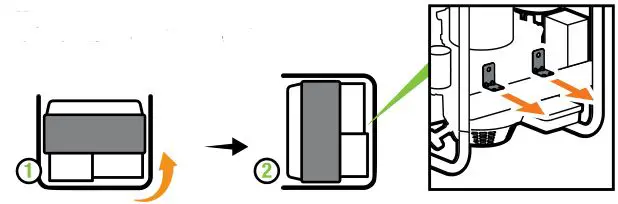

2. Remove brackets.
   Assembly > Remove Shipping Support Brackets.

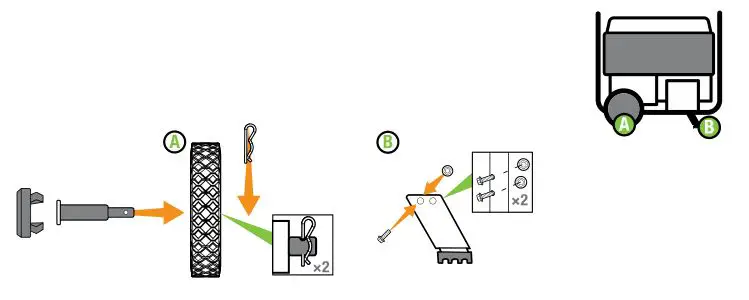

3. Attach wheel kit.
   Assembly > Install the Wheel Kit
4. Connect the battery.
   Assembly > Connect the Battery.
5. Add oil.
   Assembly > Add Engine Oil.
   MAKE SURE SHIPPING BRACKETS ARE REMOVED BEFORE ADDING OIL.
6. Move the generator outdoors.
   Move generator to an open, outdoor area. Point exhaust away. Never run generator in enclosed areas (e.g., not in house or garage). Keep all objects at least 5 feet (1.5 m) from generator. Heat from the muffler and exhaust gas can ignite combustible materials.
7. Add fuel.
   Assembly > Add Fuel: Gasoline
   DO NOT use E15 or E85. Connect propane cylinder.
   Assembly > Add Fuel: Propane (LPG)
8. DO NOT plug in any electrical devices. NEVER START OR STOP THE GENERATOR WITH ELECTRICAL DEVICES CONNECTED OR TURNED ON!

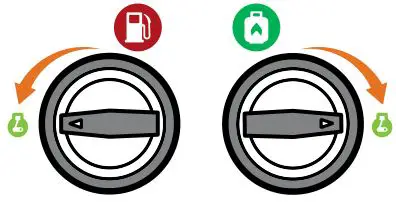

9. Select Fuel.
   Operation > Starting the Engine.
   Gasoline: Turn fuel select dial to “Gasoline Run” position.
   Propane: Turn fuel select dial to “Propane Run” position.
10. 1. Gasoline

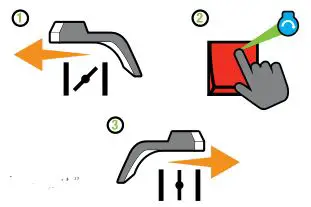

       • Electric Start
         1. Move the choke lever to the “CHOKE” position.
         2. Press and hold the ignition switch to the “START” position.
         3. Move the choke lever to the “RUN” position.
       • Manual Start
         1. Move the choke lever to the “CHOKE” position.
         2. Pull the starter cord.
         3. Move the choke lever to the “RUN” position.
    2. Propane

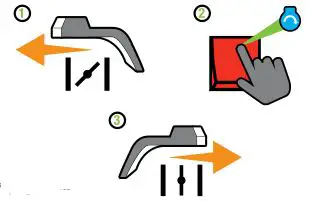

       • Electric Start
         1. Move the choke lever to 75% “CHOKE” position.
         2. Press and hold the ignition switch to the “START” position.
         2. Move the choke lever to the “RUN” position.
       • Manual Start
         1. Move the choke lever to 75% “CHOKE” position.
         2. Pull the starter cord.
         2. Move the choke lever to the “RUN” position.
11. Plug in.
    Operation > Connecting Electrical Loads.
