IIoT M-7017C Modules User Guide

I-7017(F)C, M-7017C Quick Start Guide

  • Warranty
    All products manufactured by ICP DAS are under warranty regarding defective materials for a period of one year from the date
    of delivery to the original purchaser.
  • Warning
    ICP DAS assumes no liability for damages resulting from the use of this product. ICP DAS reserves the right to change this manual at any time without notification. The information furnished by ICP DAS is believed to be accurate and reliable.
    However, no responsibility is assumed by ICP DAS for its use, or for any infringements of patents or other rights of third parties resulting from its use.
  • Packing List

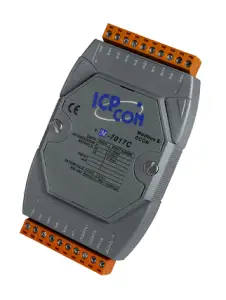

    I-7017(F)C or M-7017C

    Plastic Rail



    CD

    Quick Start Guide

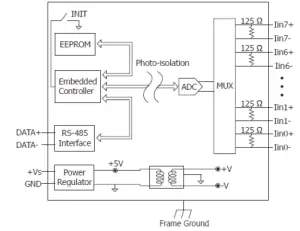

 Internal I/O Structure

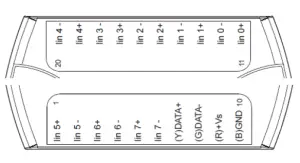

Pin Assignments

Wire Connections

Modbus Table (M-7017C only)

AddressDescriptionR/W
10129 ~

10136

00129 ~

00136

Over/under range status of channel 0 to 7 for 4 ~ 20mA or 0 ~ 20mA rangesR
30001 ~

30008

40001 ~

40008

Analog input value of channel 0 to 7R
40481Firmware version (low word)R
40482Firmware version (high word)R
40483Module name (low word)R
40484Module name (high word)R
40485Module address, valid range: 1 ~ 247R/W
40486Bits 5:0

Baud rate, 0x03 ~ 0x0A









Bits 7:6

00: no parity, 1 stop bit

01: no parity, 2 stop bit

10: even parity, 1 stop bit

11: odd parity, 1 stop bit

R/W
AddressDescriptionR/W
40487Type codeR/W
40488Modbus response delay time in ms,

valid range: 0 ~ 30

R/W
40489Host watchdog timeout value, 0 ~

255, in 0.1s

R/W
40490Channel enable/disable, 00h ~ FFhR/W
40492Host watchdog timeout count, write 0

to clear

R/W
00257Protocol, 0: DCON, 1: Modbus RTUR/W
00259Filter setting, 0: 60Hz rejection, 1:

50Hz rejection

R/W
002611: enable, 0: disable host watchdogR/W
00269Modbus data format, 0: hex, 1:

engineering

R/W
00270Host watch dog timeout status, write 1 to clear host watch dog timeout

status

R/W
00273Reset status, 1: first read after powered on, 0: not the first read after

powered on

R

DCON Protocol

FunctionsCommandResponseNotes
Read module name$AAM!AA(Data)AA: address number
Read module firmware version$AAF!AA(Data)
Read all analog input data#aa>(data)
Read analog input data of each channel (<=16 channel)#aai>(data)i: channel number (Hex)
Read analog input data of each channel (>16 channel)#aaii>(data)ii: channel number (Hex)

If you want to know the detail DCON protocol, please check it from CD or web CD path: \\napdos\7000\manual\
Web: ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/7000/manual/

Module test and configuration

Step 1: INIT switch Operation

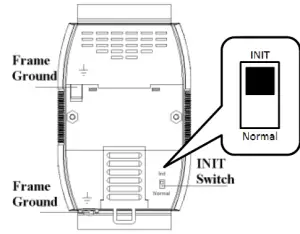

1.          Find out the INIT switch( back of the module), and turn to INIT.
2.          Reboot the module
Step 2: Install & Run DCON Utility
1.          Please Install DCON Utility first
You can find the software in the CD. CD path: <Driver>:\napdos\driver\dcon_utility\
 Web link: http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/
 2.          Run DCON utility

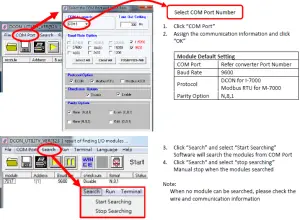

Step 3: Set search configuration & search module
Step 4: Select Module for testing and configuration

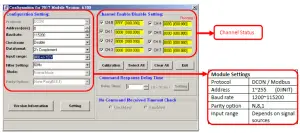

Step 5: Configuration Settings & Channel Settings

Step 6: Change to normal mode and keep the settings

  1.  Turn the INIT Switch to Normal.
  2. Reboot the module

Trouble Shooting

Q1. How to do when forgot module address or baud rate?

Please turn to INIT mode, and run DCON Utility to search. The module supports DCON protocol at the INIT mode.

And the address is 0. The communication setting is “9600,N,8,1”.

Q2. How to configure the I-7000 and M-7000 modules?

ICP DAS provide DCON Utility to configure I-7000 and M-7000 modules.

Please download the last version from: http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/

Q3. I-7017(F)C & M-7017C are the current input modules. Do they need external resistors for the measurement?

No, please refer internal I/O structure.

There is a 125Ω resistor inside for each channel.

Q4. How to calibrate the analog input module?

Usually it is not necessary to calibrate the analog input module.

However, in case you need to perform this operation, we provide a function to calibrate the module. Please refer to user manual 1.10.

Notice:

  1. Please update DCON Utility to version 2.3 or more.
  2. Keep the module running more than 30 minutes to warm-up.

Q5. How to programming with I-7000 or M-7000 by C#, VB, VC?

ICP DAS I-7000 and M-7000 series both support DCON protocol. And Only M-7000 series supports Modbus protocol. For DCON protocol, please download SDK and Demo from: http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_dll_new/

For Modbus protocol, please refer this web link: http://www.icpdas.com/products/PAC/i-8000/modbus.htm
