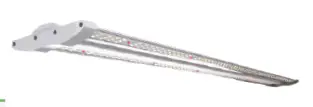

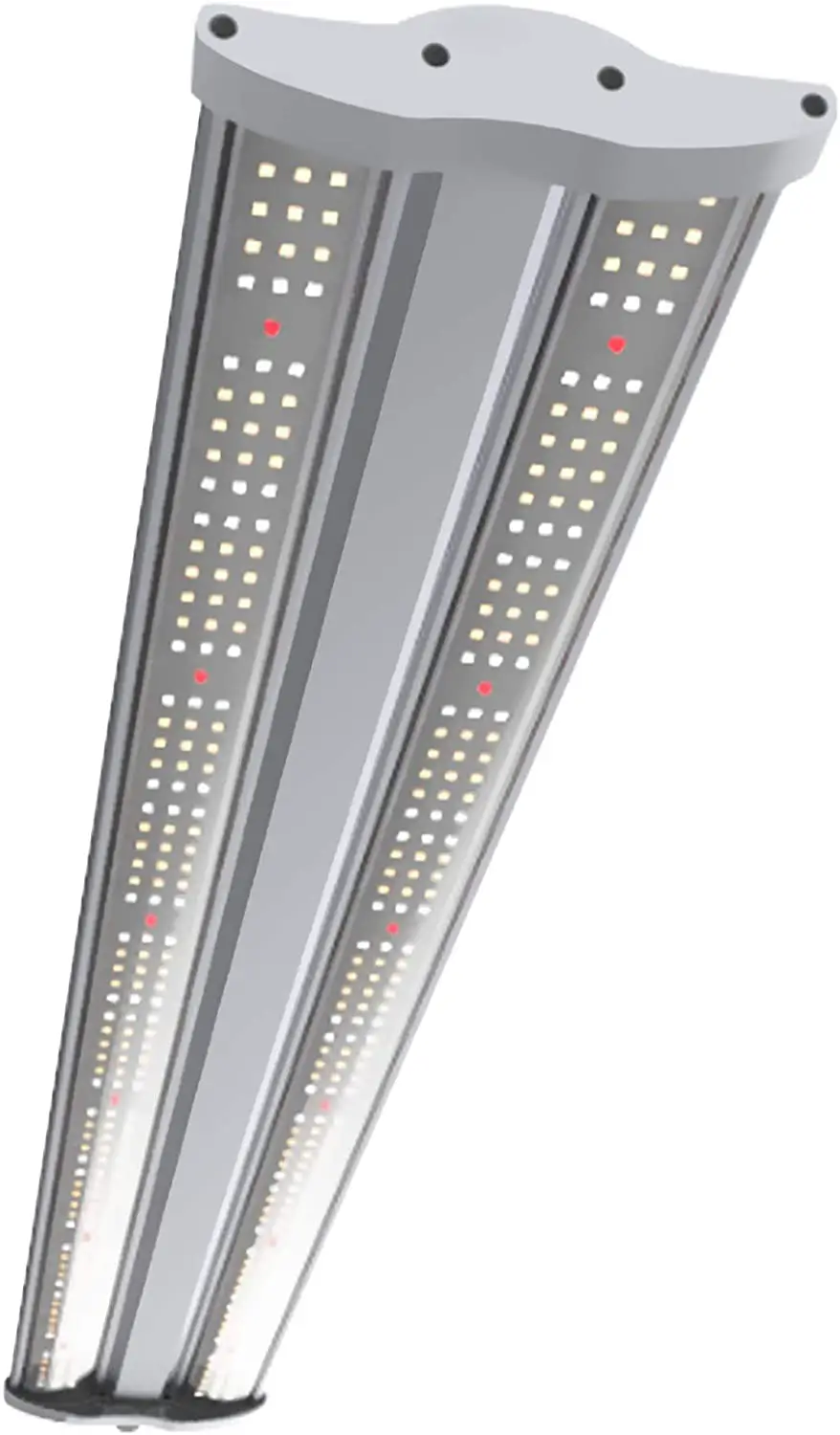

ILUMINAR iLW 2.5 40W IL-4025FSG-120 Single X-Wide 47 Inch FS Grow Light

ILUMINAR iLW 2.5 40W IL-4025FSG-120 Single X-Wide 47 Inch FS Grow Light fig 1

Please read this manual thoroughly prior to installing or operating the ILUMINAR iLW

  • Observe all safety precautions (see page 10), seek the services of a qualified electrician, installation professional, or call ILUMINAR Lighting technicians for assistance.
  • DO NOT handle or touch the fixture while in use.
  • Connect the fixture only to the power sources of the appropriate voltage using the correct AC plug type. Protect power cables from being pinched, walked on, or otherwise damaged. Be especially careful where the power cable enters the power outlet to the unit. Only connect the fixture to an electrical outlet or extension cord of comparable standard and level rating. Connect the fixture ONLY to the power sources of the correct voltage using the plug received.
  • The fixture should only be cleaned as directed. Always seek service for your system by qualified service personnel if any of the following occur:
    1. The fixture shows a noticeable change in performance.
    2. The power-supply cord or plug is damaged.
    3. The fixture has been dropped, or the exterior is damaged.

TECHNICAL SPECS

PPF100 µmol/s150 µmol/s200 µmol/s
BTU136204272
Emitter TypeMultiple Spectrum LED Diodes
Efficacy2.5 µmol/J

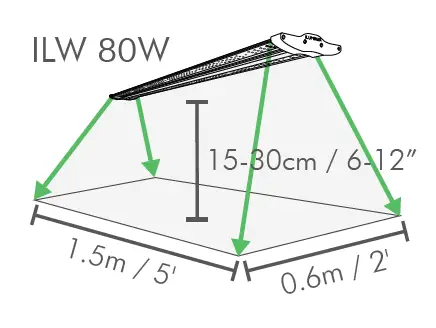

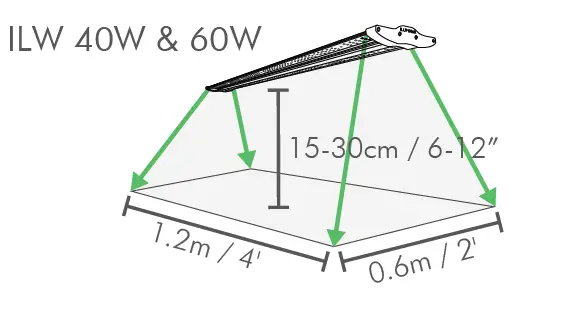

Minimum Mounting Height6-12” to top of Canopy
Emitter CoolingPassive / Extruded Case
Waterproof RatingIP65 for Damp/Wet Conditions
LED Lifespan (90%)55,000+ hours
Power Factor> 90%
Ambient Temperature0 – 35°C / 32-95°F
Color Temperature4000k
Relative Humidity98%
Frequency50 / 60Hz
THD< 20%
Color Rendering Index88
Min. Power Factor0.9
Crest Factor0.99

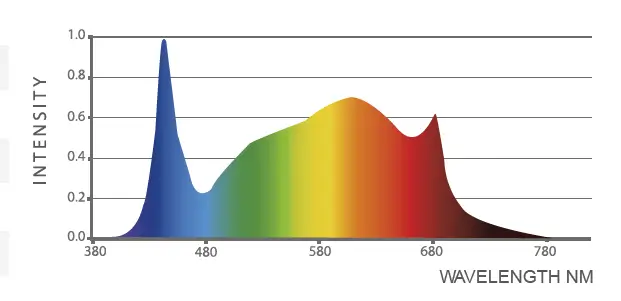

ILUMINAR iLW 2.5 40W IL-4025FSG-120 Single X-Wide 47 Inch FS Grow Light fig 2ILUMINAR iLW 2.5 40W IL-4025FSG-120 Single X-Wide 47 Inch FS Grow Light fig 3ILUMINAR iLW 2.5 40W IL-4025FSG-120 Single X-Wide 47 Inch FS Grow Light fig 4

VOLTAGE AND AMPERAGE

120V0.36A42W0.53A62W0.69A82W
208V0.20A41W0.30A61W0.40A81W
240V0.18A40W0.27A60W0.36A80W

ILUMINAR iLW 2.5 40W IL-4025FSG-120 Single X-Wide 47 Inch FS Grow Light fig 5

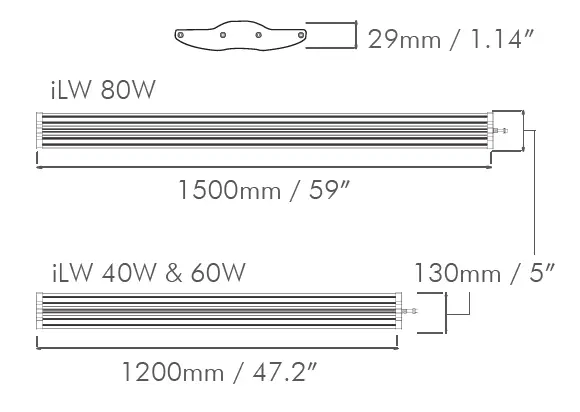

PHYSICAL SPECS

Height29mm / 1.14”29mm / 1.14”29mm / 1.14”
Width130mm / 5”130mm / 5”130mm / 5”
Length1200mm / 47.2”1200mm / 47.2”1500mm / 59”
Weight2.2lbs/1kg2.2lbs/1kg2.75lbs/1.13kg

ILUMINAR iLW 2.5 40W IL-4025FSG-120 Single X-Wide 47 Inch FS Grow Light fig 6

HARDWARE AND ACCESSORIES

The iLW LED fixture can be hung from steel cables or can be mounted to a rack.
Before you begin installation, check that you have all the necessary parts to begin.ILUMINAR iLW 2.5 40W IL-4025FSG-120 Single X-Wide 47 Inch FS Grow Light fig 7

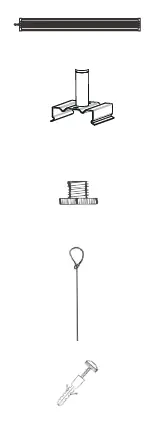

IN THE BOX

  1. iLW Fixture
  2. 2 Metal Clips for Hanging Cables
  3. 2 Screws for Clips & Hanging Cables
  4. 2 Steel Hanging Cables with Cylindrical Lock
  5. 4 Screws & 4 Anchors

ILUMINAR iLW 2.5 40W IL-4025FSG-120 Single X-Wide 47 Inch FS Grow Light fig 17HANGING INSTALLATION

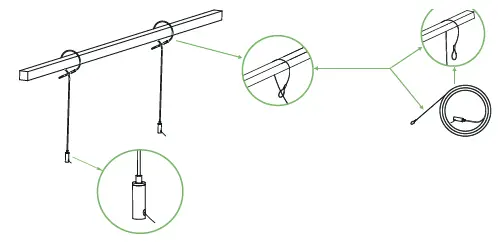

  1. Loop the steel cables over the beam, feeding the wire through its loop and letting the cylindrical lock hang.ILUMINAR iLW 2.5 40W IL-4025FSG-120 Single X-Wide 47 Inch FS Grow Light fig 8

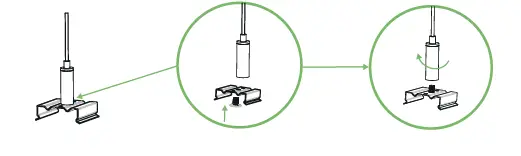

  2. Using the provided screw, attach the clip to the steel cable’s cylindrical lock.ILUMINAR iLW 2.5 40W IL-4025FSG-120 Single X-Wide 47 Inch FS Grow Light fig 9

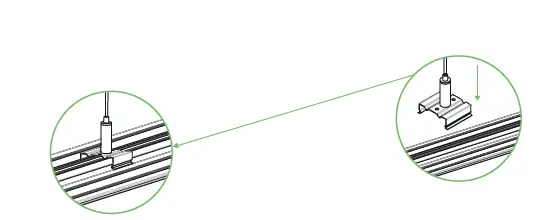

  3. Snap the clips onto the light bar’s heat sink.ILUMINAR iLW 2.5 40W IL-4025FSG-120 Single X-Wide 47 Inch FS Grow Light fig 10

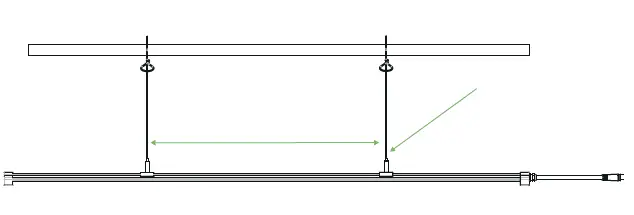

  4. Adjust the spacing of the clips as needed.ILUMINAR iLW 2.5 40W IL-4025FSG-120 Single X-Wide 47 Inch FS Grow Light fig 11

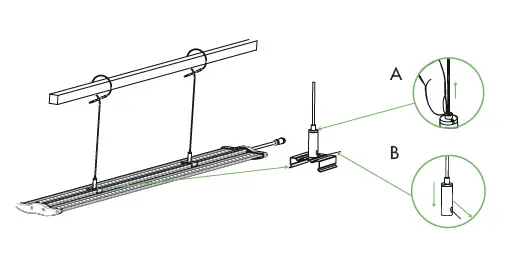

  5. Pull the steel cable down through the cylindrical lock to adjust the fixture height. ILUMINAR iLW 2.5 40W IL-4025FSG-120 Single X-Wide 47 Inch FS Grow Light fig 12
    To shorten cable: Press the cable down through the cylindrical lock. (Figure A) To extend cable: Press metal top down and pull up on cable. (Figure B)

MOUNTING INSTRUCTIONS

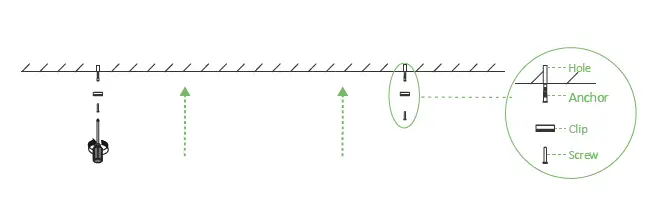

  1. Drill 4 holes into an overhead structure or rack. Insert the provided mounting anchors into the holes and screw the metal clips directly into the anchors.ILUMINAR iLW 2.5 40W IL-4025FSG-120 Single X-Wide 47 Inch FS Grow Light fig 13

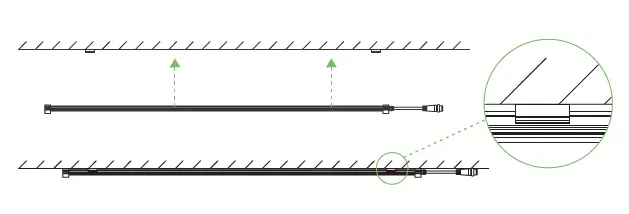

  2. Drill 4 holes into an overhead structure or rack. Insert the provided mounting anchors into the holes and screw the metal clips directly into the anchors.ILUMINAR iLW 2.5 40W IL-4025FSG-120 Single X-Wide 47 Inch FS Grow Light fig 14

ADDITIONAL ACCESSORIES

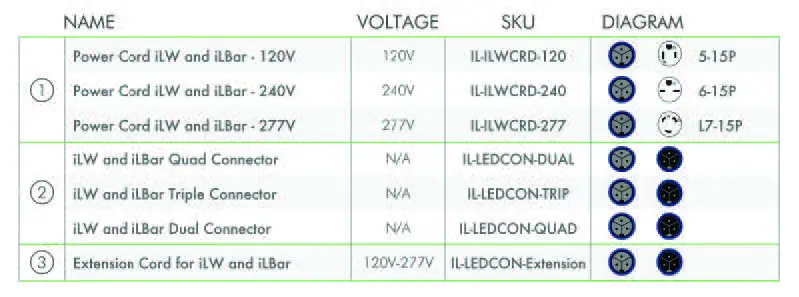

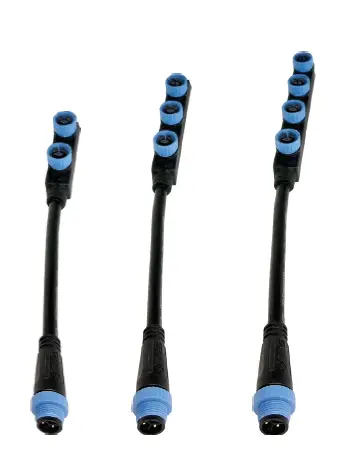

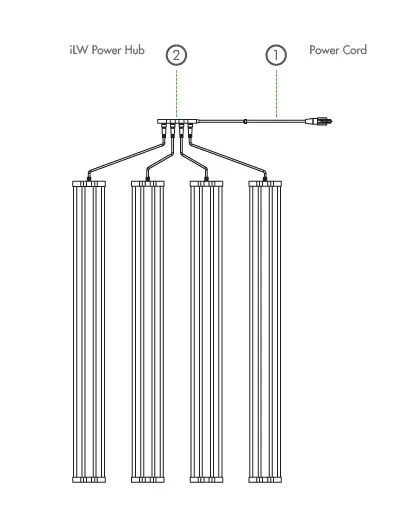

iLW Power Hub
If you use more than one iLW in your grow room or clone rack, save space by adding in the iLW Power Hub. The hub comes as a dual-, tri- or quad-connector that will send power to each of your iLW fixtures without the need of additional outlets.
When using the LW Dual/Tri/Quad Power Hubs for daisy-chaining fixtures, the max load at 120V is 400W Power and at 277V is 800W power.ILUMINAR iLW 2.5 40W IL-4025FSG-120 Single X-Wide 47 Inch FS Grow Light fig 15ILUMINAR iLW 2.5 40W IL-4025FSG-120 Single X-Wide 47 Inch FS Grow Light fig 16ILUMINAR iLW 2.5 40W IL-4025FSG-120 Single X-Wide 47 Inch FS Grow Light fig 18

PRECAUTIONS

Please read the following list carefully prior to beginning installation.

  1. Leave at least one inch of space between the fixture and the mounting area for maximum performance and lifespan.
  2. ALWAYS wear protective eyewear when looking directly at the diodes to prevent eye damage.
  3. Only handle, clean or move fixture when it’s unplugged and completely cool.
  4. Keep the fixture free of dust, debris, and deposits to ensure the maximum potential of the fixture.
  5. NEVER use a cloth to clean the diodes. This can scratch the diodes and could potentially break or dislodge them.
  6. DO NOT use chemicals to clean the fixture. Use ONLY low pressure air or low pressure water to remove dust and debris.
  7. DO NOT exceed 70% max load for breakers due to inrush current in LED fixtures

GUARANTEE
At ILUMINAR, we stand behind our products and our technology as well as our customers. All ILUMINAR LED fixtures are backed by our 5-Year Guarantee. Please visit our website iluminarlighting.com/warranty for more information.

1-877-540-5588 iluminarlighting.com

[email protected]
