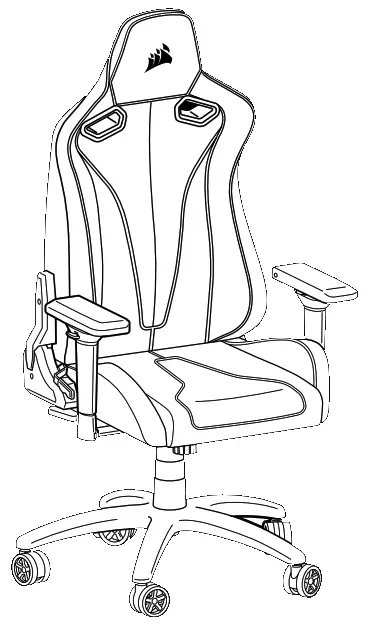

TC200
Gaming Chair

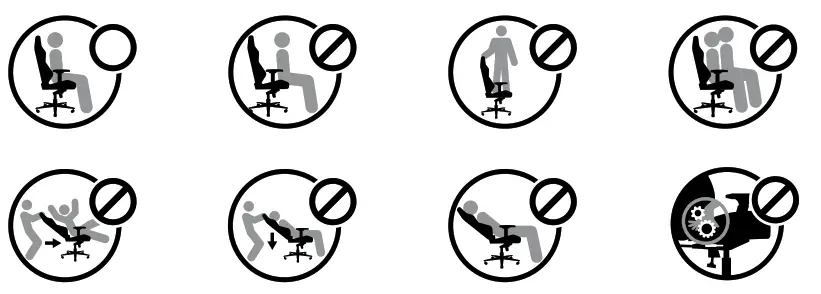

SAFETY GUIDELINES
Do not use the chair outside its intended use or load limit.
TC-Series meets or exceeds requirements for safety and durability with the following tests:
For information on your new gaming chair’s warranty, please visit: www.corsair.com/warranty
ANSI/BIFMA X5.1-XXXX
EN1335-2 BS7176 BS5852

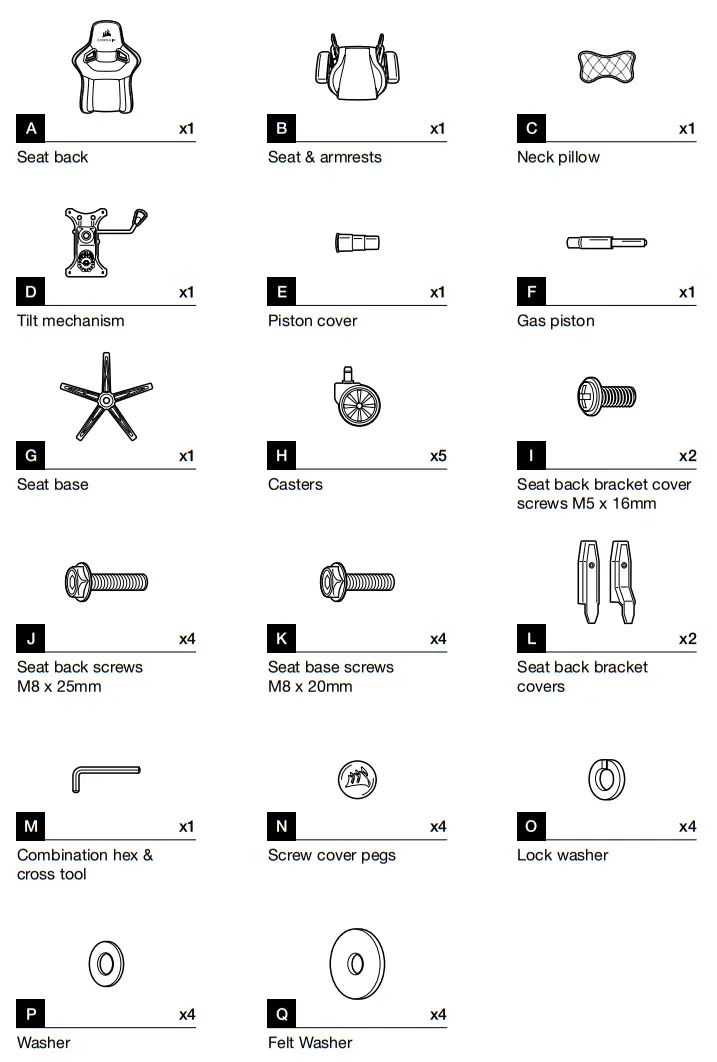

TC200 BOX CONTENTS
TC200 ASSEMBLY INSTRUCTIONS

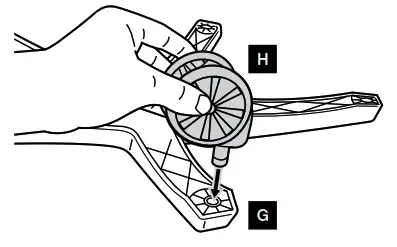

- Push casters (H) into the base (G). Repeat 5 times.

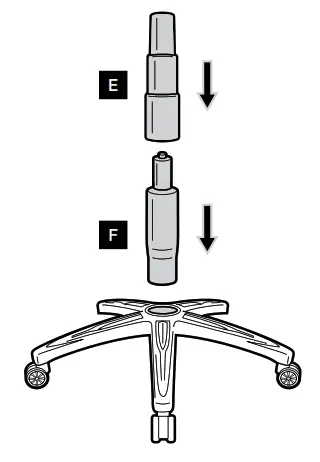

- Place gas piston (F) into the base. Place cover (E) over the piston.
- The assembled base should look like this.

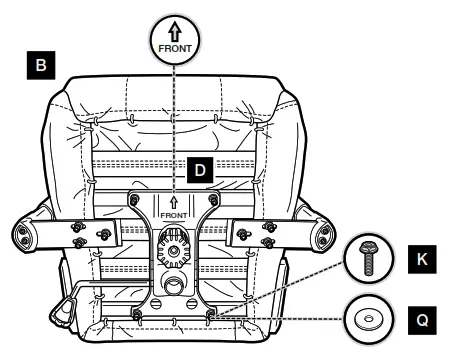

- Mount tilt mechanism (D) to seat base (B) with included bolts (K,Q)

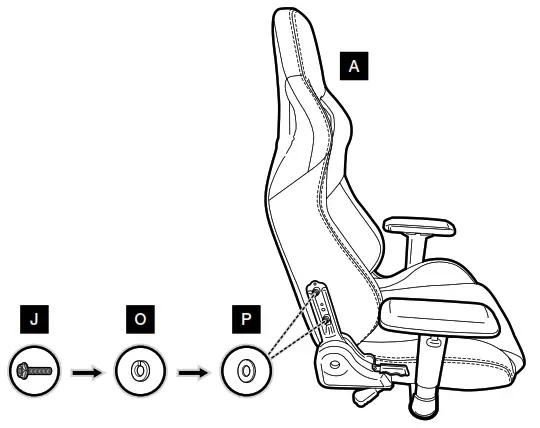

- Slide seat back (A) in between supports and fasten with included bolts (J, O, P). Repeat on other side.

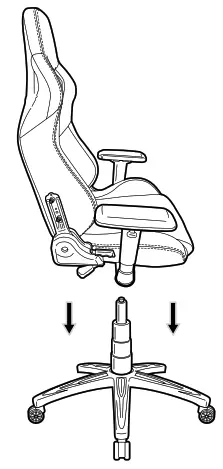

- Place seat assembly onto the base.

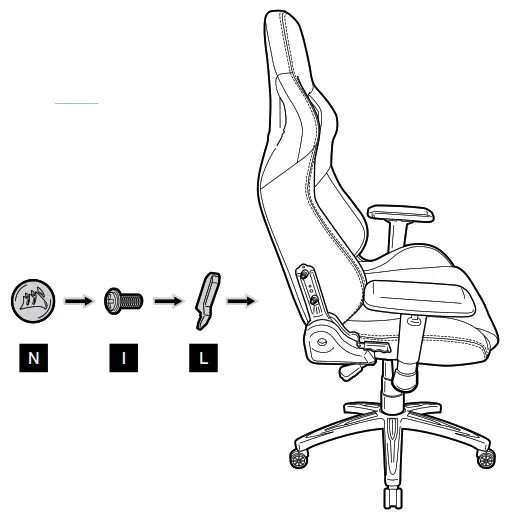

- Secure cover (L) to chair with screw (I) and then cover with peg (N). Repeat on another side.
- OPTIONAL: If desired, secure the neck pillow (C) with the straps placed through the holes in the chair back.

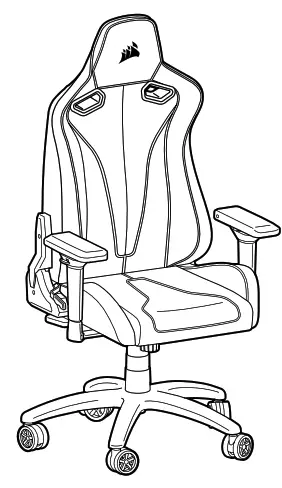

- That’s it, you’re done! Have a seat, relax.
USER MANUAL
WARNING: Improper use of this chair may cause damage to this chair or result in personal injury. Please use this chair in a non-abusive manner.
- Tilt lock/height adjustment lever.
Push the lever towards the center of the chair to engage the tilt lock. Pull it away from the chair to disengage the tilt lock.
To lower the height of the chair, pull the lever upwards while weight is applied on the chair. To increase the height, pull the lever up while the chair is empty. - Recline lever

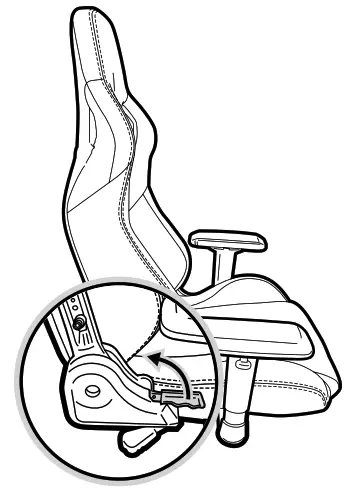

Pull this lever up to recline the seat back forward or backward.
To lower the height of the chair, pull the lever upwards while weight is applied on the chair. To increase the height, pull the lever up while the chair is empty.
WARNING: Do not apply pressure to the seat back prior to pulling the recline lever.
The sudden shift of weight may cause the chair to become unstable which may cause damage to the chair and/or result in personal injury.
https://youtube.com/c/CORSAIRHowTo
FOR A VIDEO VERSION OF THIS GUIDE, PLEASE VISIT OUR CORSAIR LAB CHANNEL AT: https://youtube.com/c/CORSAIRHowTo
