Shad Hosh39st Sh300i 19-20 Installation Guide

Shad Hosh39st Sh300i 19-20 Installation Guide

SHAD logo

HONDA SH300i ’19-20
TOP MASTER HOSH39ST
SHAD logo2

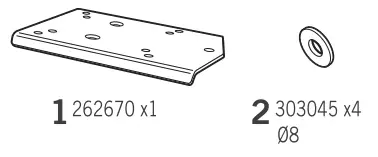

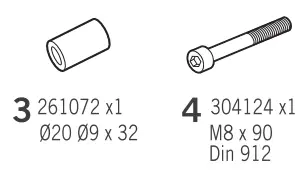

SHAD HOSH39ST SH300i 19-20 - patSHAD HOSH39ST SH300i 19-20 - pat2

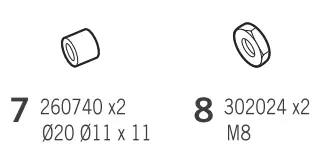

SHAD HOSH39ST SH300i 19-20 - pat3SHAD HOSH39ST SH300i 19-20 - pat4

LOEWE -icon WARNING

Do not fully tighten the screws until it is ensured that the KIT is correctly attached L and aligned.

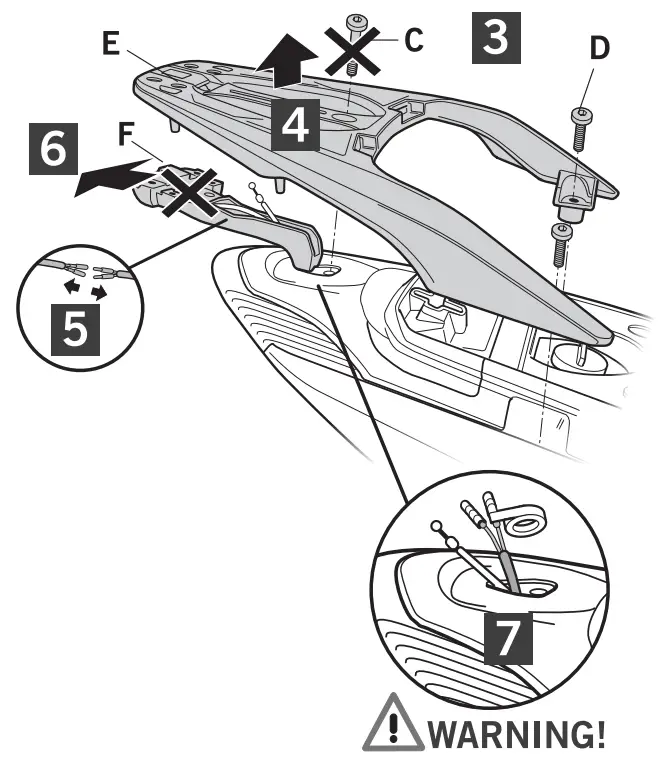

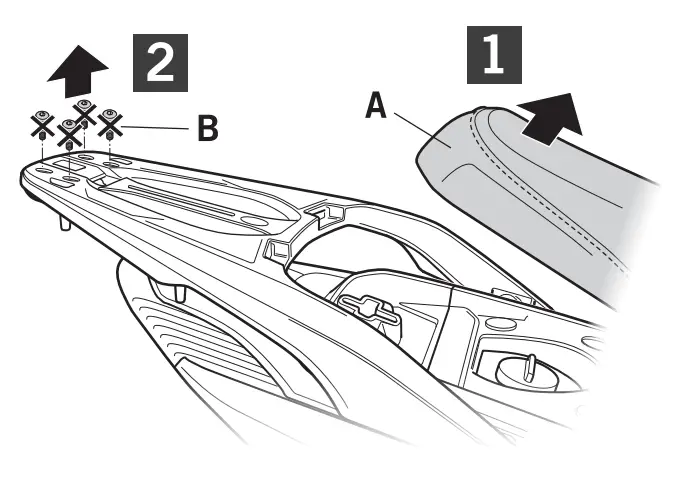

SHAD HOSH39ST SH300i 19-20 - 12SHAD HOSH39ST SH300i 19-20 - 3456

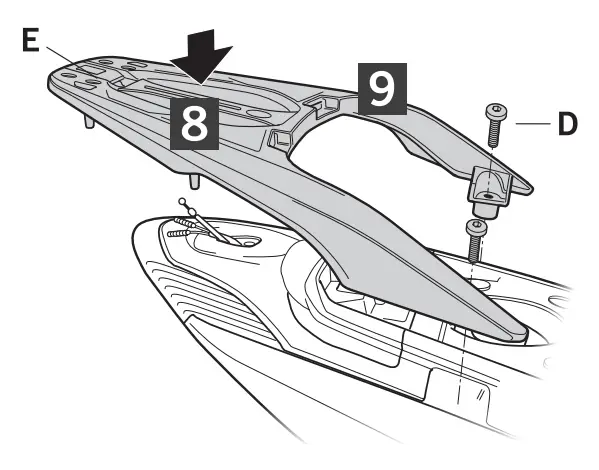

SHAD HOSH39ST SH300i 19-20 - 89SHAD HOSH39ST SH300i 19-20 - 10 11

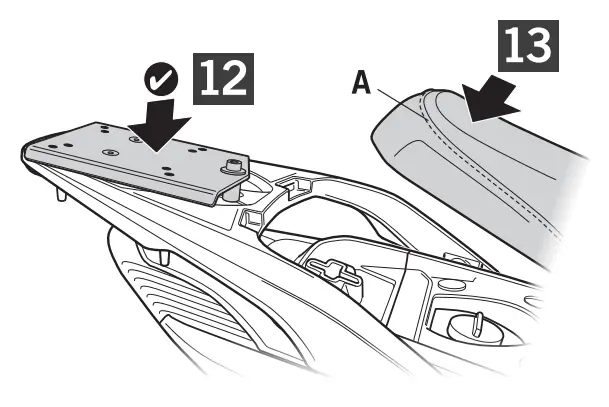

SHAD HOSH39ST SH300i 19-20 - 12 13

www.shad.es
REF. 500479 Edici6n 1á

IMPORTANT: Based on European models. For compatibility with models in other continents, check www.shad.es
