Shada 2400380-2 High Bay Installation Guide

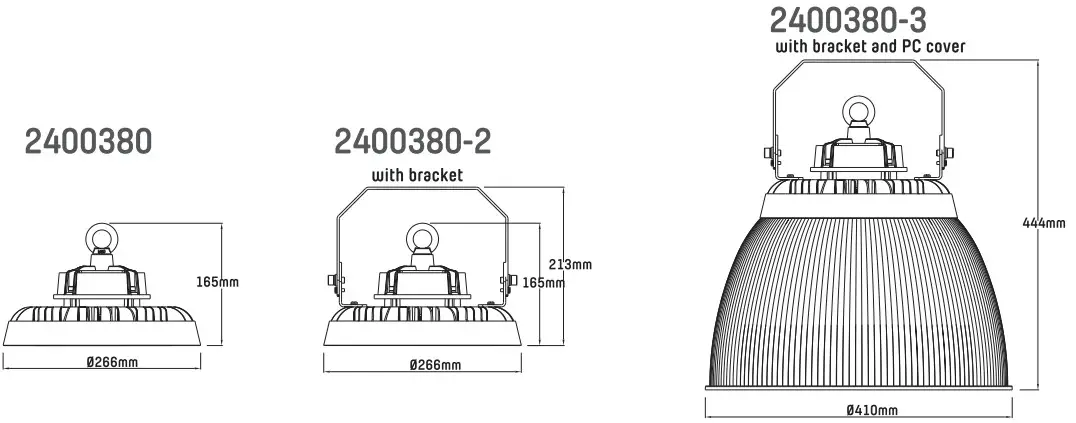

2400380, 2400380-2, 2400280-3
installation manual and specifications

2400380-2 High Bay

WARNING
Risk of fire or electric shock. The electrical rating of these products are 220-240 Vac, the installer must determine whether they have 100-277 Vat the luminaire before installation.
Risk of fire or electric shock. LED Commercial High Bay installation requires knowledge of luminaires electrical systems.
If not qualified,do not attempt installation. Contact a qualified electrician.
To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.
Disconnect power before installing the product or servicing it.
Wait until fixture has cooled down before installing or servicing the fixture.

Reflector 2400380-3

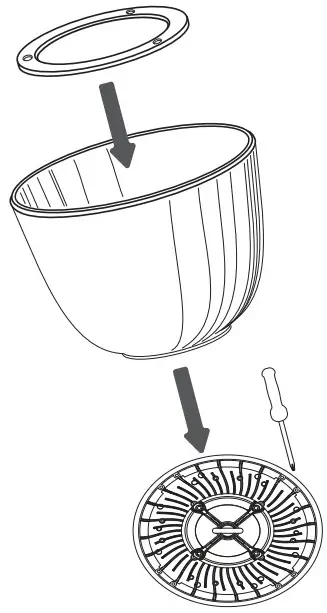

Remove (3) protruding screws on LED High Bay. Place reflector ring within plastic reflector. Align holes on ring and plastic reflector with fixture and fasten screws back into fixture.

Disconnect pouer before installing the product or servicing it
Installing LED High Bag

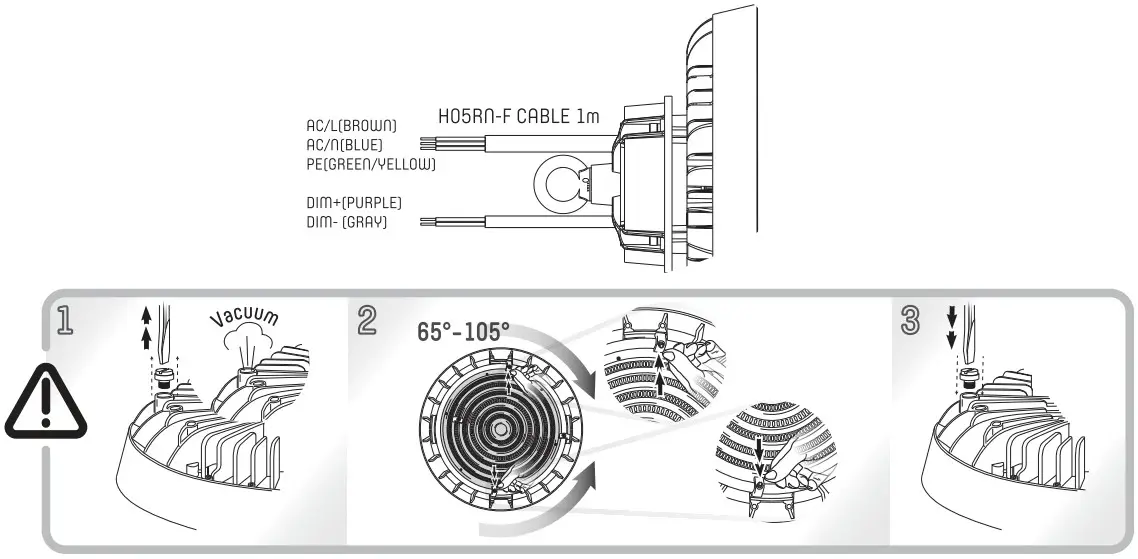

1. Install the hook onto the top hole and rotate it to the end
2. Fasten the screw nut tightly with wrench
3. Fasten the security screw
4. Hook the product onto the designated location and fasten the security screu tightly.
5. make all wiring connections.
   Cap off dimming wires if not used.

WARNING

Safety warning!
Ensure you have fully read and understood the instructions in this document before you install or use the product following the installation/wire diagram (when applicable). Keep this document for future reference and only use the product as described in this document. Any other use of the product than described in this manual may damage the product or cause injury to the user (e.g. due to a short circuit. fire or electric shock). Disconnect the product from the power source if problems occur. Do not drop the product and avoid bumping. Do not use the product if a part is damaged or defective. Replace a damaged defective product immediately. When a non-standard consumer (power)installation is required this should be performed by a qualified technician to reduce the risk of an electric shock. Make sure the product is sufficiently ventilated during use. Never cover an electrical (LED) device during usage since it can generate heat causing damage. Besides LED can be extremely bright and may cause serious eye damage so don’t stare at it directly. When a product is meant for indoor and/or outdoor use only, this will be mentioned on the product/parts or in the manual. Keep the product out of reach of children or animals.

Cleaning and Maintenance warning!

Do not use cleaning solvents or abrasives. Do not clean the inside of the device. Do not attempt to repair the device when the device does not operate correctly. replace it. Clean the outside of the device using a soft, damp cloth (don’t use microfiber cloth).
Support:
If you need further help or have comments or suggestions please visit www.shada.nl/nl/contact
Caution! Risk of electric shock
The item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment.
This product carries the CE mark, which confirms that this product meets EU safety, health and environmental protection requirements.

http://www.shada.nl/p/2400229_01

Molenmakershoek 28111-7328 JK APELDOOR11- The fletherlands • www.shada.nl

WEEE: AL: 3505,
DE: 37281017,
AT: 40133, ES: 7020
