PLMRBT33WT Marine UTV Off-Road Bluetooth Speaker
User Manual

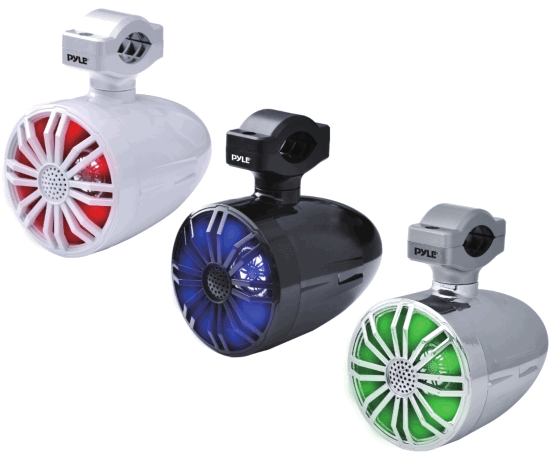

PLMRBT33WT Marine UTV Off-Road Bluetooth Speaker
Compact PowerSport Vehicle Speaker System for Motorcycle or Car with RGB Lights and Remote Control
Features
- Motorcycle Box Waterproof Stereo System
- 3.5” Long Excursion Woofer
- Completely Waterproof
- Wireless BT Music Streaming
- Compact & High-Powered Output
- Marine Grade Waterproof Rated Construction
- Weatherproof & Water-Resistant Housing
- Full Range Stereo Sound Reproduction
- Impressive Bass Response
- Sleek Design, Machine Molded Speaker Cabinet Housing
- Rugged, Universal Mount Bracket Design for Roll-Bar / Roll-Cage
- Used for Off-Road Outdoor Vehicles: ATV, UTV, 4×4, Jeeps, Marine Watercraft
- Quick Butt Connector for Speaker Wiring
Mounting Bracket

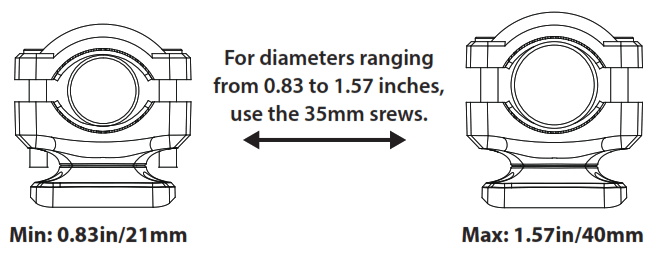

Mounting screws
Two types of mounting screws are provided to accomodate most mounting pole diameters.

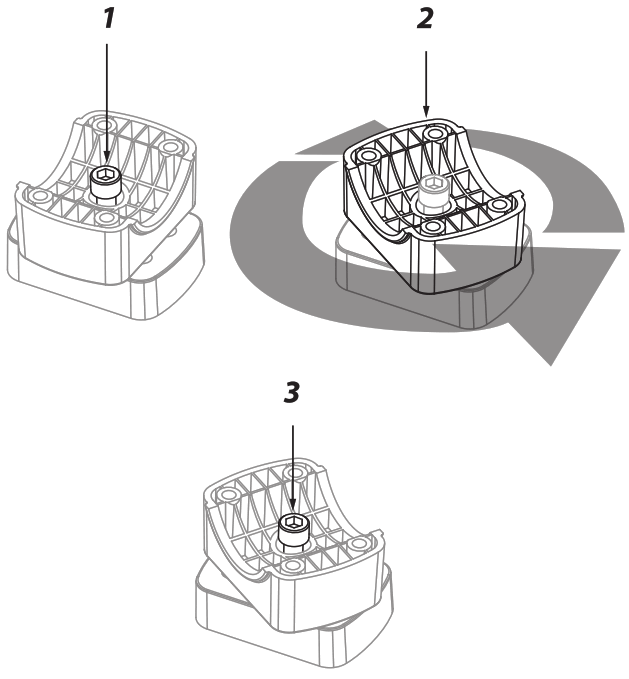

360° Rotation Function
- Loosen the rotation adjustment screw.
- Rotate the lower mounting bracket to the desired position.
- Lock the rotation adjustment screw.

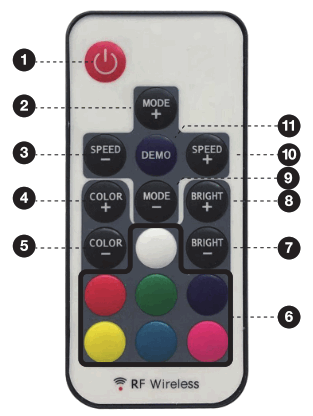

Remote Control
1. Turn ON/Standby:
Press this key to turn ON unit or switch to stand by mode. At power ON, unit will automaticly turn ON and restore to previous status.
2/9. Dynamic Mode Adjust:
Switch to dynamic mode from static color, or switch between dynamic modes
3/10. Dynamic Speed Adjust:
Adjust dynamic playing speed Press
SPEED + to increase speed and press
SPEED – to decrease Unit will switch to dynamic mode if press this key at static cotor mode.
4/5. Static Color Adjust:
Switch to static color mode from dynamic mode, or switch between static colors.
6. Direct Color Select:
Shortcut key to static colors. When press the specific color key, LED will play the same static color. The direct colors are included in ‘COLOR +’ and ‘COLOR-‘ operation.
7/8. Brightness Adjust:
Adjust static color brightness. Press BRIGHT + to increase brightness and press BRIGHT – to decrease Unit will switch to static color mode If press this key at dynamic mode.
11. Demo Mode:
Press this key will switch to Demo mode. At demo mode, it plays 17 dynamic modes in loop, each mode repeat 3 times.
- 22 Dynamic Modes
- Card Type RF Remote
- 20 Static Colors
- Ultra Slim Design
- Very Smooth Effects
- Dynamic Demo Mode
- Speed Adjustable
- Easy Remote Pairing
- Brightness Adjustable
- Direct Color Select

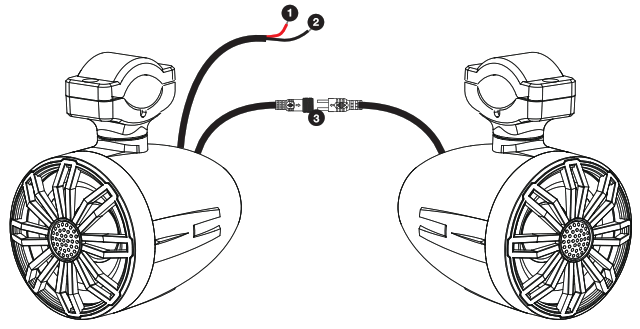

Installation Guide
- Speaker and RGB power + (red), (DC12V)
- Speaker and RGB power – (black), (DC12V)
- Connect to each other (Speaker and RGB wires)
California Prop 65 Warning Z.
WARNING: This product contains Nickel carbonate which is known to the state of California to cause cancer birth defects and other reproductive harm. Do not ingest.
