Installation Instructions
Models OD-BP/OD-BP-R and OD-GP/OD-GP-R
Blank/Grill Plates
OD-BP-OD-BP-R Blank-Grill Plates

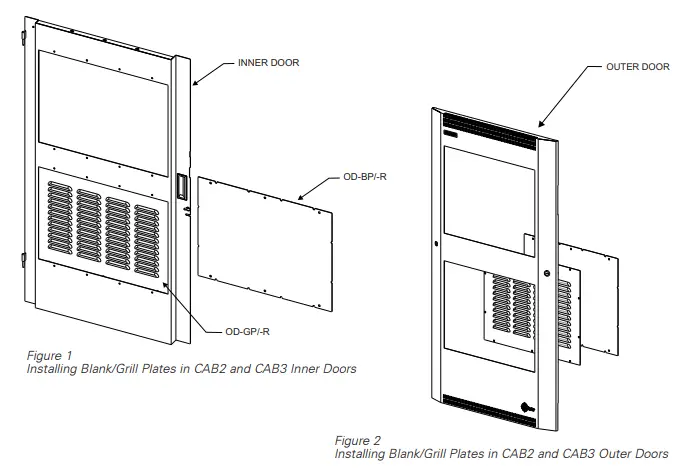

Insert blank/grill plates, as needed, in unused spaces on door and secure with 10-32 nuts provided. Refer to Figures 1 and 2.
SPECIFICATIONS
| Physical Dimensions | 19.72” X 15.0” |
| Material | 16 GA (.060”) Galvanneal Steel |
| Finish | RAL9017 Black for OD-BP and OD-GP RAL3020 Red for OD-BP-R and OD-GP-R |
Siemens Industry, Inc.
Building Technologies Division
