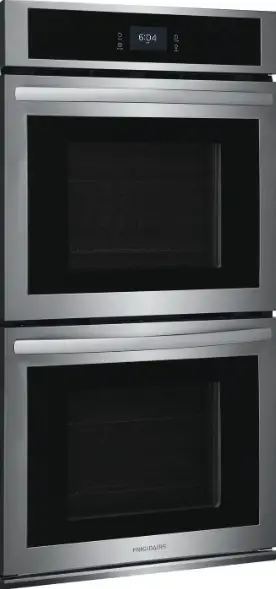

FRIGIDAIRE FCWD2727AS 27 Inch Double Electric Wall Oven with Fan Convection
Double Wall Oven
27″ Double Electric Wall Oven with Fan Convection
FCWD2727AS, FCWD2727AW, FCWD2727AB
Available Colors : Stainless Steel, White, Black
Version : 01/22
Cooking Controls
| Bake | Yes | |
| Bake Time | Yes | |
| Broil | Yes | |
| Cancel | Yes | |
| Clock | Yes | |
| Convection Bake | Yes | |
| Cook Time | Yes | |
| Delay Start | Yes | |
| Keep Warm | Yes | |
| Kitchen Timer | Yes | |
| Light | Yes | |
| Off | Yes | |
| Oven Light | Yes | |
| Preheat | Yes | |
| Quick Preheat | Yes | |
| Self Clean | Yes | |
| Start | Yes | |
| Temperature Display | Yes | |
| Timer On / Off | Yes |
Cooking Controls Function
- Change between Continuous Bake Setting or Yes 12-Hour Energy Saving Feature Yes
- Delayed BakeYes
- Program Fahrenheit or CelsiusYes
- Silent Control Panel Yes
Oven
| Bake Element | 2,500 Watts | |
| Bake Element Pass | 8 | |
| Bake Element Type | Hidden | |
| Broil Element | 4,000 Watts | |
| Broil Element Pass | 6 | |
| Broil System | Yes | |
| Cleaning System | Yes | |
| Convection | Yes |
| Number of Convection Fans | 1 | |
| Number of Rack Positions | 5 | |
| Oven Interior Color | Midnight Black | |
| Oven Light Quantity | 1 | |
| Oven Light Type | Halogen | |
| Oven Light Watts | 40 Watts | |
| Rack Position Type | Embossed | |
| Rack Type 1 | Handle | |
| Rack Type 1 Quantity | 2 | |
| Controls | ||
| Control Lock | Yes | |
| Sabbath Mode | Yes | |
| Display | ||
| Control Location | Front | |
| Display Interface Color | White | |
| Display Light Color | White | |
| Display Type | LED |
Controls
- Control Lock Yes
- Sabbath Mode Yes
Display
- Control Location Front
- Interface Color White
- Display Light Color White
- Display Type LED

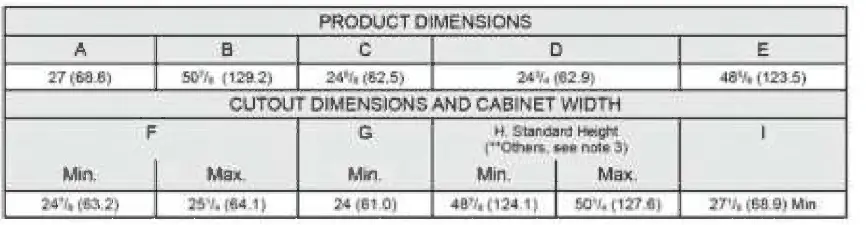

Dimensions and Volume
- Height 50 7/8″
- Width 27″
- Depth 24 3/4″
- Depth With Door 90° Open 45 3/4″
- Depth With Handle 27 7/16″
- Oven Lower Oven Interior Height 17″
- Lower Oven Interior Width 20 1/2″
- Lower Oven Interior Depth 18 3/4″
- Upper Oven Interior Height 17″
- Upper Oven Interior Width 20 1/2″
- Oven Interior Depth 18 3/4″
- Minimum Cutout Height 48 7/8″
- Minimum Cutout Width 24 7/8″
- Maximum Cutout Height 50 1/4″
- Maximum Cutout Width 25 1/4″
- Oven Lower Capacity 3.8 Cu. Ft.
- Oven Upper Capacity 3.8 Cu. Ft.
- Total Capacity 7.6 Cu. Ft.
Electrical Specifications
- Amps @ 240 Volts 40 Amps
- Connected Load @ 240V 9 kW
- Minimum Circuit Required 40 Amps
- Voltage Rating 240 V
Installation
- Power Supply Connection Location Top Left
- General Specifications
- Prop 65 Label Yes
- Warranty – Labor 1 Year
- Warranty – Parts 1 Year
- Frigidaire Fit Promise Yes
- Certifications and Approvals
- Safety Certifications and Approvals
- CSA Listed Yes
- UL Listed Yes
- RoHS Y
Version : 01/22
NOTES

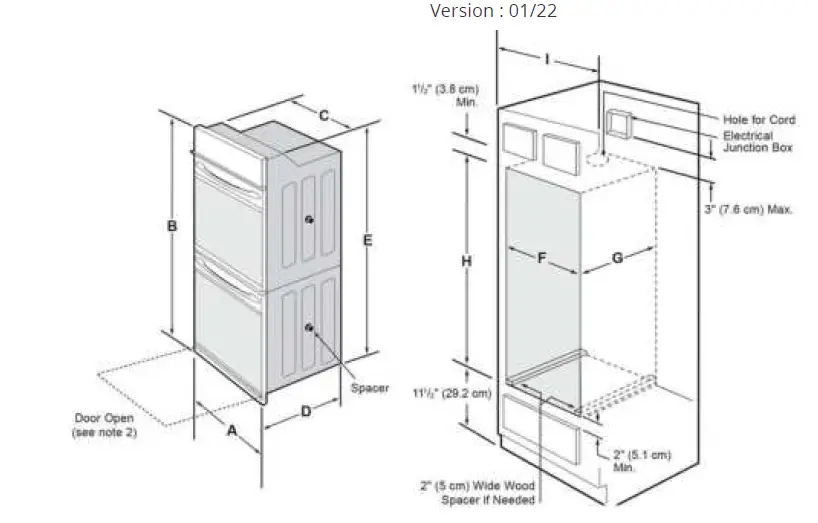

- Allow at least 21″ (53.3 cm) clearance in front of oven for door depth when it is open
- Dimension G (cufout depth) is critical to the proper installation of the built-in oven. If the oven trim does not butt against the cabinet, or if noise is heard on convection models, verity dimension G to assure it is according to the required dimension
- For a cutout height greater than 49″ (125.4) add 25 cm) wide wood shims of appropriate height to each side of the opening under the appliance side rails. You can order a larger bottom trim through a service enter.
- if the junction box is below the oven, linger conduit cables are available through a service center.
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com /frigidaire.ca
Specifications subject to change. Accessories information available on the web at frigidaire.com / frigidaire.ca
