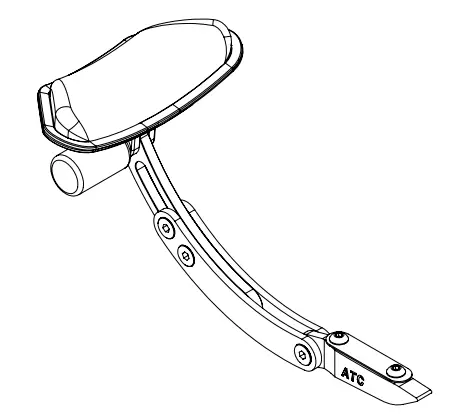

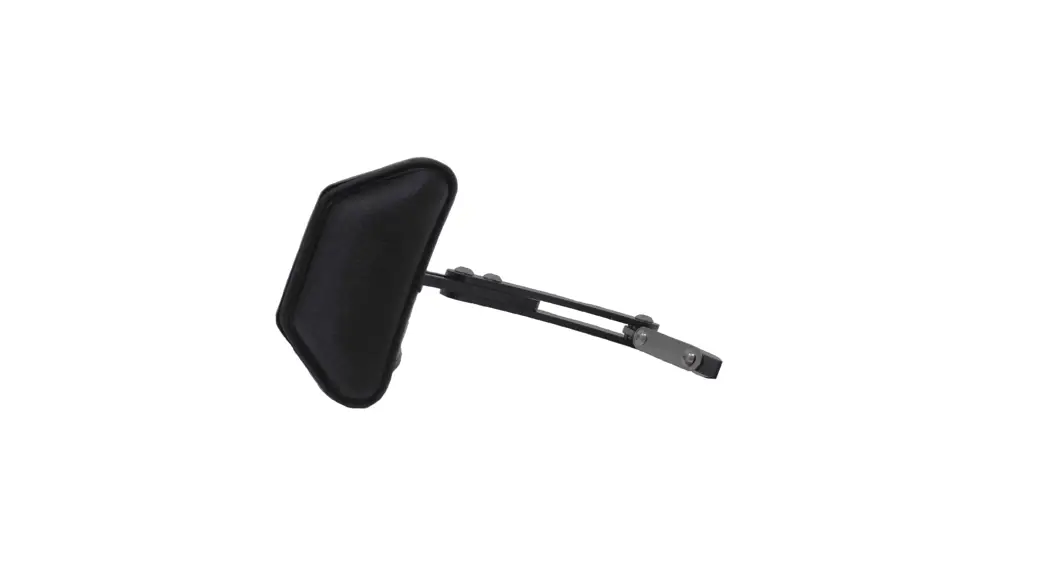

Spyder ATC Head Rest (TT600913)
Tools Needed: 3mm Allen Wrench, 4mm Allen Wrench.

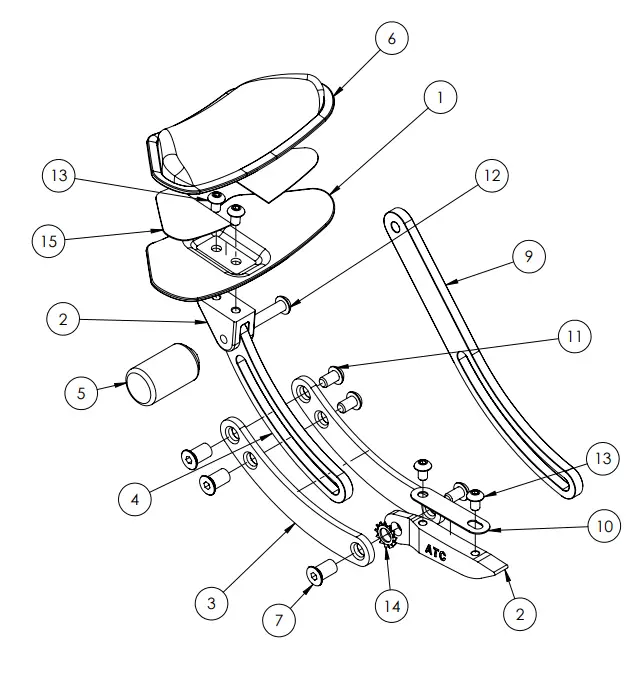

Parts Included:
| ITEM NO. | PART NUMBER | DESCRIPTION | QTY. |
| 1 | TT000885 | Sport Touring Headrest Plate | 1 |
| 2 | TT000887 | Sport Touring Headrest Plate Mount | 1 |
| 3 | TT000888 | Sport Touring Headrest Female Arm | 2 |
| 4 | TT000889 | Sport Touring Headrest Male Arm | 1 |
| 5 | TT000890 | Sport Touring Headrest Light Mount | 1 |
| 6 | TT000892 | Sport Touring Headrest Pad | 1 |
| 7 | TT000894 | Hinge Nut M6x14L | 3 |
| 2 | TT000902 | Sport Touring Headrest Mount ATC | 1 |
| 9 | TT000903 | Sport Touring Headrest Male Arm XL | 1 |
| 10 | TT000904 | ATC Headrest Mount Washer | 1 |
| 11 | WH000021 | M6x1.0 x 10mmL SBHCS SS | 3 |
| 12 | WH000022 | M6x1.0 x 25mmL SBHCS SS | 1 |
| 13 | WH000023 | M5x0.8 x 8mmL SBHCS SS | 4 |
| 14 | WH000026 | M8 SS External-Tooth Lock Washer | 2 |
| 15 | Curved | Sport Touring Headrest Velcro | 1 |
Assembly Instructions:

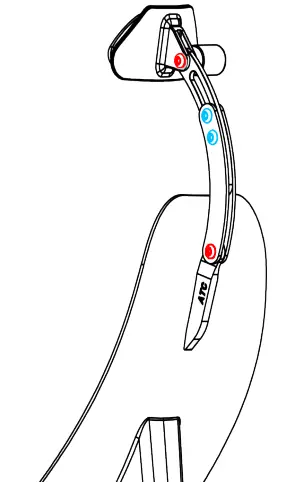

Install ATC Headrest Mount Washer (10) and Sport Touring Headrest Plate Mount (2) on seat using the M5x8 bolts (13). Head rest angle can be adjusted via bolts highlighted in red. Head rest height can be adjusted via bolts highlighted in blue.
 |  |
