Lorex 4k Ultra Hd Fusion Network Video Recorder User Manual

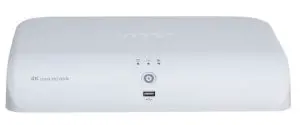

LOREX 4k Ultra Hd Fusion Network Video Recorder

4K Recording with Lorex Fusion™

Record and view clear 4K video resolution, which provides a heightened level of detail and definition. As part of the Lorex Fusion™ collection you can tailor your security system to your needs – simply  pair this NVR with wired and Wi-Fi security cameras, video doorbells, floodlights and sensors. Thanks to smart home compatibility, enjoy seamless viewing by syncing your system to your smart home device. Be confident that your security footage is private and securely stored with the built-in security grade hard drive and never have to worry about any hidden monthly fees. Safeguard features missing and left behind object detection, giving the ability to select up to 3 fields of view. Receive notifications if items in these areas go missing or are left behind, such as a package. Quickly locate Smart Motion Detection Plus events and filter by area, time/date, person, vehicle or person’s face with Smart Search, saving time when reviewing footage. With 4K resolution, Fusion™ capabilities, smart home compatibility and Smart Motion Detection Plus, this recorder’s performance is unmatched.

Picture Perfect
See every detail with superior definition

• Record and view video in up to 4K (8MP) Ultra HD Resolution on all channels1
• Digitally zoom in on distant objects for better clarity2
• View synchronized playback of up to 4 cameras at the same time
• Expand your security system with up to 8 IP cameras with built-in PoE ports

This system was built for your smart home
Enjoy the convenience and control of smart home compatibility and voice control features

• Quickly access your live footage with simple voice commands, compatible with Amazon and Google4
• Control your Active Deterrence cameras features with your voice (compatible with Google Assistant only)

Safeguard™
Protect what matters most

• Set up to 3 areas to keep track of items left behind or removed, such as packages or other items of value. Auto-voice messages can be activated when an event takes place.
• Track and follow motion by customizing your motion detection settings with Active View

Expand your system with Lorex Fusion™
Tailor your security system to your needs

• Pair your system with up to two Lorex Fusion™ compatible Wi-Fi products such as Wi-Fi cameras, doorbells, floodlights, and more3
• Stream and record continuous video from your Wi-Fi devices on your recorder
• Wi-Fi cameras can now record continuously, taking advantage of the hard drive storage space

Smart Motion Detection Plus
Be notified when either a person, vehicle or person’s face is detected on your property

• Smart Motion Detection Plus offers the option of either Face Detection or Person and Vehicle Detection Detection with the ability to receive notifications when a face, person or vehicle are detected on your property via the Lorex Home app
• By activating Face Detection with Mask Detection Technology, get notifications when a person is not waring a mask
• Use Smart Search to search through recorded footage and filter events for motion detected by person, vehicle or face

No Fee Local Video Storage
Keep your footage private and secure

• Max 8TB storage space with no hidden monthly cloud fees
• Security Grade hard drive designed for advanced processing and the workload of 24/7 monitoring

Features

Product Specifications

General

Inputs/Outputs

Display

Recording

Playback

Storage

Special Features

Smart Home

Connectivity

Additional Specifications

Model Information

Dimensions

Back Panel

What’s in the box

Disclaimers

1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
3. Fusion™ capabilities are limited to 2 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
5. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
6. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
7. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
