Service Parts List
MPBD424SG31A 24 Inch, 5.0 Cu. Ft. Built-In Dual Zone Wine and Beverage Center Stainless Steel, Glass Door
MPBD424-IS31 A | ||

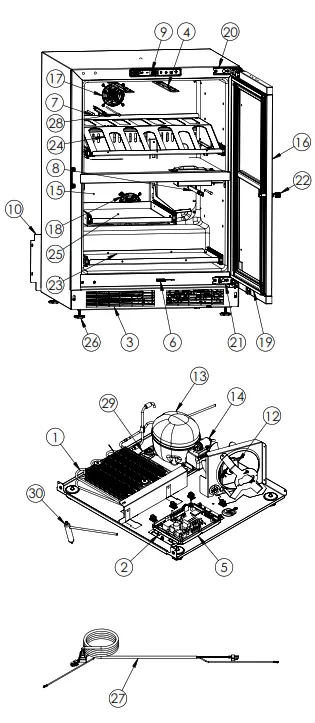

| ITEM | DESCRIPTION | MARVEL PIN |
| 1 | CONDENSER ASSEMBLY | 541015869 |
| 2 | MAIN CONTROL BOARD KIT | S42088795 |
| 3 | GRILLE | S41015650-BLK |
| 4 | LED LIGHT STRIP | 568178 |
| 5 | CONTROL BOARD | 568177 |
| 6 | REED SWITCH | S66010 |
| 7 | UPPER THERMISTOR ASSEMBLY | S41015903-BLK |
| 8 | LOWER THERMISTOR ASSEMBLY | S41015903-BLK |
| 9 | UI DISPLAY KIT | S68167-01 |
| 10 | ACCESS COVER | S41015716 |
| 11 | 115v MECHANICAL HARNESS KIT | S41015773 |
| 12 | CONDENSER FAN MOTOR | 42249159 |
| 13 | EMBRACO COMPRESSOR | S41015395 |
| 14 | COMPRESSOR ELECTRICALS | S41015921 |
| 15 | EVAPORATOR ASSEMBLY | 42249125 |
| 16 | DOOR ASSEMBLY | S42038774 |
| 17 | UPPER EVAP FAN | 541013096 |
| 18 | LOWER EVAP FAN | 541013096 |
| 19 | DOOR GASKET | S31580-035 |
| 20 | UPPER HINGE KIT | 541013108-RH |
| 21 | LOWER HINGE KIT | 541013197-RH |
| 22 | KEYS (2) | S41013540 |
| 23 | 4-BOTTLE WINE/BEVERAGE SHELF | S42138878 |
| 24 | DOUBLE DISPLAY SHELF | S42138879 |
| 25 | GLASS BEVERAGE SHELF | S42138880 |
| 26 | LEG LEVELERS (4) | 42243808 |
| 27 | POWER CORD | S41050606 |
| 28 | EVAP THERMISTOR | S68092 |
| 29 | DRAIN PAN | S41013227 |
| 30 | DRIER | S41013226 |
| 31 | CARTON ASSEMBLY | 42249633 |
marvelrefrigeration.com
616-754-5601
* NOT PICTURED
