SSD7104/SSD7204
4x M.2 Port to PCIe 3.0×8/x16 NVMe RAID Controller
Quick Installation Guide
V1.02
SSD7104/SSD7204 Quick Installation Guide (QIG)
This guide includes hardware descriptions of the SSD7104 and SSD7204 NVMe RAID controllers, explains how to safely install NVMe SSD’s into each card, and provides a series of Resource links for additional installation guides, compatibility lists, and software updates.
SSD7104 Kit Content
- SSD7104 Controller Card
- Quick Installation Guide
SSD7204 Kit Content
- SSD7204 Controller Card
- Quick Installation Guide
Data RAID Prerequisites
Data arrays are used exclusively for storage they cannot be used to boot a system.
- You must have at least one NVMe SSD installed into the SSD7104/SSD7204 controller.
- The SSD7104 must be installed into a PCIe 3.0 and 4.0 x16 lanes.
- The SSD7204 must be installed into a PCIe 3.0 and 4.0 x8 or x16 lanes.
- Operating system:
• Windows 10 / Windows 2016 / Windows 2019
• A Linux Distribution with Kernel 3.10 and later
• macOS 10.13 and later - A motherboard that can support UEFI modes. Please check the SSD7104 Compatibility List and SSD7204 Compatibility List for recommended motherboards.

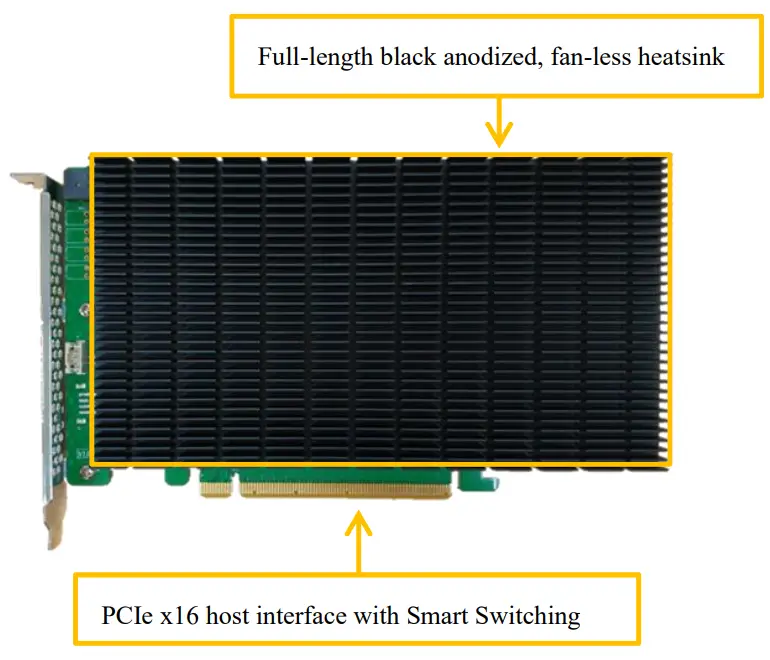

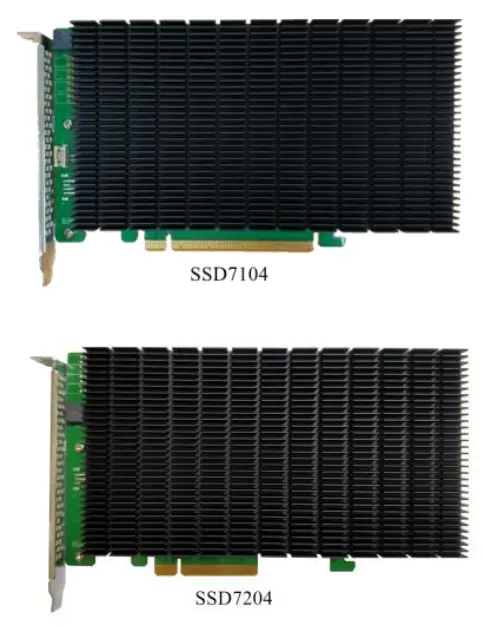

SSD7104 Hardware
Front View

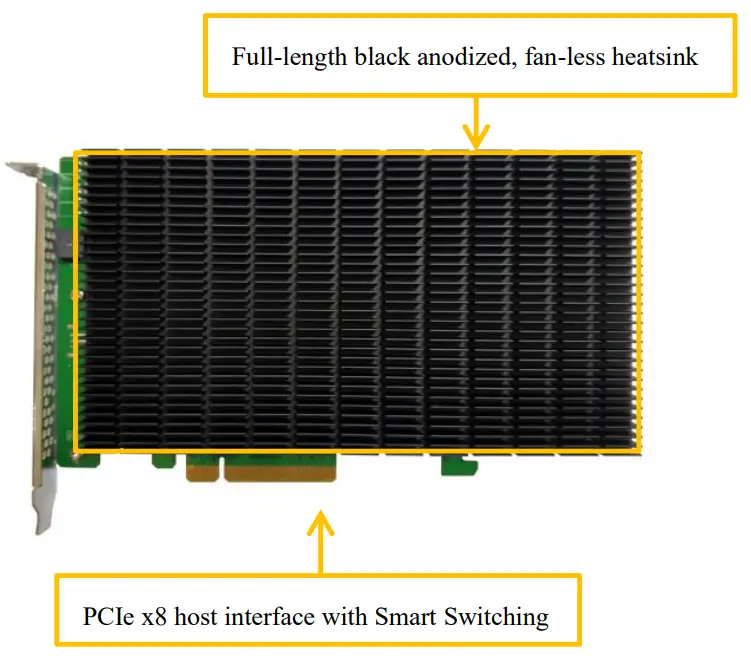

SSD7204 Hardware
Front View
NVMe Drive Installation:
Take SSD7204 as an example:
Step 1.

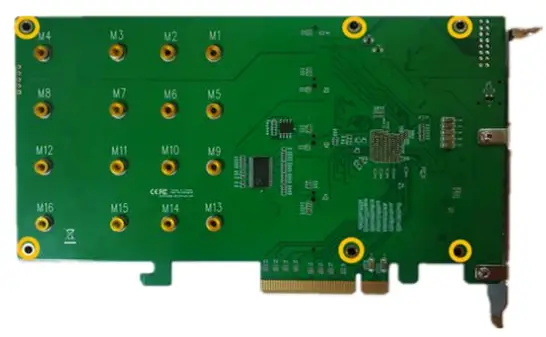

On the rear of the SSD7204, remove the six screws that secure the unit’s heat sink to the PCB.
After removing the screws, carefully remove the heat sink from the SSD7204.
Step 2.

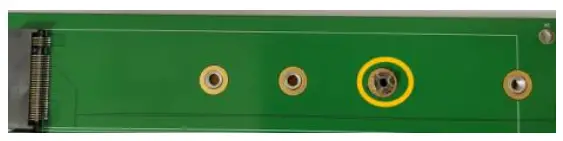

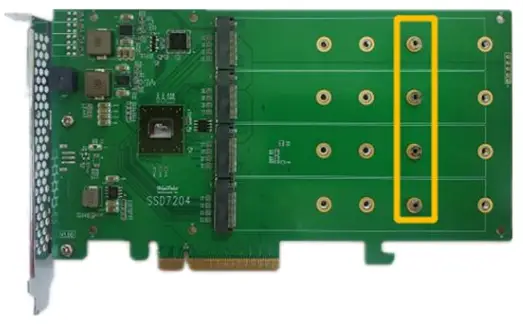

These 4 screws are used to install the NVMe SSD’s.
The SSD7204 can support any M.2 form factor (2242, 2260, 2280, and 22110).
Step 3.
Please remove the screws on the right side of SSD7204
Step 4.

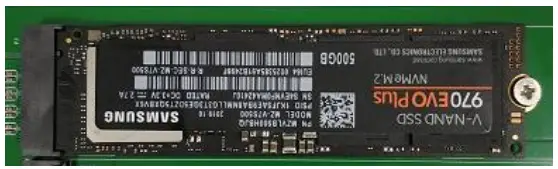

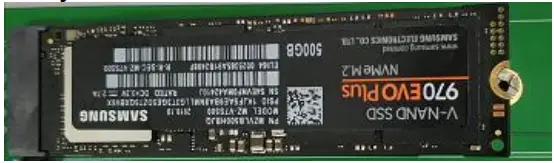

Gently insert the SSD into the slot.
Step 5.
Refasten the screw to secure the SSD.
Repeat Steps 3 to 5 to install the remaining SSD.

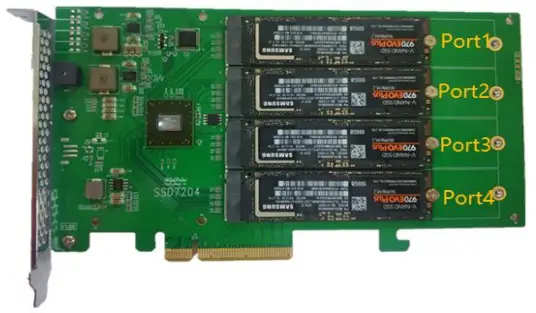

The following example shows four SSD 970 EVO Plus installed into Ports 1 and 4;
Step 6.
Replace the heat sink after installing all SSDs
Step 7.

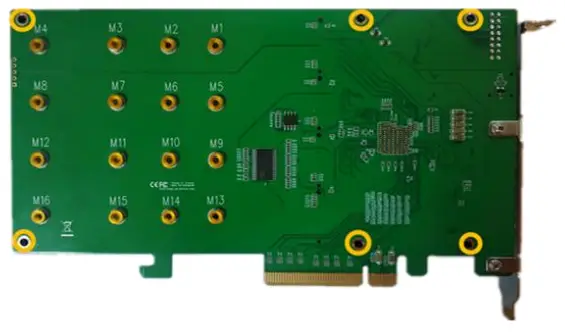

On the rear of the SSD7204, refasten the six screws that were removed in step 1.
Note: Please be sure to connect NVMe before using the product to reduce the occurrence of unnecessary errors!
Note: Install the driver in the system first and then install the board
Resources
A variety of manuals, guides, and FAQs are available for the SSD7104 /SSD7204 RAID controller.
In addition, we recommend visiting the Software Downloads webpage for the latest drivers, management interfaces, and installation guides.
Software Download:
SSD7104 Driver, WebGUI, Installation Guide https://highpoint-tech.com/USA_new/series-ssd7104-download.htm
SSD7204 Driver, WebGUI, Installation Guide https://highpoint-tech.com/USA_new/series-ssd7204-download.htm
Other Reference Information:
Motherboard & NVMe SSD Compatibility List SSD7104 User Guide How To Set Up & Monitor RAID Array
https://highpoint-tech.com/USA_new/series-ssd7104-resource.htm
SSD7204 User Guide How To Set Up & Monitor RAID Array https://highpoint-tech.com/USA_new/series-ssd7204-resource.htm
FAQ & Troubleshooting: https://highpoint-tech.com/USA_new/support-faq-nvme.htm
Customer Support
If you encounter any problems while utilizing the SSD7104/SSD7204 drive, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department.
Web Support: https://www.highpoint-tech.com/websupport/
HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com
© Copyright 2020 HighPoint Technologies, Inc. All rights reserved.
