Clipster Dropix 18461 Cordless Shaver Instruction Manual (+ PDF)

Please read the instructions for use carefully before operating the clippers, especially the „Safety“ section. This will help you avoid possible
hazards and protect against damage to the device due to misuse. Keep the instructions for use handy for future reference. If the device is passed
on to a new owner, please also hand over these instructions for use.

Explanation of terms and symbols

The following terms are used in these instructions for use:

	If disregarded, can lead to serious injuries or death
	If disregarded, can lead to serious injuries (or death)

Note: Information that should be observed when handling the device

Danger of an electric shock! The device may never be charged while in the bath, shower, over a filled washbasin / other container

Intended use

The clippers are used to trim hair/fur
the device is designed for indoor use only. It should not be operated outdoors (garden, terrace, etc.).
if the device is used in a manner that does not comply with the intended use and/or if modifications are made to the device, then this voids the
manufacturer`s warranty and liabilities

Important danger warnings

The device`s power pack should only be operated in dry areas. Do not use the device in the shower or bath when it is connected to the power pack.
completely dry the device after use before it is put away
if the device falls into water or becomes wet due to spray water, completely shake the water out of the connector plug and On/Off switch before re-connecting the device for charging
The integration of a residual-current-operated protective device, with a nominal tripping current of less than 30 mA, in the building installation provides additional protection. We recommend that you have your electrician install residual current protection for your power circuits.
The device must be disconnected from the power supply when the battery is charged or after at least 8 hours of pure charging time
if the battery does not fully charge after 8 hours, do not operate the device and contact the manufacturer.

	The clipping head can become hot after extended use!
	The clipper may only be operated with a power pack that meets the specifications on the nameplate. The device may only be operated with a power pack that delivers the SELV output voltage specified on the device’s markings.

General safety instructions

Never operate the device if:

The device, charging tray or connecting cable is damaged
The clipping head is damaged or chipped because this can injure the skin · the device is dropped, shows visible damage or its functionality is impaired
The device is damaged so that electrical components are exposed

In each case, the device must be disconnected from the mains immediately!

This device can be used by children 8 years of age and older and by individuals with impaired physical, sensory or mental abilities or those with insufficient experience and knowledge to do so, if they are being supervised or have been trained on the safe use of the device and understand the underlying hazards. Children may not play with the device. Cleaning and user maintenance may not be performed by children without supervision.

children should be supervised at all times to ensure that they do not play with the device. Make sure that children do not injure themselves on the clipping head. Keep the device out of the reach of children.
also keep the packaging material, e.g. films, away from children
lay the connecting cable in such a way so that no one can trip over or step on it
protect the connecting cable from damage. Never pull on the connecting cable. Always remove the cable from the power outlet by grasping the
power pack plug. Keep the cable away from hot surfaces. Check the connecting cable for damage on a regular basis.
never expose the device to temperatures under 0 °C or over +40 °C for long periods of time. Avoid direct sunlight.
repairs may only be performed by authorized personnel in order to avoid a hazard
disconnect the device from the power supply for maintenance and parts replacement
the clipping head may not be taken apart

Safety during operation

Never touch or reach into the clipping head when the device is switched on.

The clipping head must be cleaned on a regular basis and oiled at the corresponding locations to ensure problem-free operation.

The device must be switched off when:

you put the device down, e.g. to charge it or when you interrupt the cutting process for a brief period
you attach or remove the comb attachment · you clean or oil the device

Only use the clipper together with original accessories (charging tray, comb attachment, etc.). Never use sharp objects (e.g. a tail comb) to remove dust or foreign objects from the interior of the device.

Charging

when the device is delivered, it is not yet ready for operation
before connecting the clipper to an outlet, make sure that the mains voltage matches the voltage listed on the nameplate of the power pack
in order to maintain the charge capacity of the battery, we recommend that you occasionally discharge the battery by operating the device until the motor stops
please charge the device for a full 8 hours before first use so that the included rechargeable battery is activated
please do not charge the device in temperatures under 0 °C or higher than 40 °C
please do not charge the device while exposed to direct sunlight or the heat of a radiator
the standard charge time is 60 minutes. Avoid extended charge times to prevent damage to the battery.
when the device is fully charged, it can be used for longer than 60 minutes. A red indicator light is on during charging.
move the switch to ON to use the device

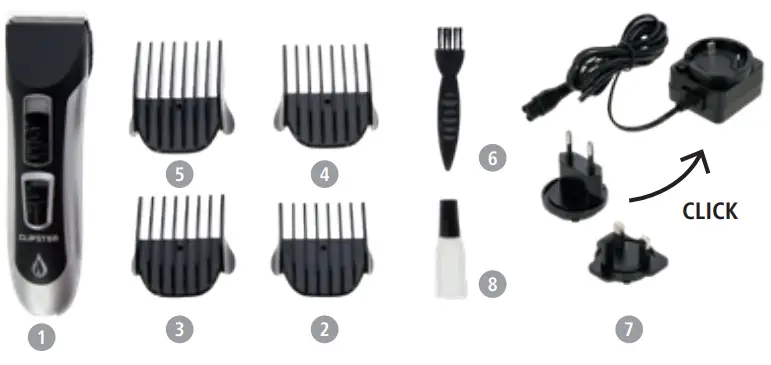

Scope of delivery

Clipper
Comb (3 mm)
Comb (6 mm)
Comb (9 mm)
Comb (12 mm)
Cleaning brush
Power pack 8 Oil

Operation, cleaning and care

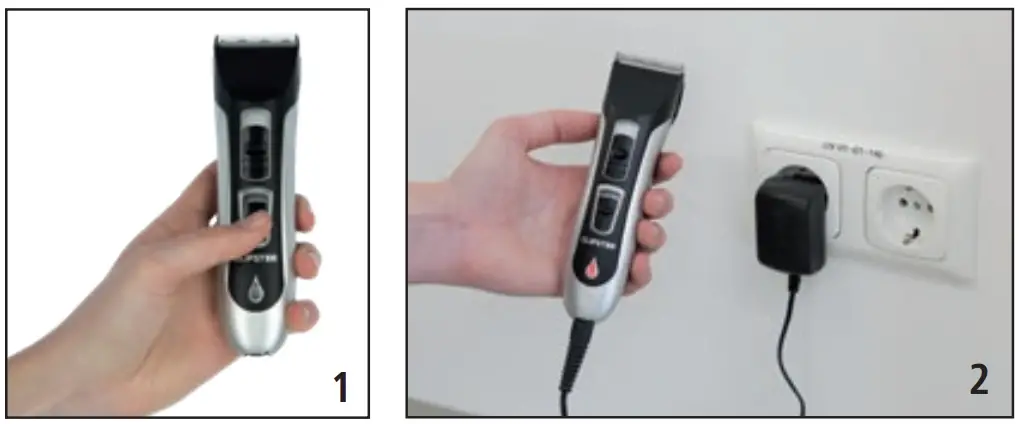

Switching on and off: Slide the On/Off switch forward to turn the device on. Slide the On/ Off switch back to turn the device off (fig. 1).
This clipper can be used via its cable as well as without its cable.
Connect the power pack to the device socket located on the bottom of the device. Then connect the power pack to the power (fig. 2).

Cutting height adjustment:
The clippers have a 4-stage, cutting height adjustment via a slide switch (fig. 3). You can select between 1.0 mm, 1.3 mm, 1.6 mm and 1.9 mm.

Using the comb accessory:

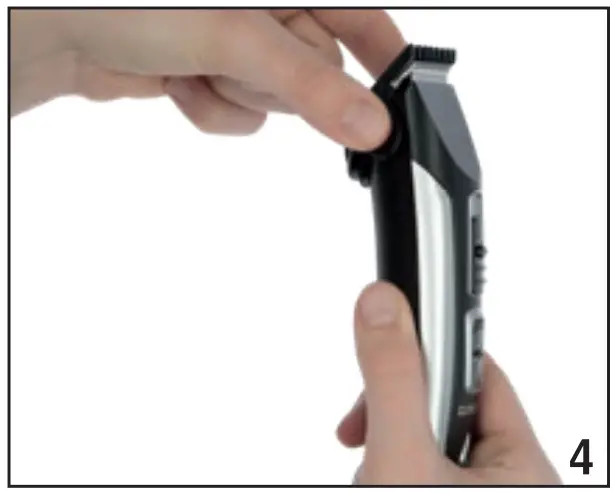

Make sure that the clipper is switched off when installing and removing the comb. Four combs are available (3, 6, 9, 12 mm) for different cutting lengths. Place the comb onto the clipping head, making sure that it engages on the side (fig. 4).

Clean and oil the device on a regular basis to ensure the problem-free function and full functional

Cleaning the clipping head:

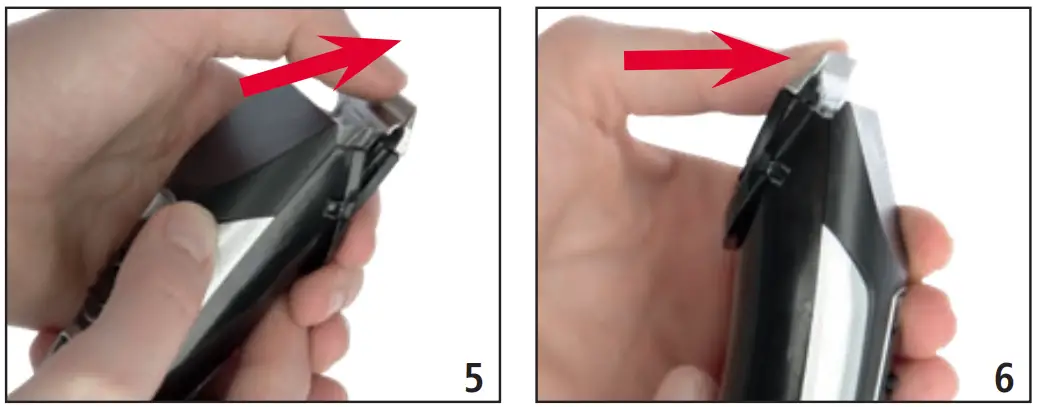

The clipping head should be thoroughly cleaned once a day with regular use. Switch the device off. Disconnect the device from the power supply. Remove the comb attachment and press in the centre of the shearing blades to remove them (fig. 5). Remove the hair with the cleaning brush.
Place the clipping head back onto the clippers as shown in fig. 6. Make sure that the maximum cutting height (1.9 mm) is set and that the locking mechanism is positioned properly and press the cutter head onto the device until it engages.

Oiling the clipping head:
The clipping head must be oiled to ensure the good cutting results of the clipping head for as long as possible (during operation every 15 min. and when stored, preferably on a daily basis). Remove the comb attachment. Use the brush to clean the cutting edge, removing the hair between the blades. Oil the locations where the upper and lower part of the clipping head touch. The device must be oiled immediately when the shearing performance diminishes noticeably or the temperature of the clipping head seems too high. The clipping head should be oiled once per day when the clippers are not in use.

Replacing the clipping head:
The clipping head is a wear part. Despite good care, the cutting performance will diminish. At this point, the clipping head should be replaced. The clipping head can be ordered individually as a spare part (ref. no. 18465). When replacing the clipping head, you can remove the residue hair within the clippers using the brush. Press in the centre of the shearing blades to remove them (fig. 5). Place the new clipping head back onto the clippers as shown in fig. 6. Make sure that the maximum cutting height (1.9 mm) is set and that the locking mechanism is positioned properly and press the cutter head onto the device until it engages.

Cleaning the device:
Wipe off your device occasionally using a moist cloth, then rub it dry.

5. Troubleshooting

What to do, when the device cannot be switched on?

is the battery empty? Connect the power pack and charge the clippers
is the clipping head dry? The clipping head must be oiled

… the clipping head does not operate smoothly?

the clipping head must be oiled
the top and bottom blades can become stuck when not in use for longer periods of time

… the charging display does not light up when charging?

make sure that the power pack is connected properly

… the device switches off by itself?

the battery is empty. Charge the clippers

… the battery can no longer be charged?

•the battery or the power pack is defective. The power pack can be re-ordered. If the battery is defective, then the device must be disposed of properly

Technical data

	Clipper	Power pack
Art. No.	18461	18494
Motor speed	6000 rpm	–
Charging time	60 min	–
Shearing time	60 min	–
Weight	197 g	69 g
Input voltage	5V DC	100-240 V
Frequency	–	50/60 Hz
Battery capacity	600 mAh	–
Current consumption	max. 2000 mA	0,2 A
Ambient temperature charging process/use	0°C – 40 °C	0°C – 40 °C
Protection class	III	II
IP Protection type	IPX7	IPX0

CE-/UKCA-conformity declaration
Albert KERBL GmbH hereby declares that the product / device described in these instructions complies with the fundamental requirements and other relevant stipulations and regulations. The CE-/UCKA-mark confirms compliance with the Directives of the European Union or the reliant UK legislation.

Electronic scrap
Disposing of this device after its service life is the responsibility of the operator. Please consult the valid national regulations. The device must not be disposed of in household waste. In accordance with the stipulations of the EU Directive on the Disposal of Electrical and Electronic Devices, the device can be disposed of free of charge at the local waste collection or recycling center. Alternatively, it can be returned to retailers who offer a collection service. The proper disposal helps to ensure environmental protection and prevents any adverse effects on human health and the environment.
