Panasonic Mx-mp5151 700 W Plastic Jug Blender Instruction Manual

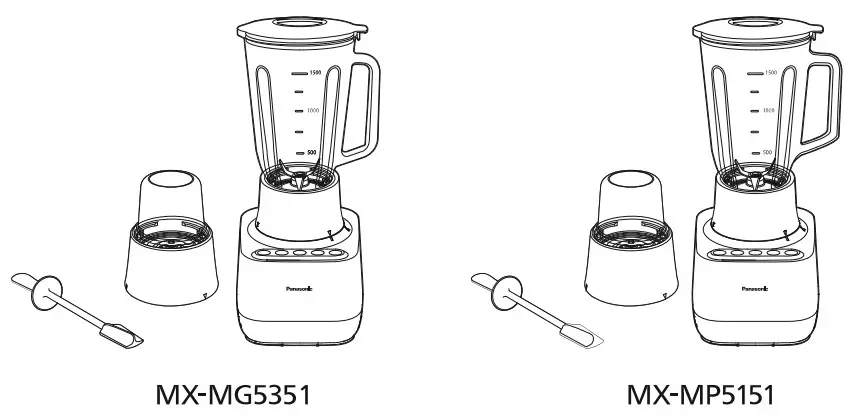

MX-MP5151 700 W Plastic Jug Blender
Instruction Manual

Thank you for purchasing this Panasonic product.

• Please read these instructions carefully to use the product correctly and safely.
• Before using this product please give your special attention to “Safety Precautions” and “Important Information” (P. EN2 – EN4).
• Please keep this Operating instruction for future use.
• Panasonic will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

Safety Precautions

Please make sure to follow these instructions.

To reduce the risk of personal injury, electric shock, or fire, please observe the following:
The following signals indicate the degree of harm and damage when the product is misused.

WARNING:	Indicates potential hazards that could result in serious injury or death.
CAUTION:	Indicates a potential hazard that could result in minor injury or property damage.

The symbols are classified and explained as follows.

	This symbol indicates prohibition
	This symbol indicates re requirement that must be followed

WARNING
To avoid the risk of electric shock, fire due to short circuit, smoke, scald, or injury.

• Do not allow infants and children to play with packaging material.
• (It may cause suffocation.)
• Do not disassemble, repair or modify this appliance.
• Contact Panasonic Service Centre for inspection or repair.
• Do not damage the power cord or power plug.
• The following actions are strictly prohibited:

Modifying, touching on, or placing near heating elements or hot surfaces, bending, twisting, pulling, hanging pulling over sharp edges, putting heavy objects on top, bundling the power cord, or carrying the appliance by the power cord.

WARNING

• Do not plug or unplug the power plug with wet hands.
• Do not use the appliance if the power cord or power plug is damaged or the power plug is loosely connected to the outlet.
  ➔ If the power cord is damaged, it must be replaced by the manufacturer, its service centre or a similarly qualified person in order to avoid a hazard.
  ➔ Insert the power plug firmly.
• Do not immerse the motor housing, power cord or power plug in water, or splash it with water and/or any liquid.
• This appliance is not intended for use by persons (including children) with reduced physical,
  who have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep the appliance and its power cord out of reach of children.
  sensory or mental capabilities, or lack of experience and knowledge, unless they
  • • Dust off the power plug regularly.
  ➔ Unplug the power plug, and wipe with a dry cloth.
  Discontinue using the appliance immediately and unplug in the unlikely event that this appliance stops working properly.
  e.g. for abnormal occurrences or breaking down
  • The power plug or the power cord become abnormally hot.
  • The appliance power fails.
  • The motor housing is deformed, has visible damage or is abnormally hot.
  • There is a crack on the blender jug or other parts .
  • There is an unpleasant smell.
  • There is abnormal turning noise while in use.
  • There is another abnormality or failure.
  ➔ Contact Panasonic Service Centre for inspection or repair .
• Make sure the voltage indicated on the label of the appliance is the same as your local supply.
  Also, avoid plugging other devices into the same outlet to prevent electric overheating. However, if you are connecting a number of power plugs, make sure the total wattage does not exceed the rated wattage of the outlet.
• Be careful if hot liquid is poured into the blender jug as it can be ejected out of the appliance due to a sudden steaming.

CAUTION
To avoid the risk of electric leakage, electric shock, fire due to short circuit, scald, injury or property damage.

• Do not use the appliance in the following places.
  • On uneven surfaces, on carpets or tablecloths etc.
  • Place where it may be splashed with water or near a heat source.
  • Near any open water such as bathtubs, sinks, or other containers.
  • Near a wall or furniture.
  ➔ Place the appliance on a firm, dry, clean flat worktop.
• Do not blend or place over 60 °C ingredients into a blender jug or mill container.
• Do not open the lid and put your fingers or utensils such as a spoon or fork into the blender jug while the appliance is operating.

Safety Precautions

CAUTION

• Do not stretch the gasket to avoid deforming.
• Do not replace any parts of the appliance with non-genuine spare parts.
• Do not carry the appliance by holding the power cord, blender jug or mill container.
• Do not insert any object in the gaps of the appliance.
• Do not blend more than the working capacity marked on the blender jug. For the mill (P. EN5) container, do not place more than the maximum quantity. (P. ENS “Specifications” )
• Do not use prohibited ingredients as stated in these instructions. (P. EN6)
• Do not push the safety lock pin with any implement, such as a thin stick etc.
• Unplug the plug when the appliance is not in use.
• Make sure to hold the power plug when unplugging it. Never pull on the power cord.
• Beware not to trip over or get caught in the power cord while in use.
• In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• Care shall be taken when handling the sharp blades, emptying the blender jug, and mill container and during cleaning. Do not clean the blender blade or mill blade by bare hand.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling, moving or cleaning.
• Switch off the appliance and disconnect from the supply before changing attachments or approaching parts that move in use.
• Ensure to operate and rest the appliance as stated on the specification table. (P. ENS “Specifications”)
• Ensure to clean the appliance especially surfaces in contact with food after use. (P. EN7 “Cleaning and Care”)
• This product is intended for household use only.

Important Information

• Do not use the appliance outdoors.
• Do not use the appliance for commercial purposes.
• Do not place the mill container on any heat sources or in a microwave.
• Do not drop the appliance or attachments to avoid damaging it.
• Do not wrap the power cord around the motor housing.
• Make sure the parts or attachments are set firmly before use.
• Do not operate the appliance without ingredients.
• Be sure the blender gasket and mill gasket are attached properly to prevent leakage.

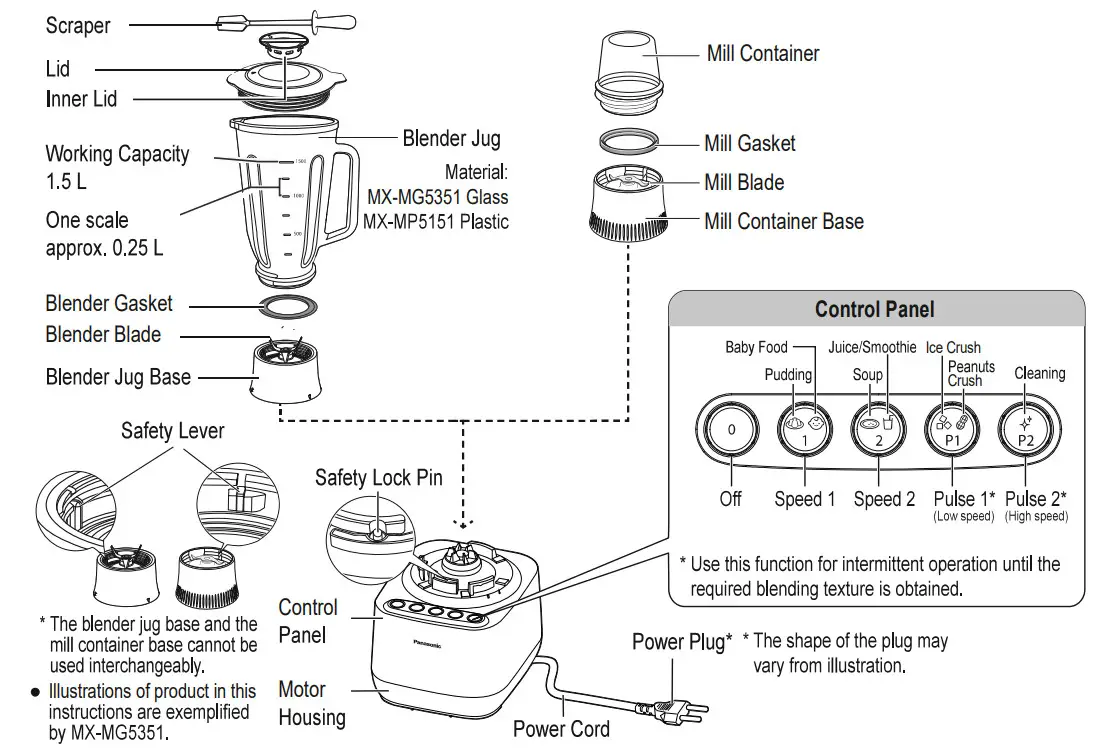

Parts Names and Instructions

• Blender
• Wet & Dry Mill


The Safety Lock has been designed to prevent the appliance from switching on when the blender jug or mill container is not properly in place.
Note:

• Do not push the Safety Lock Pin and any Safety Levers with any instrument such as a stick.
• Do not pour liquids or ingredients at the Safety Lock Pin and Control Panel area.
• Keep the Safety Lock Pin and Safety Lever area clean to avoid foreign particles accumulating in the area.

Overload and Overheating Protection

In case of overload and overheating, the protection device is triggered to stop operation and it is not abnormal.
After rotation stops, follow the below steps:

• Do not use the appliance repeatly without any countermeasure.
  1. Press the “0” button and unplug the appliance.
  2. Remove the attachment from the motor housing. Remove the excess ingredients and ensure that the amount used is as stated. (For blender
  jug, it also can add liquid.)
• Ensure that the ingredients are cut into the stated sizes.
• Remove the prohibited ingredient if used.
  3. Reset the attachment, then start again. (P. EN7)
  If the appliance still does not operate after performing the above, overheating protection has been activated.
  Press the “0” button, unplug and rest the appliance for about 15 minutes or more (until motor housing returns to a normal temperature) to release overheating protection before using it again. (If the appliance still does not operate, contact Panasonic Service Centre for inspection or repair.)

Before Use

Clean all detachable parts before using the appliance for the first time or when you have not used it for a while, and then assemble them securely. (P. EN6 “How to Use” and P. EN7 “Cleaning and Care” )

Blender
Handling Precautions

• Dice food first (1 –
• 2 cm), then blend with liquid.
• Do not place ingredients with a maximum total volume exceeding 1.5 L in the blender jug.
• Do not operate for more than 3 minutes at one time, rest about 1 minute before use again.
  When blending thick ingredients such as boiled beans or garlic, do not fill the blender jug more than 1/3 full nor operate more than 2 minutes.
• It is prohibited to place the following kinds of ingredients in the blender jug
  Meat, fish, hard ingredients (e.g. turmeric, dried soya beans, frozen ingredients, cassia cinnamon), very sticky ingredients (e.g. peanut butter), ingredients with low water content (e.g. mashed potatoes) or commercial ice cubes.

Handling Precautions

• Do not place any ingredients/liquids more than 50g/ 0.2 Lin the mill container.
• Do not operate for more than 1 minute, rest about 2 minutes before use again.
• It is prohibited to place the following kinds of ingredients in the Mill Container. Meat, fish, hard ingredients (e.g. turmeric, dried soya beans, frozen ingredients, cassia cinnamon), ingredients with high hard fibre, very sticky ingredients (e.g. peanut butter) or any ice cubes.

Guide of Menus and Functions

Function	Menu		Speed	Quantity	Operating Time (approx.)	Preparation Method
Blender	(Pudding)		1	350 -1 000 mL	Max 10 sec	Remove the floating bubbles if necessary.
	(Baby Food)	Porridge	1	300 – 600 g	30 – 60 sec	For porridge: Recommended ratio of rice: to water is 1:10. For boiled spinach: – The recommended ratio of boiled spinach: to water is 2:1. – Boil the spinach for more than 5 minutes to soften it. For boiled carrots: Place the same amount of water as the ingredients and blend. For all menus: After blending the baby food, transfer it to another container and sterilize by heating it.
		Boiled Spinach + Water	1	300 – 400 g	60 -120 sec
		Boiled Carrot + Water	1	250 – 800 g	30 – 90 sec
	(Ice Crush) (MX-MG5351 only)		P1	Max 220 g (For a piece of ice cube size greater than 10 g and less than 20 g)	Blend until there is no sound.	– Only use 20 g ice cubes or less which are made from a household refrigerator. Do not use commercial ice cubes. – If the crushed ice stick to the wall of the blender jug, turn off the appliance and remove the blender lid. Insert the scraper to circulate.
				Max 250 g (For a piece of ice cube size approx 8-10 g)
	(Soup)		2	250 -1 000 mL	Max 2 min	–
	(Juice/Smoothie)		2	250 -1 500 mL	Max 2 min	For Smoothie: Only use approximately 20 g ice cubes or less which are made from a household refrigerator. Do not use commercial ice cubes and ensure to add liquid or place ingredients with high water content.
	(Cleaning)		P2	750 mL	3 -10 times (1 sec ON, 1 sec OFF)	Operate with water only.
Wet & Dry Mill	Coffee Beans		2	Max 50 g	15 – 30 sec	–
	Pepper		2	Max 20 g	Max 60 sec	–
	Dried Chilli		2	Max 20 g	Max 60 sec	Remove the seeds.
	(Peanuts Crush)		P1	Max 50 g	Max 20 times (1 sec ON, 1 sec OFF)	Remove peanut shell and skin.
	Fresh Chilli		2	50 g + 20 mL of water	Max 60 sec	–
	(Cleaning)		P2	100 mL	3 -10 times (1 sec ON, 1 sec OFF)	Operate with water only.

How to Use

Blender

1. Place the ingredients into a blender jug, and then close the lid.
   • Pour liquid first, followed by soft ingredients and then others.
   (i) Liquid (ii) Soft ingredients (iii) Hard ingredients (iv) Ice cubes

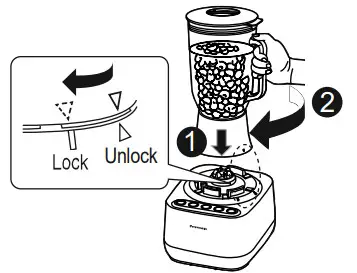

2. Attach the blender jug to the motor housing.
   1. Align the on motor housing with theon the blender jug base.
   2. Twist the blender jug clockwise until you hear a clicking sound.
   3. Blender jug only can be attached by the above steps.

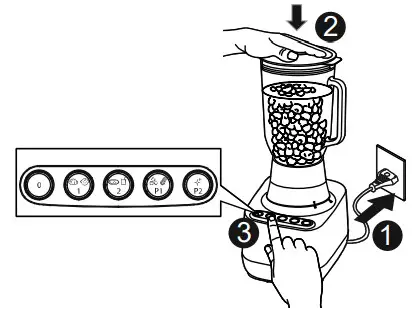

3. Plugin. Hold the lid, and then turn on the appliance by pressing the required speed.
   • If the appliance stops during operation. (P. EN8)

4. When blending is completed, switch off by pressing the “0” button. Unplug.
   Turn the blender jug anticlockwise to remove it, open the lid and take out the ingredients.

1. Turn the mill container upside down and place the ingredients in it. Twist the mill container base clockwise until you hear a clicking sound.

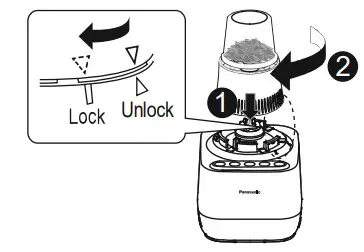

2. Attach the mill container to the motor housing.
   1. Align the /on the motor housing with the v on the mill container base.
   2. Twist the mill container clockwise until you hear a clicking sound.
   • Mill containers only can be attached by the above steps.

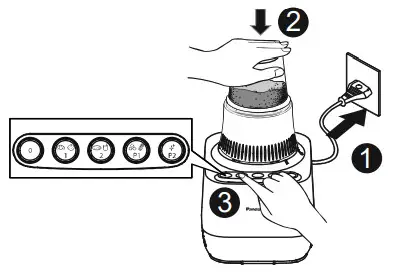

3. Plugin. Hold the mill container, and then turn on the appliance by pressing the required speed.
   • If the appliance stops during operation. (P. EN8)

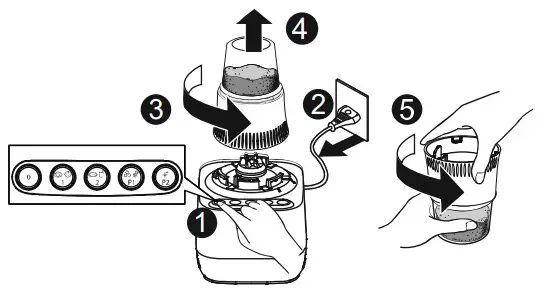

4. When grinding is completed, switch it off by pressing the “0” button. Unplug.
   Turn the mill container anticlockwise to remove it, open the mill container, and take out the ingredients.

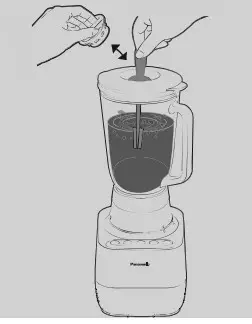

How to use the scraper

• It can be inserted through the lid opening while blending without interfering with the blender blade.
• Slide the scraper through the lid opening and scrape to remove food sticking to the blender jug sides.
• To avoid ingredients splattering, it is recommended to insert the scraper from the lid opening when using the blender jug.

Scraper is useful when

• too little liquid makes ingredients hard to blend. (e.g. for dips, sauces, curry dishes)
• ingredients stick to the inner side of the container. (e.g. crushed ice, garlic, chile pepper)

Cleaning and Care

• Unplug before cleaning.
• Clean the parts thoroughly after every use. Keep all parts clean and dry always.
• Do not wash any part of the appliance in the dishwasher.
• Do not use benzine, thinner, bleach, alcohol, nylon face of sponge, metal brushes or polish powder etc.
• Some discoloration of the plastic parts may occur upon usage but it does not affect usage.

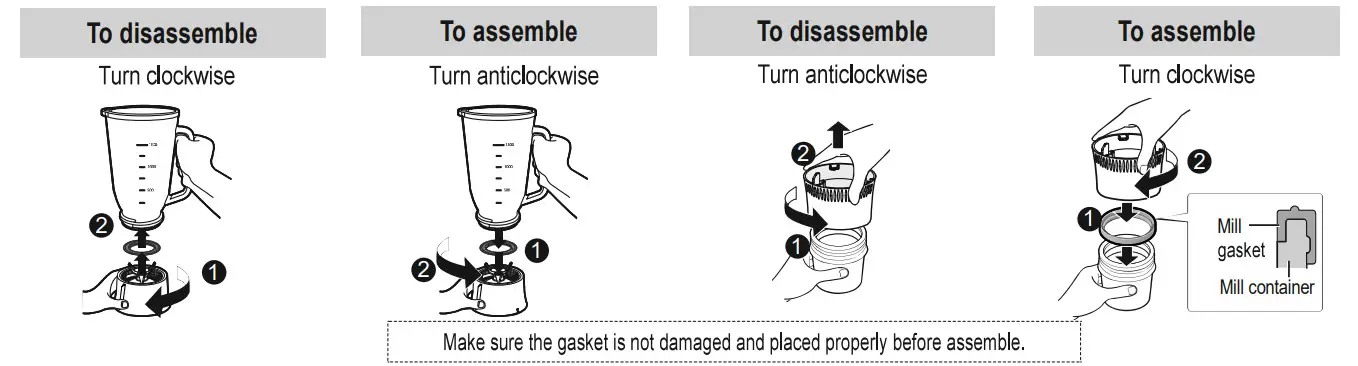

Blender Jug Prewash
Add 500 ml clean water into the container, plug in and blend for about 1 minute.

Storing

• Assemble the blender jug base/mill container base with the blender jug/mill container.
• Dry the lid thoroughly, then keep it separately.

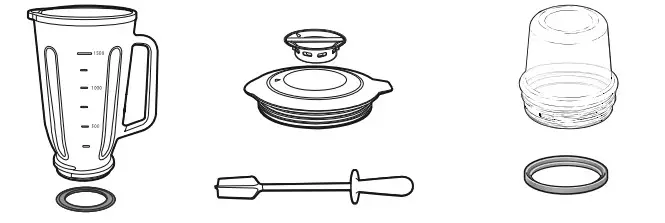

Containers and Other Parts

Wash the parts using a soft sponge soaked in diluted kitchen detergent (neutral). Rinse and dry thoroughly. (Brush is not provided.)

• Remove the gaskets before washing.

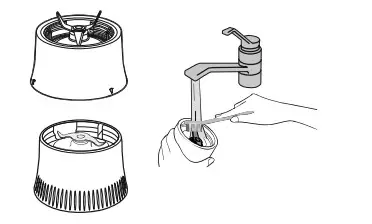

Blades

Carefully clean blades with a brush under running water.
(Brush is not provided.)

Motor Housing

Wipe the motor housing with a damp cloth.

Troubleshooting

Before calling for service, please check through this section.

Specifications
